Cohort Die Cast

The Cohort has been manufactured to be tough and easy to install. The fitting base is manufactured using high-grade polycarbonate material and is mounted on a hinged metal gear tray for quick installation.

Read More...
download Product Datasheet

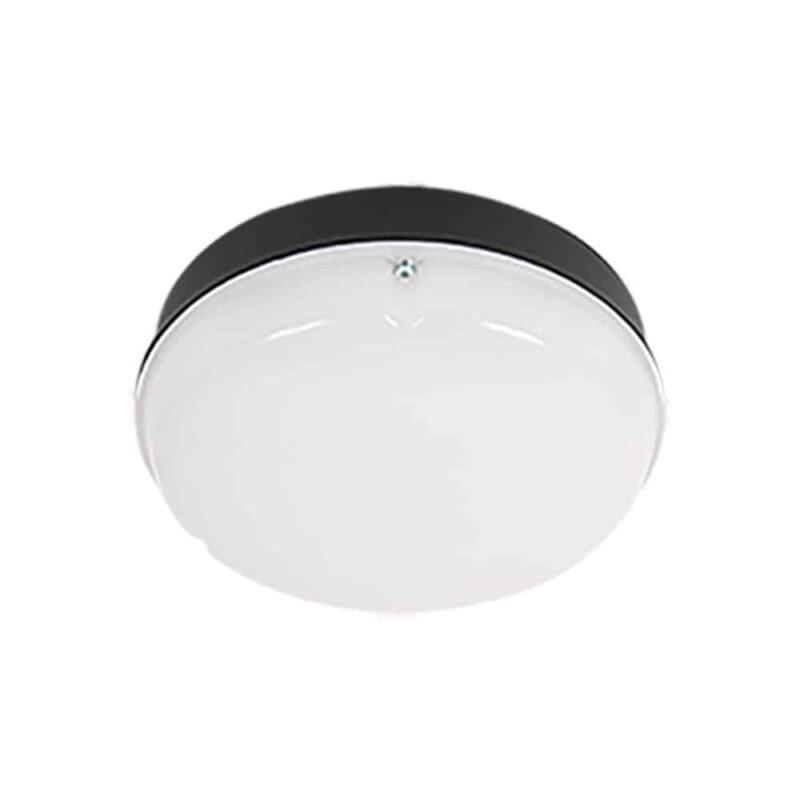

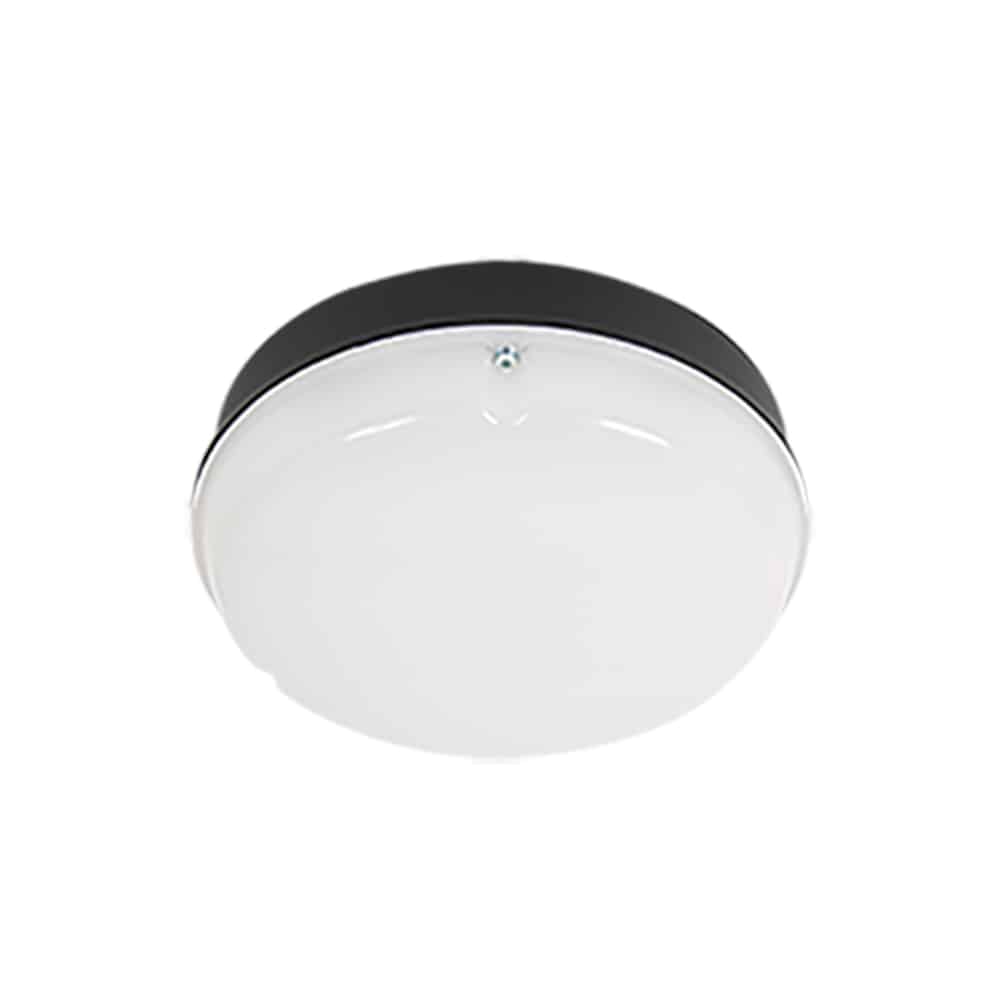

Cohort (die-cast)

Our Cohort circular die-cast bulkhead has been specifically designed for use in vulnerable areas where a further degree of protection is required for the luminaires.

Cohort (die-cast)

SKU: CH-D

for any product enquiries call the team on   01727 836 695

The Cohort has been manufactured to be tough and easy to install. The fitting base is manufactured using high-grade polycarbonate material and is mounted on a hinged metal gear tray for quick installation. The diffuser is made from top-quality thermoplastic polymers that have been designed to maximise the light output ratio (LOR). The 4000K standard option provides consistent, bright illumination to keep high-risk areas well lit as a deterrent and safety measure.


For additional protection in high-risk areas, the die-cast variant of the Cohort is IK10 rated, meaning it is protected against 20 joules on impact. This makes it extremely safe and vandal-proof for your peace of mind. All models are 320mm in diameter and 94mm in height and the Cohort die-cast luminaire is available in 14W and 20W models. An eyelid option of this luminaire is also available.

  • Die-cast aluminium base
  • High performance polycarbonate diffuser
  • BESA box and conduit entries
  • Presence detection options
  • Stainless steel anti-tamper screws
  • Suitable for interior or exterior use
  • Hinged gear tray
  • IP65
  • 3000K available

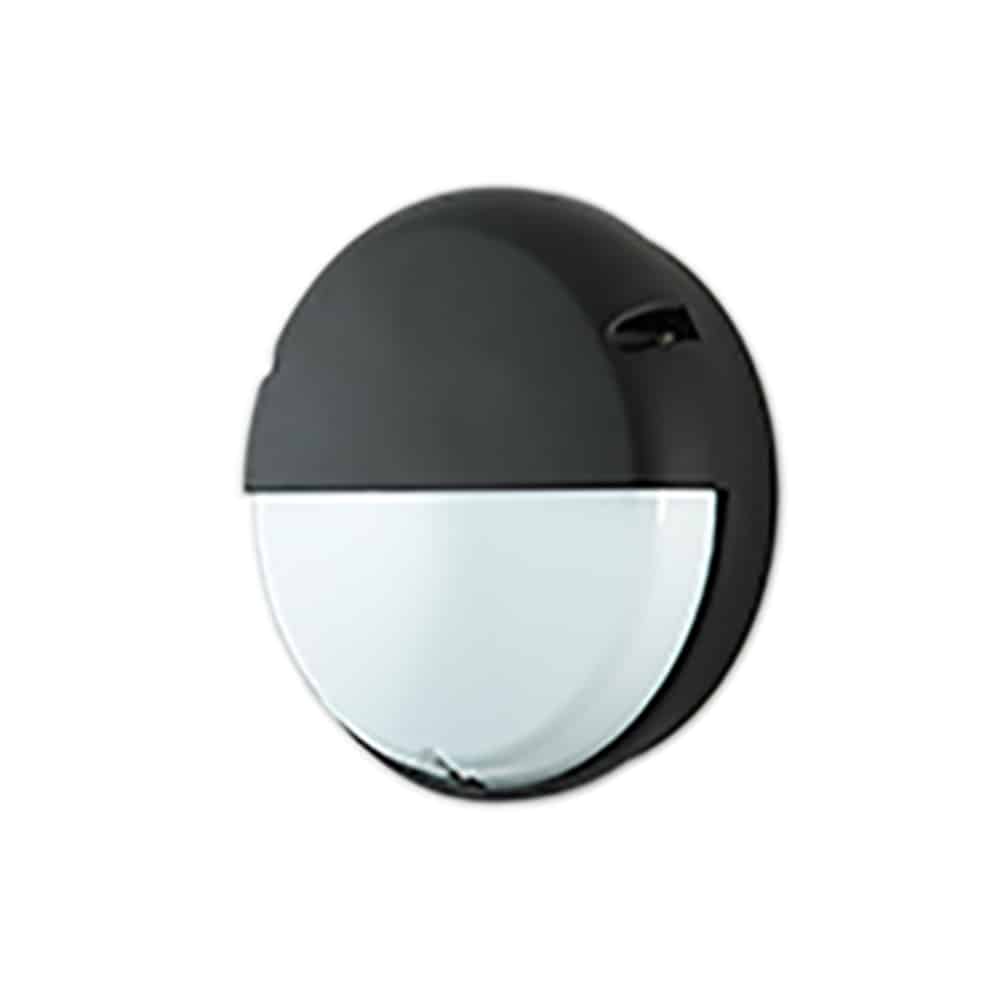

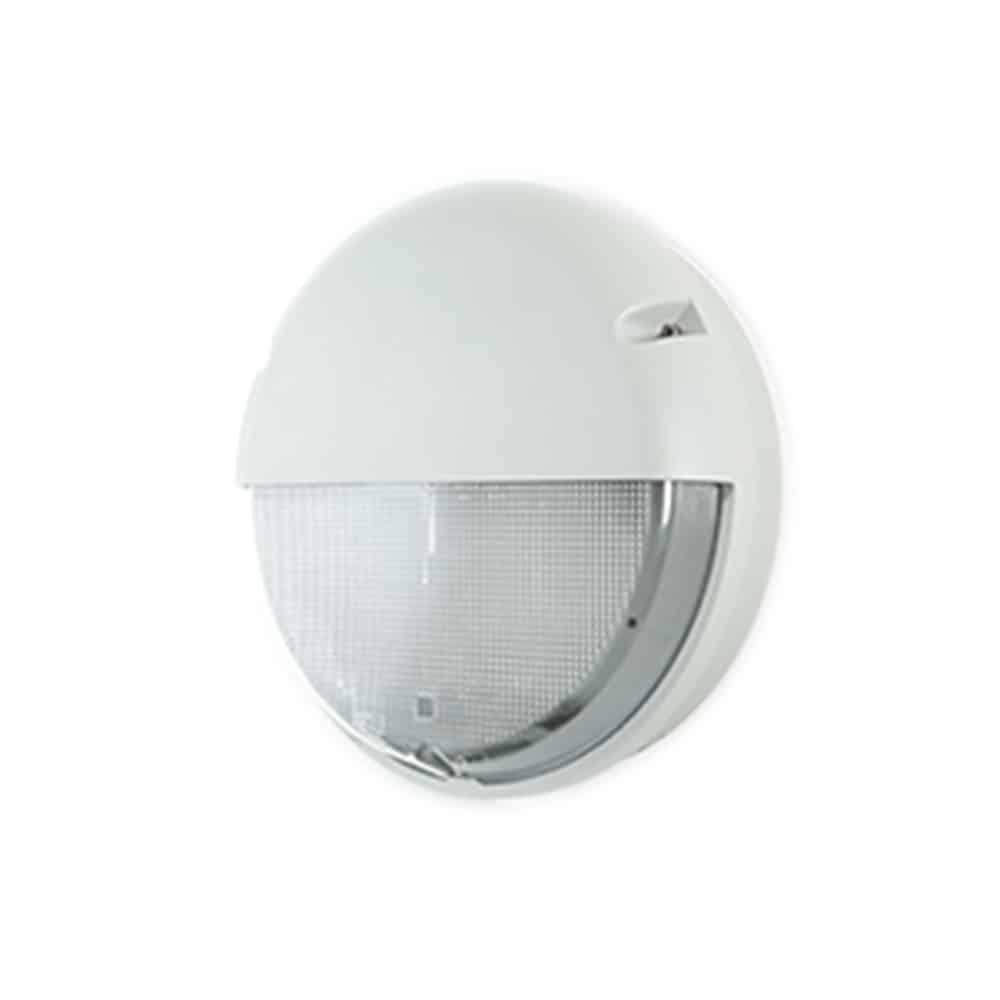

  • Eyelid option available
  • IK10 Rated

Typical Applications


High-security areas where vandalism is a problem e.g., communal stairwells, external lighting, storerooms, toilet blocks and public buildings.



Product CodeLED WattageLumen OutputColour Temperature
CH-D14LDE14w LED15854000K
CH-D20LDE20w LED20504000K



Product Options




Option Code
PPresence detection
DALIDALI/DSI dimmable driver
M3 hour maintained emergency
MZ3 hour maintained DALI emergency
PHDusk to dawn photocell
PCFDimmable presence detection



Size Options




Size
Ø 320mmH 94mm
