Oreo Range

Oreo V OUT

need assistance on this product? call us now 01582 369 005

oreo-v-out-img1

oreo-Vin-gallery1

Description

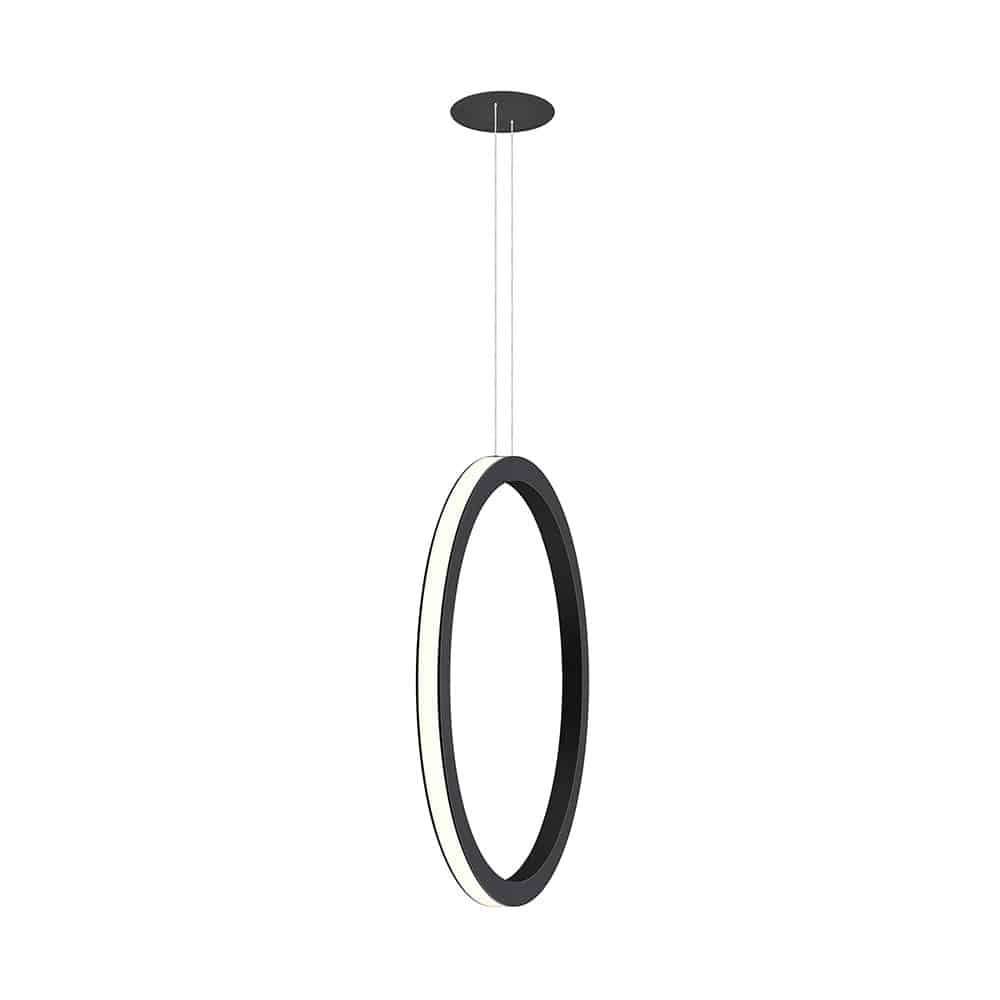

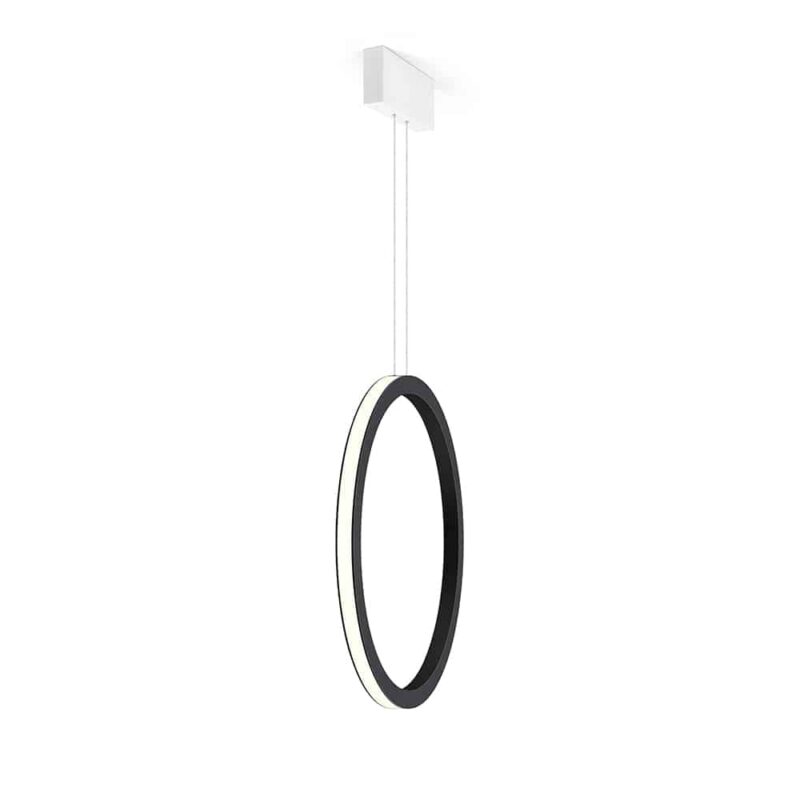

Circular LED luminaire, for vertical suspension. Extruded aluminium body with 35×35 mm, epoxy polyester powder-coated. Available in 5 sizes (Ø630, 950, 1270, 1555 and 1970mm), with bLINE diffuser, opal polycarbonate clip-in diffuser. With outward light. Standard version in 4000K LED, CRI>90, 60.000h lifetime (@L80, B10, Ta 25ºC) and without any visible power-supply cable. Ceiling rose available as recessed mounted with trim or trimless, or surface mounted, in on/off, dimmable DALI or with OmniaControl. 2700K, Tunable White and RGB White available as options. Available in 16 different colours.

Key Features

Body: Extruded aluminium.
Finish: Powder coated.
Diffuser: Polycarbonate.
Light source: LED 4000K, CRI>90.
LED life time: 60.000h @ L80, B10, Ta 25°C.
Control gear: Not included.

Oreo V OUT

£0.00

Request sample/quote

Oreo V OUT

SKU: CRA-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1

Enquire today

Product Options

Product Code	LED Wattage	Lumen Output	Lumen/Watt	Colour Temperature	Size
ORE28/IN	28W	2600	93	4000K	Ø 650mm x H 3 5mm
ORE42/IN	42W	3900	93	4000K	Ø 970mm x H 3 5mm
ORE54/IN	54W	5070	93	4000K	Ø 1255mm x H 3 5mm
ORE67/IN	67W	6240	93	4000K	Ø 1540mm x H 3 5mm
ORE85/IN	85W	7930	93	4000K	Ø 1955mm x H 3 5mm
ORE25/OUT	25W	2340	93	4000K	Ø 630mm x H 3 5mm
ORE39/OUT	39W	3640	93	4000K	Ø 950mm x H 3 5mm
ORE53/OUT	53W	4940	93	4000K	Ø 1270mm x H 3 5mm
ORE65/OUT	65W	6110	93	4000K	Ø 1555mm x H 3 5mm
ORE83/OUT	83W	7800	93	4000K	Ø 1970mm x H 3 5mm
ORE28/V/IN	28W	2600	93	4000K	Ø 650mm x H 3 5mm
ORE42/V/IN	42W	3900	93	4000K	Ø 970mm x H 3 5mm
ORE54/V/IN	54W	5070	93	4000K	Ø 1255mm x H 3 5mm
ORE67/V/IN	67W	6240	93	4000K	Ø 1540mm x H 3 5mm
ORE85/V/IN	85W	7930	93	4000K	Ø 1955mm x H 3 5mm
ORE25/V/OUT	25W	2340	93	4000K	Ø 630mm x H 3 5mm
ORE39/V/OUT	39W	3640	93	4000K	Ø 950mm x H 3 5mm
ORE53/V/OUT	53W	4940	93	4000K	Ø 1270mm x H 3 5mm
ORE65/V/OUT	65W	6110	93	4000K	Ø 1555mm x H 3 5mm
ORE83/V/OUT	83W	7800	93	4000K	Ø 1970mm x H 3 5mm

Option Code	Description
/DALI	DALI/DSI Dimmable Driver
/BTC	Casambi Dimmable

Option Code	Description
/W	White (RAL 9016)
/G	Grey (RAL 9006)
/B	Black (RAL 9005)
/U (POA)	Blue (RAL 5002)
/V (POA)	Green (RAL 6018)
/T (POA)	Yellow (RAL 1021)
/K (POA)	Red (RAL 3020)
/N (POA)	Jungle
/D (POA)	Goldeneye
/0 (POA)	Sahara
/L (POA)	Autumn
/R (POA)	Rusty chain
/C (POA)	Pure chocolate
/1 (POA)	Mist
/9 (POA)	Darkrock
/I (POA)	Carbon
