Description

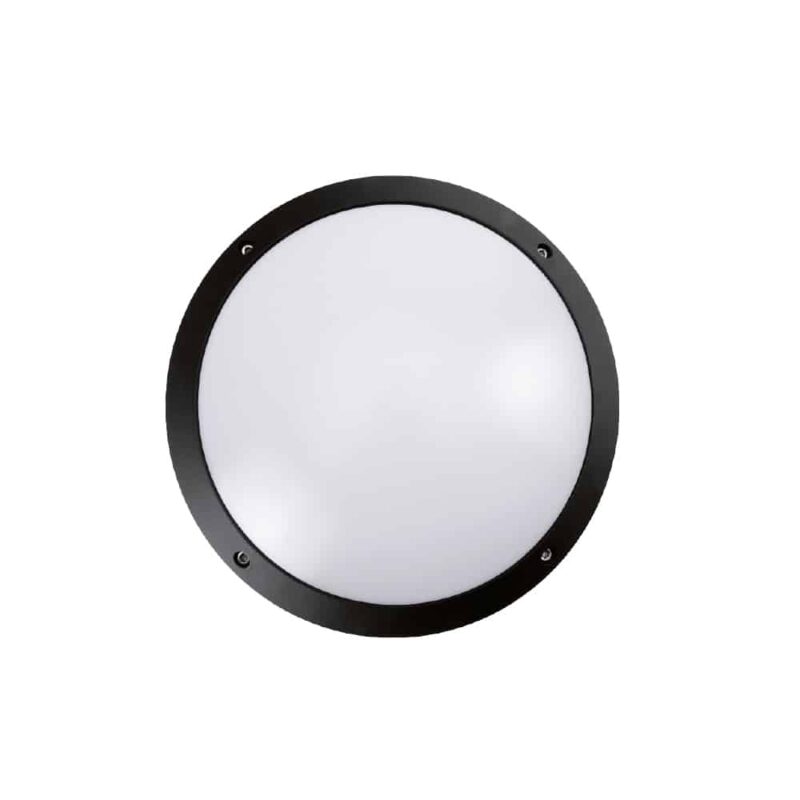

Our Stalwart luminaire has been designed to be a robust, aesthetically pleasing external bulkhead luminaire. The luminaire base is manufactured using high-grade die-cast aluminium with two 20mm pre-glanded cable entries ensuring installation of a simple task. The diffuser is manufactured using high-grade polycarbonate material. The polycarbonate composition makes this luminaire resistant to impact and fracture.

This high-quality luminaire is also a great solution where appearance and finish are as important as lighting output. The unit is supplied as standard with an open front and an eyelid option is also available. The die-cast aluminium housing ensures that all features of this luminaire can resist tampering from humans and environmental factors. The luminaire is 363mm in diameter and 140mm in height and can be easily surface-mounted to ceilings and walls.

Key Lighting Features

  • Die-cast aluminium housing
  • Highgrade polycarbonate diffuser
  • White as standard, black and silver option available
  • Eyelid cover option
  • IP65
  • 3000K option available
  • CRI>80
  • 5-year warranty
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature
SW14LDE 16W 1973 127 4000K
SW20LDE 22W 2732 127 4000K

Product Options

Option Code Description
/M 3 Hour Maintained Emergency
/MZ 3 Hour Maintained DALI Emergency
/P Presence Detection
/DALI DALI/DSI Dimmable Driver
/BLK Black Base
/SIL Silver Base

Cover Options

Cover Options Description
/E Eyelid Version

Size Options

Size
ø 363mm H 140mm
