Surface Lighting
Suspended Lighting

Ventor

need assistance on this product? call us now 01582 369 005

Description

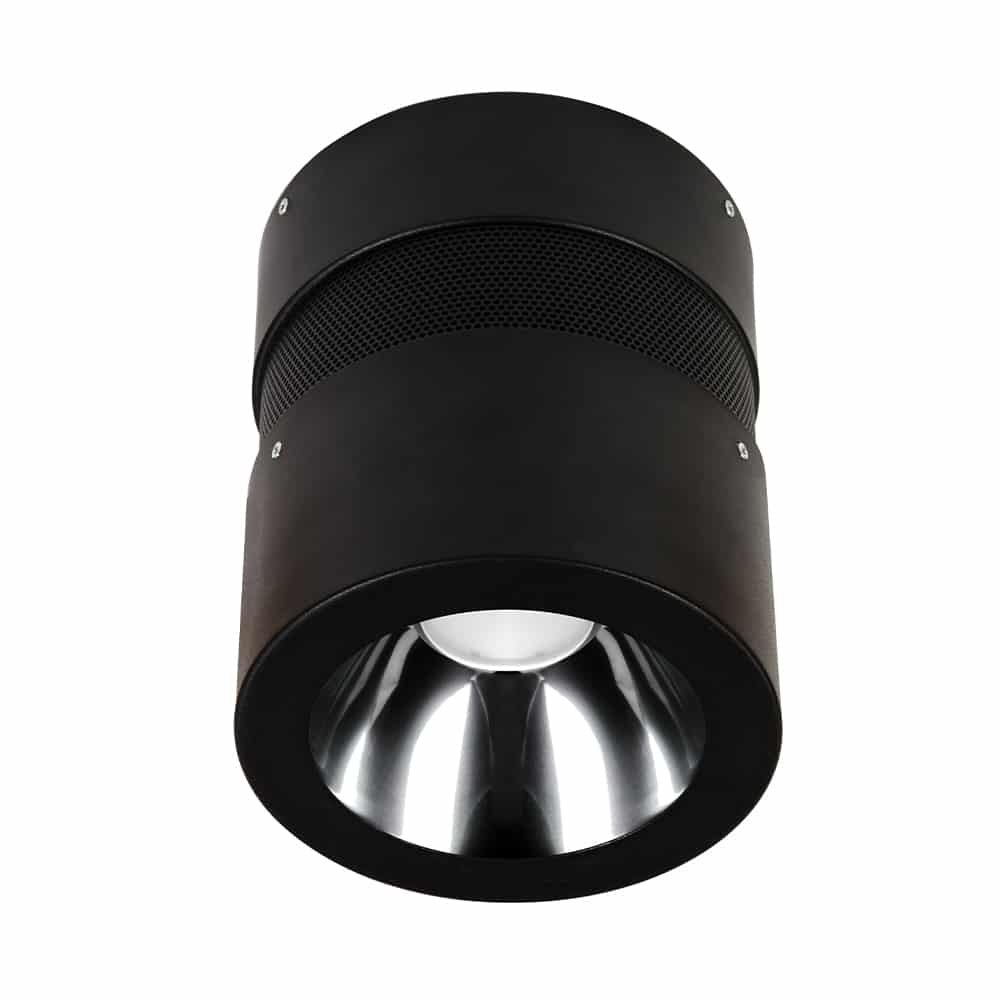

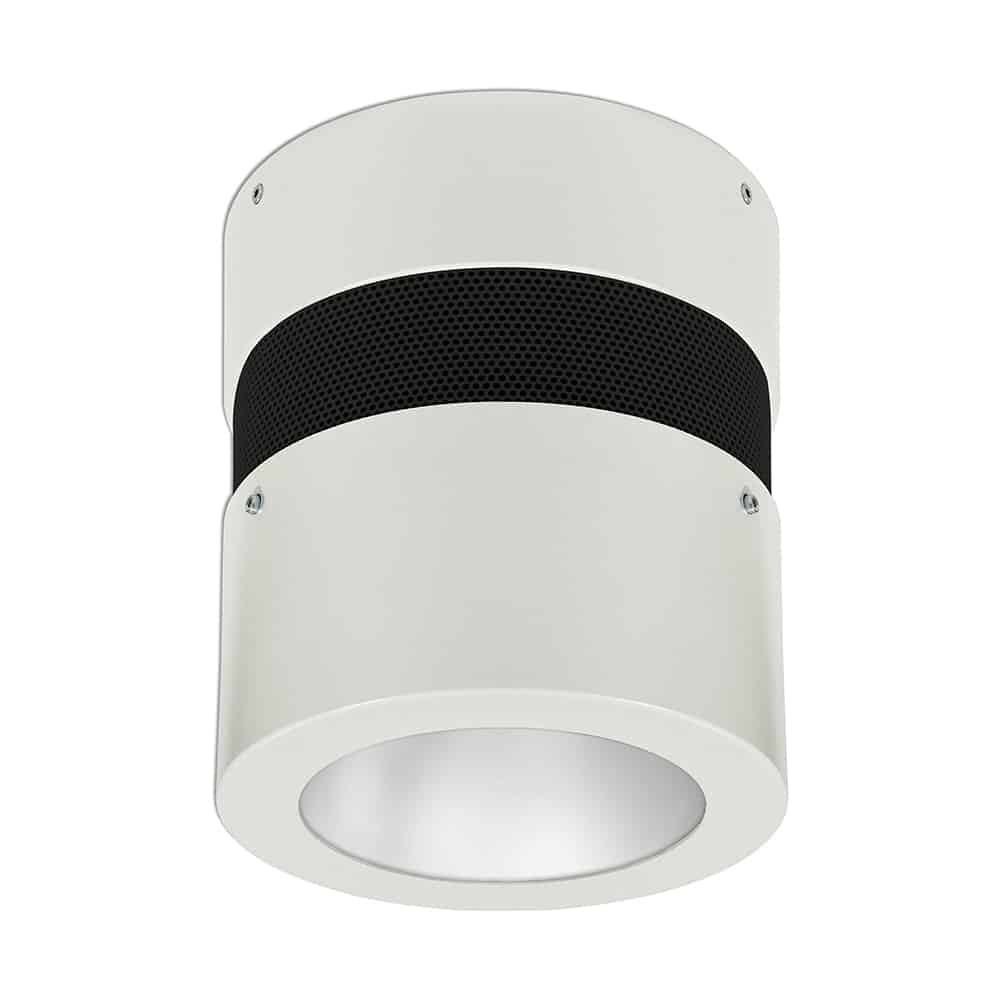

Our Ventor ceiling downlight has been selected for use in surface or suspended mounted applications.  With different wattages, reflectors and colour combinations to choose from this large cylindrical luminaire will compliment any commercial interior.

The spun aluminium body provides corrosion resistance and excellent heat dissipation. The high-quality reflector is sealed by a clear diffuser. The size of the fitting allows for integral emergency and dimming controls.

Key Features

  • Spun aluminium downlight with a wide range of options
  • Philips LED and driver combination
  • 60º Satin etch reflector as standard
  • Alternative reflector and diffuser options
  • Colour combination options
  • Dimmable and emergency options available
  • Life >60,000 hours (L70/B10)
  • IP20
  • 5-year warranty

Ventor

,

Ventor

DOWNLOAD DATASHEET
Enquire today
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature
VEN15/3K 15W 1068 72 3000K
VEN15 15W 1168 78 4000K
VEN25/3K 25W 1778 71 3000K
VEN25 25W 1946 77 4000K
VEN35/3K 35W 2537 73 3000K
VEN35 35W 2769 80 4000K
VEN47/3K 47W 3475 75 3000K
VEN47 47W 3792 82 4000K

Control Options

Option Code Description
/M 3 Hour Maintained Emergency
/MZ 3 Hour Maintained DALI Emergency
/TD Mains Dimmable
/DALI DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
/MF50 50º Multi-Faceted Reflector
/SP40 40º Specular Reflector
/EMS60 60º Self-test Emergency Reflector

Size Options

Size
Ø 200mm H 238mm

Colour Options

Option Code Description
/Part X /9010=White /9005=Black /9006=Grey
/Part Y /9010=White /9005=Black /9006=Grey
/Part Z /9010=White /9005=Black /9006=Grey
/SUS (2m Suspension kit) /9010=White /9005=Black /9006=Grey
