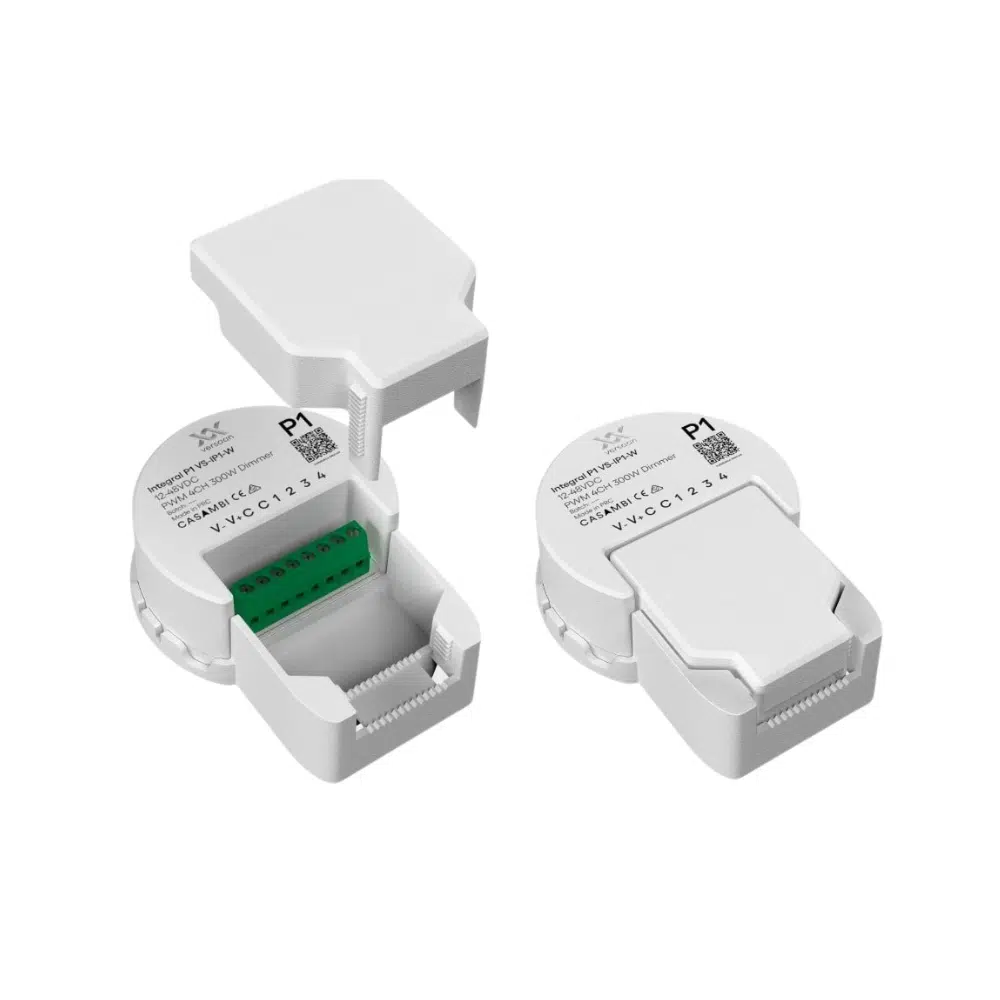

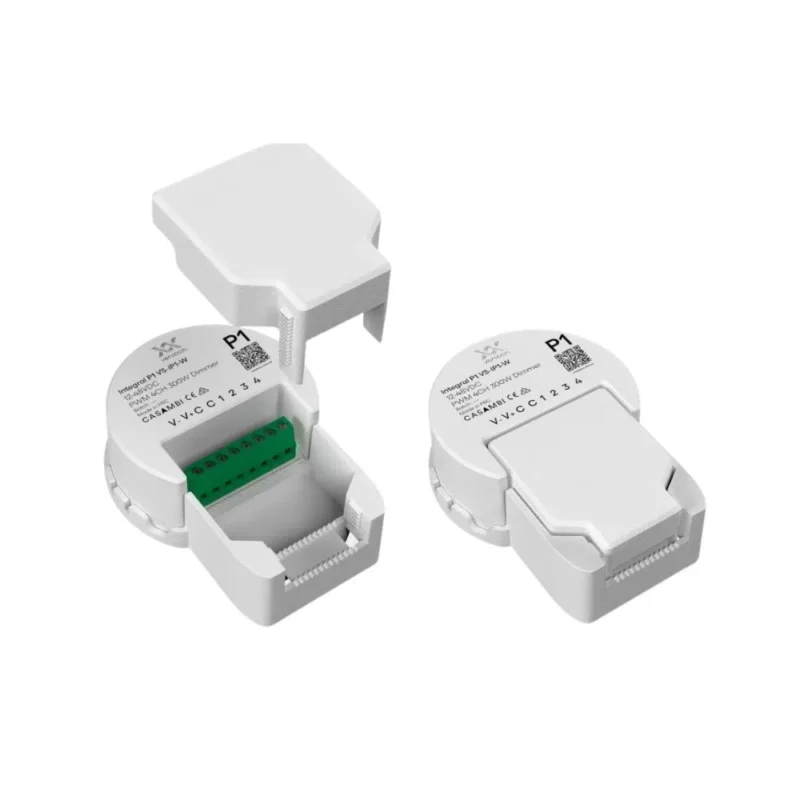

The CBU-MP1 is a Casambi-enabled dimmer designed for constant voltage LED lighting loads, including LED lighting strips and constant voltage LED modules. It functions as an dimming controller between a 12-48v DC power supply and the LED load.

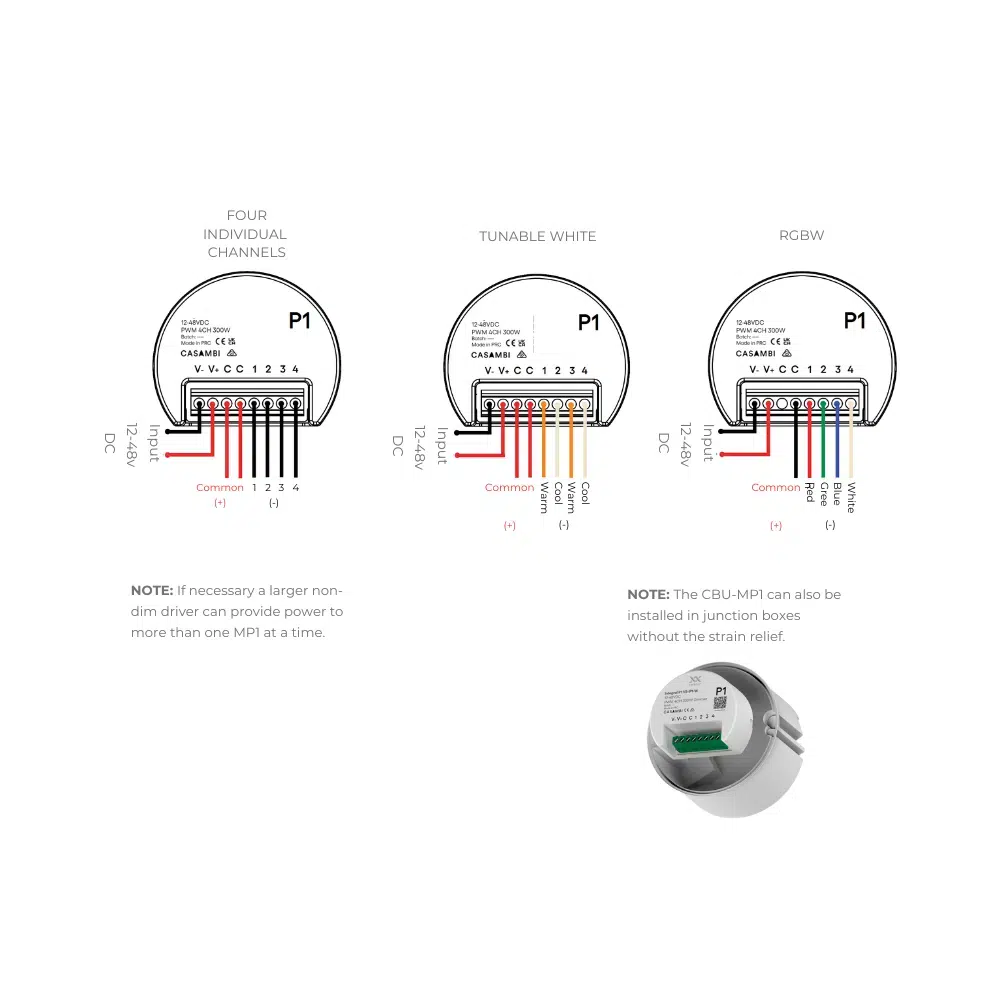

With the ability to manage up to four channels, the CBU-MP1 is a perfect fit for RGBW and tunable white lighting (TW) applications. The maximum total output current is 16A, which can be divided among the four channels with a maximum of 12.5A per channel.
Different fixture profiles can be loaded on the CBU-MP1 for different functionality, and the built-in strain relief allows multiple installation configurations also.
No downloads available.
| Product Code | Colour | Dimensions |
|---|---|---|

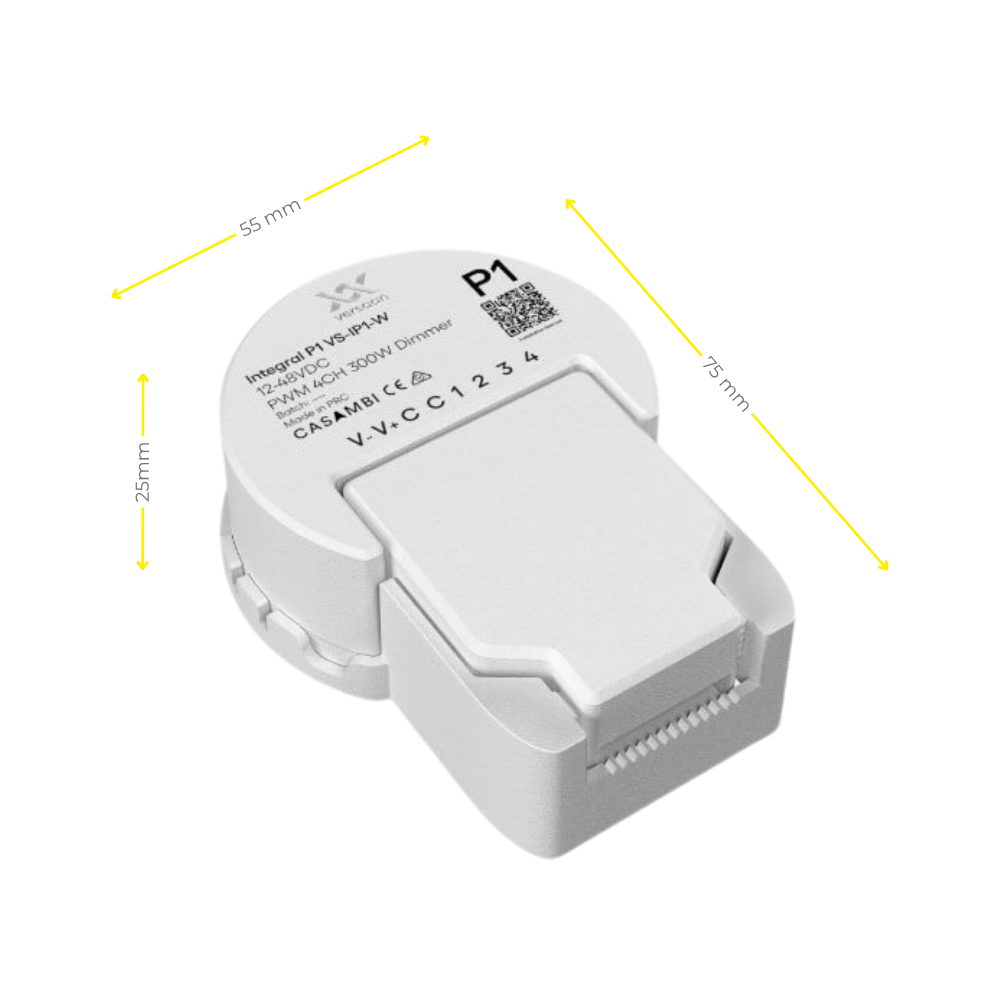

| CBU-MP1 | White | 75mm × 55mm × 25mm |
| Technical Specifications | |
|---|---|
| Input Power | 12–48v DC, max 16A |
| Max output power | 380W @ 24/48v, 300W @ 12v. Output voltage is the same as input voltage |
| Dimming method | Pulse Width Modulation (PWM) |
| Radio operation frequencies | 2.4 GHz band |
| Wireless Range | Up to 98m outside, or 180m with LR |
| Ambient temperature | 0…+50°C |
| Cable – solid/stranded | 0,75 – 1,5 mm2, loop in/loop out |
| Warranty | 5 years |
| Ingress Protection | IP20 |
Casambi uses Bluetooth mesh network technology, so each Casambi unit, or Casambi Ready product, acts also as a repeater. Longer ranges can be achieved by using any Casambi unit as a repeater. Range is highly dependent on the surrounding obstacles, such as walls and building materials.
