Description

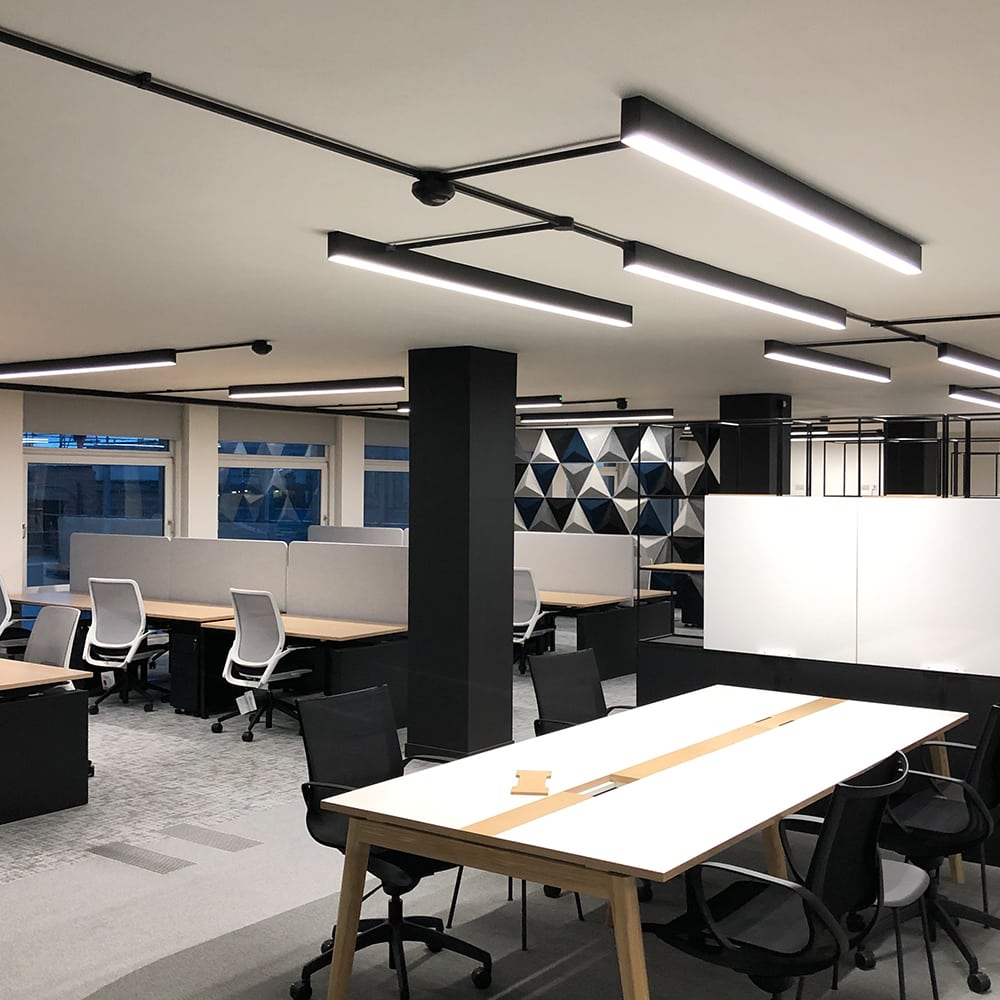

Surface-mounted lighting is popular across many industries where illumination serves both practical and aesthetic purposes. Whether it’s for maintaining CIBSE levels or creating a striking first impression for clients, linear surface lighting is a dynamic way to introduce structure and depth into a room while delivering effective downlighting.

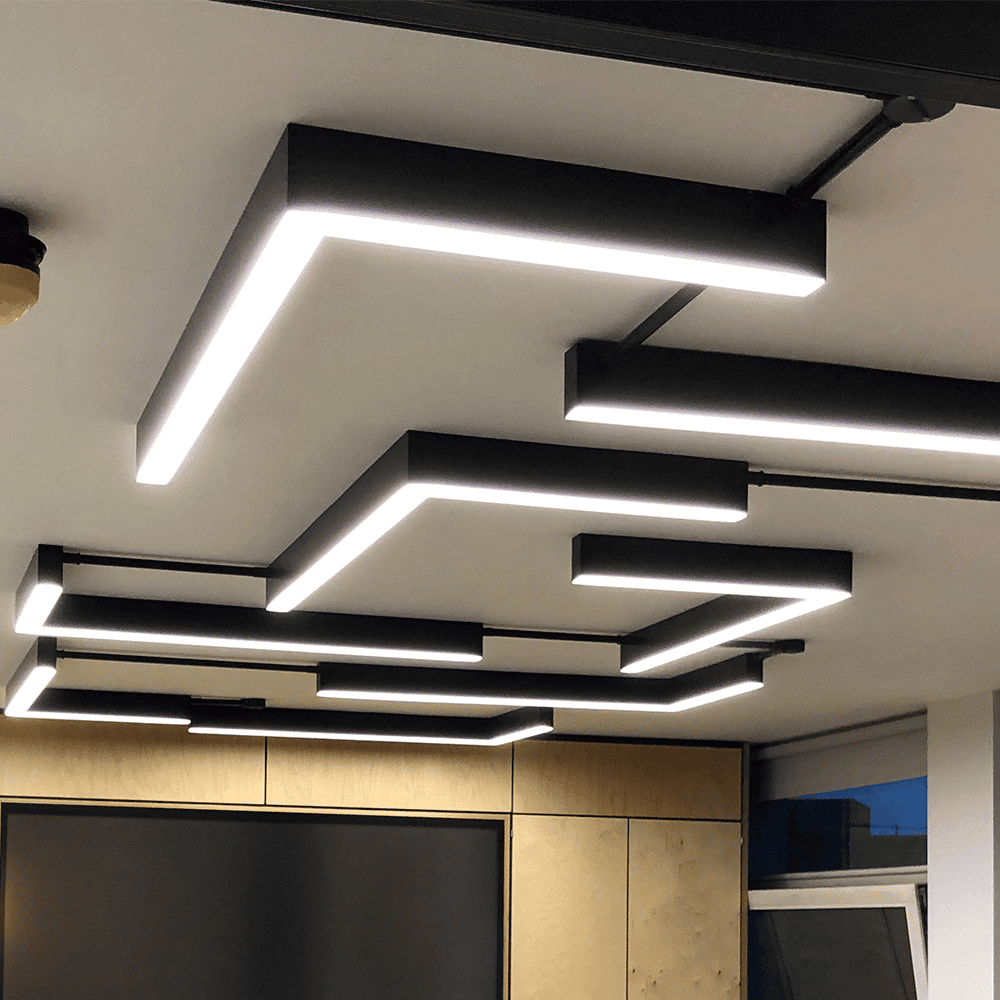

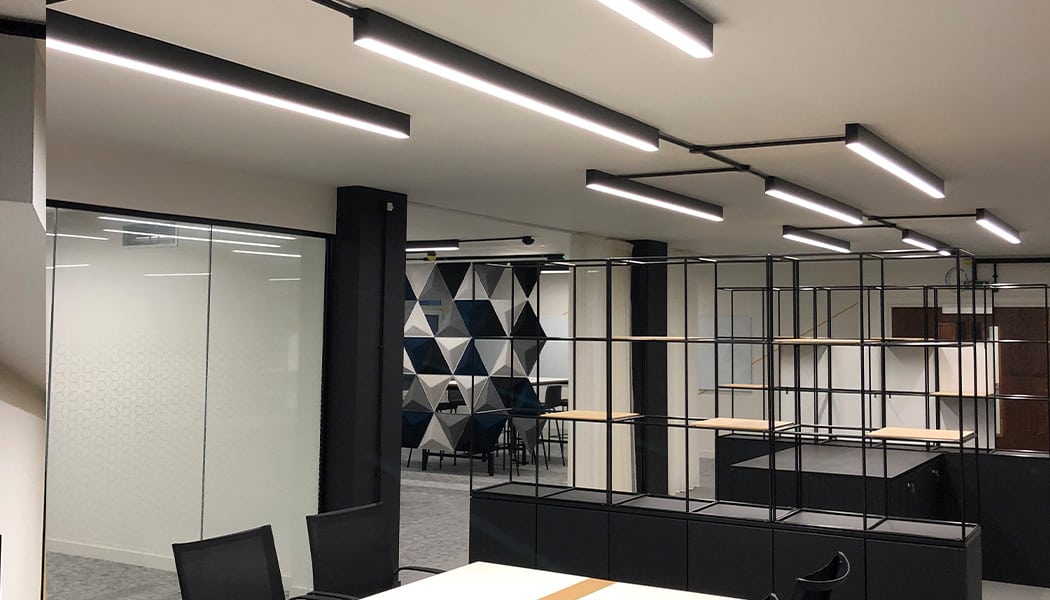

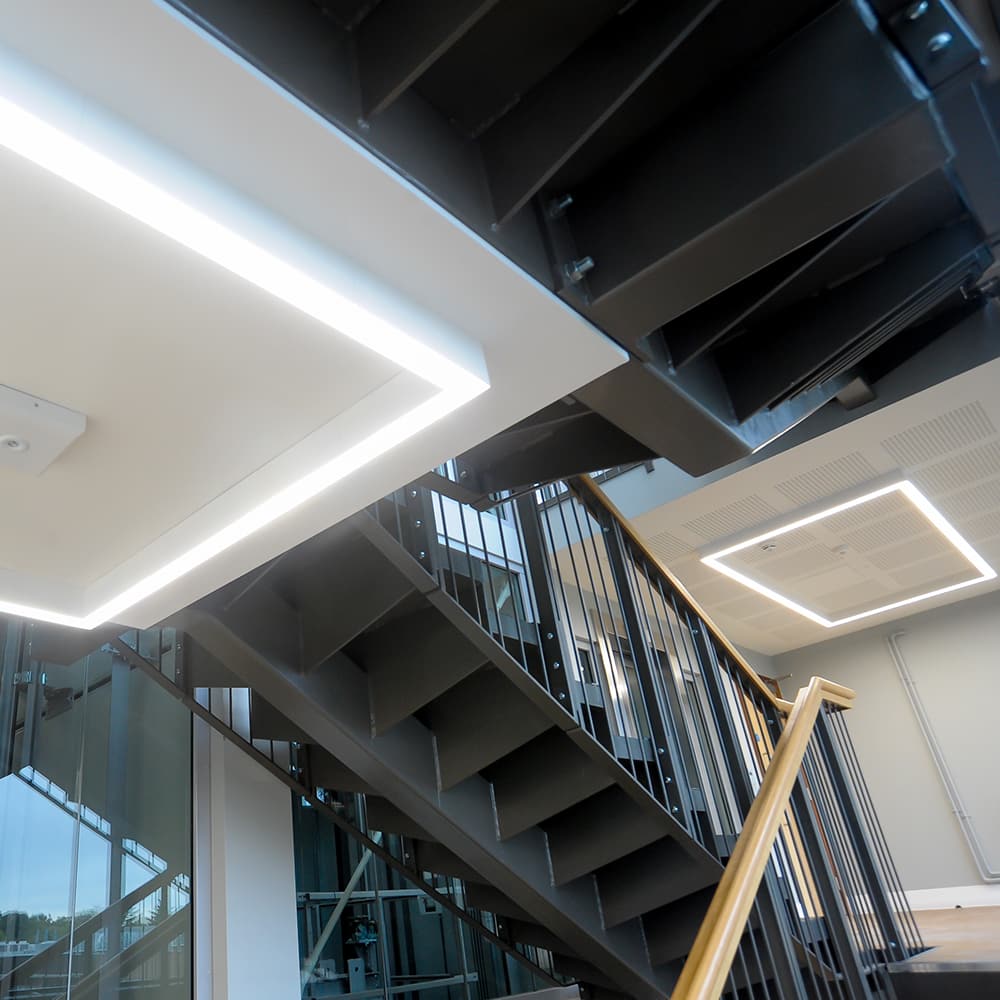

For clean, continuous runs of light that fully illuminate office and commercial spaces, our M-Line surface lighting systems are available in standard lengths up to 2824mm. Custom continuous systems can be ordered, and bespoke geometric-shaped feature lights with fully illuminated corners can be created upon request.

Surface mounting is achieved by directly fixing through the rear of the profile. Suspension is also possible using a single-point ceiling bracket with a 2m adjustable stainless steel wire system. For additional light distribution or striking focal points, uplighting is available on lengths from 584mm upwards.

No matter the application, the surface M-Line system delivers high-lumen output and bright illumination. This refined luminaire option ensures any project benefits from a well-constructed, professional finish that stands out as standard.

This surface-mounted lighting range is part of the M-Line family and pairs perfectly with our suspended M-Line products.

If you’re considering the impact of LED office lighting in your workspace, read our article here.

Key Lighting Features

  • Aluminium extruded sections in 9 standard lengths
  • Bespoke lengths available in 140mm increments
  • 104 lumens per watt
  • Colour options in 3000K/4000K/5000K
  • Custom shapes available subject to design
  • Incorporates European branded LED drivers
  • Direct/Indirect lighting options available for suspended fittings
  • Utilises latest generation long-life LEDs from leading manufacturers
  • Clip-in gear tray for easy installation
  • Opal polycarbonate diffuser
  • Tuneable white and RGB options available
  • Dimmable and emergency options available
  • Compatible with Casambi wireless control system
  • Dual Switch option available
  • CRI>80, 50,000h life
  • 5-year warranty

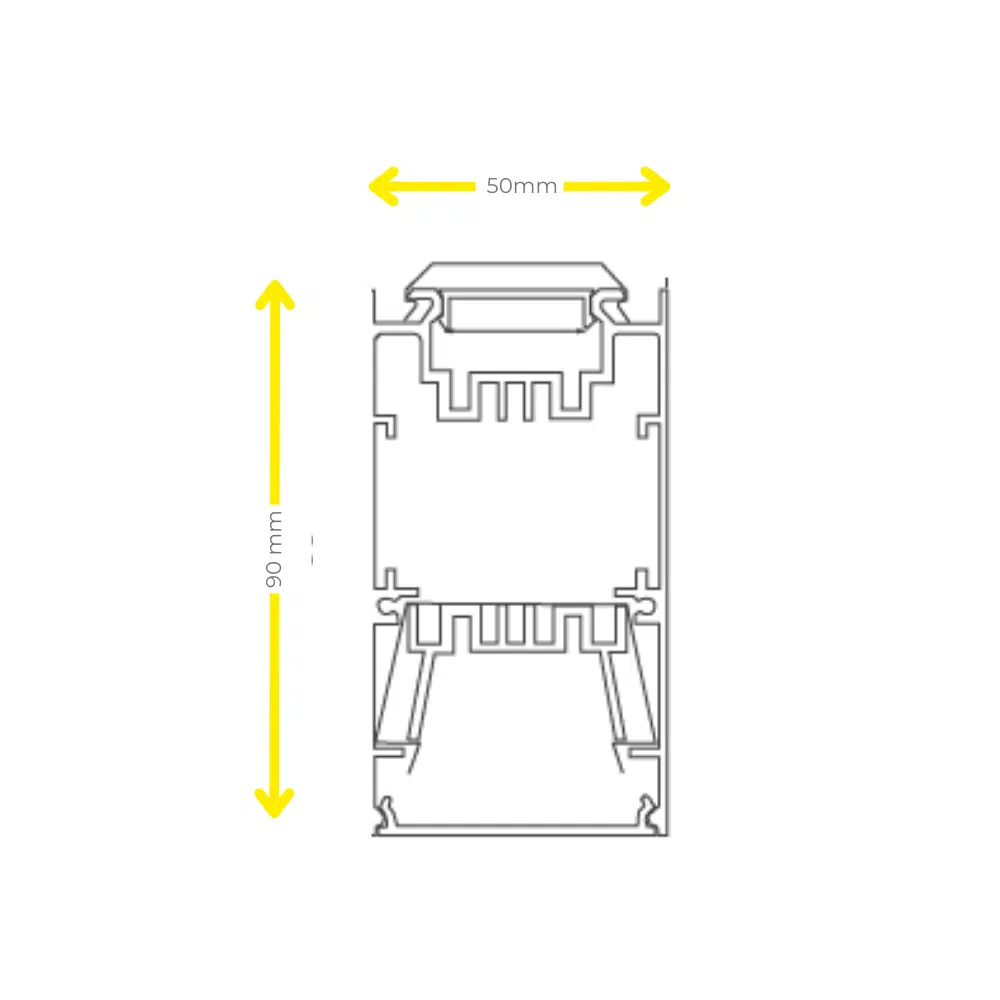

Surface Mounted System
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temp. Size
MLES/584 12.5W 1298 104 4000K 584 × 50mm
MLES/864 19W 1947 104 4000K 864 × 50mm
MLES/1144 25W 2596 104 4000K 1144 × 50mm
MLES/1424 31W 3245 104 4000K 1424 × 50mm
MLES/1704 37.5W 3895 104 4000K 1704 × 50mm
MLES/1984 44W 4543 104 4000K 1984 × 50mm
MLES/2264 50W 5192 104 4000K 2264 × 50mm
MLES/2544 56W 5841 104 4000K 2544 × 50mm
MLES/2824 62.5W 6490 104 4000K 2824 × 50mm

Section Option Code Description
1 – EMERGENCY /NE No Emergency
/M Emergency
/MZ DALI Emergency
2 – CONTROL /ND Non Dim
/DA DALI Dim
/BTC Casambi Dim
3 – FINISH /WH RAL9016 White
/BL RAL9005 Black
/RA Any RAL Colour
4 – CCT /4K 4000K
/3K 3000K (light output -6%)
/5K 5000K
/TW Tunable White
/RGB Colour Changing RGB
5 – CRI /80 CRI>80 (typical 84)
/90 CRI>90
