CBU-ASD is a wireless control unit for any type of drivers with a 0-10V, 1-10V or DALI dimming interface.
CBU-ASD acts both as a controller and as a power supply making it possible to connect directly to an LED driver with DALI interface without the need for an external DALI power supply.
CBU-ASD does not comply with IEC 60929 and therefore is not designed to be connected to an existing DALI network.
No downloads available.
| Product Code | Colour | Dimensions |
|---|---|---|

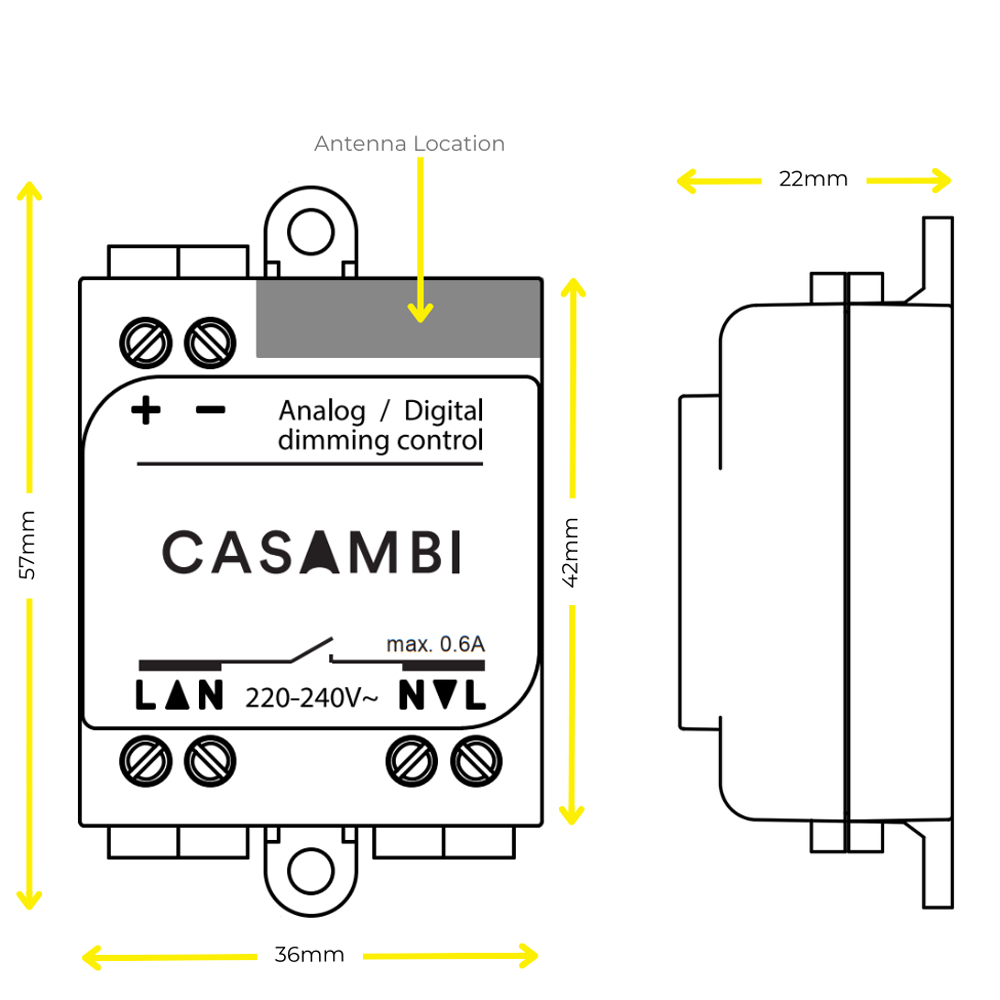

| CBU-ASD | White | 56mm × 36mm × 22mm |
| Technical Specifications | Details |
|---|---|
| Power Supply | 220-240V AC, 50Hz |
| Radio Operation Frequencies | 2.4 – 2.480 GHz |
| Ambient Temperature | -20 to +50°C |
| Weight | 48g |
| Ingress Protection | IP20 |
| Mains Output | Mains – SSR on phase line |
| 0-10V Output | 0-10V DC |
| DALI Output | 9-12V DC |
