The Casambi CBU-PIR-CTRL is a clever way to take control of your space. A wireless lighting sensor users trust, built to switch on when people turn up and ease back when they leave. Simple. Effective.
Ready to work hard in offices, classrooms, healthcare spaces, and anywhere you need smart, reliable movement detection.

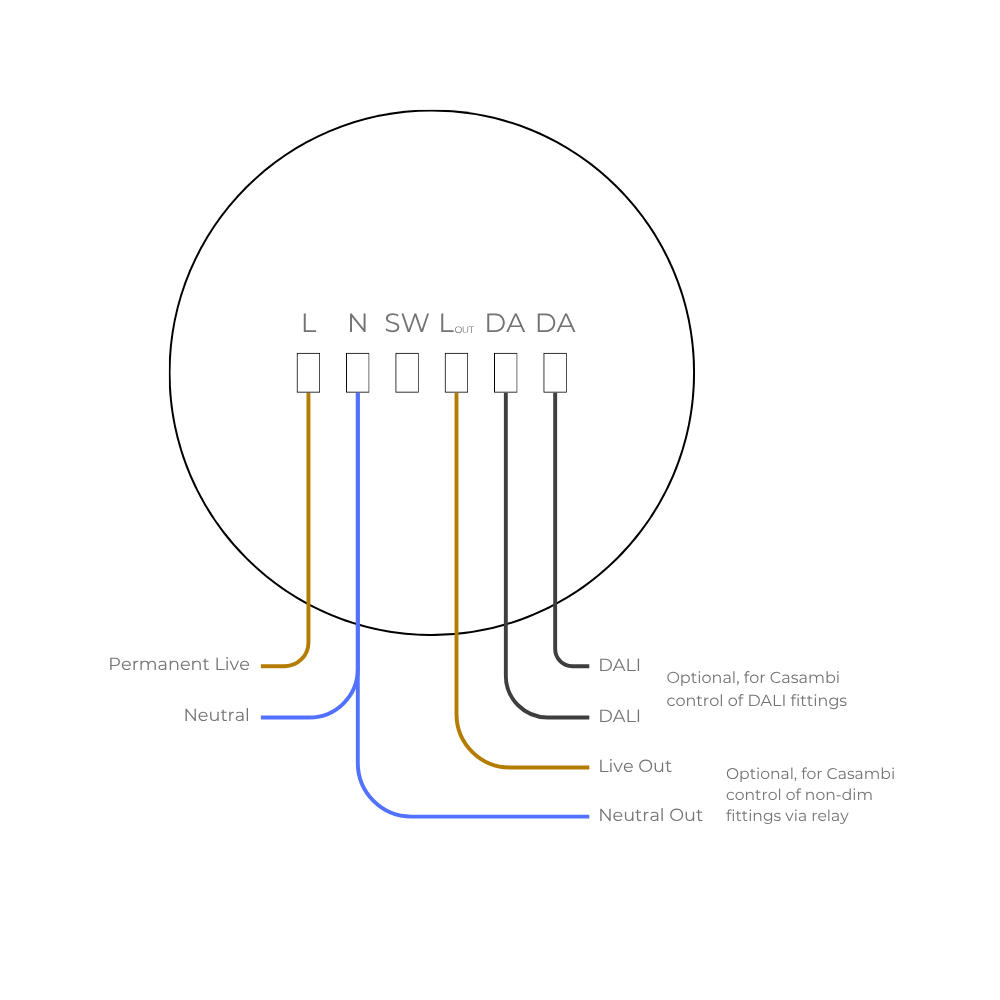

The Casambi occupancy and daylight sensor fits neatly into your lighting scheme. One tap in the app, and Bluetooth brings it into the Casambi network. Relay and DALI control outputs keep luminaires responding exactly as they should, without extra switching gear getting in the way. It is a smooth fit for new installations and retrofit projects in the UK.

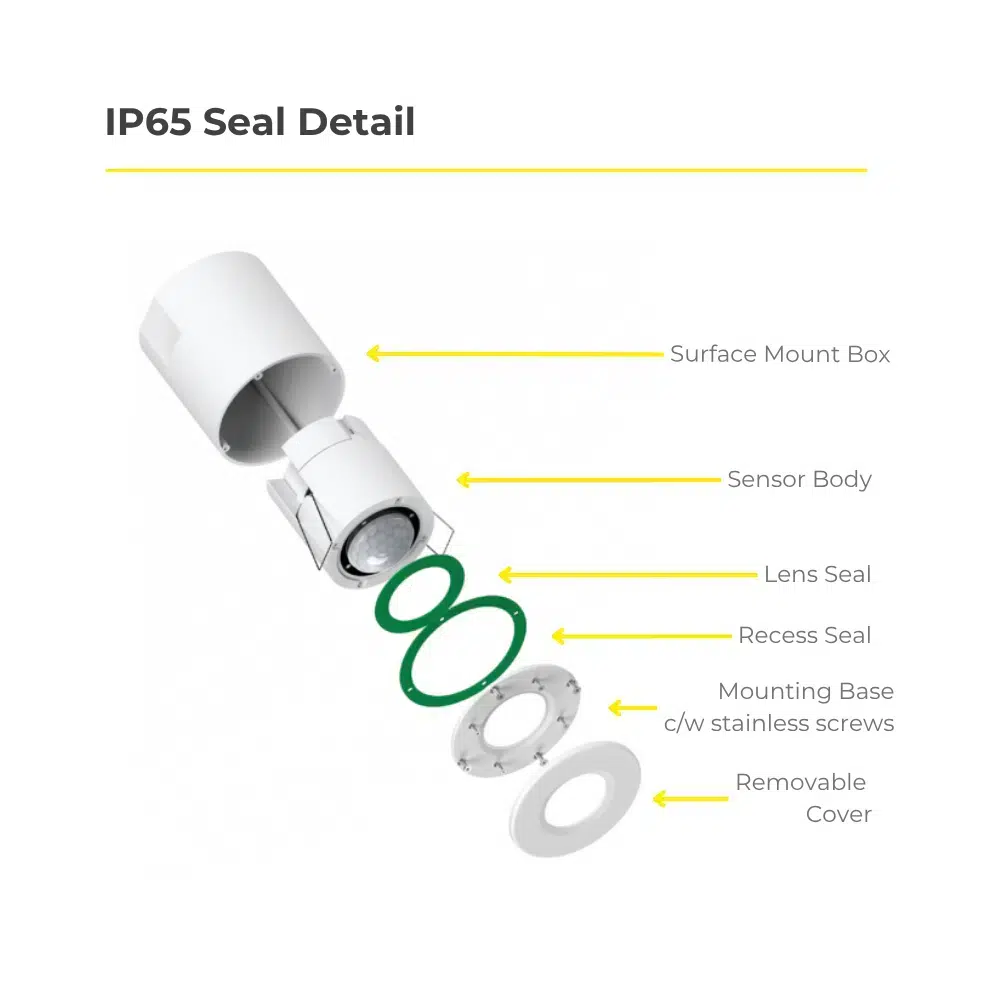

A surface-mounted IP65 control box, mains powered and built for dependable performance. The ceiling sensor provides 360-degree detection with an eight metre coverage at 2.4 metres. It extends to five metres when the space requires it.
Installation should never slow a project down. A Wago pluggable connector keeps things clean and quick. Prepare the cable run. Paint the ceiling. Then click the Casambi PIR daylight sensor into place. Job done. And when you need to fine-tune the behaviour, the Casambi app gives you full control.
Looking for more smart control options? Explore our Casambi range and find the right mix of sensors, modules and accessories for your next project.
No downloads available.
| Product Code | Colour | Description |

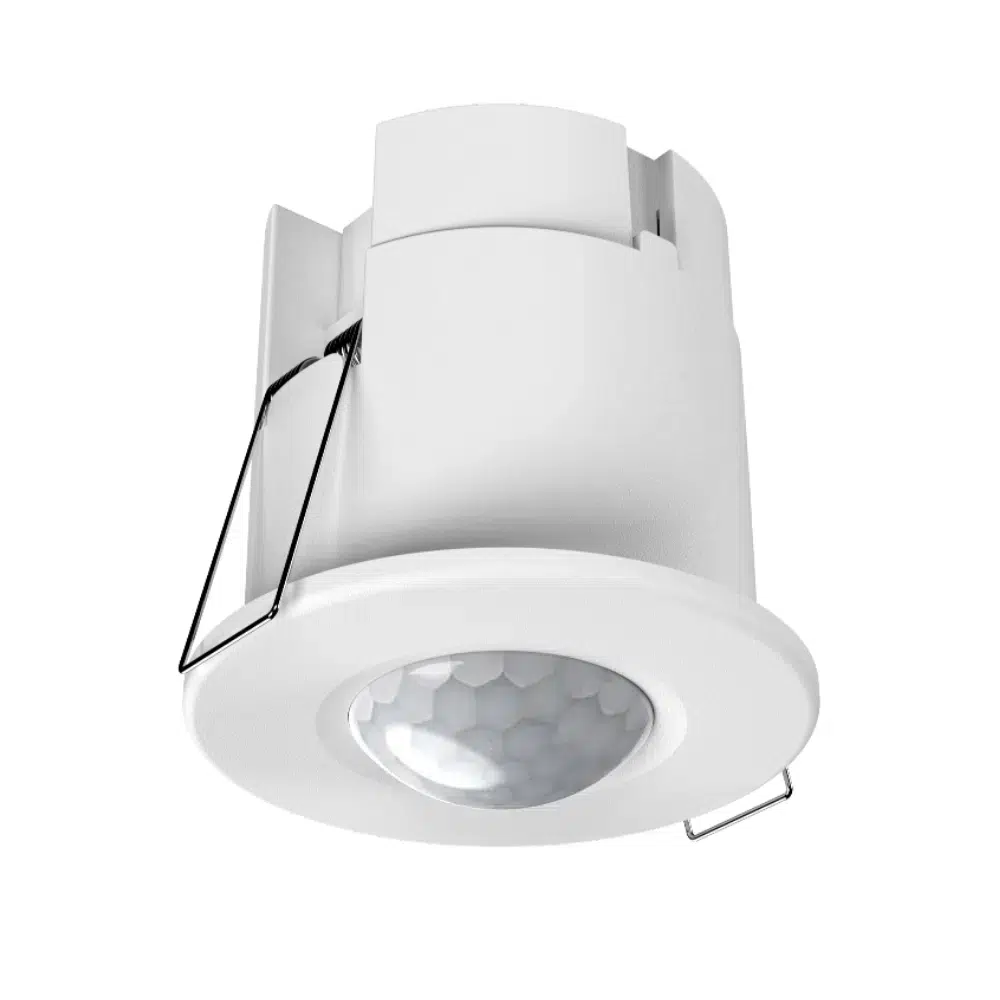

| CBU-PIR-CTRL | White | Casambi PIR – Recessed |
| CBU-PIR-CTRL/TRACK | White | Casambi PIR – Track mounted |
| Note: Please add /BLK to any product code for a black option | ||
| Accessory Code | Colour | Description |
| CBU-PIR-CTRL/SB | White | Surface Mount Box |
| Note: Please add /BLK to the code for a black option | ||
| Technical Specifications | |
| Voltage | 220~240v AC 50/60Hz |
| Installation height | 2.5m – 3.6m |

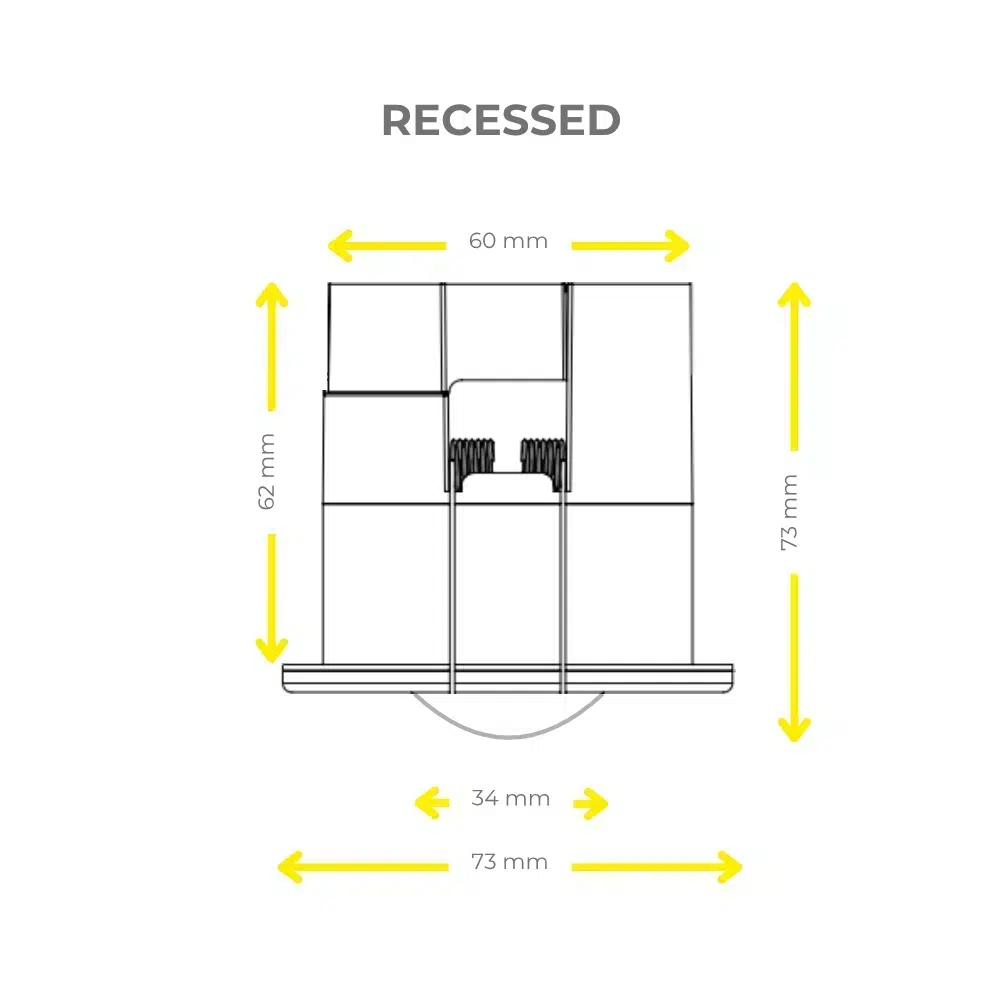

| Cut-out Size | 62 – 66mm |
| Detection range(Ø) | 13 m at 2.7m height |
| Detection angle | 360° |
| Bluetooth range (typical) | 10~30m |
| Operation temperature | -20°C to +50°C |
| DALI Output | 100mA, up to 50 drivers |
| Relay Output | Up to 10A, with 250A 1ms inrush |
| Light Detection Range | 1 – 999 lux |
| IP rating | IP20 |
