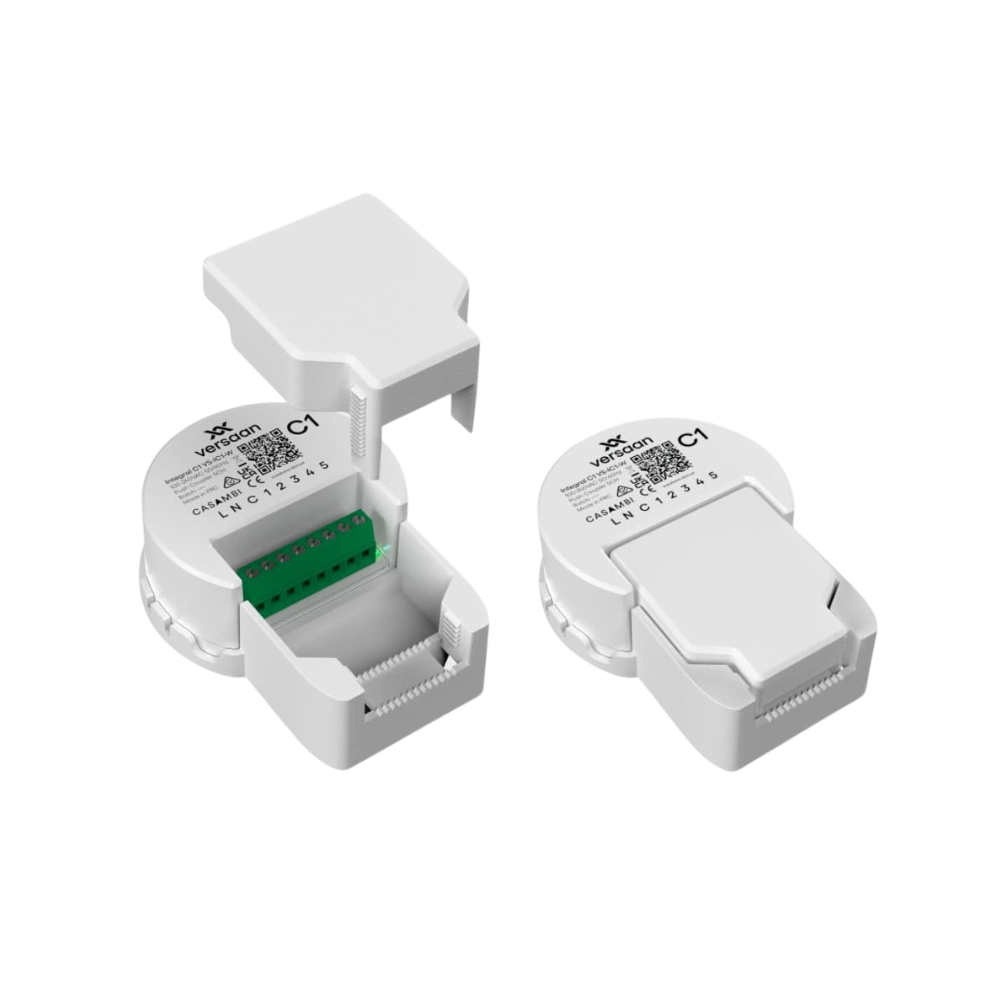

A compact smart control interface engineered for switch-box integration, the MC1 gives installers and end users reliable, programmable control over Casambi-connected lighting systems.

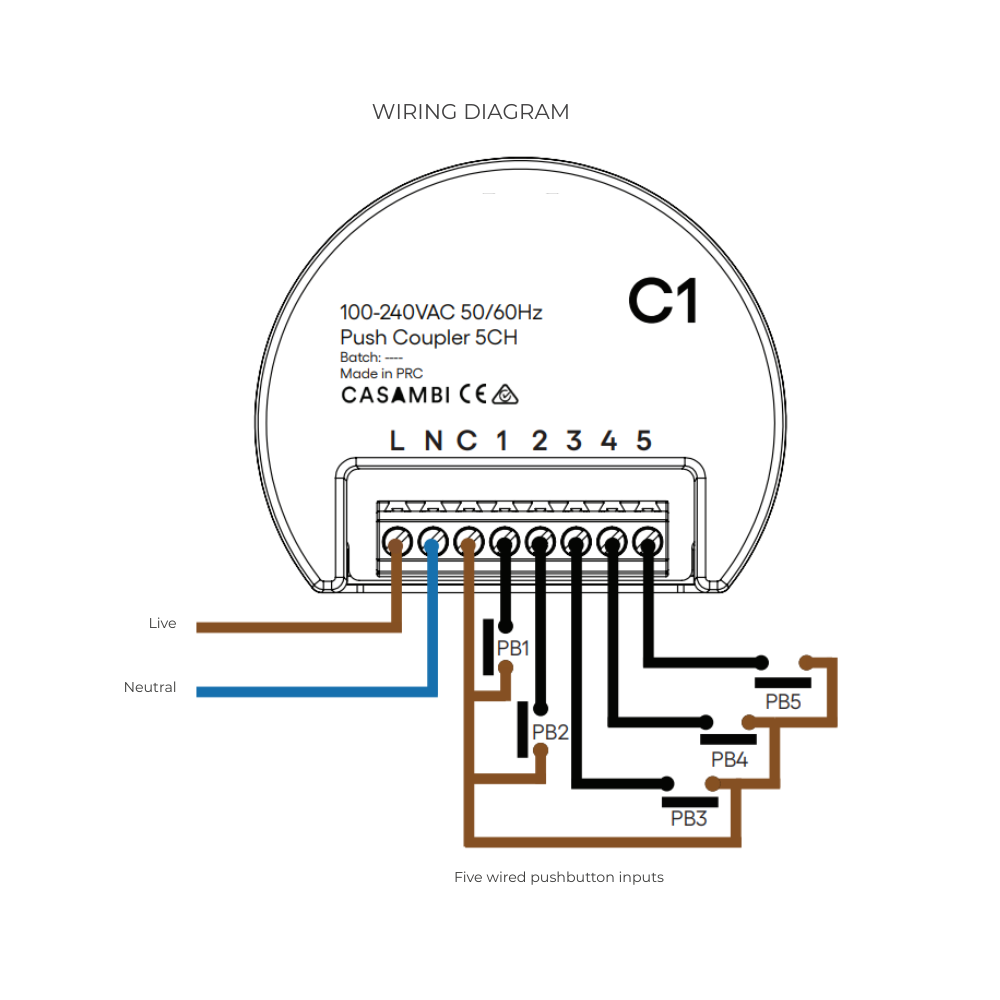

Designed to fit standard switch boxes without space compromises, it connects up to five traditional momentary push-button switches and translates those inputs into on/off, dimming, scene recall and custom functions within a Casambi mesh network.
The MC1 is ideal where you want to retain familiar push-button interfaces but leverage wireless, scene-based and dimming control. Perfect for retrofit and new build commercial environments when paired with Casambi-enabled luminaires and control devices.
No downloads available.
| Product Code | Colour | Dimensions |

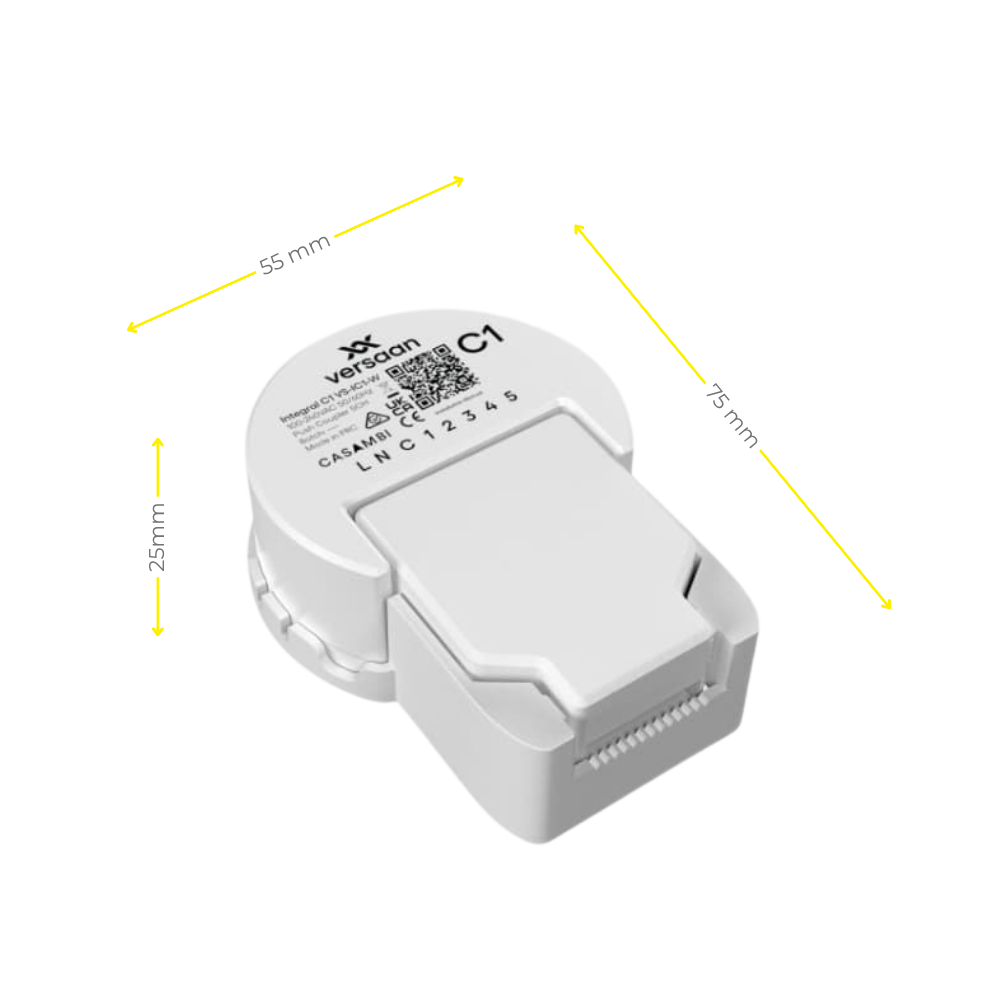

| CBU-MC1 | White | 75mm x 55mm x 25mm |
| Power Supply | 100-277v AC, 50-60 Hz |
| Input | 5 x push buttons |
| Radio operation frequencies | 2.4 GHz band |
| Wireless Range | Up to 98m outside, or 180m with LR |
| Ambient temperature | 0…+50°C |
| Terminal capacity | 0.5 – 1.5 mm2, loop in loop out |
| Warranty | 5 years |
| Ingress Protection | IP20 |
