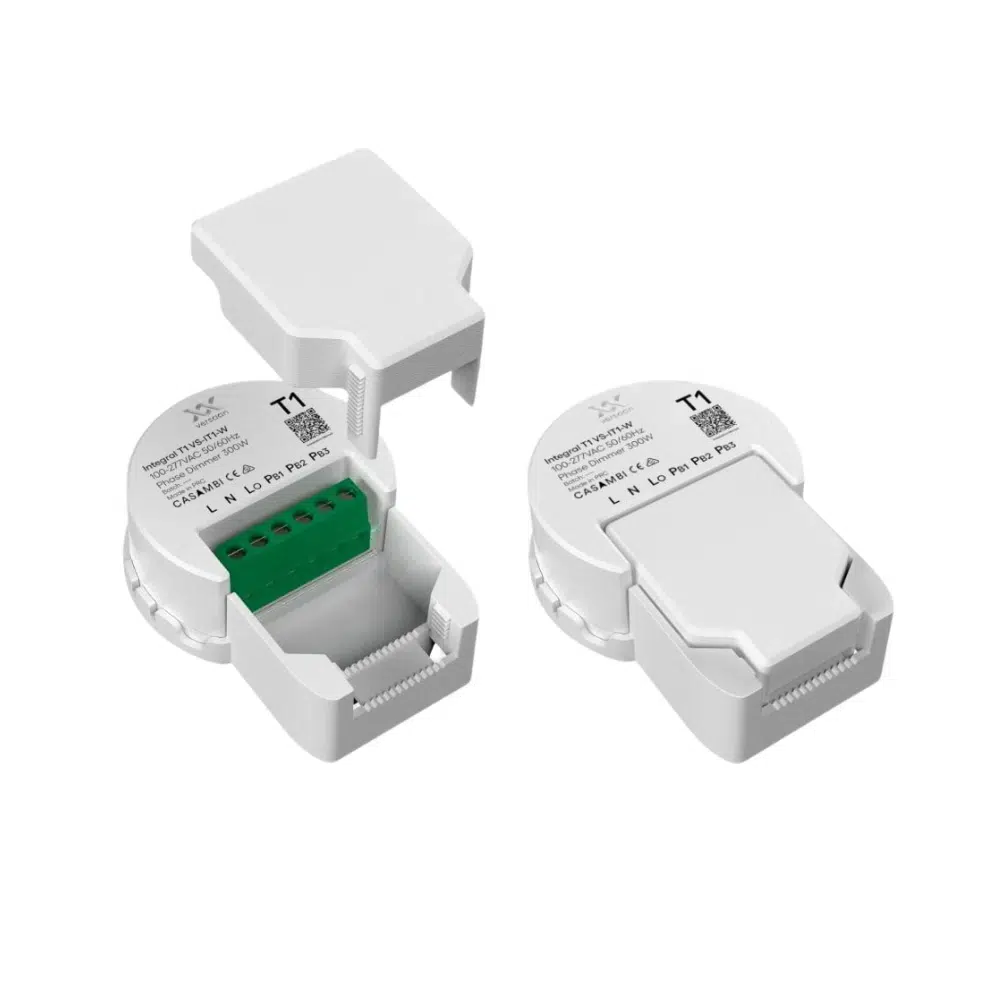

CBU-MT1 is an innovative trailing-edge phase-cut dimmer designed by Casambi to cater to your specific lighting needs. It is compatible with incandescent lamps, dimmable LED lamps, and dimmable LED control gear. You can install it behind a conventional wall switch, inside a luminaire, or into a ceiling outlet box. It is essential to adhere to the maximum allowable ambient temperature to ensure optimal performance.
With a capacity to control up to 300W at 230v AC, CBU-MT1 comes with overcurrent and overtemperature protection features. You can conveniently manage it with the Casambi app, available on iOS and Android devices.
The Casambi Phase Dimmer with Strain Relief offers a compact and intelligent solution for projects requiring reliable, wireless lighting control in commercial and architectural environments. Its discreet installation options make it particularly suitable for bespoke luminaires and retrofit applications where flexibility and performance are essential.
Designed to deliver both technical reliability and ease of use, the CBU-MT1 integrates seamlessly into Casambi-enabled lighting systems, allowing intuitive control and scalable configuration.
No downloads available.
| Product Code | Colour | Dimensions |
|---|---|---|

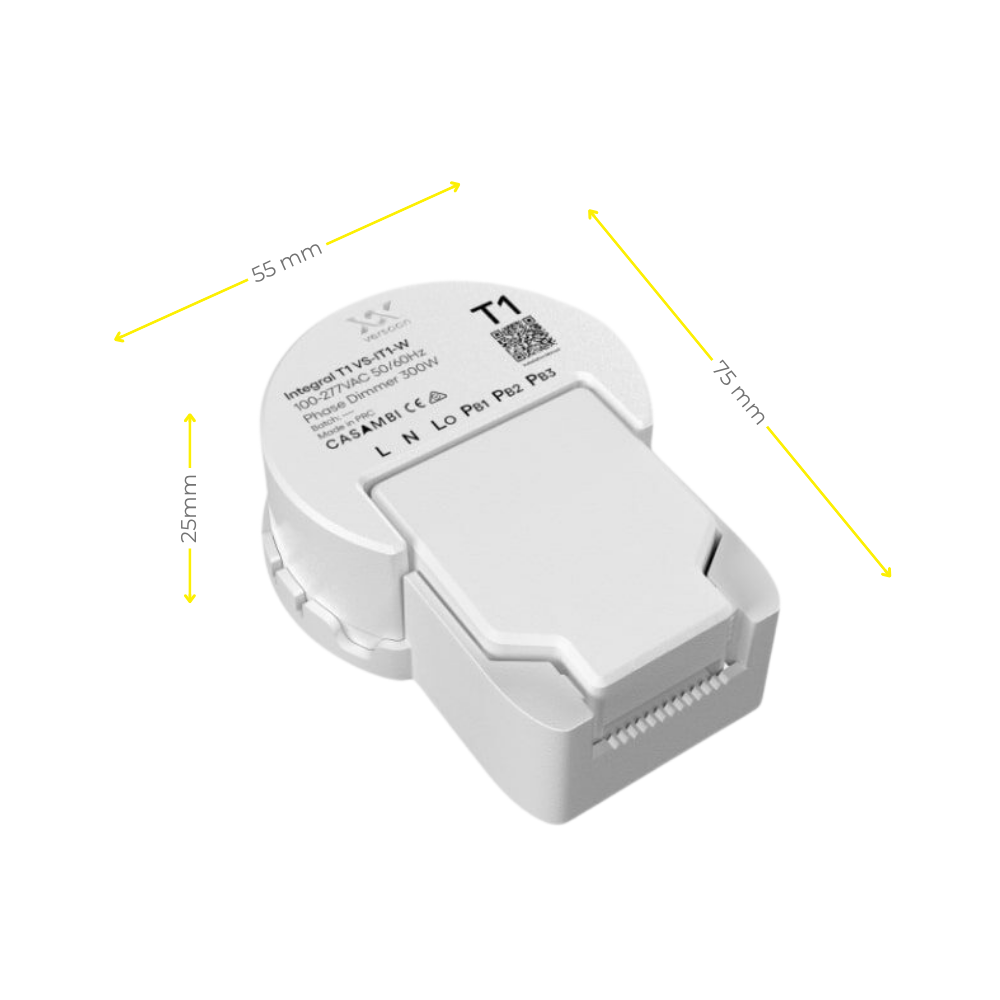

| CBU-MT1 | White | 75mm × 55mm × 25mm |
| Technical Specifications | |
|---|---|
| Input | 100–277V AC, 50–60 Hz |
| Output | 1.25A, 300W at 240V AC |
| Dimming method | Phase dim |
| Radio operation frequencies | 2.4 GHz band |
| Inrush capability | 90A |
| Wireless Range | Up to 98m outside, or 18m with LR |
| Ambient temperature | 0…+55°C |
| Terminal capacity | 0.5 – 2.5 mm², loop in loop out |
| Warranty | 5 years |
| Ingress Protection | IP20 |
| Casambi uses Bluetooth mesh network technology, so each Casambi unit, or Casambi Ready product, acts also as a repeater. Longer ranges can be achieved by using a Casambi unit as a repeater. Range is highly dependent on the surrounding obstacles, such as walls and building materials. | |
