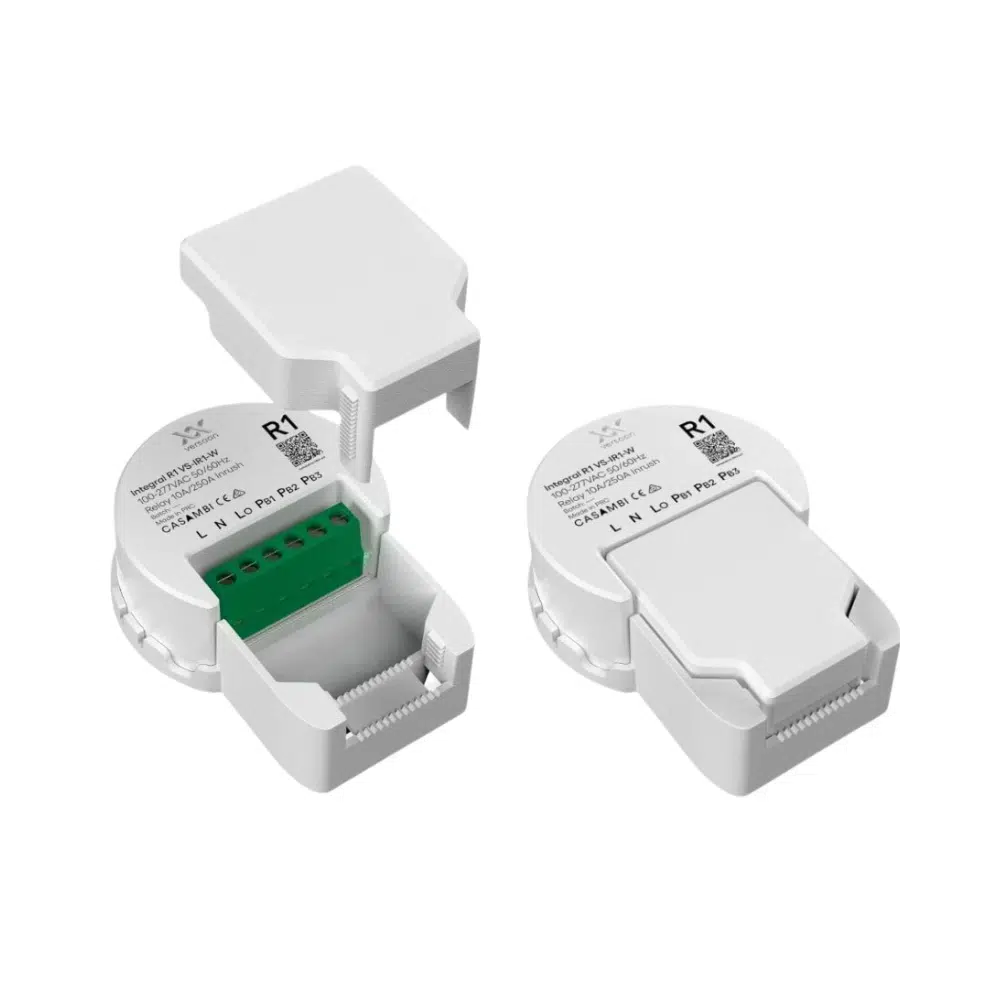

CBU-MR1 is an innovative Casambi relay kit designed to cater to your specific lighting control needs. It is compatible with any switched load, including non-dimmable LED lamps, and non-lighting circuits also. You can install it behind a conventional wall switch, inside a luminaire, or into a ceiling outlet box. It is important to adhere to the maximum allowable ambient temperature to ensure optimal
performance.
CBU-MR1 has capacity to control up to 10A of capacitive, resistive or inductive load at 230v AC. You can conveniently manage it with the Casambi app, available on iOS and Android devices.
No downloads available.
| Product Code | Colour | Dimensions |
|---|---|---|

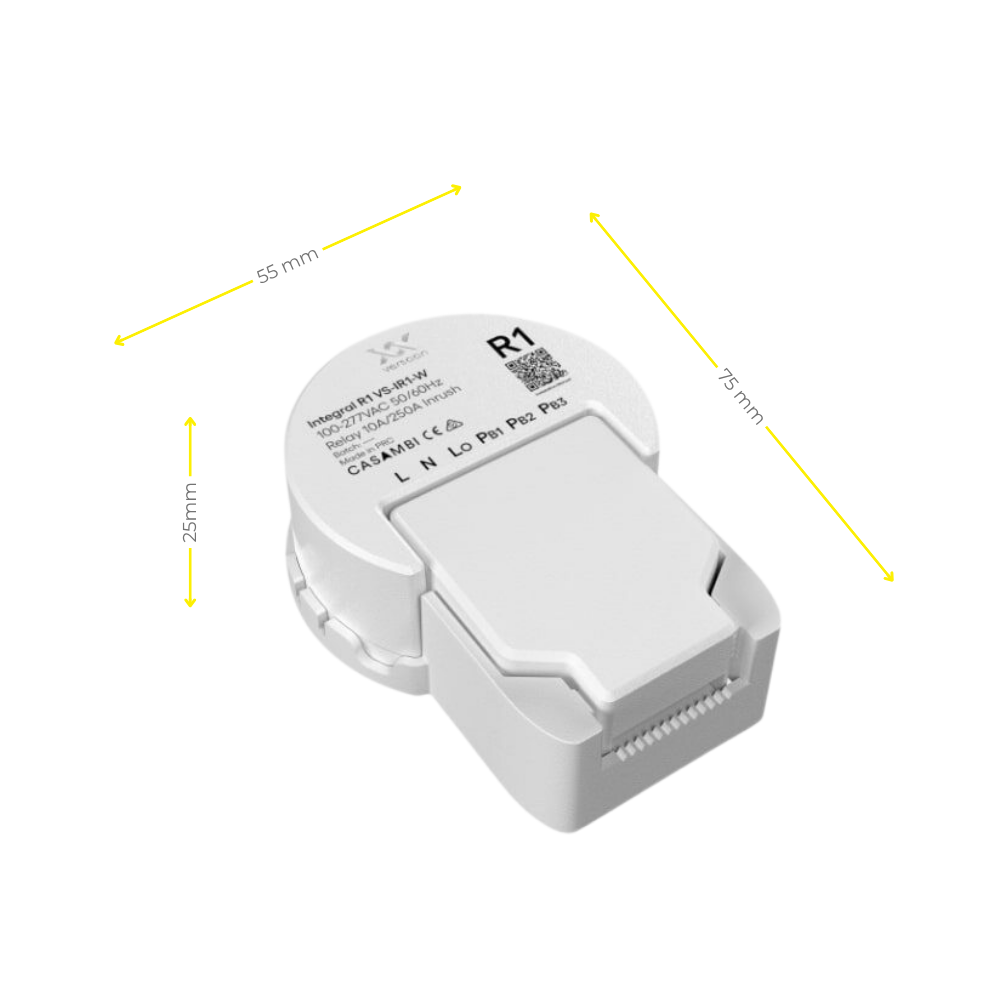

| CBU-MR1 | White | 75mm × 55mm × 25mm |
| Technical Specifications | |
|---|---|
| Input | 100–277v AC, 50–60 Hz |
| Output | 10A |
| Radio operation frequencies | 2.4 GHz band |
| Wireless Range | Up to 98m outside, or 180m with LR |
| Ambient temperature | 0…+50°C |
| Terminal capacity | 0.5 – 2.5 mm2, loop in loop out |
| Warranty | 5 years |
| Ingress Protection | IP20 |
| Casambi uses Bluetooth mesh network technology, so each Casambi unit, or Casambi Ready product, acts also as a repeater. Longer ranges can be achieved by using any Casambi unit as a repeater. Range is highly dependent on the surrounding obstacles, such as walls and building materials. | |
