Lighting control has never been easier. With Casambi now supporting the Salvador series of DALI controllers, lighting designers and electrical consultants can seamlessly integrate wired DALI drivers into the Casambi ecosystem. This means unified control, faster setup, and unmatched flexibility across both wired and wireless lighting devices.
Each DALI driver shows up as an individual icon in the Casambi app, just as standard Casambi items do, allowing extension of DALI systems into the Casambi network. This is particularly appropriate for applications with pre-built DALI wiring, such as our Multi-Track and LCM product ranges.
Each Salvador, and each connected driver, counts as one Casambi node – network maximum is 250 nodes as usual.

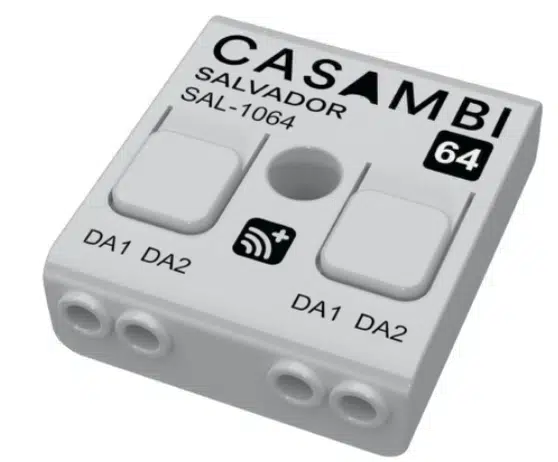

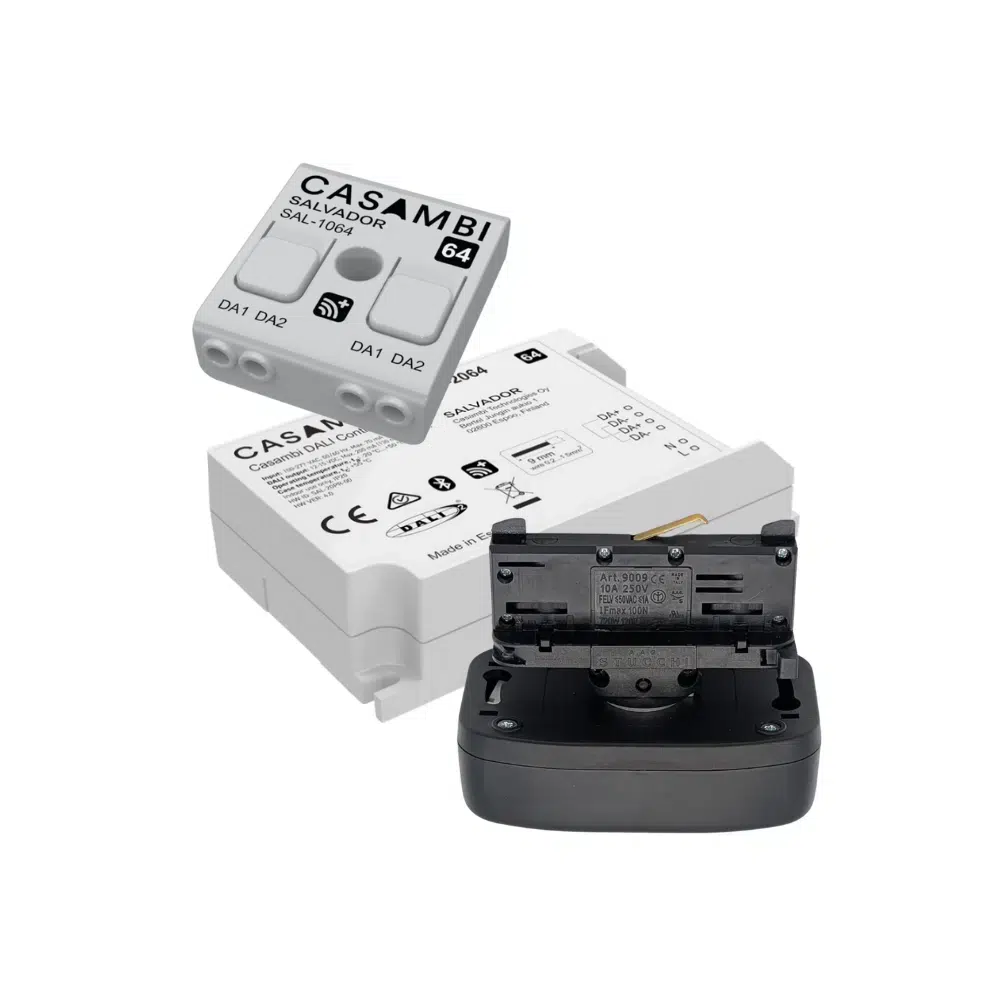

The Salvador Series 1000 DALI controllers seamlessly integrate wired DALI drivers into the Casambi ecosystem. When integrated, DALI luminaires appear as virtual luminaires in the Casambi network. Notably, this product supports industry standards such as DALI D4i, DALI DT6, and DALI DT8.
Browse our range of Casambi products to explore more of our products.
No downloads available.
| Product Code | Colour | Dimensions | Description |

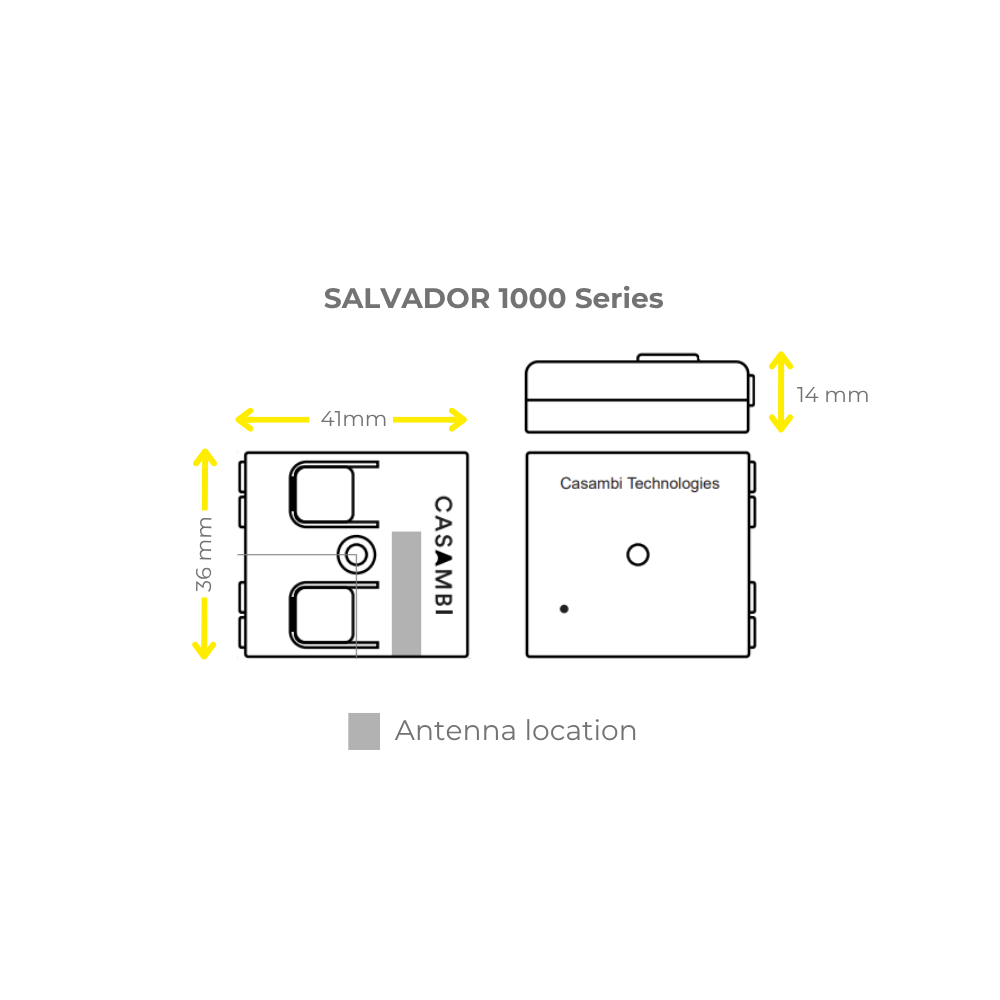

| SAL-1016 | White | 36mm x 41mm x 14mm | Salvador 1000 Series – 16 DALI addresses |
| SAL-1032 | White | 36mm x 41mm x 14mm | Salvador 1000 Series – 32 DALI addresses |
| SAL-1064 | White | 36mm x 41mm x 14mm | Salvador 1000 Series – 64 DALI addresses |

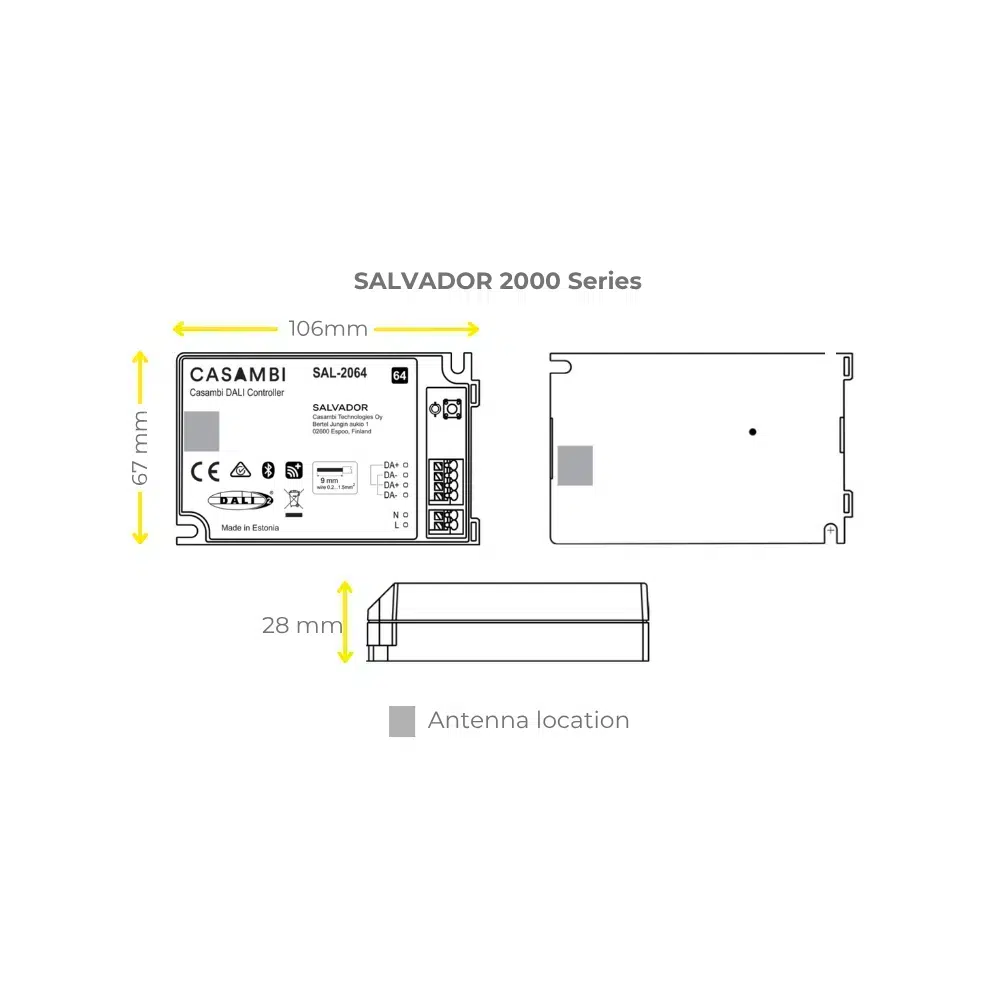

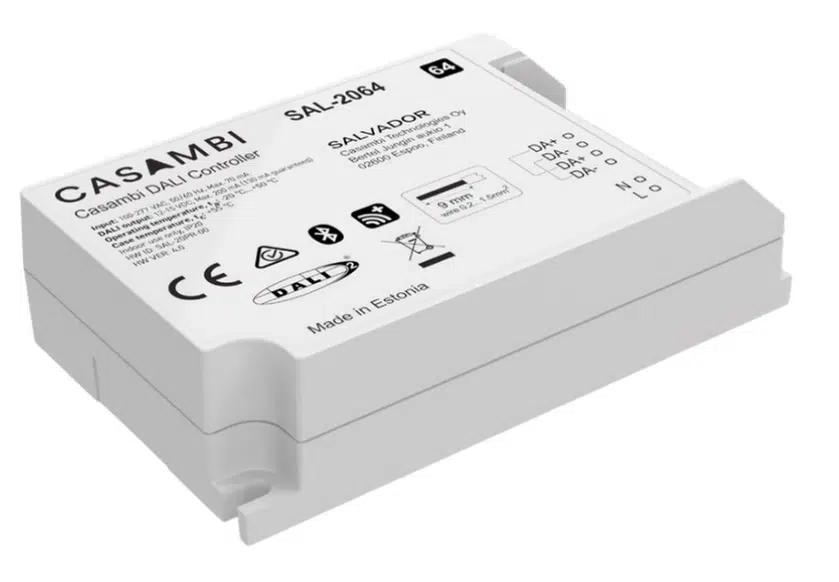

| SAL-2016 | White | 106mm x 67mm x 28mm | Salvador 2000 Series – 16 DALI addresses |
| SAL-2032 | White | 106mm x 67mm x 28mm | Salvador 2000 Series – 32 DALI addresses |
| SAL-2064 | White | 106mm x 67mm x 28mm | Salvador 2000 Series – 64 DALI addresses |
| Ancillary Code | Description | ||

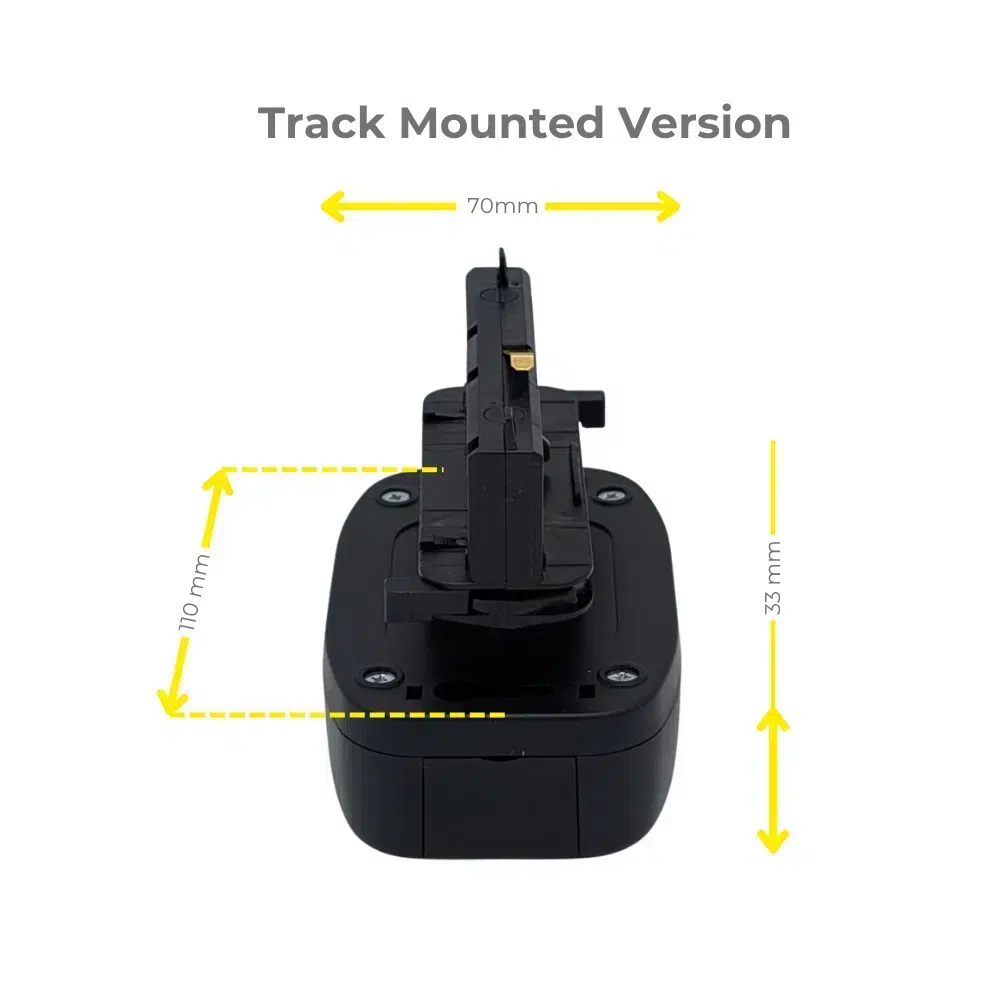

| /TRACK/BLK | Black enclosure for Salvador with pre-wired track adaptor and internal power supply (add code to above main product code) |
||
| /TRACK/WHT | White enclosure for Salvador with pre-wired track adaptor and internal power supply (add code to above main product code) |
||
Example Code – SAL-1016/TRACK/BLK
| Technical Specifications | 1000 Series | 2000 Series |
| Power Supply | DALI | 230v AC, 50Hz |
| Radio operation frequencies | 2.4 – 2.480 GHz | |
| Ambient temperature | -20 to +50 °C | |
| Weight | 15g | 95g |
| Ingress Protection | IP20 | |
| Maximum DALI addresses | SAL-1016 – 16 | SAL-2016 – 16 |
| SAL-1032 – 32 | SAL-2032 – 32 | |
| SAL-1064 – 64 | SAL-2064 – 64 | |
| DALI output | According to PS | 250mA |
