Casambi Presence and Daylight Sensor

need assistance on this product?

call us now on 01582 369005

Description

The CBU-PIR motion sensor is a reliable and efficient device that offers a convenient solution for monitoring motion in indoor settings. Its Bluetooth technology allows for seamless connectivity to other Casambi devices, while its standalone feature ensures that it can function without the need for additional switching hardware.

This motion sensor is particularly well-suited for use in office, classroom, healthcare, and other commercial areas where motion detection is necessary for security, safety, or energy management purposes.

The sensor can be conveniently managed and configured via the Casambi app.

  • Mains-powered sensor for Casambi applications

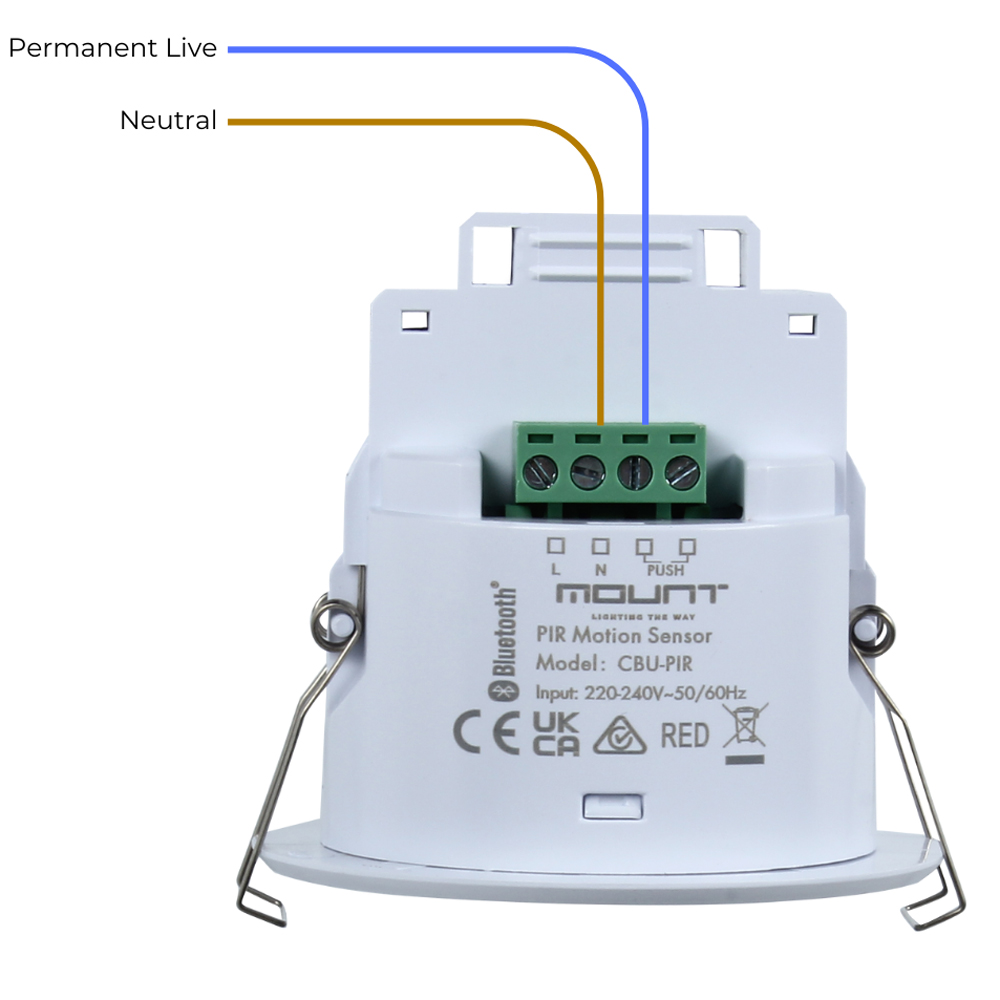

  • No switch line cabling needed, only mains
  • Wirelessly programmable via Casambi app, to operate as presence detector, absence detector, or both
  • IP20/IP54 Ceiling/surface mount box in black or white available as an option
  • Passive infrared (PIR) technology
  • 5 year warranty
  • Low-bay flat lens detection pattern for single occupant

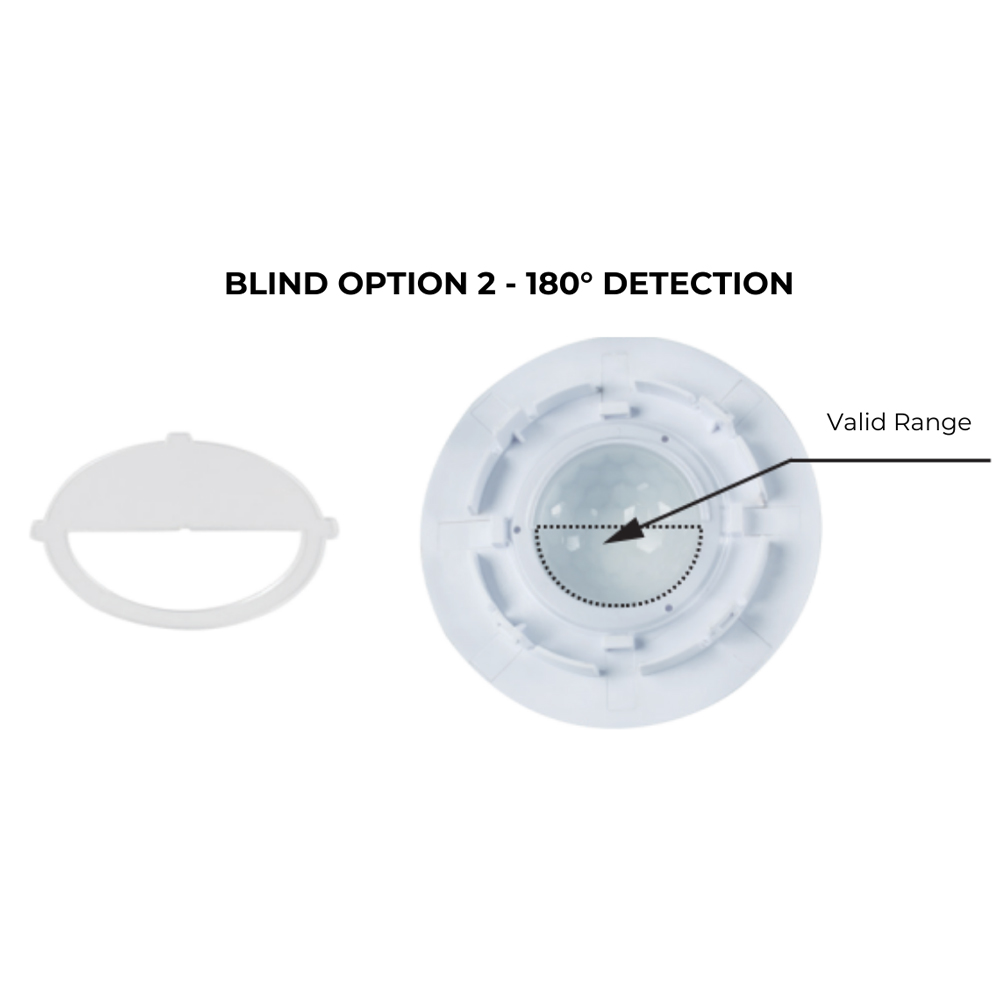

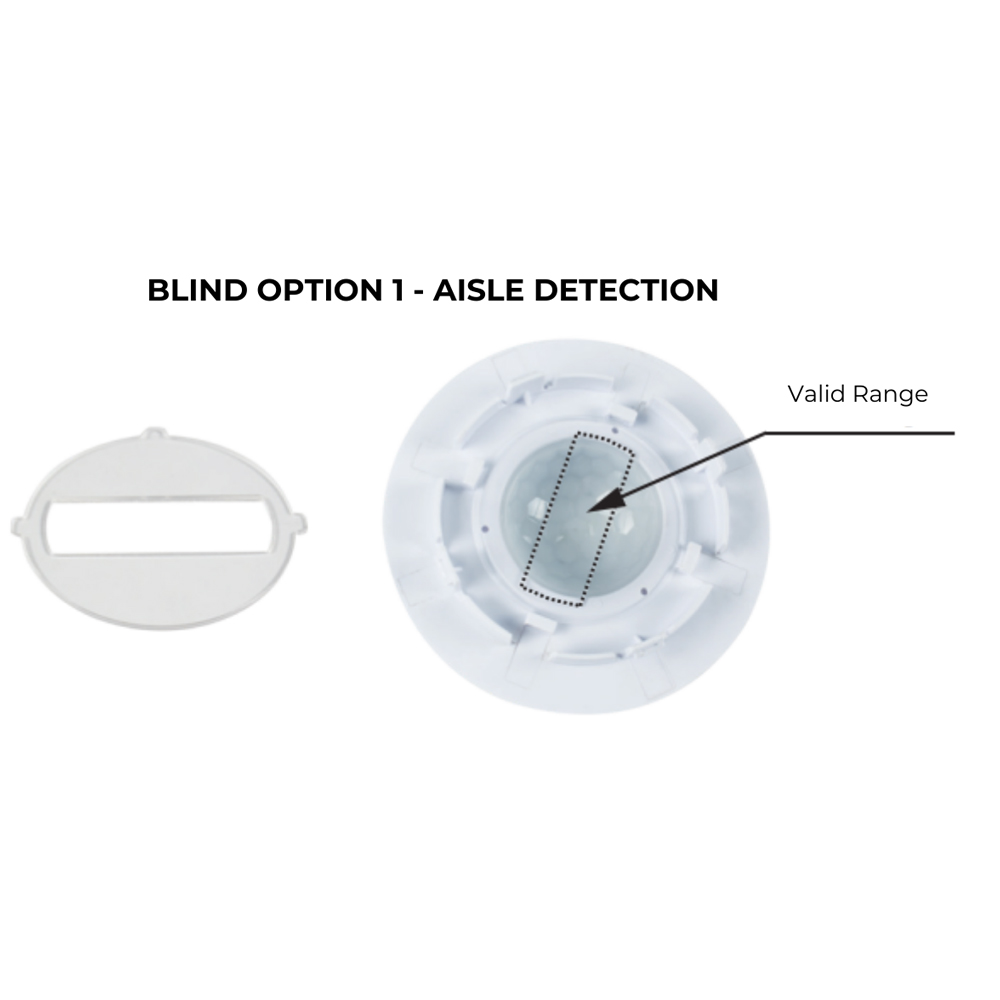

  • Optional inserts for varying detection angles
  • Screw terminals
  • Cable clamps included

Available Downloads

Technical & Design Info

No downloads available.



Product Code Colour Description

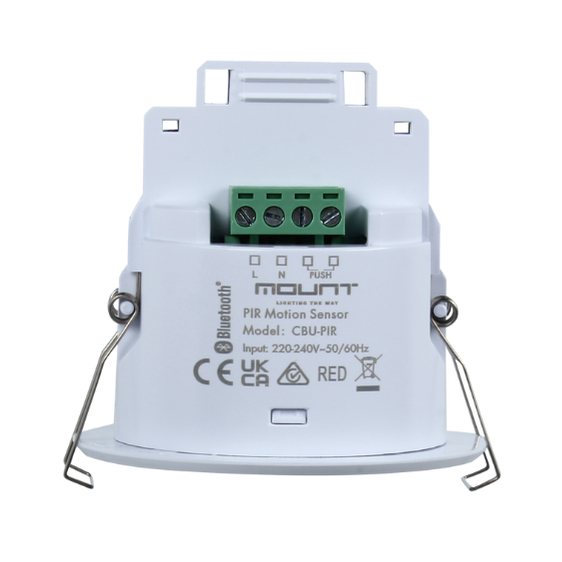

CBU-PIR White Casambi PIR – Recessed
CBU-PIR/TRACK Black Casambi PIR – Track Mounted



Option Code Colour Description

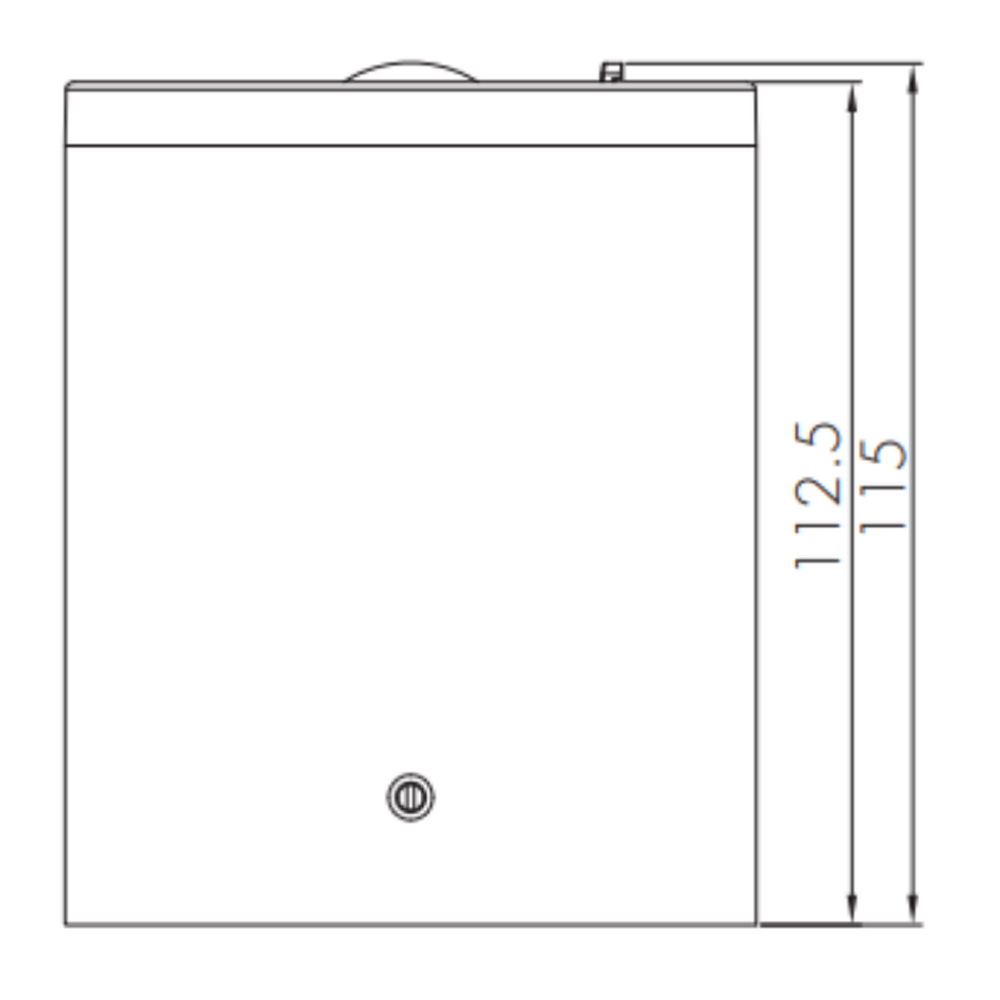

CBU-PIR/SB White Surface Mount Box

Note: Please add /BLK to any product or accessory code for a black option

Technical Specifications Details
Mains Voltage 220-240V AC 50/60Hz

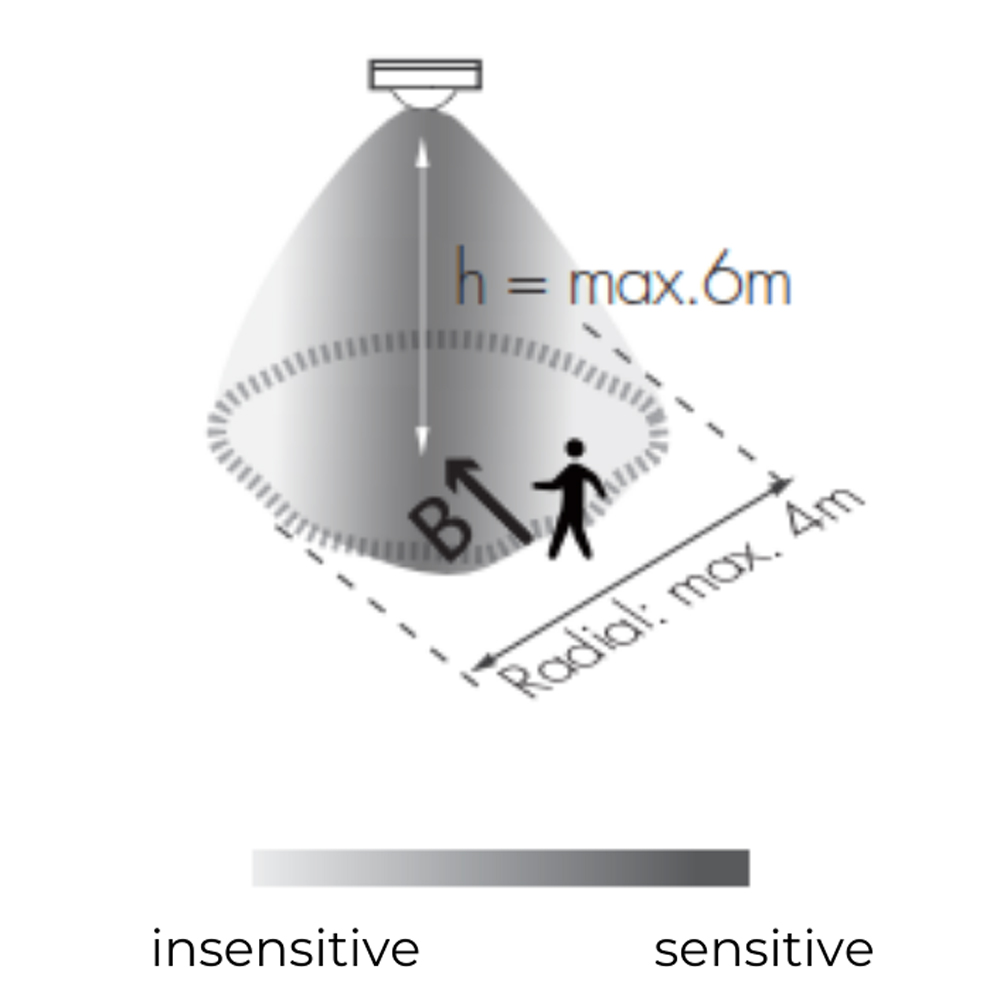

Installation Height 2.5m – 6m

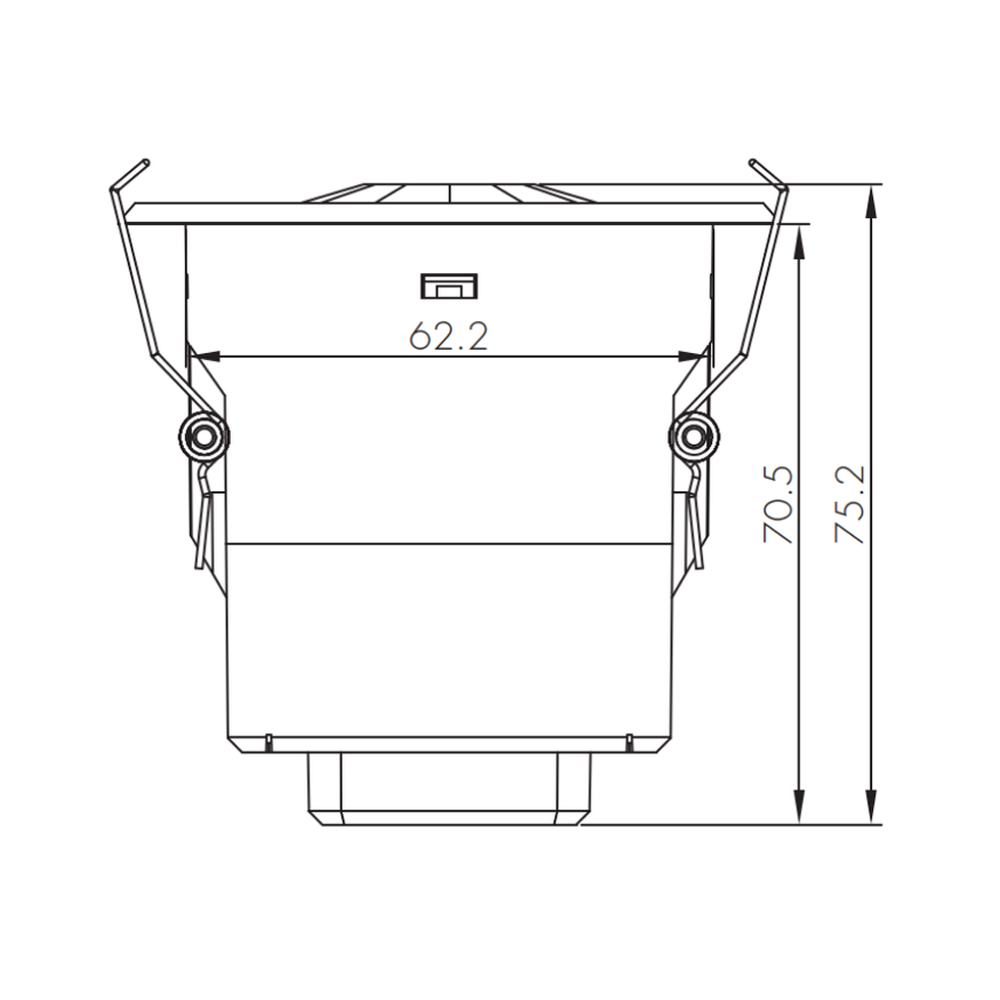

Cutout Dimension 66 – 68mm

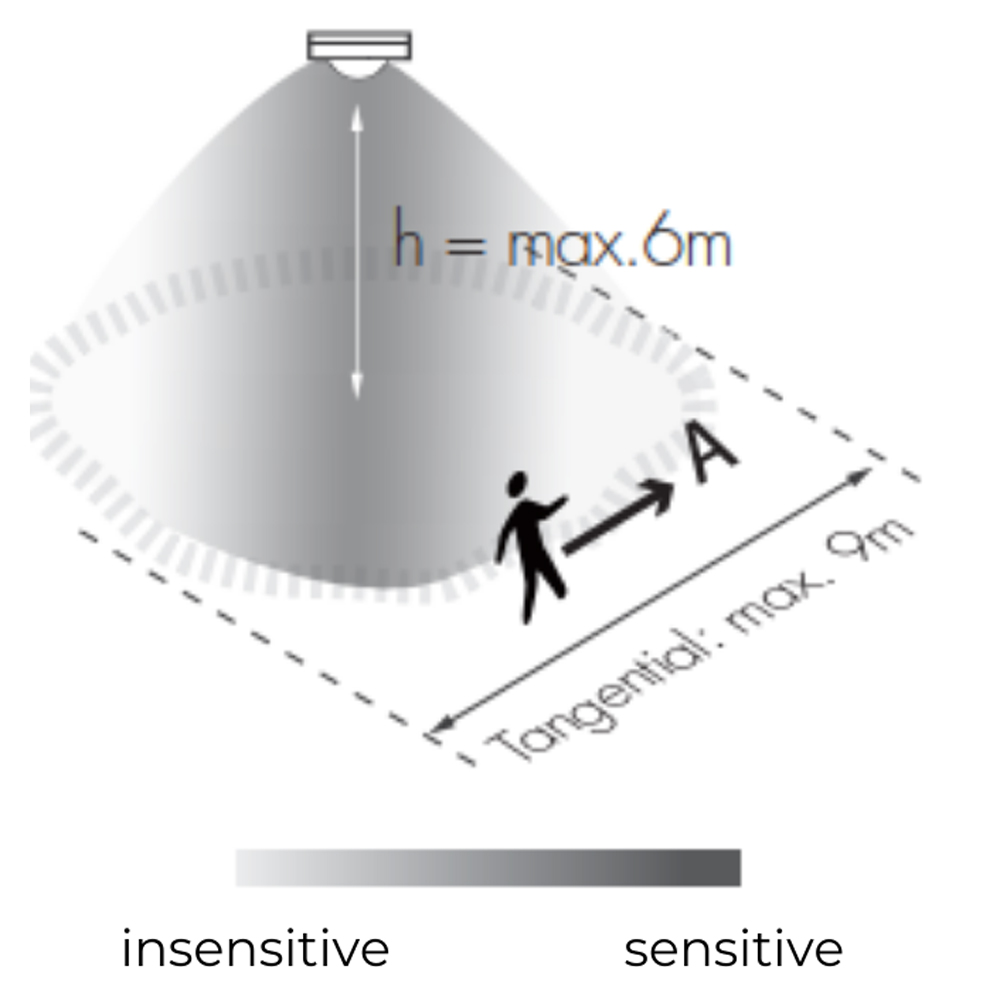

Detection Range (Ø) 9m
Detection Angle 360°
Range (Typical Indoor) 10-30m
Operation Temperature -20°C to +50°C
IP Rating IP20
