Casambi Occupancy and Daylight Sensor with Battery

need assistance on this product?

call us now on 01582 369005

Description

The CBU-PIRBAT is a battery operated CASAMBI motion detector with a PIR and a light sensor for motion and lux level detection. With these sensors it is possible to automatically switch a light source, group, or scene by measured movement and/or selectable lux values.

Daylight harvesting is implemented to make significant energy savings by only turning on the light to the level needed.

As a Casambi-Ready product, the CBU-PIRBAT is integrated directly into the wider Casambi network, and all programming and setup is carried out on the app.

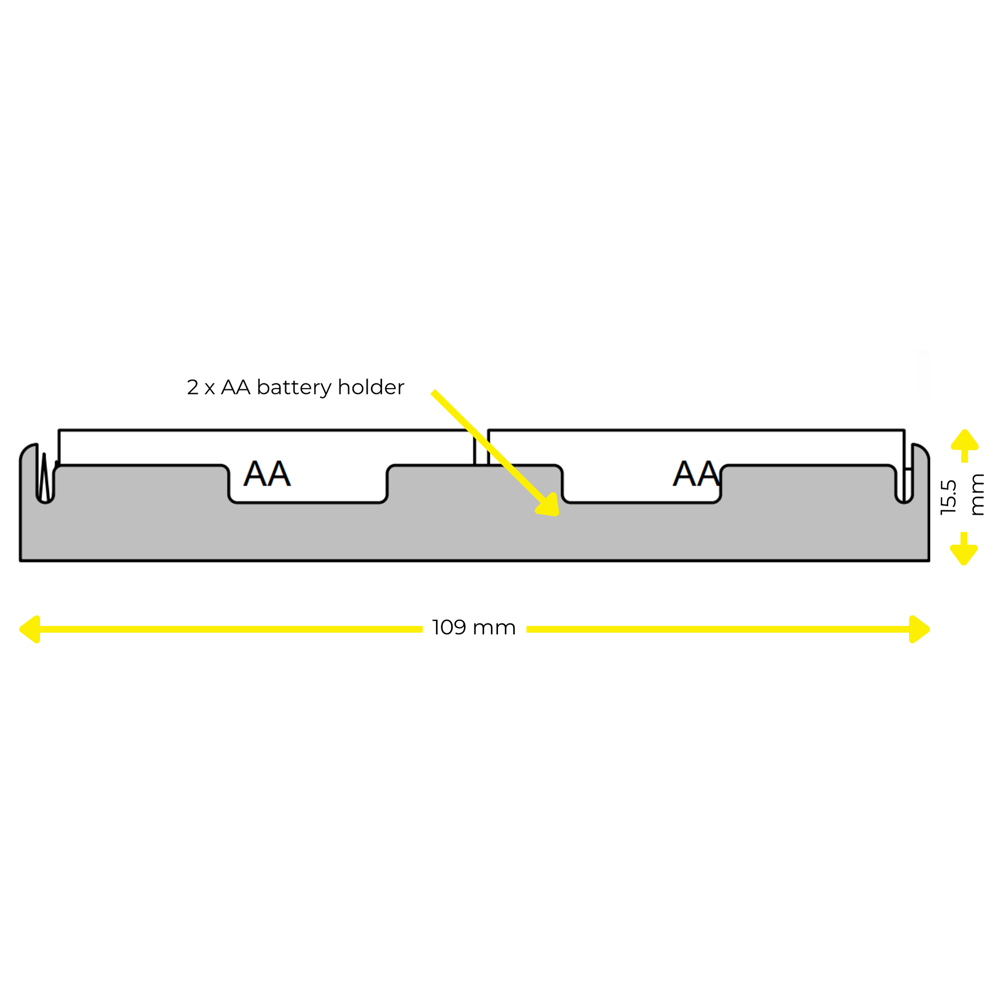

  • Battery-powered sensor for Casambi applications
  • No cabling needed
  • Wirelessly programmable via Casambi app, to operate as presence detector, absence detector, or both
  • Ceiling/surface mount box in black or white available as an option
  • Passive infrared (PIR) technology
  • 5 year warranty

Available Downloads

Technical & Design Info

No downloads available.

Product Code Colour Cutout (mm) Installation Height
CBU-PIRBAT White 25mm Up to 3m
CBU-PIRBAT/BLK Black 25mm Up to 3m



Option Code Colour Description

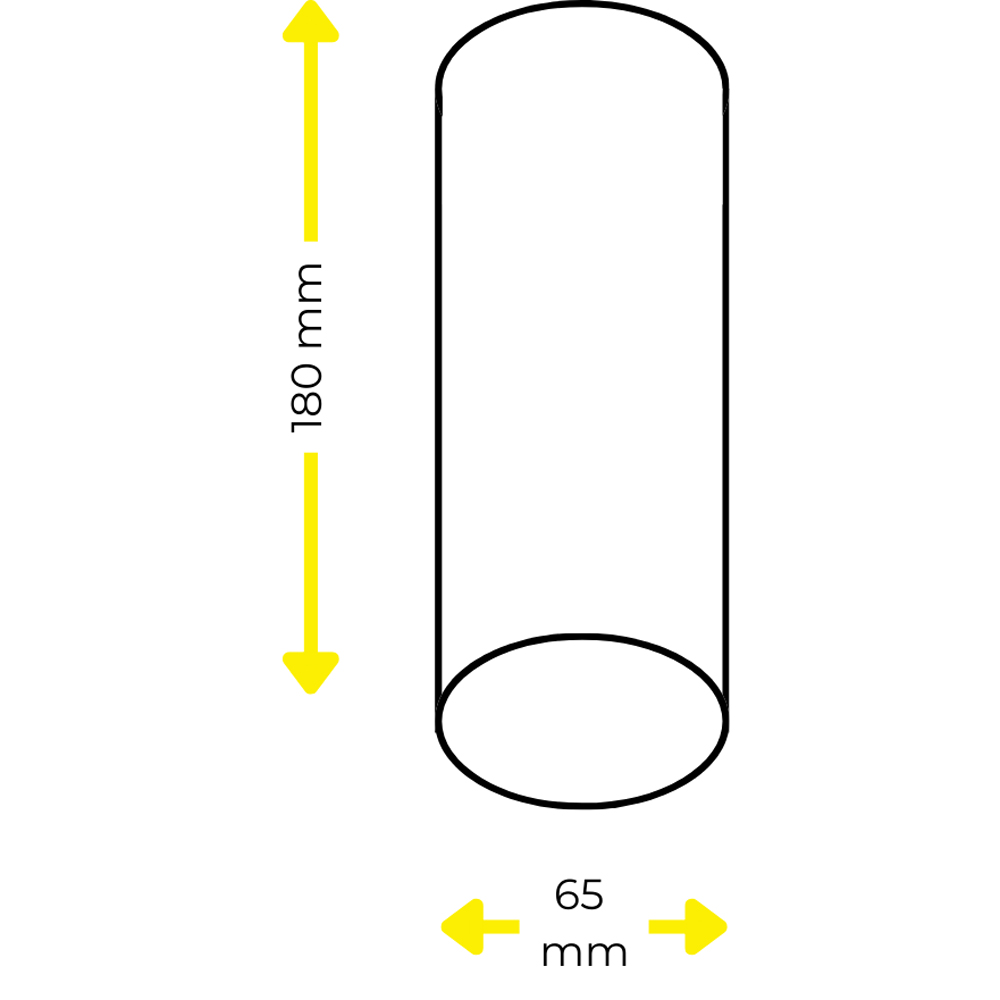

CBU-PIRBAT/SB White Surface Mount Box
CBU-PIRBAT/SB/BLK Black Surface Mount Box



Technical Specifications Details
Installation Height Up to 3m

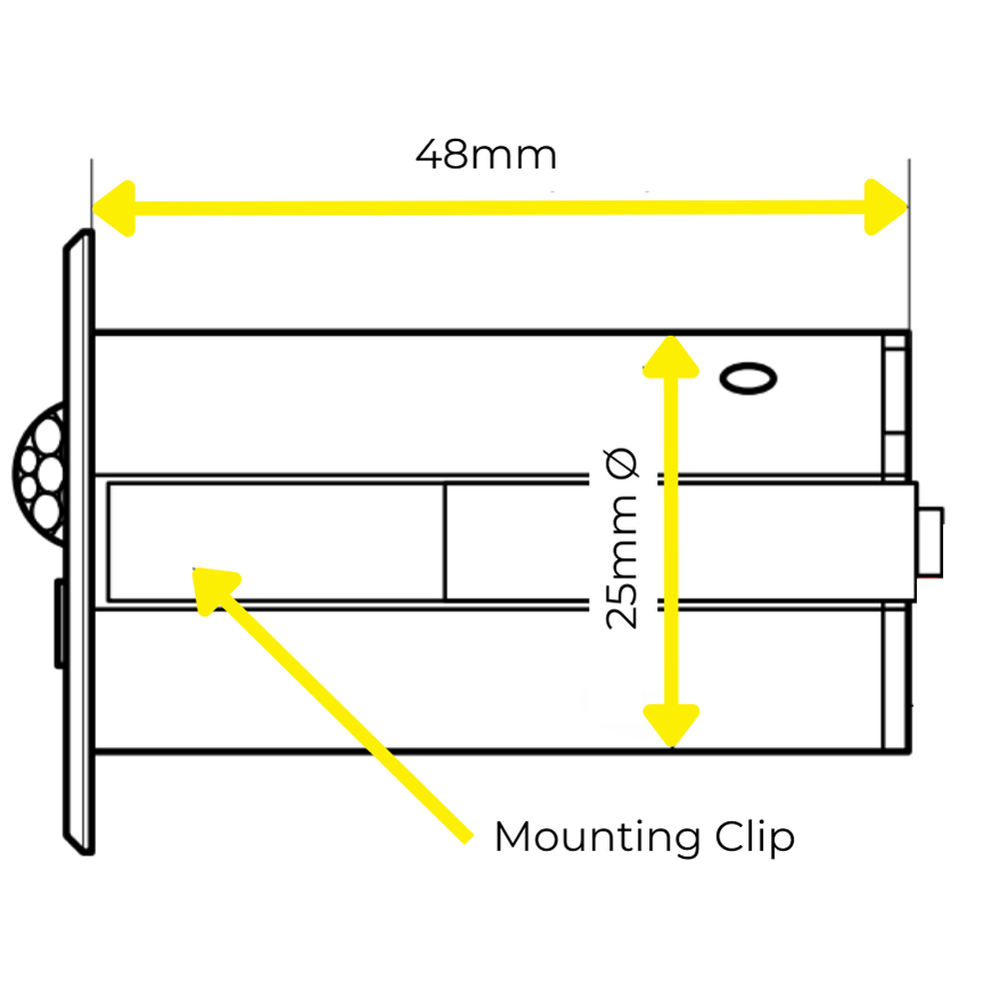

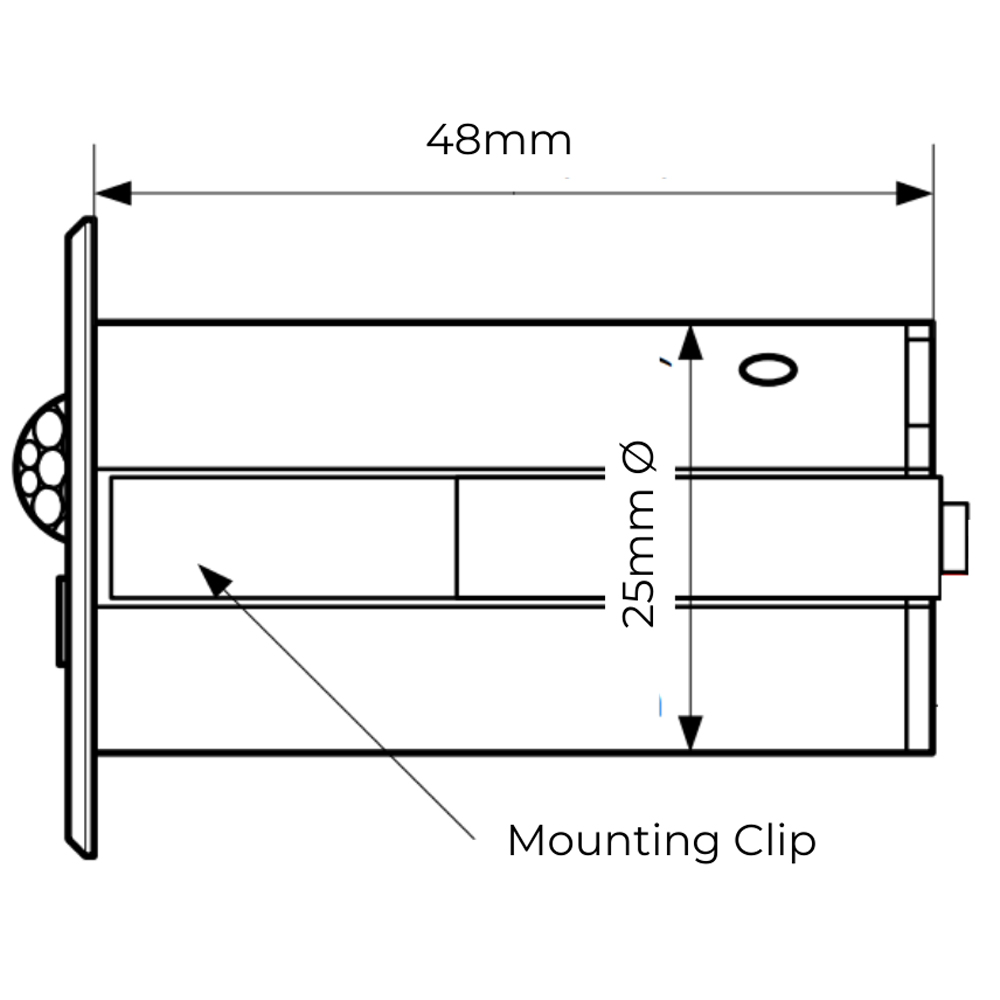

Cutout Dimension 25mm
Detection Range (Ø) Up to 7m diameter at floor level
Detection Angle 360°
Range (Typical Indoor) 10-30m
Operation Temperature -20°C to +50°C
IP Rating IP20
