Cohort (Die-Cast)

need assistance on this product?

call us now on 01582 369005

Description

The Cohort Die Cast LED Bulkhead has been manufactured to be tough yet easy to install. The impact-resistant lighting is manufactured using high-grade polycarbonate material and is mounted on a diecast aluminium hinged gear tray for quick installation. The diffuser is made from top-quality thermoplastic polymers that have been designed to maximise the light output ratio (LOR). The 4000K standard option provides consistent, bright illumination to keep high-risk areas well-lit as a deterrent and safety measure.

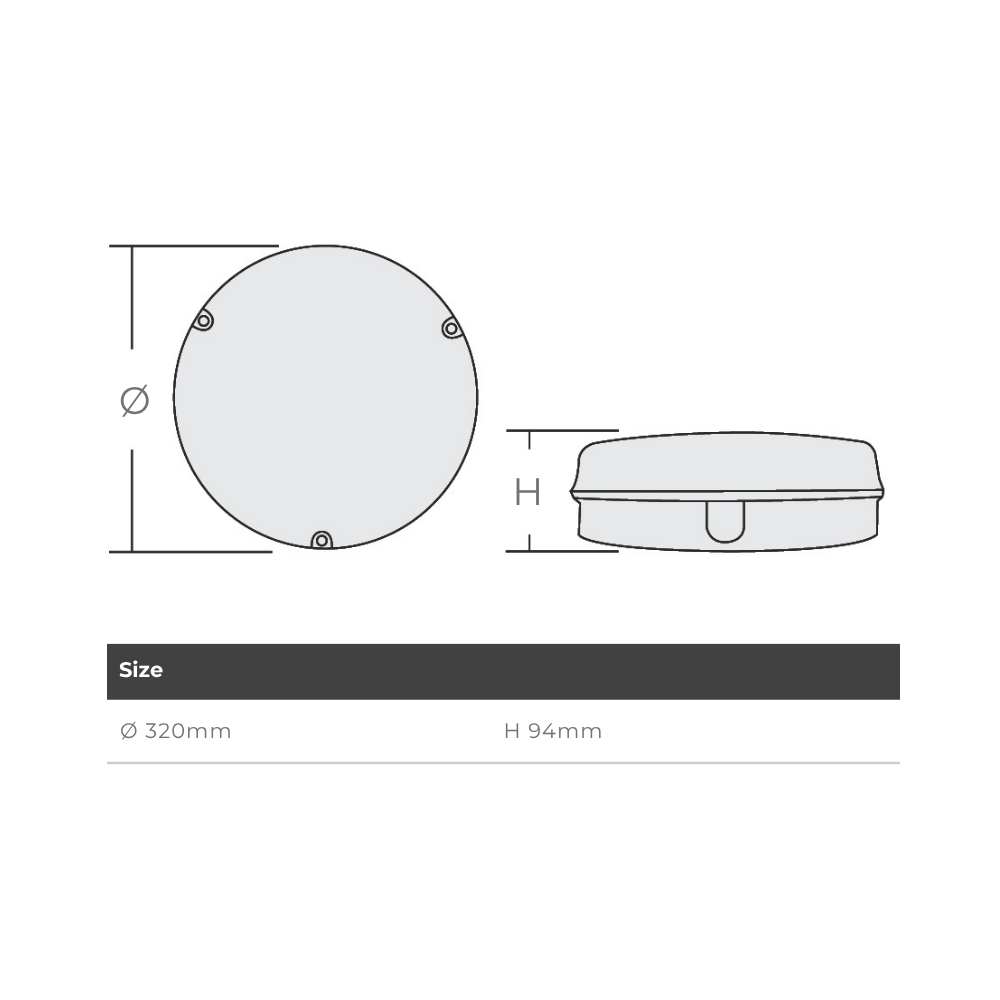

For additional protection in high-risk areas, the die-cast variant of the Cohort is IK10 rated, meaning it is protected against 20 joules on impact. This makes it extremely safe and vandal-proof for your peace of mind. All models are 320mm in diameter and 94mm in height and the Cohort die-cast luminaire is available in 14W and 20W models. An eyelid option of this luminaire is also available.

  • Die-cast aluminium base
  • High performance polycarbonate diffuser
  • BESA box and conduit entries
  • Presence detection options
  • Hinged gear tray
  • IP65
  • 3000K available
  • IK10 Rated
  • CRI>80
  • 5-year warranty

Technical & Design Info

Product Code LED
Wattage
Lumen
Output
Lumen/
Watt
Colour
Temperature
CHD15 15W 2034 132 4000K
CHD22 22W 2822 131 4000K

Section Option Code Description
1 – EMERGENCY Leave blank if no emergency
/M Emergency
/MZ Monitored Emergency
2 – CONTROL /ND Non Dimmable
/DA DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
/P Presence Detector
/PCF Dimmable Presence Detector
3 – BASE FINISH /BLK Black Base
/WHT White Base
4 – CCT 3K 3000K
4K 4000K
5 – ACCESSORIES Leave blank for no accessories
/EL Eyelid (finish colour as per base)
