Holt Die-Cast

The diffuser is manufactured using high grade polycarbonate material which has been designed to maximise the LOR, ideally suited to the use of LED lamps. To further enhance the protection this luminaire already offers, tamper-proof stainless steel screws can be supplied to secure the diffuser. The luminaire utilises branded electronic control gear which is mounted on a hinged metal gear tray for easy installation.

Read More...
download Product Datasheet

Holt (Die-cast)

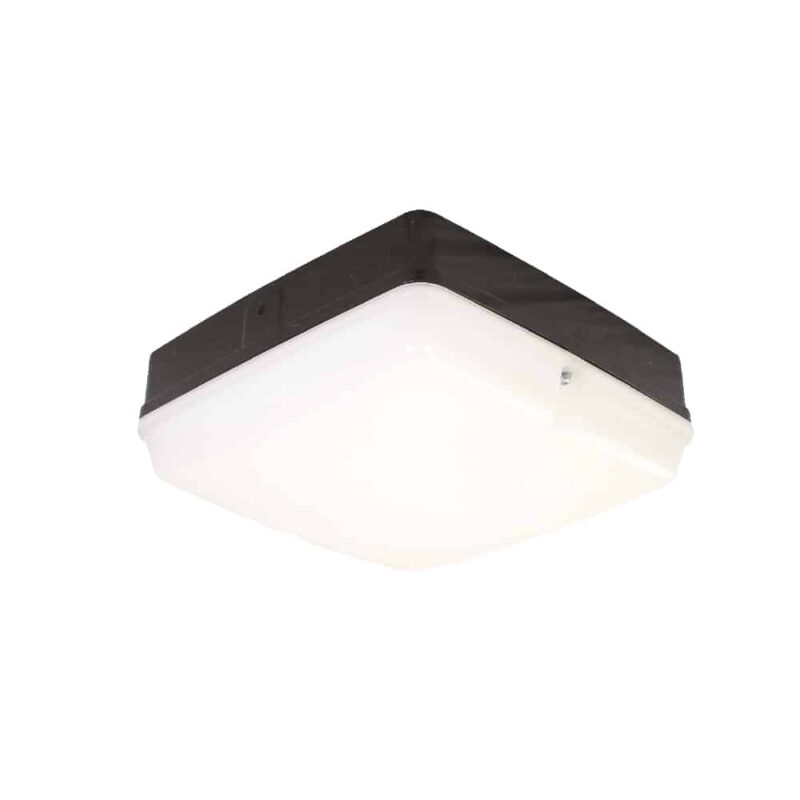

Our square Holt die-cast bulkhead has been specifically designed for use in vulnerable areas where more protection is required.

Holt (Die-cast)

SKU: HT-D

for any product enquiries call the team on   01727 836 695

For vulnerable areas such as stairwells, toilet blocks and public buildings where vandalism is a problem, a robust lighting solution is required. Our Holt Die-Cast Bulkhead model is manufactured from a die-cast aluminium base and secured with stainless steel anti-tamper screws to deter and hinder vandals.



The diffuser is designed from a high-grade polycarbonate material to maximise the LOR (Light Output Ration) for premium illumination in high-security areas. Presence detection options make this model even more suited for problematic spaces as the light model can be adjusted to come on instantly after sensing movement to deter individuals.



The luminaire utilises a branded electronic control gear mounted on a hinged metal gear tray for easy installation.

  • Die-cast aluminium base
  • High performance polycarbonate diffuser
  • BESA box and conduit entries
  • 4000K as standard
  • Presence detection options
  • Stainless steel anti-tamper screws
  • Suitable for interior or exterior use
  • Hinged gear tray
  • IP54
  • 3000K available

Typical Applications


High-security areas where vandalism is a problem e.g., communal stairwells, external lighting, storerooms, toilet blocks and public buildings.



Product CodeLED WattageLumen OutputColour Temperature
HT-D14LDE14w LED15854000K
HT-D20LDE20w LED20504000K



Product Options




Option Code
PPresence detection
DALIDALI/DSI dimmable driver
M3 hour maintained emergency
MZ3 hour maintained DALI emergency
PHDusk to dawn photocell
PCFDimmable presence detection
NM3 hour non-maintained emergency



Size Options




Size
L 275mmW 275mmH 97mm
