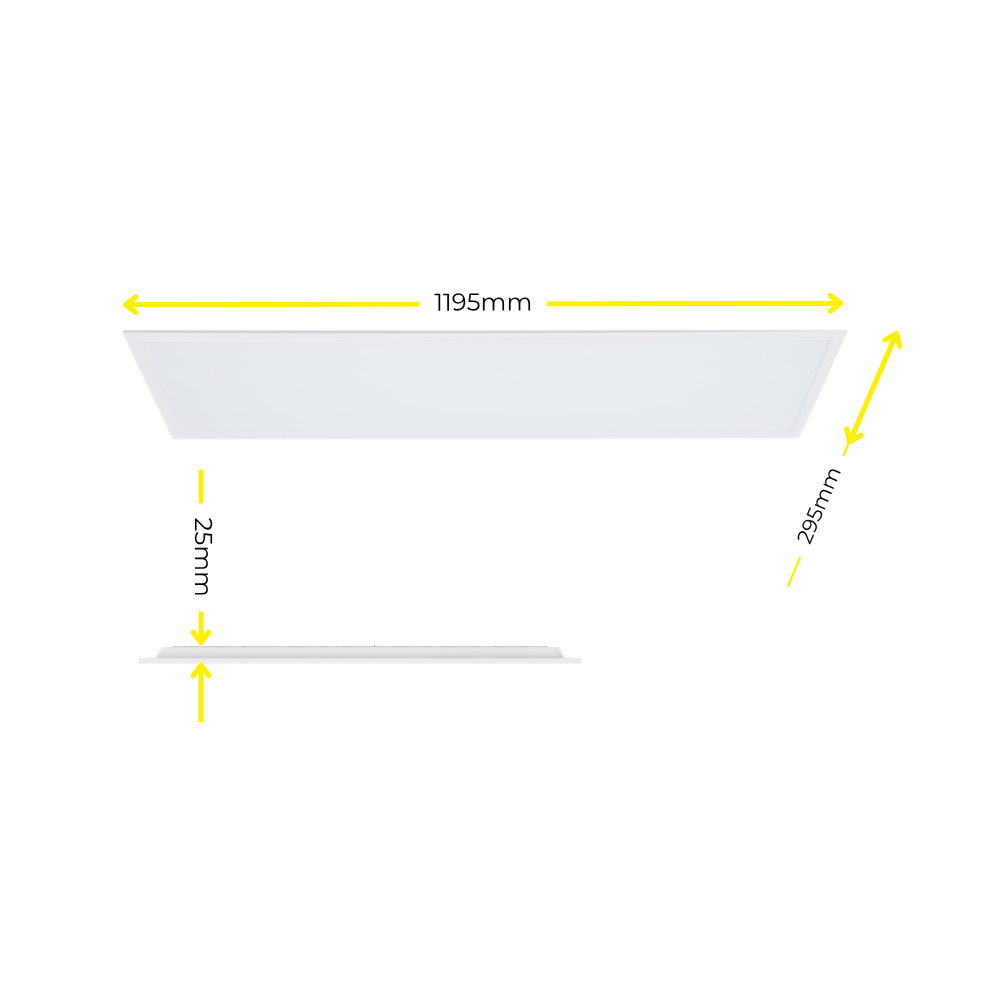

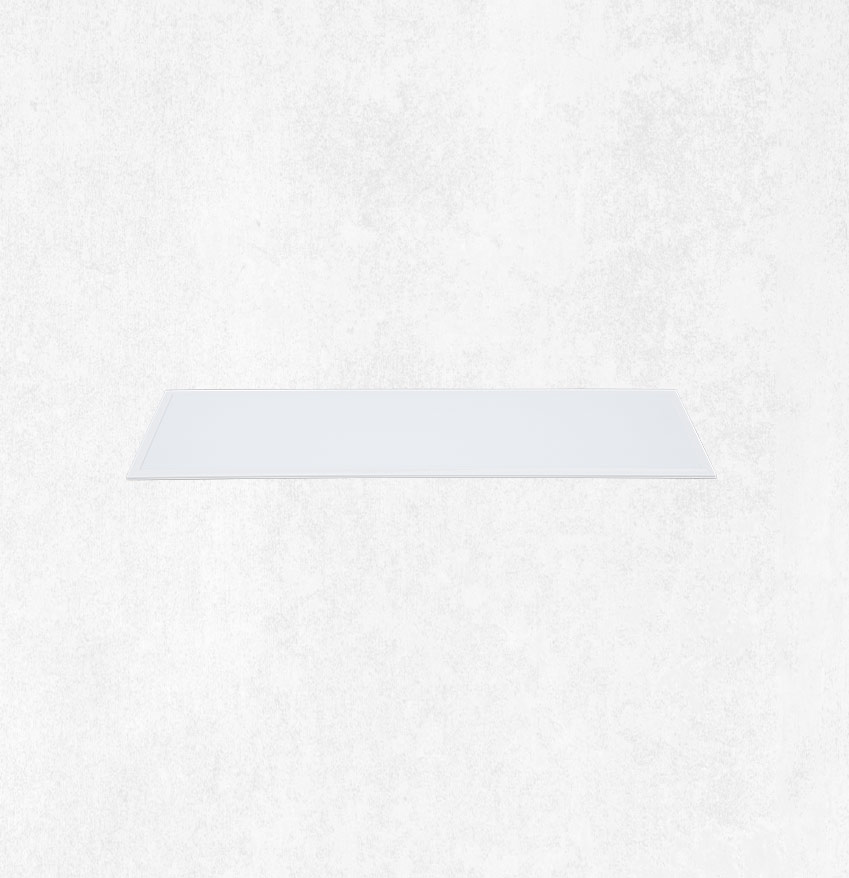

The LEP32LG product is a LED panel 1200 x 300 that has been designed to fit within SAS330 1200mm x 300mm plank ceiling applications.
We have created a bespoke aluminium frame which can be used when install or upgrading lighting within metal pan ceilings. The frame is manufactured to order in standard RAL 9010 but can be powder coated to a RAL colour of your choice.
The LED light source is powered by SMD2835 LED chips that boast low energy consumption and superb lumen output all whilst being UGR19 applicable. The recessed panel light has a TP(a) rated diffuser and is manufactured using thermoplastic polycarbonate material which is hard, highly transparent and UV stable. This offers good chemical resistance, is simple to clean and is scratchproof.
We also offer the LEP32LG 600 x 600.
| Product Code |
LED Wattage |
Lumen Output |
Lumen/ Watt |
Colour Temperature |
| LEP32LG12X3 | 31W | 3944 | 129 | 4000K |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | Leave blank for no emergency | |
| /M | 3 Hour Maintained Emergency | |
| /MZ | 3 Hour Maintained DALI Emergency | |
| 2 – CONTROL | /D | 0-10v Dimmable Driver |
| /DALI | DALI Dimmable Driver | |
| /BTC | Casambi Dimmable Driver | |
| 3 – CCT | /4K | 4000K LED |
| /3K | 3000K LED | |
| 4 – ACCESSORIES | Leave blank for no accessories | |

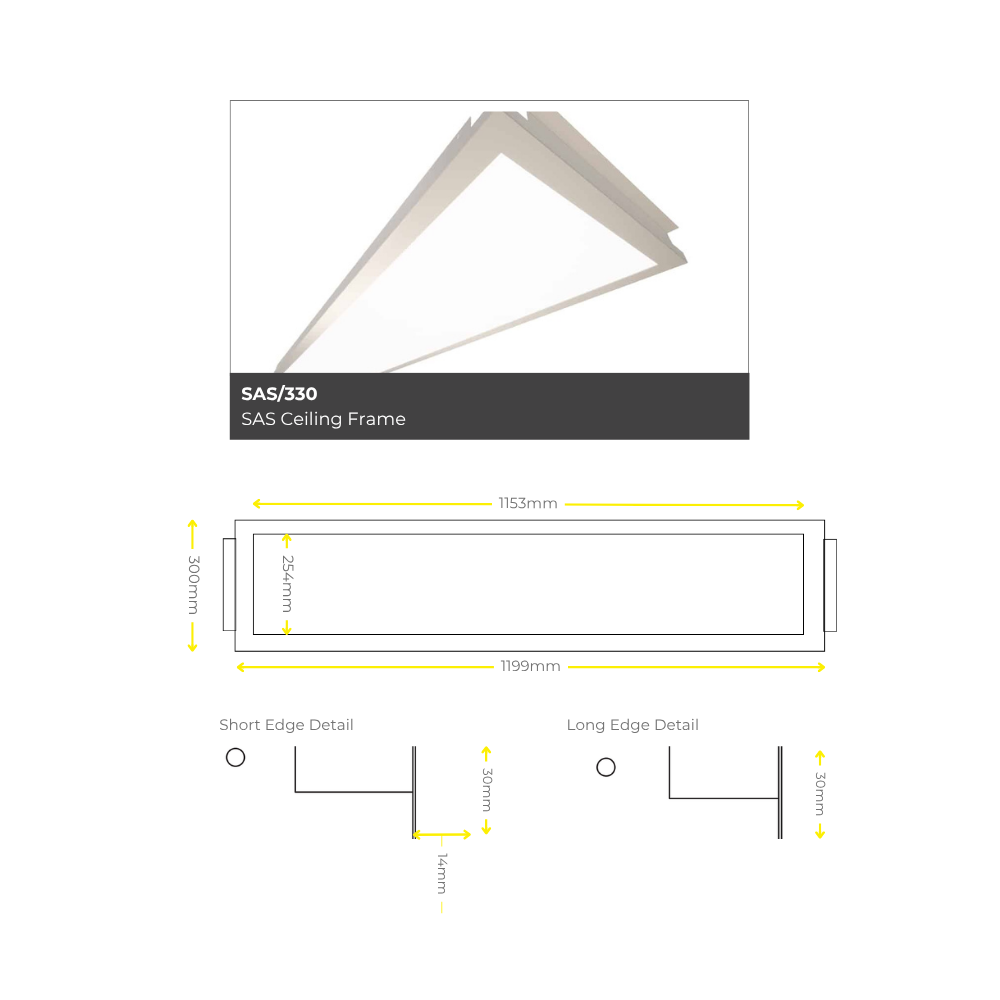

| /SAS330 | 1199 x 300 frame for SAS330 ceilings |
| Technical Parameters | |
|---|---|
| Operating Life – L80/B10 at 50°C | 54,000 hrs |
| LED Binning | SDCM <3 |
