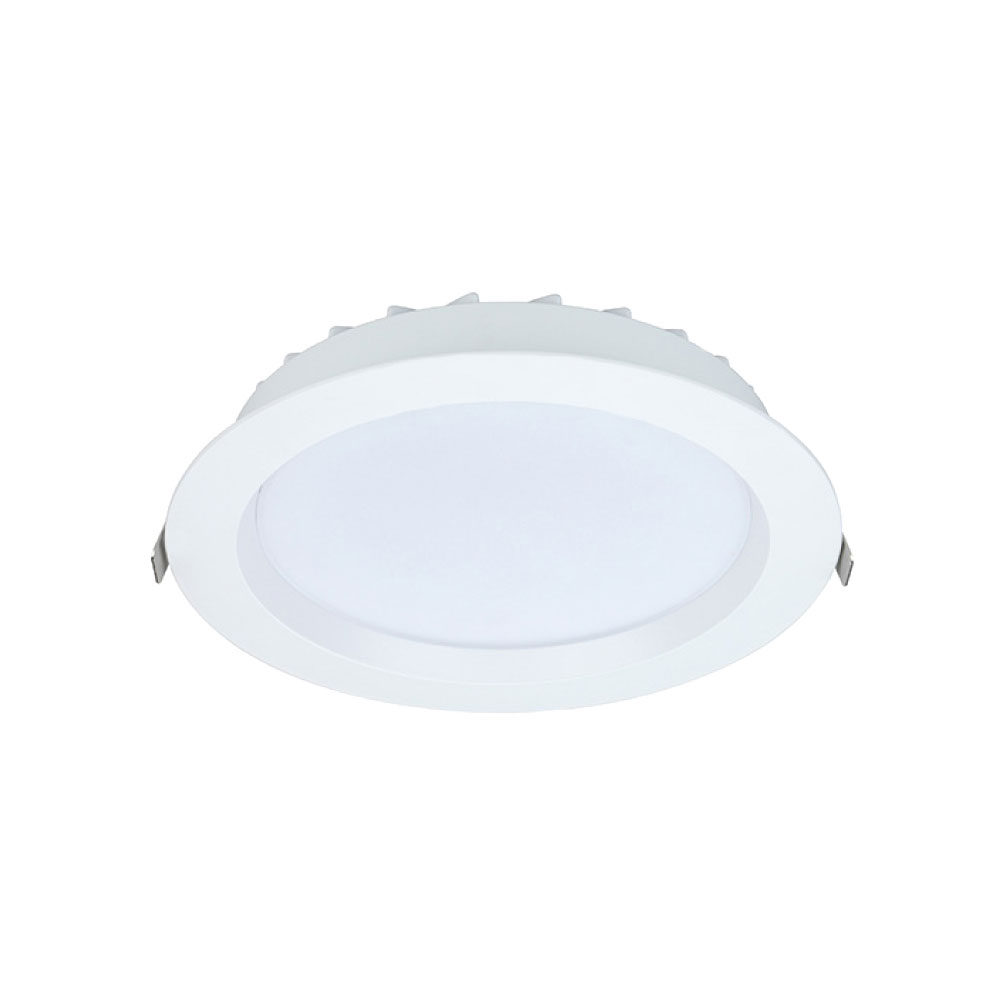

Our Lumaled recessed LED downlight has been designed as a direct replacement for 210mm PL downlights. The panel surround is manufactured using white powder coated aluminium material. The high-performance heat sink is manufactured using die-cast aluminium, connection from the luminaire to the driver is a simple process utilising simple plug and play connectors. The 3 x CCT colour changeable switch makes for easy use to create the correct temperature light for the right setting.
| Product Code |
LED Wattage |
Lumen Output |
Lumen/ Watt |
Colour Temperature |
| LLD18 | 16W | 1860 | 114 | 4000K |
| LLD25 | 23W | 2613 | 111 | 4000K |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | Leave blank if no emergency | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /TD | Triac Dim | |
| /D | 0-10v Dim | |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – FINISH | /9016 | RAL9016 White |
| /9005 | RAL9005 Black | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K (light output -12%) | |
| /57K | 5700K (light output – 6%) | |
| 5 – BEAM ANGLE | /90 | 90° diffuser |
| 6 – CRI | /80 | CRI>80 |
| 7 – IP RATING | /54 | IP54 |
| Accessory Code | Description |
|---|---|
| LUM/SUR/WHT | White Surface/Suspension Case |
| LUM/SUR/BLK | Black Surface/Suspension Case |
| MLESUS | Suspension Kit (3 Required Per Fitting) |
| CR1 | Ceiling Rose With Central Suspension Point (Specify Colour) |
