MLCM12 Lighting Control Module

call us now on 01582 369005

Description

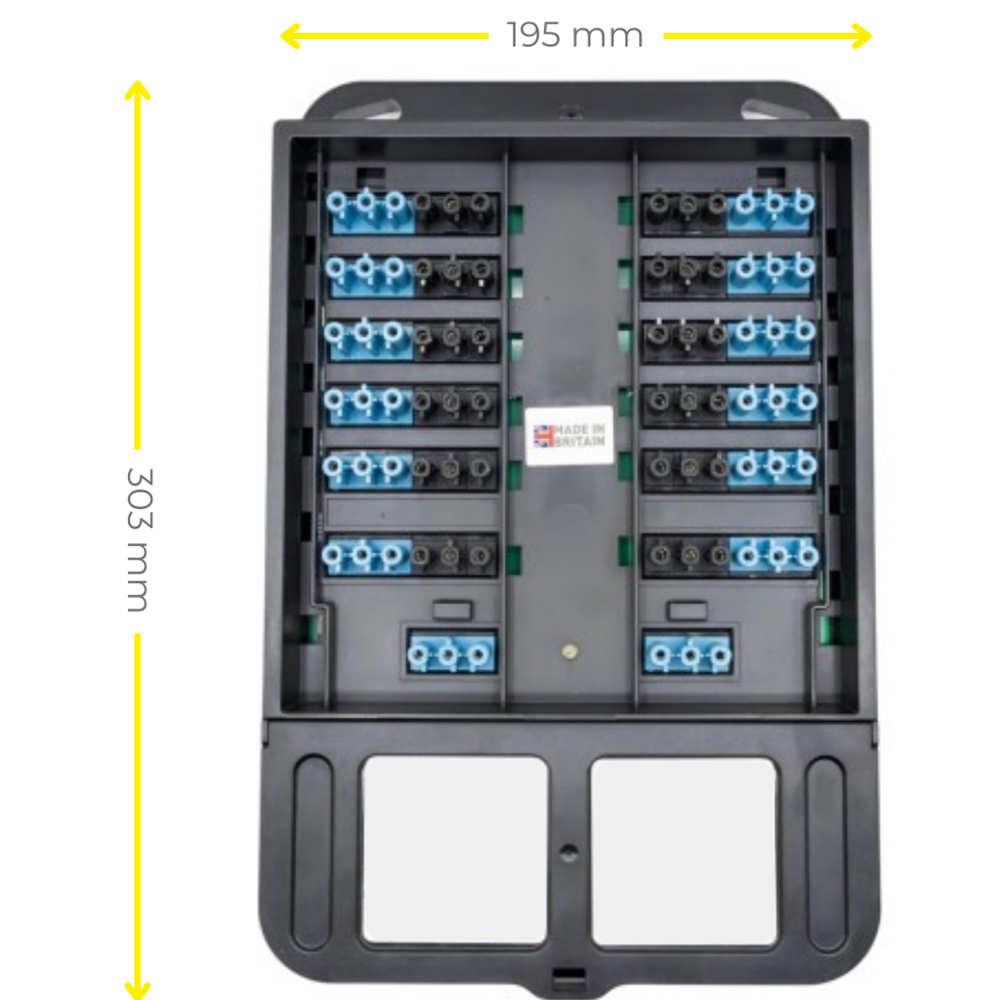

The robust MLCM12’s moulded low profile construction allows for simple single fix installation, and loop in termination of cabling.

Installation template supplied for easy mounting.

Any lighting installation requiring some level of control, and rapid installation.

Not suitable for external DALI controllers. Single phase only.

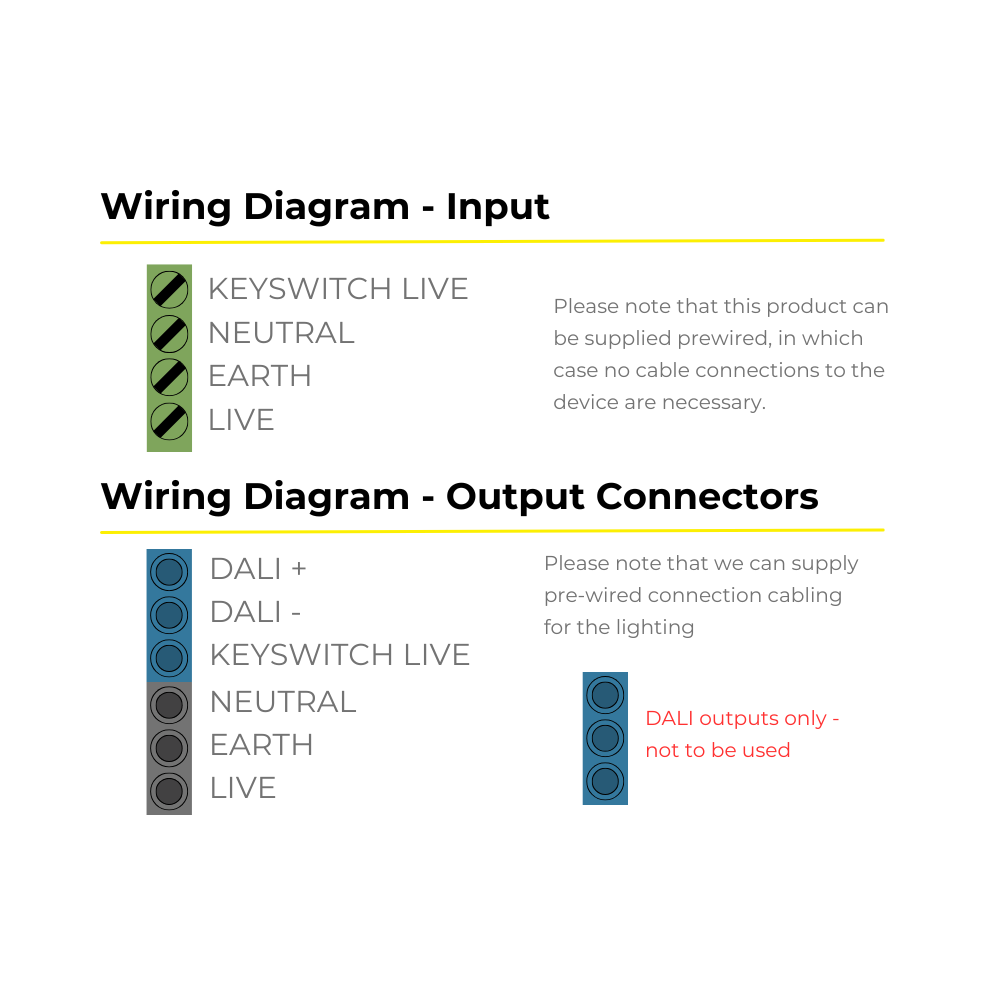

6-pole LCM for simple, fast installation of lighting systems, using industry standard connections
Works with DALI drivers via Casambi in-built master control
Keyswitch connection provided, for simple emergency lighting test
12A maximum load, 6A per channel
Luminaires or Casambi sensors can be plugged into any main channel
More than one luminaire can be connected per channel, up 16 in total
All sensors to be CBU-PIR or CBU-PIR-CTRL from Mount Lighting
Case material flame retardant polycarbonate UL94 V0
Terminal size 4.00mm² (2 x 1.5mm²)
Designed and manufactured in Great Britain

No downloads available.

Product Code	Description
MLCM12	12 output Lighting Control Module for pluggable Casambi sensor master control
MLCM12C	12 output Lighting Control Module with pre-wired Casambi controller for 8 DALI groups, up to 20 luminaires
MLCM12D	12 output Lighting Control Module with pre-wired Casambi Salvador for individual dimming of 16 DALI luminaires

Ancillary Code	Description
CBU-PIR	Casambi PIR for any MLCM – select 3m or 5m lead below (5c)
CBU-PIR-CTRL	Casambi PIR and Master Controller for MLCM12 – select MLC653 or 655 lead below
MLC653L	Pre-wired luminaire lead for non-emergency luminaires – 6 pole 5 core 3m
MLC655L	Pre-wired luminaire lead for non-emergency luminaires – 6 pole 5 core 5m
MLC655T	Splitter lead to power two luminaires from one output – 6 pole 5 core 3m
MLC663L	Pre-wired luminaire lead for emergency luminaires – 6 pole 6 core 3m
MLC665L	Pre-wired luminaire lead for emergency luminaires – 6 pole 6 core 5m
MLC665T	Splitter lead to power two luminaires from one output – 6 pole 6 core 3m
