Our Orion LED bulkhead light has been designed with one fits all in mind. Its appearance fits with any interior application with a variety of trims but it can also be used externally due to its IP65 and IK10 ratings. The housing is made from polycarbonate and uses a high-transmission diffuser whilst hiding any LED spotting. The base provides the installer with two 20mm cable entry points and a rear BESA mounting point.

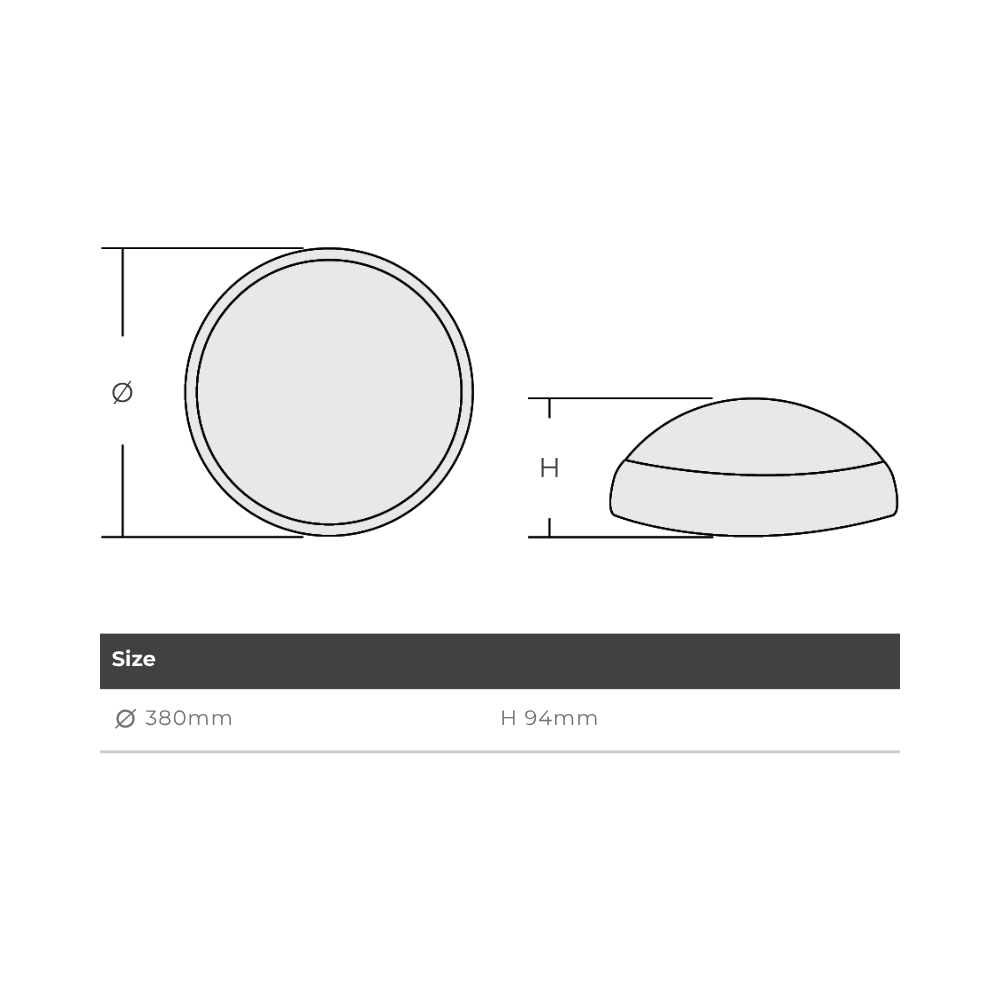

The Orion luminaire is 380mm in diameter and 94mm in height and offers widespread illumination from the high-performance lamp and diffuser. This luminaire is also available with or without the Halo effect features on other bulkhead luminaires and can be tailored to individual design finishes where necessary.
| Product Code |
LED Wattage |
Lumen Output |
Lumen/ Watt |
Colour Temp. |
| ORN15 | 15W | 2034 | 132 | 4000K |
| ORN22 | 22W | 2822 | 131 | 4000K |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | Leave blank if no emergency | |
| /M | Emergency | |
| /MZ | Monitored Emergency | |
| 2 – CONTROL | /ND | Non Dimmable |
| /DA | DALI/DSI Dimmable Driver | |
| /BTC | Casambi Dimmable | |
| /P | Presence Detector | |
| /PCF | Dimmable Presence Detector | |
| 3 – FINISH | /WHT | White Base |
| /CHR | Chrome Base | |
| /SIL | Satin Silver Base | |
| 4 – CCT | /3K | 3000K |
| /4K | 4000K |
