Description

Glare has a big impact on the quality of lighting in a commercial environment and is a direct contributor to visual discomfort. The matt black baffle of this downlight has been designed to minimise glare to prevent visitors, employees and building occupants being subjected to optical discomfort from surface or screen reflections.

The Quantum downlight is manufactured with a Tridonic LED engine and driver system and comes in a choice of finishes and colours to match coordinated interior design schemes. There is also a plaster-in trimless design and wall wash option available for a good-looking finish that is conscious of its visual impact. The matt black baffle of this downlight has been designed to minimise glare to prevent building occupants being subjected to optical discomfort.

  • Matt black darklight baffle to minimise glare
  • Emergency and DALI dimming option
  • IP44 protective lens
  • Precision moulded 40º reflector
  • Thermally optimised die-cast heatsink
  • Tridonic LED engine and driver system
  • Short circuit, overload and temperature protection
  • Life up to >55,000 hours (L70/F10)
  • Round option available (See Flare)
  • Compatible with Casambi wireless switching system
  • CRI>80 or CRI>90 options
  • Manufactured in UK
  • 5-year warranty

Technical & Design Info

Product
Code
LED
Wattage
Lumen
Output
Lumen/
Watt
Colour
Temperature
Beam
Angle

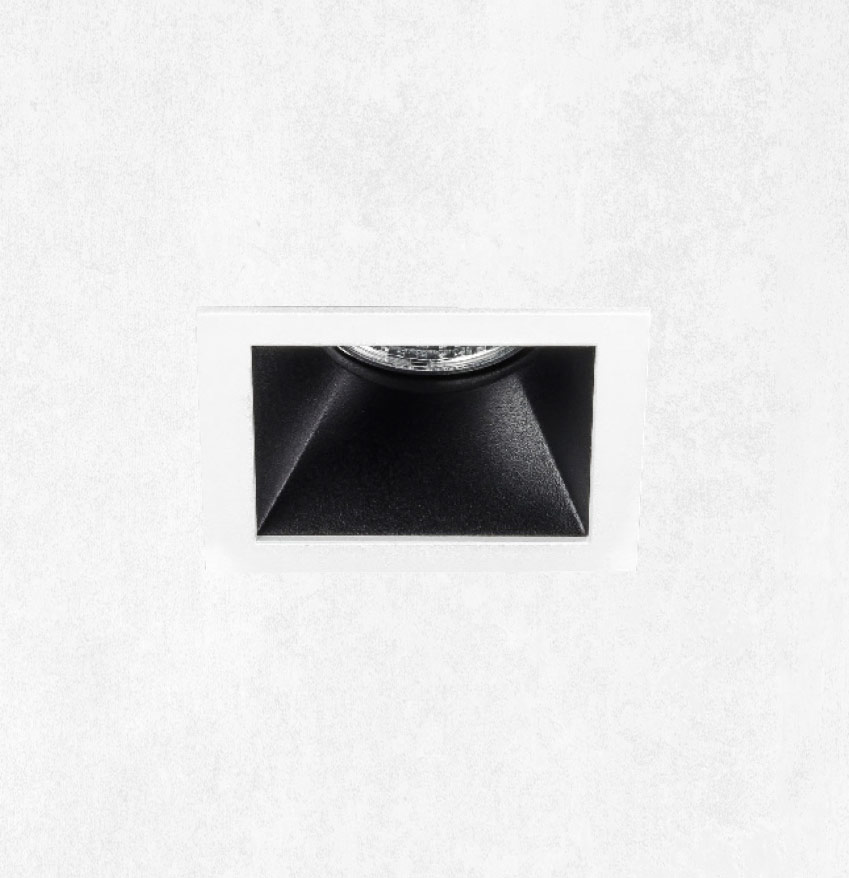

QTM1-6 6W 700 108 4000K 40°
QTM1-8 8W 900 120 4000K 40°
QTM1-12 12W 1325 115 4000K 40°

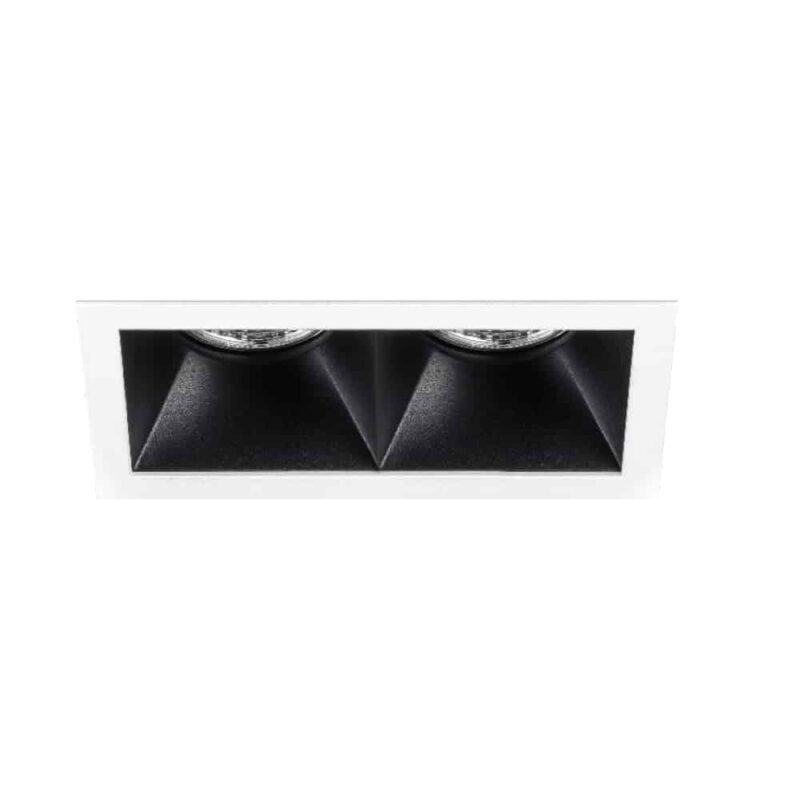

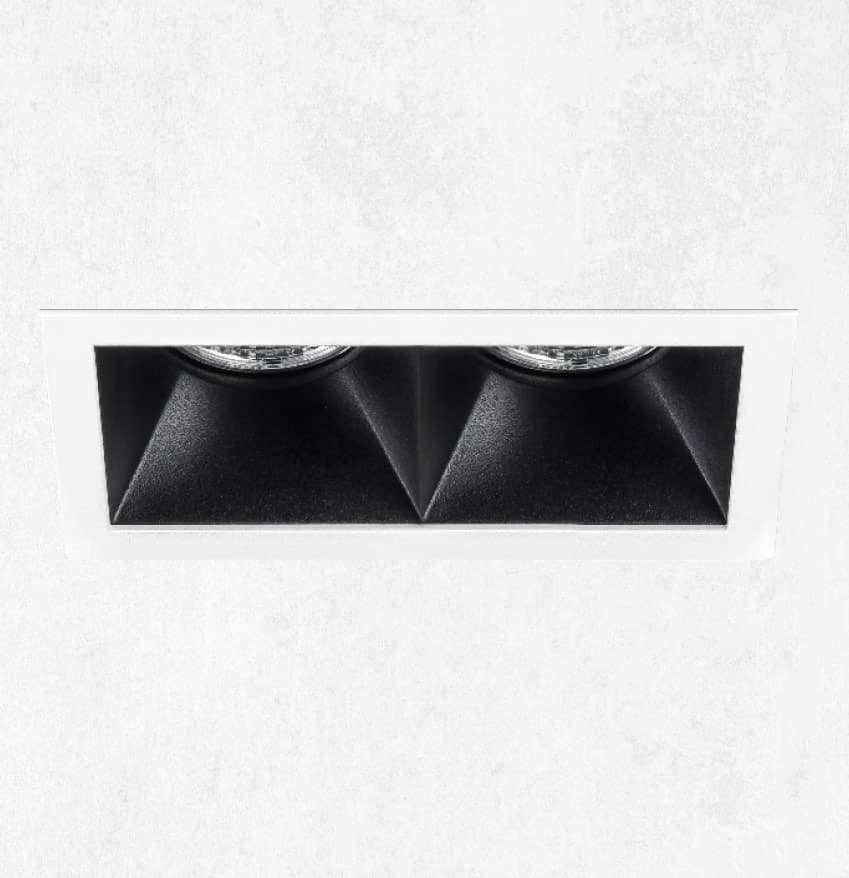

QTM2-12 12W 1400 108 4000K 40°
QTM2-16 16W 1800 120 4000K 40°
QTM2-24 24W 2650 115 4000K 40°

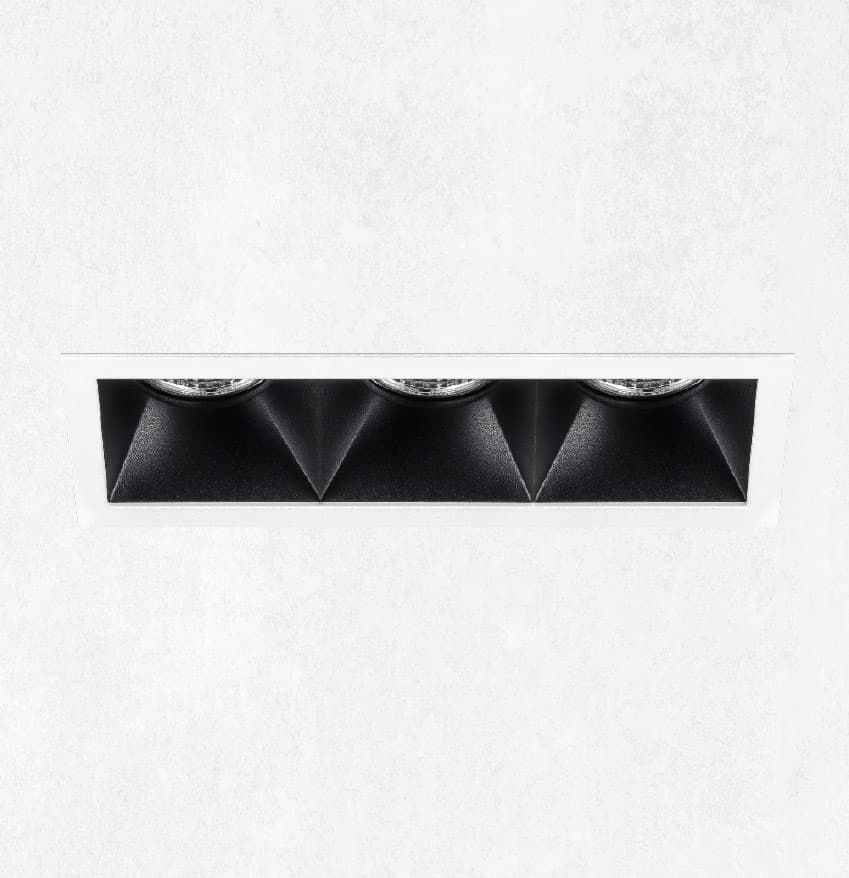

QTM3-18 18W 2100 108 4000K 40°
QTM3-24 24W 2700 120 4000K 40°
QTM3-36 36W 3975 115 4000K 40°

Section Option Code Description
1 – EMERGENCY If no emergency required, leave blank
/M Emergency
/MZ DALI Emergency
2 – CONTROL /ND Non Dim
/DA DALI Dim
/BTC Casambi Dim
3 – BEZEL /WW White Bezel, White Baffle
/BW Black Bezel, White Baffle
/PW Plaster-In Bezel, White Baffle
/WB White Bezel, Black Baffle
/BB Black Bezel, Black Baffle
/PB Plaster-In Bezel, Black Baffle
Note: White = RAL9003 and Black = RAL9005
4 – CCT /4K 4000K
/3K 3000K (light output -5%)
/TW Tunable White
5 – REFLECTOR /R40 40° beam angle
/R20 20° beam angle
6 – CRI /80 CRI>80
/90 CRI>90
