Recessed Lighting
Architectural LED Downlights

Sonic

need assistance on this product? call us now 01582 369 005

Description

From maintained-emergency options to a selection of bezel colours, finishes and reflector variations the Sonic 130mm diameter luminaire is the high-performance solution in anti-glare downlights for the commercial and residential space. Boasting high colour temperature and impressive efficacy, any fit-out project can experience the benefits in its ambient and task lighting.

Use the selection of accessories to provide more scope to any interior and achieve direct lighting on feature pieces without glare by combining an angled reflector and the built-in low glare features. Or choose from chrome, aluminium or brilliant white for a finish that is totally complementary to any office, bar or restaurant interior. Manufactured with a Philips LED module and driver system, this compact luminaire is designed for long life and high performance across a wide variety of applications.

Key Features

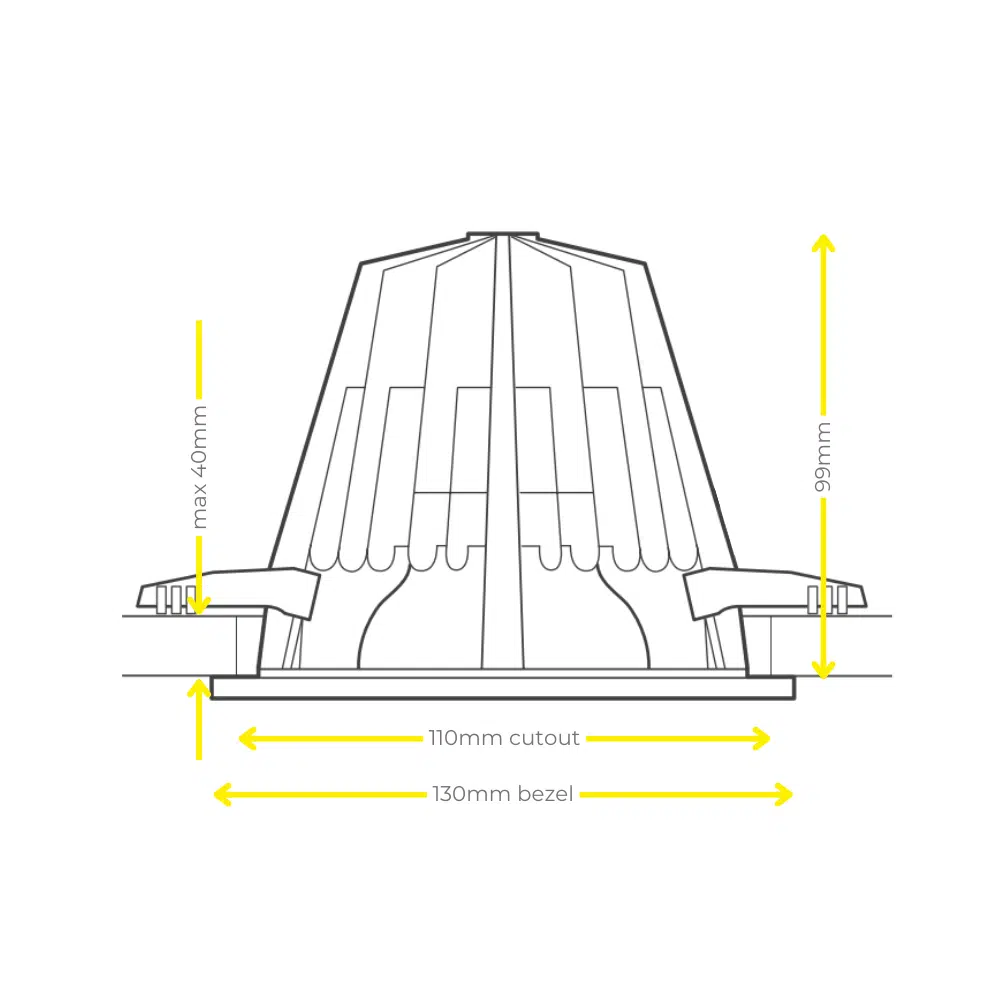

  • 130mm Bezel Diameter
  • Low glare UGR<19
  • Emergency and dimming options
  • Incorporates Philips LED module and driver system
  • Multi-faceted 40° reflector supplied as standard
  • Height under 100mm using optimised passive thermodynamics
  • Life up to >50,000 hours (L80/B10)
  • CRI>80 as standard, CRI>90 available
  • Manufactured in UK
  • 5-year warranty

Sonic

,

Sonic

DOWNLOAD DATASHEET
Enquire today
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature
SON8 8W 1050 131 4000K
SON13 14W 1825 135 4000K
SON19 19W 2525 133 4000K
SON27 27W 3375 125 4000K

Product Options

Section Option Code Description
1 – EMERGENCY /NE No Emergency
/M Emergency
/MZ 3 Hour DALI Maintained Emergency
2 – CONTROL /ND Non-Dimmable Driver
/DA DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
3 – BEZEL /WH RAL9016 White
/BL RAL9005 Black
/TR Plaster-In Bezel
4 – CCT /4K 4000K
/3K 3000K
5 – CRI /80 CRI>80
/90 CRI>90
6 – IP RATING /20 IP20
/54 IP54
/65 IP65
7 – REFLECTOR TYPE /MF40 Multi-Faceted 40° Reflector
/MF60 Multi-Faceted 60° Reflector
/MF25 Multi-Faceted 25° Reflector
/SP40 Specular 40° Reflector
/SA50 Satin 50° Reflector
