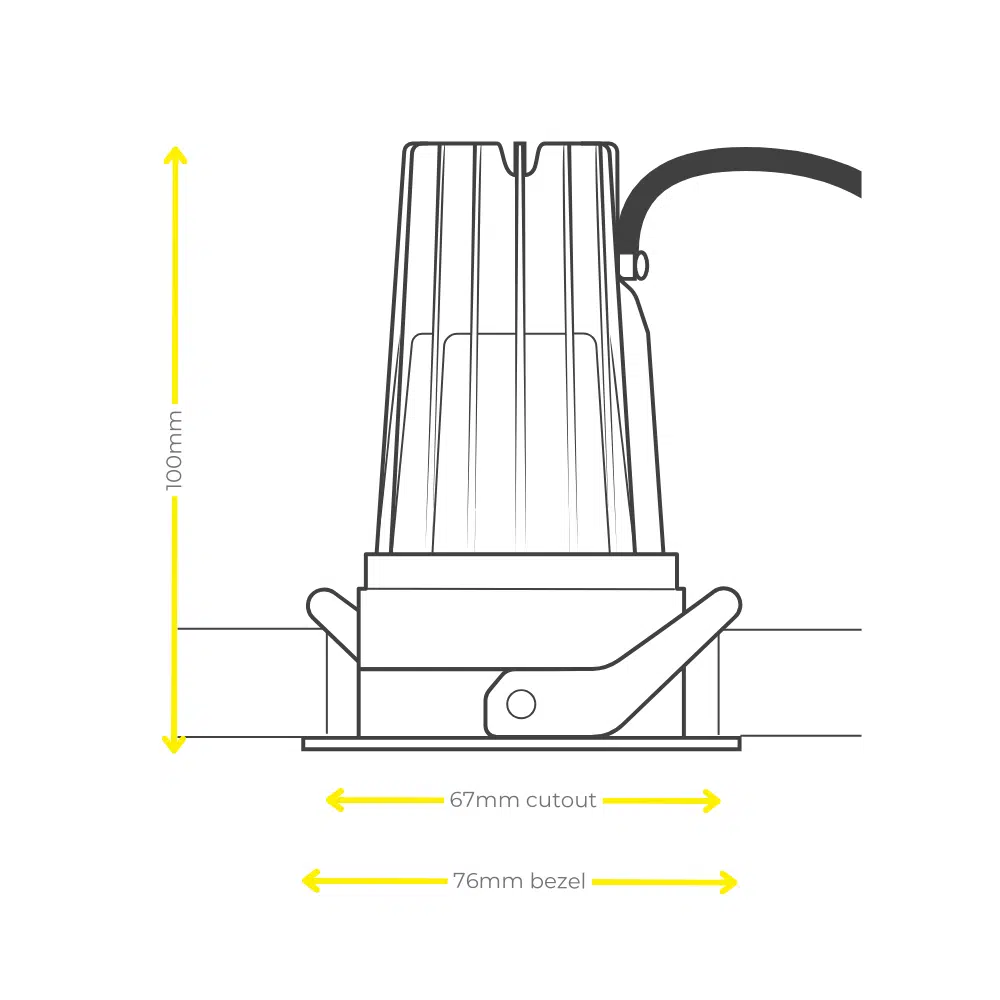

The 76mm diameter Spark luminaire is manufactured with Tridonic SLE advanced LED engine to provide high efficacy and excellent downlighting. Whether it’s meeting illuminance requirements in a reception or pinpointing features of focus, this mini light has a big impact on the ambience of its application.

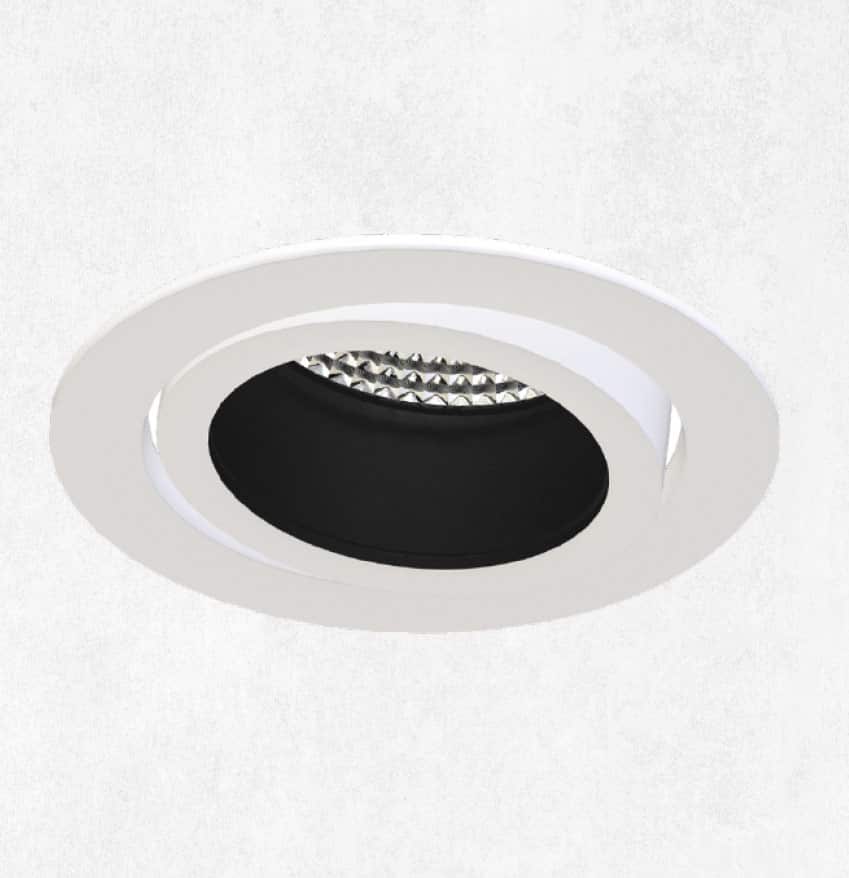

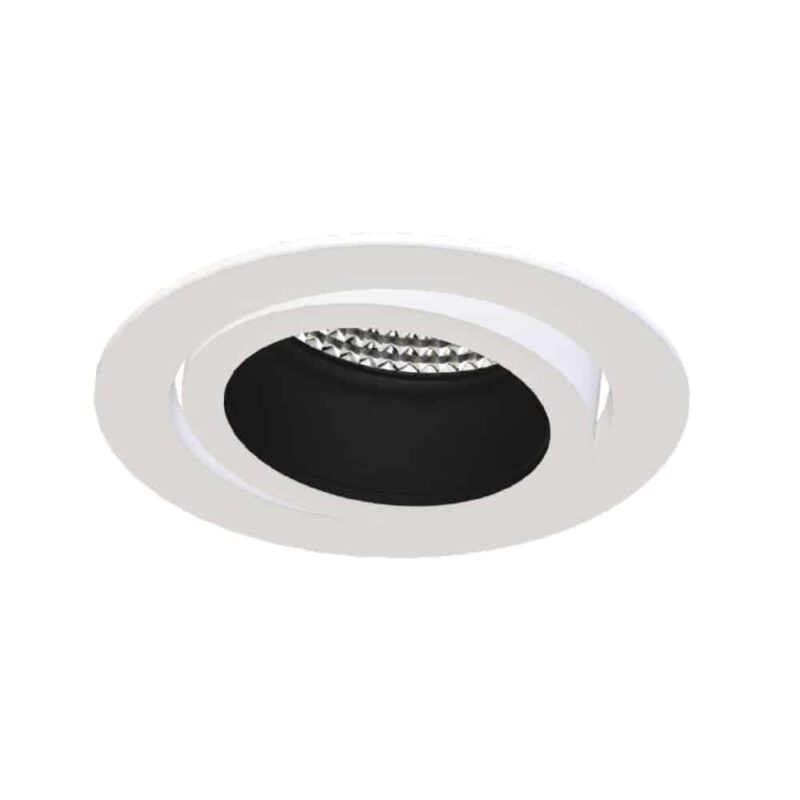

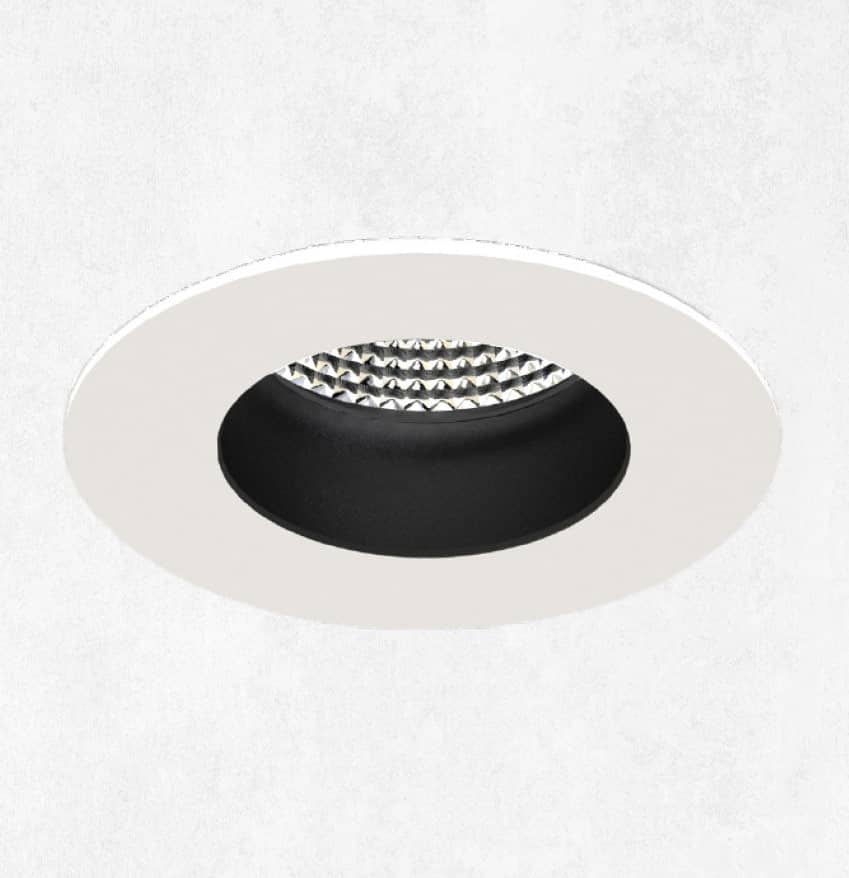

To create the perfect solution for your commercial space, the Spark luminaire collection comes with a wide range of options and accessories. For wall wash or focus lighting, the Spark luminaire is available in adjustable (gimbal) or static designs and can be used alongside one another to achieve layered lighting textures.
| Product Code | LED Wattage | Lumen Output | Lumen/ Watt | Colour Temperature | Beam Angle |
|---|---|---|---|---|---|
| SPK6 | 6W | 600 | 92 | 4000K | 40° |
| SPK8 | 8W | 775 | 98 | 4000K | 40° |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | If no emergency required, leave blank | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – BEZEL / BAFFLE |
/WB | White Bezel, Black Baffle |
| /BB | Black Bezel, Black Baffle | |
| /WW | White Bezel, White Baffle | |
| /WTB | White Tilt Bezel, Black Baffle | |
| /BTB | Black Tilt Bezel, Black Baffle | |
| /WTW | White Tilt Bezel, White Baffle | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K (-4% output) | |
| /TW | Tunable White | |
| 5 – LENS | /24 | 24° lens |
| /40 | 40° lens | |
| 6 – CRI | /80 | CRI>80 |
| /90 | CRI>90 | |
| 7 – IP RATING | /20 | IP20 |
| /54 | IP54 |
