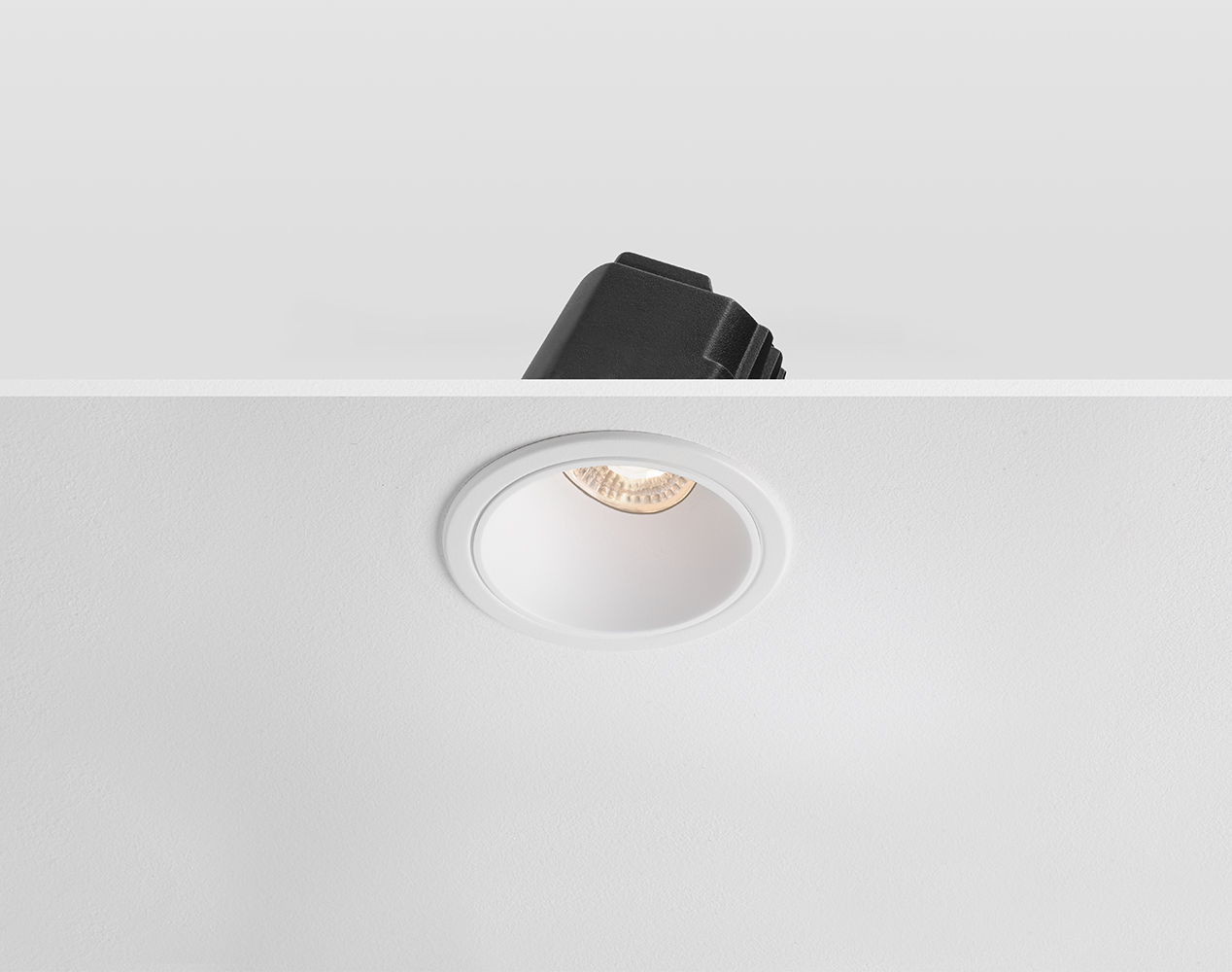

For comfortable yet focused lighting, the Star Tilt mini adjustable downlight architectural LED downlight model is available in four lens angles to achieve a narrow to broad spread of light. Whether it’s architectural lighting or task lighting, this range offers warm light from high-power, high-efficiency LEDs. The tilt angle is up to 30 degrees.
The Star tilt adjustable LED downlight is available in multiple baffle colour variations, colour temperatures and CRI to ensure minimum glare, emitting healthy workplace lighting all while complementing your project interior. Whether you’re looking to achieve UGR<19 or UGR<12, this product will enable your vision rather than limit it.
| Product Code | LED Wattage | Lumen Output | Lumen/ Watt | Colour Temperature | Beam Angle |
|---|---|---|---|---|---|
| STT10 | 10W | 1000 | 100 | 4000K | 38° |
| STT12 | 12W | 1200 | 100 | 4000K | 38° |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | /M | Emergency |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – BEZEL | /WH | RAL9003 White |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K (light output -6%) | |
| /27K | 2700K (light output -12%) | |
| 5 – LENS | /15 | 15° lens |
| /24 | 24° lens | |
| /38 | 38° lens | |
| /60 | 60° lens | |
| 6 – CRI | /95 | CRI>95 |
| 7 – BAFFLE | /WH | White Baffle |
| /BK | Black Baffle | |
| /GL | Gold Baffle | |
| /SL | Silver Baffle |
