Description

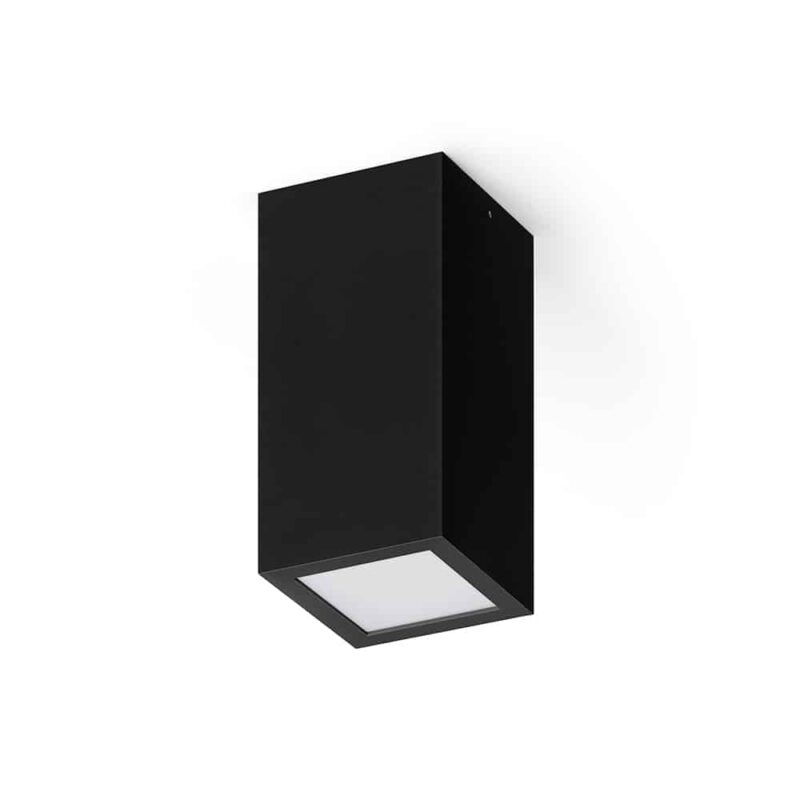

Square LED downlight, with 100×100 mm for surface or suspended application. Available with plain opal diffuser LIGHT+ or microprismatic diffuser PRISM+ (allows a high visual comfort (UGR<19) according to EN 12464-1). Extruded aluminium body, powder coated in epoxy-polyester in white, grey and black. With three possible light output levels (780 lm, 1100 lm and 1540 lm). Standard version with LED 4000K, CRI>90, MacAdam Step<3 and 64.000h lifetime (@L80, B10, Ta 25ºC). Optional DALI dimmable LED driver, 3000K, suspension kit and surface or recessed ceiling rose.

Key Lighting Features

  • Body: Extruded aluminium
  • Finish: Powder coated
  • Light source: LED 4000K, CRI>90
  • LED life time: 64,000h @ L80, B10, Ta 25°C
  • Control gear: LED driver 220-240VAC-50/60Hz
