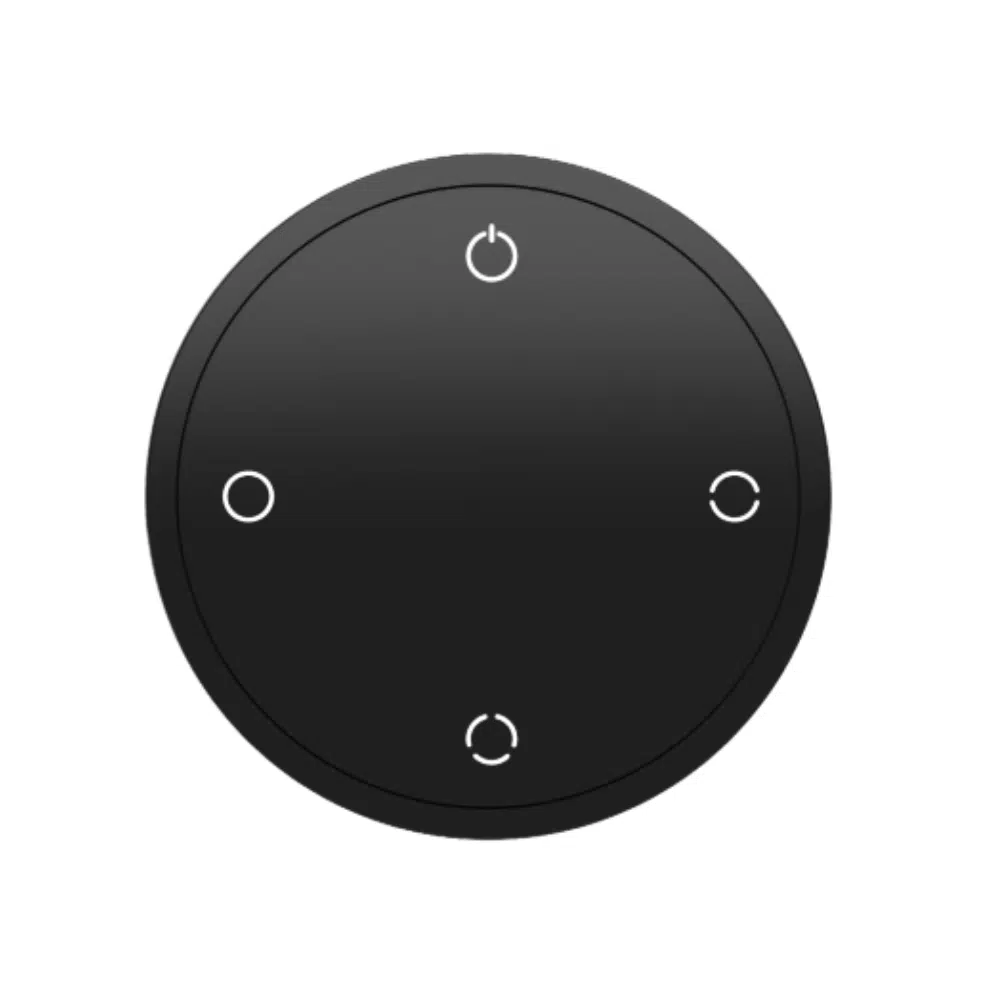

The ScenePad4 is a versatile, battery-powered 4-button wall switch designed for high-end Casambi wireless lighting systems.

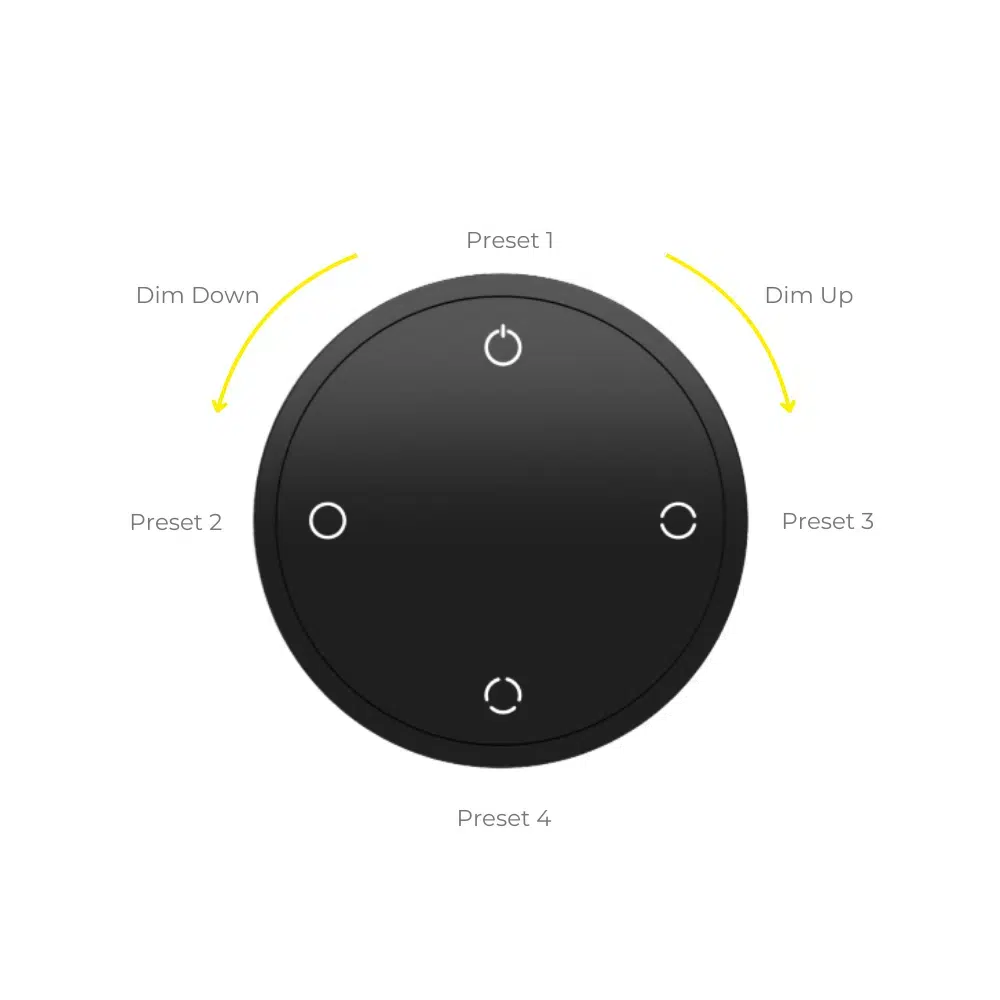

Featuring four programmable scene buttons and a rotary dimming ring, it offers flexible control over lighting scenes, or more granular control of individual luminaires, groups, or elements.
Powered by a rechargeable built-in battery, the SP4R can be wall mounted or can be remote, on any executive desktop or horizontal surface.
With a wireless range of up to 50 meters in open air and a sleek, compact design, the CBU-SP4R is suitable for various indoor applications.

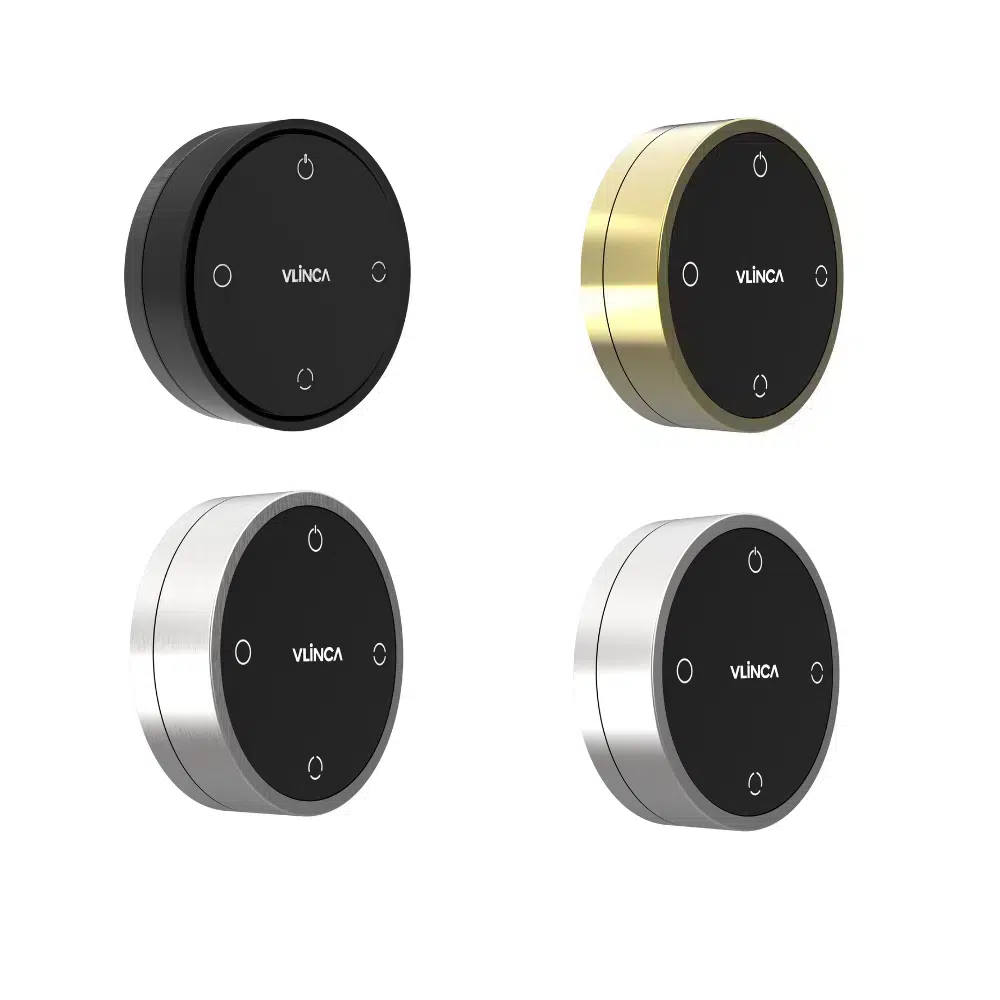

Available in a range of high end metallic finishes, it seamlessly blends into luxury interior aesthetics.
No downloads available.
| Product Code | Finish | Dimensions |
|---|---|---|
| CBU-SP4R | Add code as below | 65mm x 23mm |
|
/BK
Black
/LG
Light Gold
/BS
Brushed Stainless
/BC
Bright Chrome
|
||
| Specification | Value |
|---|---|
| Battery Type | Built-in lithium 600 mAh |
| Maximum output power | −40 dBm to +7 dBm |
| Ambient temperature | 0 °C to +40 °C |
| Max humidity | 0 – 65%, non condensing |
| Weight | 202 g |
| Ingress Protection | IP20 |
Casambi uses Bluetooth mesh network technology, so each Casambi unit, or Casambi Ready product, acts also as a repeater. Longer ranges can be achieved by using any Casambi unit as a repeater. Range is highly dependent on the surrounding and obstacles, such as walls and building materials.
