24V LED Strip Tape Lighting selection, tried and tested by Mount Lighting to ensure high quality products are utilised in our commercial lighting projects. With flexible PCB and double-sided back adhesive for our IP20 versions and flexible silicon coating for the IP65 version. Power supply cable lengths of 150mm are included with each 5m reel. Compatible with Casambi wireless control system. We advise that all LED Strip tapes are used with aluminium profiles with suitable diffusers for mandatory dissipation and even lighting distribution. Drivers can be ordered separately.

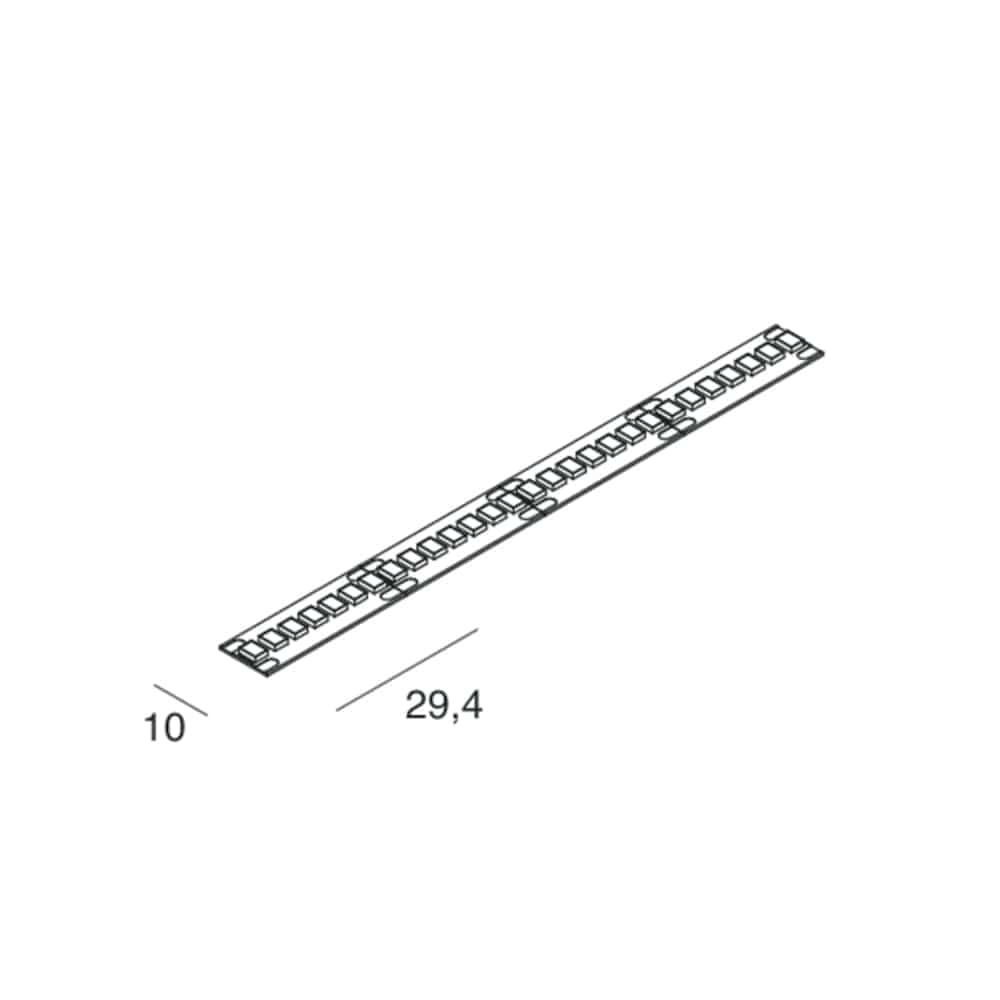

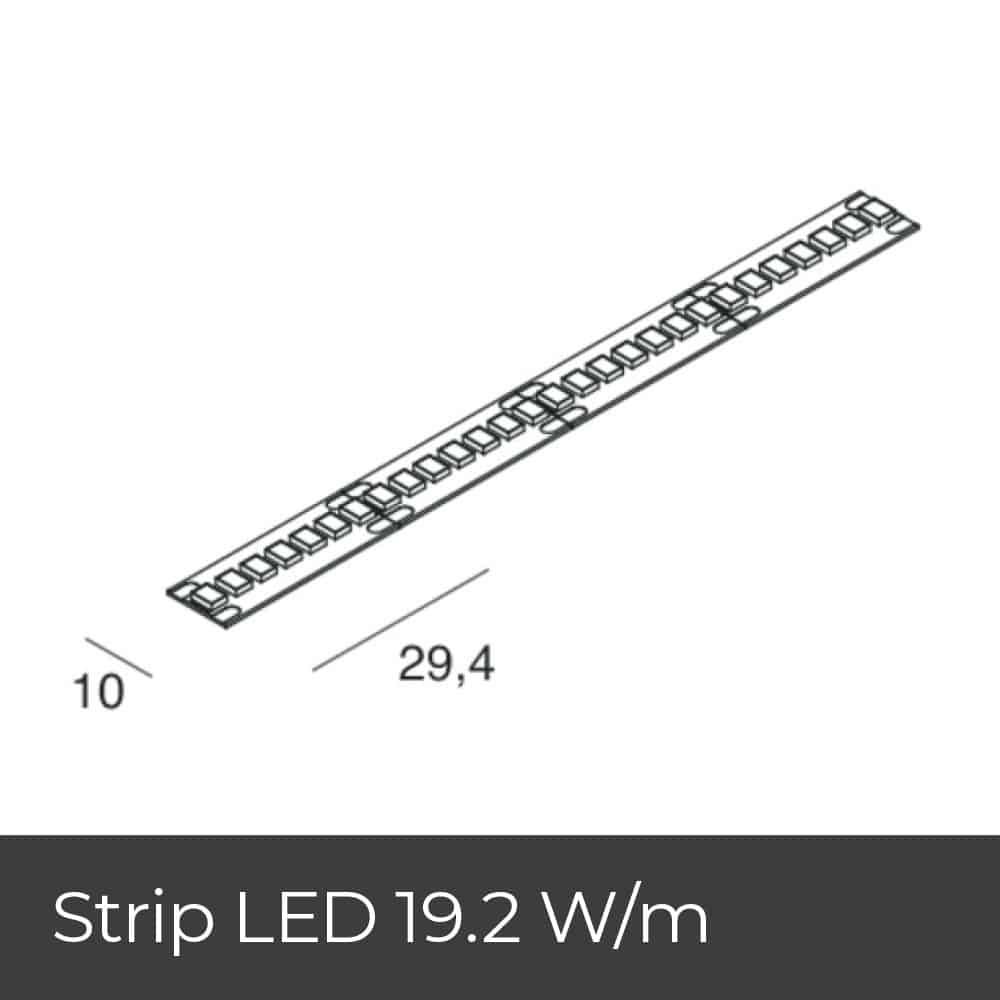

| Product Code | Colour Temperature | Wattage/m | LM/m | L (mm) | IP | CRI |
|---|---|---|---|---|---|---|

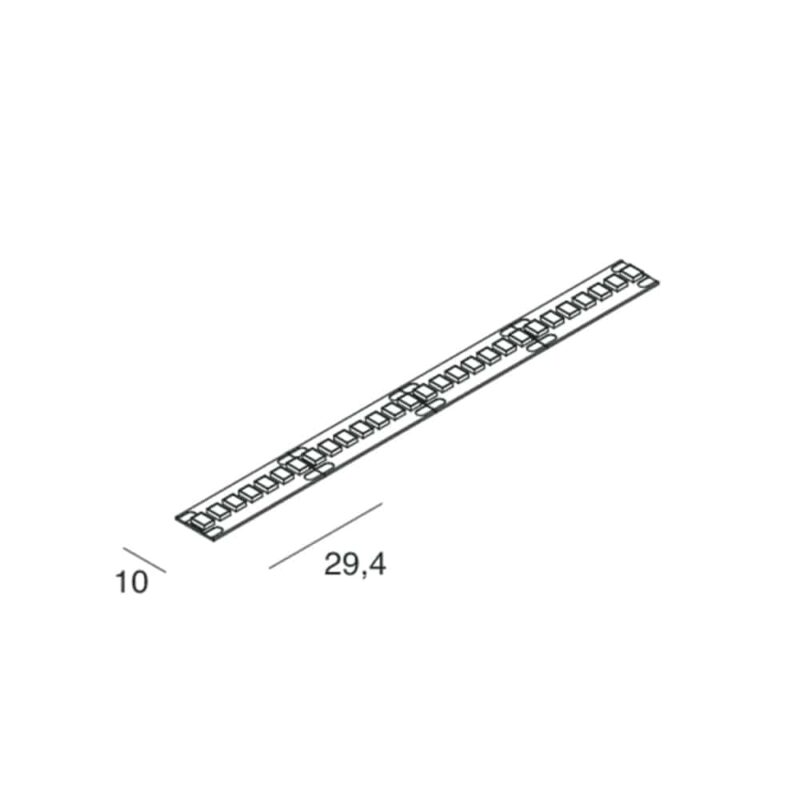

| LFX19.2/27K/20/90 | 2700K | 19.2 W/m | 1952 | 5000 | 20 | 90 |
| LFX19.2/3K/20/90 | 3000K | 19.2 W/m | 2140 | 5000 | 20 | 90 |
| LFX19.2/4K/20/90 | 4000K | 19.2 W/m | 2176 | 5000 | 20 | 90 |
| LFX19.2/3K/65/80 | 3000K | 19.2 W/m | 2050 | 5000 | 65 | 80 |
| LFX19.2/4K/65/80 | 4000K | 19.2 W/m | 2244 | 5000 | 65 | 80 |

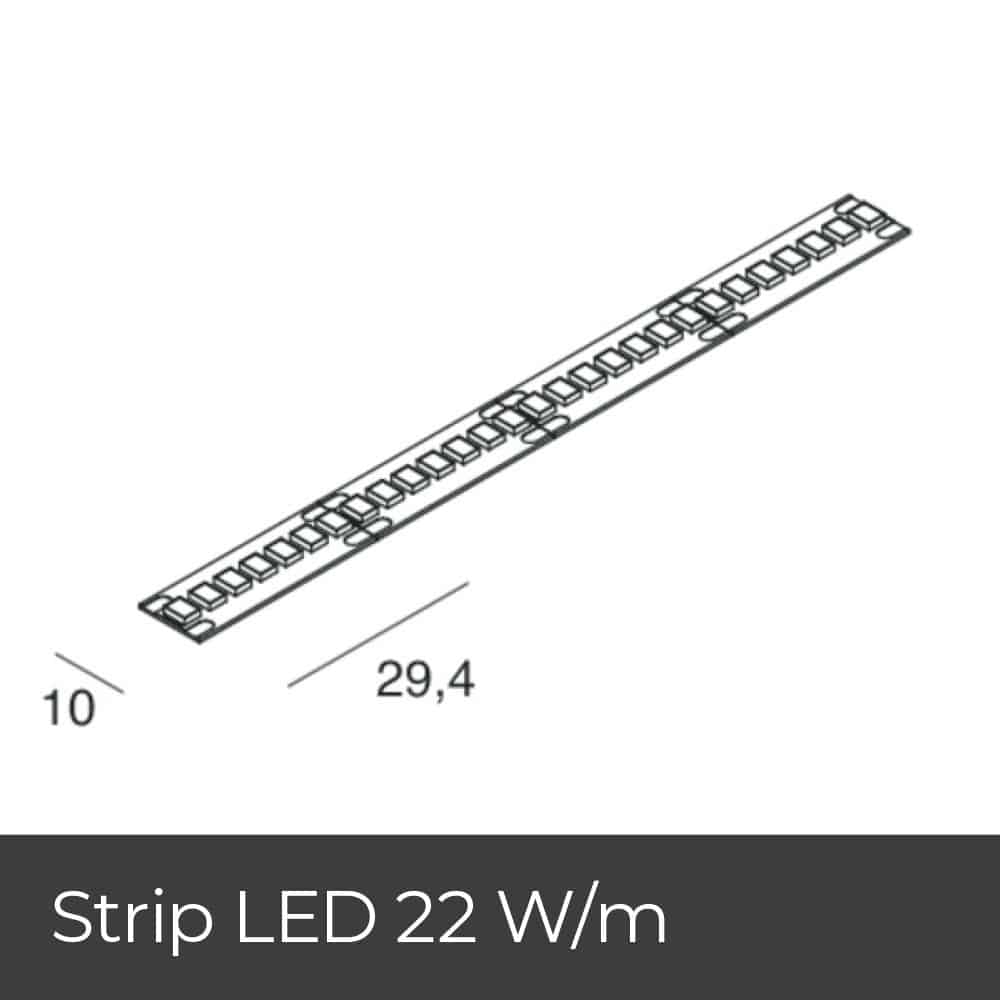

| Product Code | Colour Temperature | Wattage/m | LM/m | L (mm) | IP | CRI |
|---|---|---|---|---|---|---|
| LFX22/3K/20/80 | 3000K | 22 W/m | 2786 | 5000 | 20 | 80 |
| LFX22/4K/20/80 | 4000K | 22 W/m | 2804 | 5000 | 20 | 80 |
| LFX22/3K/65/80 | 3000K | 22 W/m | 2464 | 5000 | 65 | 80 |
| LFX22/4K/65/80 | 4000K | 22 W/m | 2594 | 5000 | 65 | 80 |

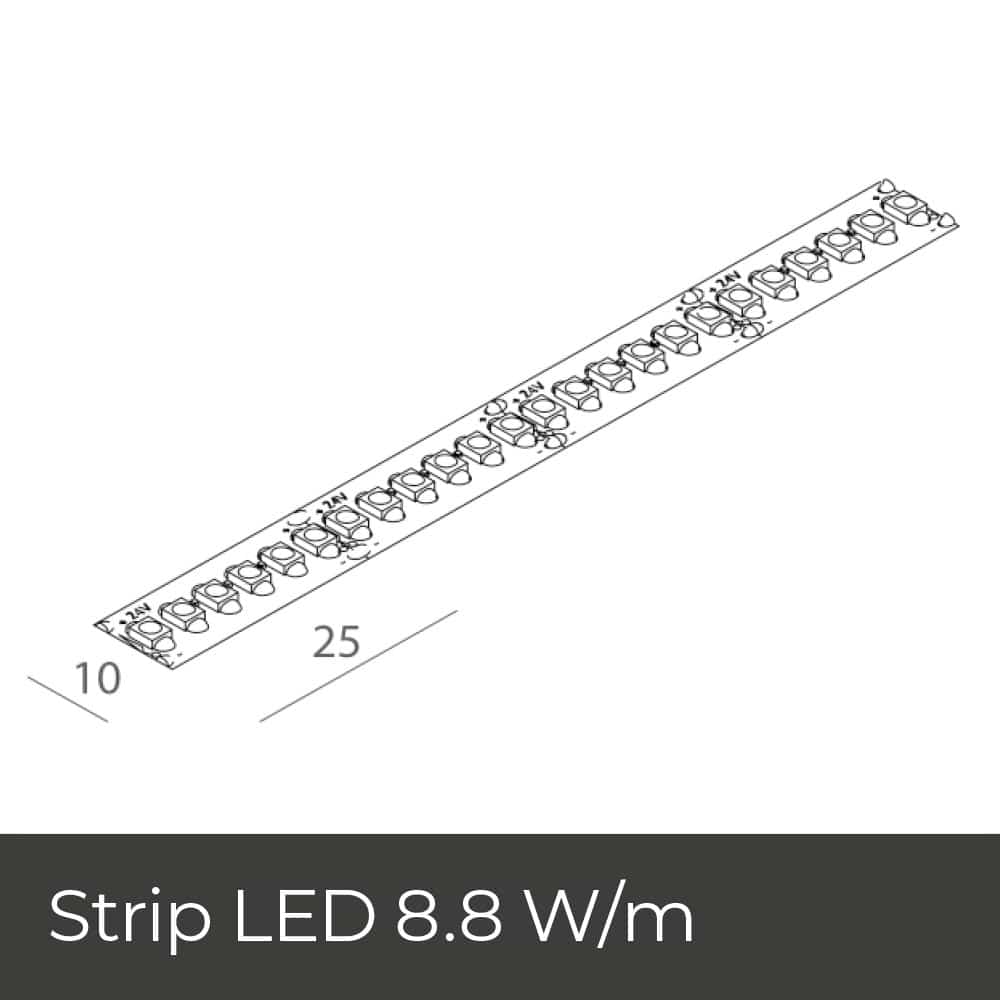

| Product Code | Colour Temperature | Wattage/m | LM/m | L (mm) | IP | CRI |
|---|---|---|---|---|---|---|
| LFX8.8/27K/20/90 | 2700K | 8.8 W/m | 902 | 5000 | 20 | 90 |
| LFX8.8/3K/20/90 | 3000K | 8.8 W/m | 844 | 5000 | 20 | 90 |
| LFX8.8/4K/20/90 | 4000K | 8.8 W/m | 900 | 5000 | 20 | 90 |
| Product Code | Colour Temperature | Wattage/m | LM/m | L (mm) | IP | CRI |
|---|---|---|---|---|---|---|

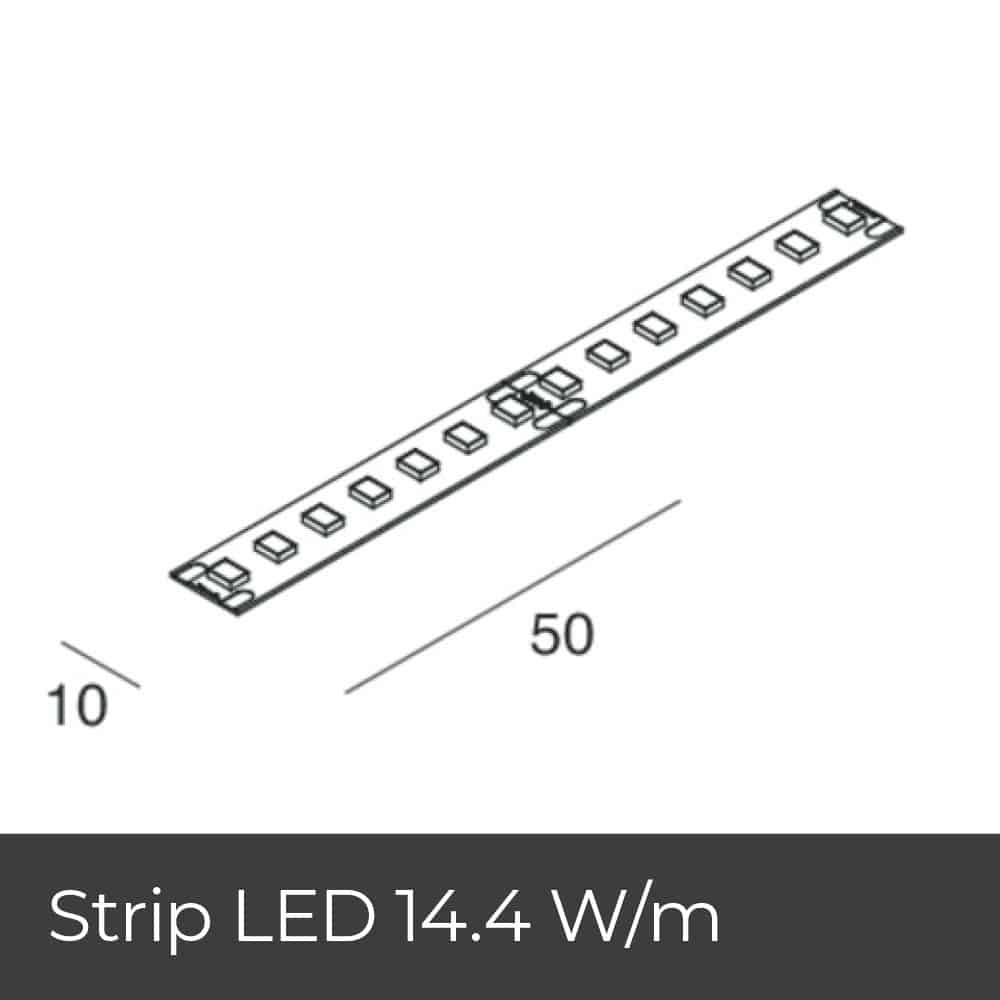

| LFX14.4/3K/20/80 | 3000K | 14.4 W/m | 1892 | 5000 | 20 | 80 |
| LFX14.4/4K/20/80 | 4000K | 14.4 W/m | 1880 | 5000 | 20 | 80 |
| LFX14.4/3K/65/80 | 3000K | 14.4 W/m | 1578 | 5000 | 65 | 80 |
| LFX14.4/4K/65/80 | 4000K | 14.4 W/m | 1716 | 5000 | 65 | 82 |

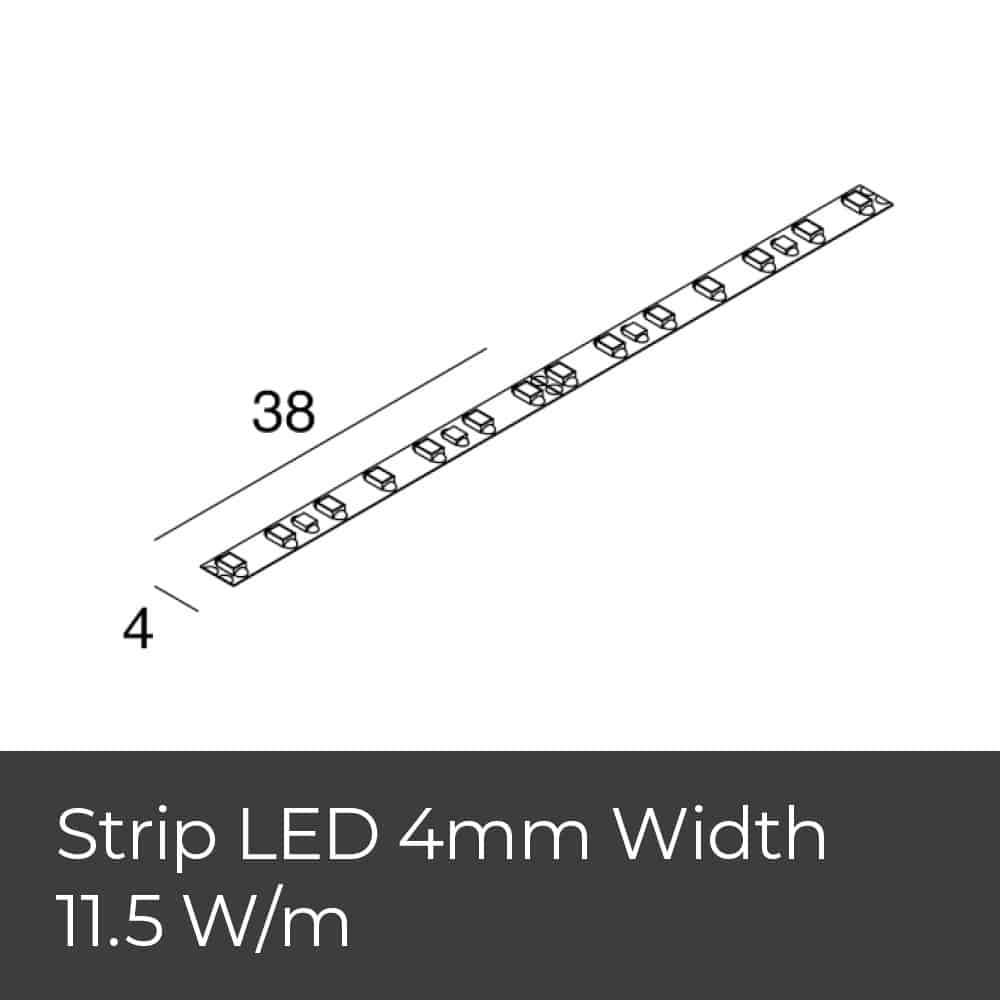

| Product Code | Colour Temperature | Wattage/m | LM/m | L (mm) | IP | CRI |
|---|---|---|---|---|---|---|
| LFX11.5/27K/20/90 | 2700K | 11.5 W/m | 1100 | 5000 | 20 | 90 |
| LFX11.5/3K/20/90 | 3000K | 11.5 W/m | 1014 | 5000 | 20 | 90 |
| LFX11.5/4K/20/90 | 4000K | 11.5 W/m | 1154 | 5000 | 20 | 90 |

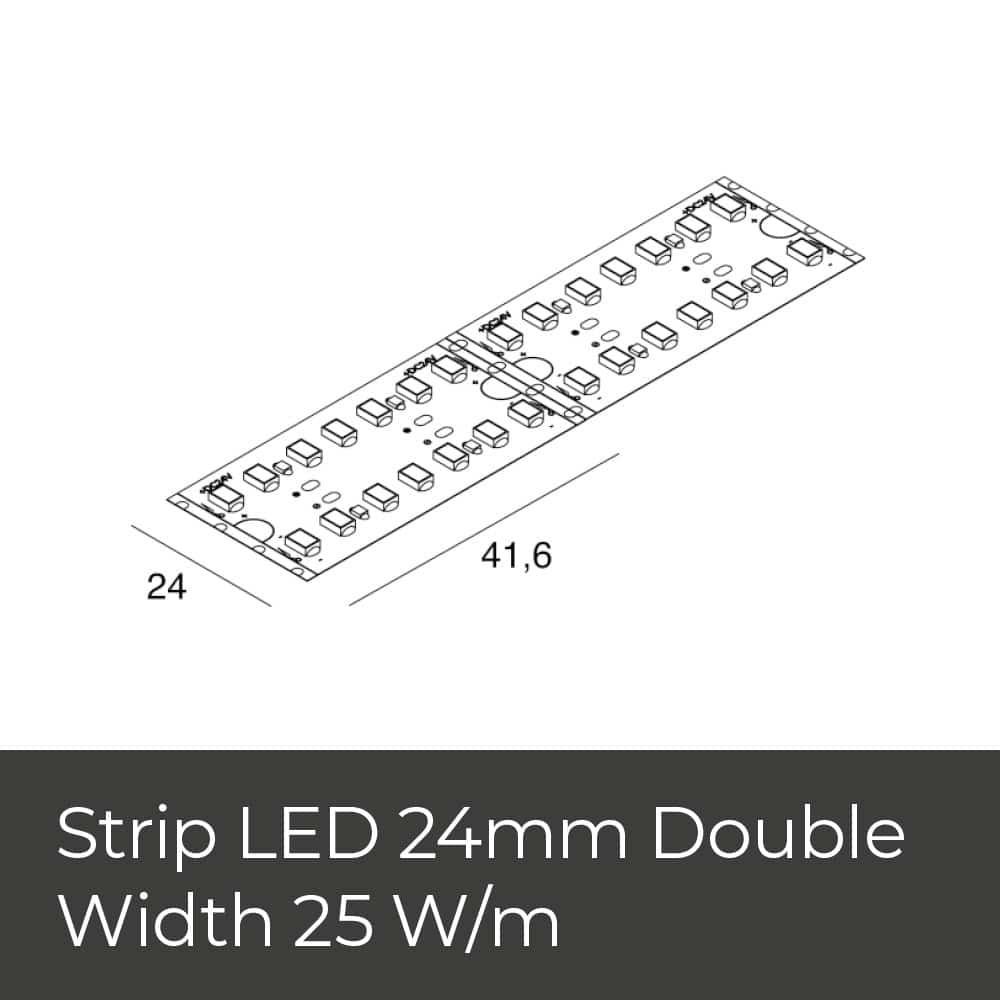

| Product Code | Colour Temperature | Wattage/m | LM/m | L (mm) | IP | CRI |
|---|---|---|---|---|---|---|
| LFX25/27K/20/90 | 2700K | 25 W/m | 2926 | 5000 | 20 | 90 |
| LFX25/3K/20/90 | 3000K | 25 W/m | 2670 | 5000 | 20 | 90 |
| LFX25/4K/20/90 | 4000K | 25 W/m | 3000 | 5000 | 20 | 90 |
| Product Code | Colour Temperature | Wattage/m | LM/m | L (mm) | IP | CRI |
|---|---|---|---|---|---|---|
| LFX19.2/TW3K/57K/20/90 | TW 3000K-5700K | 19.2 W/m | 1906 | 5000 | 20 | 90 |

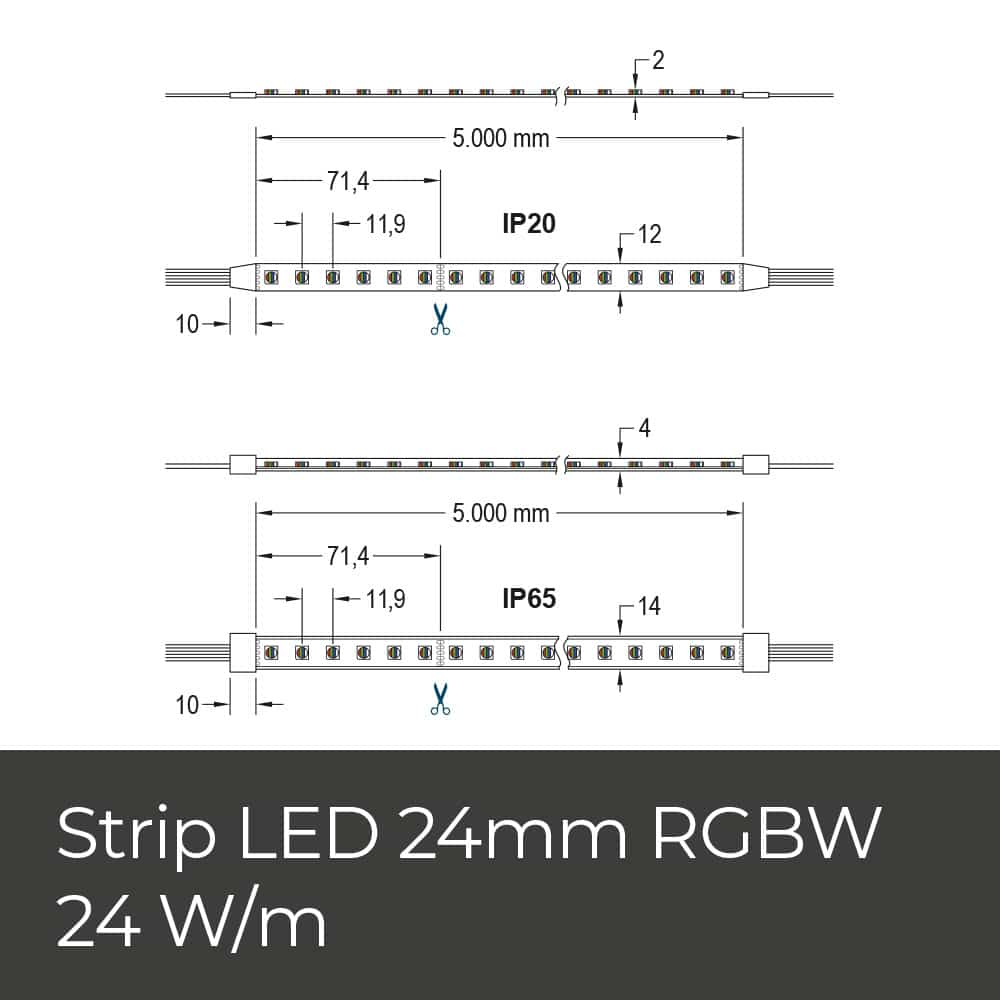

| Product Code | Colour Temperature | Wattage/m | LM/m | L (mm) | IP | CRI |
|---|---|---|---|---|---|---|
| LFX24/RGBW/4K/20 | RGBW 4000K | 24 W/m | 1175 | 5000 | 20 | 80 |
| LFX24/RGBW/27K/20 | RGBW 2700K | 24 W/m | 1080 | 5000 | 20 | 80 |
| LFX24/RGBW/4K/65 | RGBW 4000K | 24 W/m | 1008 | 5000 | 65 | 80 |
| LFX24/RGBW/27K/65 | RGBW 2700K | 24 W/m | 985 | 5000 | 65 | 80 |
