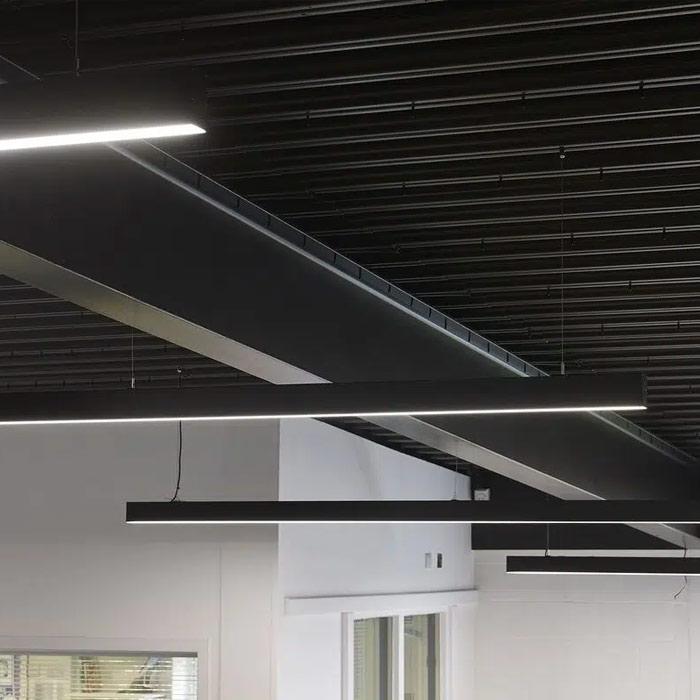

Low glare lighting in the form of the M-Line 54 low glare surface mounted or suspended linear LED can help contribute towards UGR>19 compliant workspaces with this specialised low glare microprismatic diffuser manufactured from polycarbonate. The M-Line 54 is supplied as a suspended low glare light fitting but the profile can also be utilised for surface mounting. This is achieved by directly fixing through the rear of the profile. Suspension is made simple using a single-point ceiling bracket with a 2m adjustable stainless steel wire system.
The linear aluminium profile is available in 15 different lengths up to 4523mm with bespoke lengths and shapes available to order upon request.
| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temp. | Size |
|---|---|---|---|---|---|
| MLE54/596 | 10W | 1548 | 155 | 4000K | 596mm |
| MLE54/876 | 15W | 2322 | 155 | 4000K | 876mm |
| MLE54/1157 | 20W | 3096 | 155 | 4000K | 1157mm |
| MLE54/1437 | 25W | 3870 | 155 | 4000K | 1437mm |
| MLE54/1718 | 30W | 4644 | 155 | 4000K | 1718mm |
| MLE54/1998 | 35W | 5418 | 155 | 4000K | 1998mm |
| MLE54/2279 | 40W | 6192 | 155 | 4000K | 2279mm |
| MLE54/2559 | 45W | 6966 | 155 | 4000K | 2559mm |
| MLE54/2840 | 50W | 7740 | 155 | 4000K | 2840mm |
| MLE54/3120 | 55W | 8514 | 155 | 4000K | 3120mm |
| MLE54/3411 | 60W | 9288 | 155 | 4000K | 3411mm |
| MLE54/3681 | 65W | 10062 | 155 | 4000K | 3681mm |
| MLE54/3962 | 70W | 10836 | 155 | 4000K | 3962mm |
| MLE54/4242 | 75W | 11610 | 155 | 4000K | 4242mm |
| MLE54/4523 | 80W | 12384 | 155 | 4000K | 4523mm |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | /M | Emergency |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dimmable |
| /DA | DALI Dimmable | |
| /D | 1-10V Dimmable | |
| /BTC | Casambi Dimmable | |
| 3 – FINISH | /9016 | RAL9016 White |
| /9005 | RAL9005 Black | |
| /9006 | RAL9006 Grey | |
| 4 – CCT | /4K | 4000K LED |
| /3K | 3000K LED | |
| 5 – CRI | /80 | CRI>80 |
