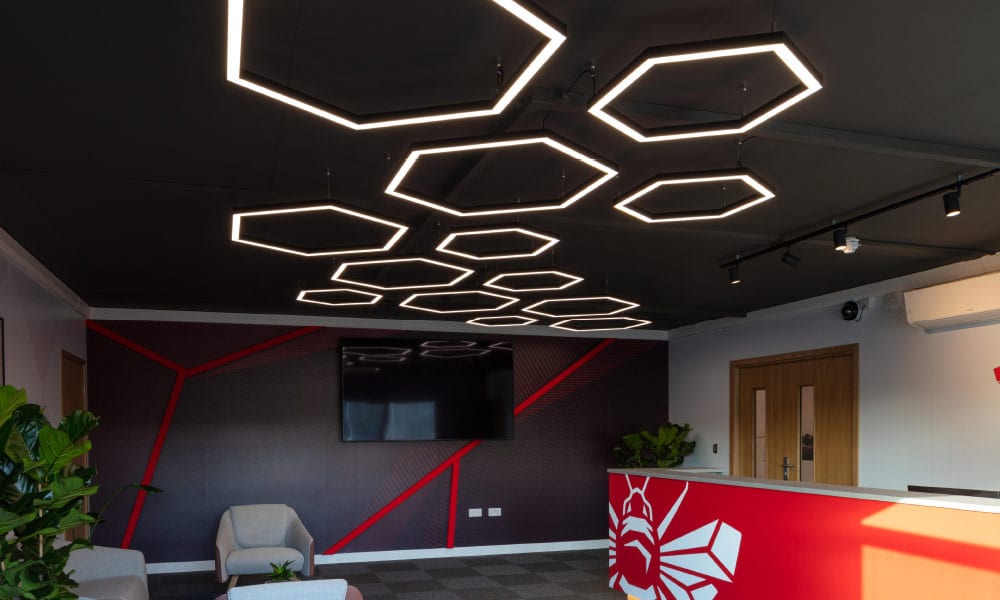

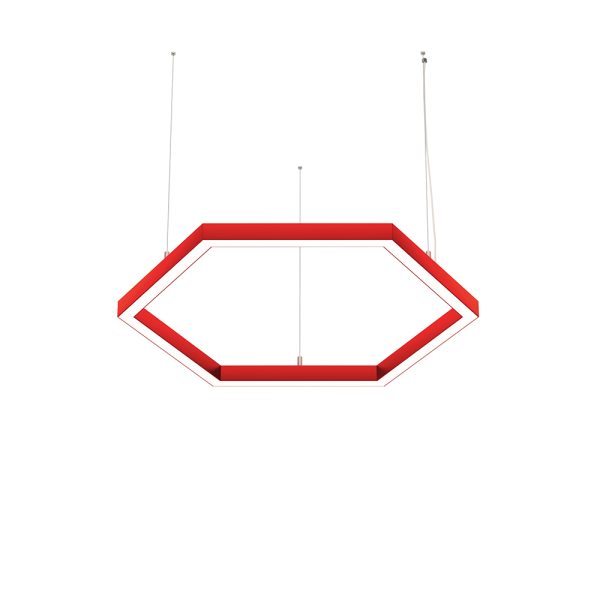

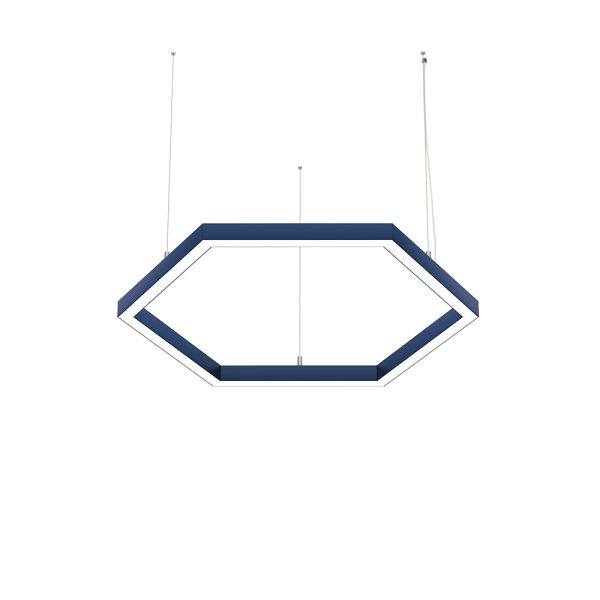

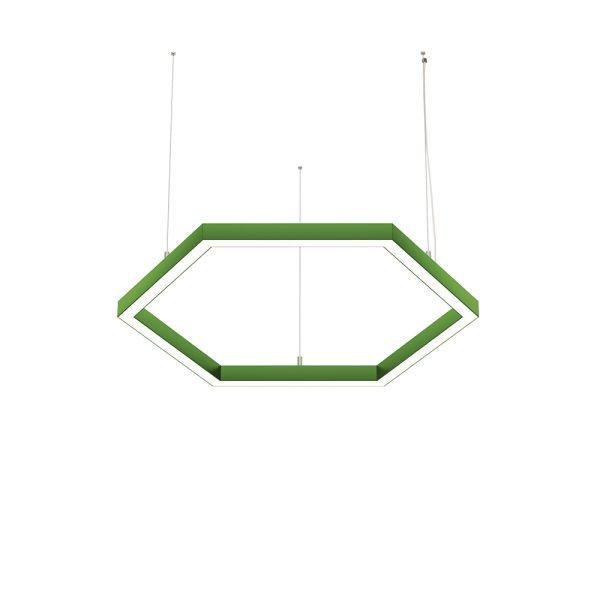

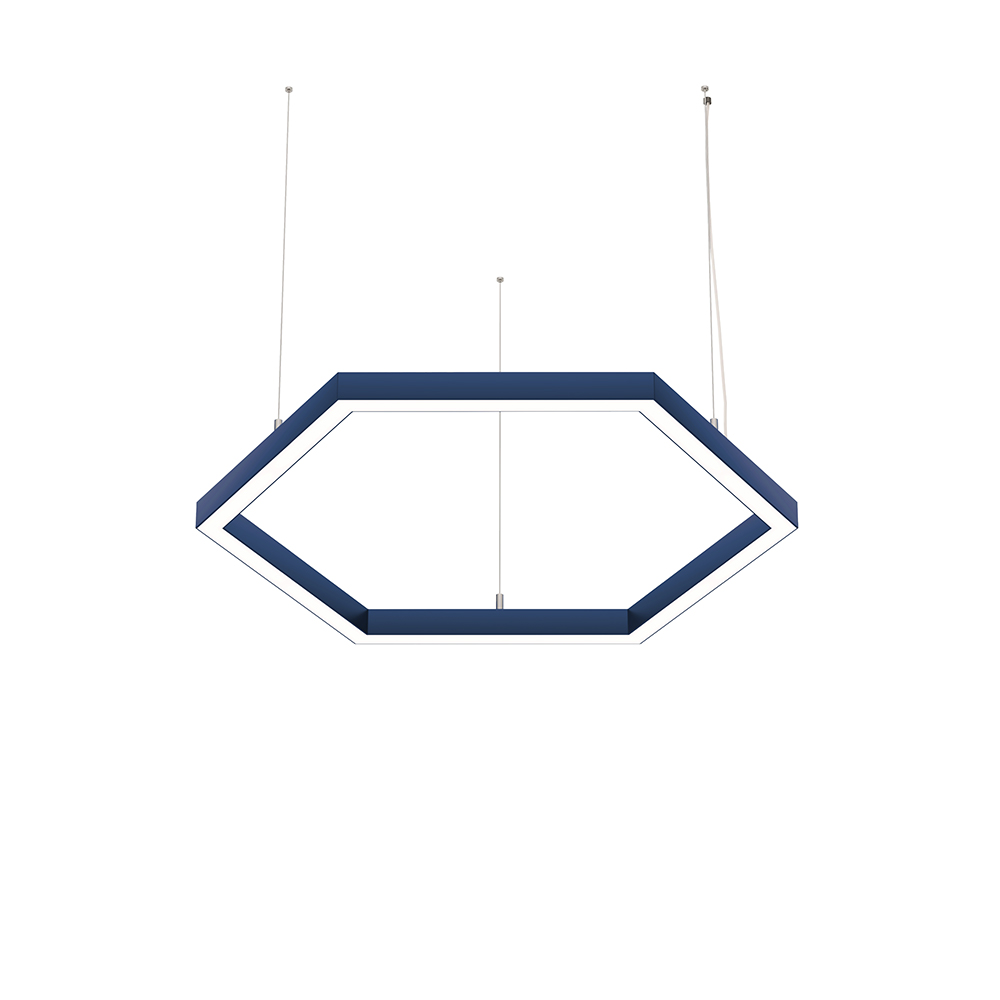

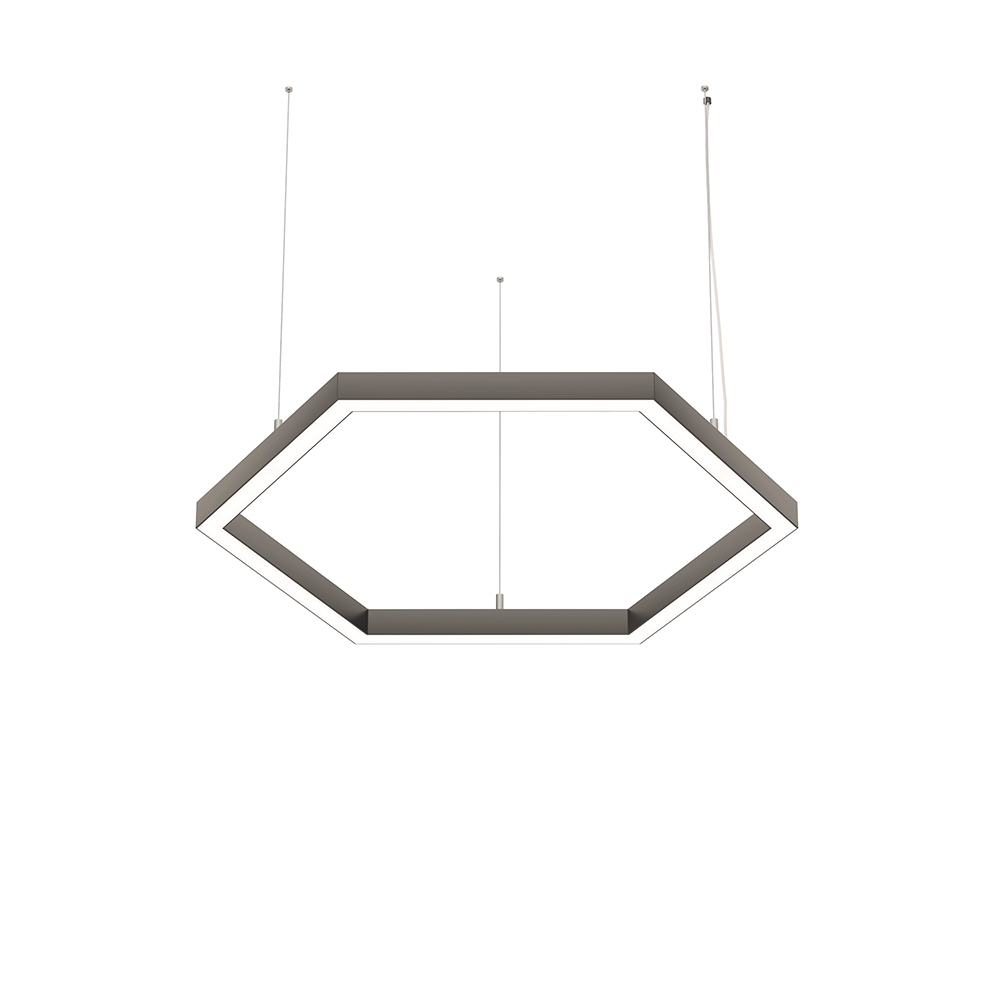

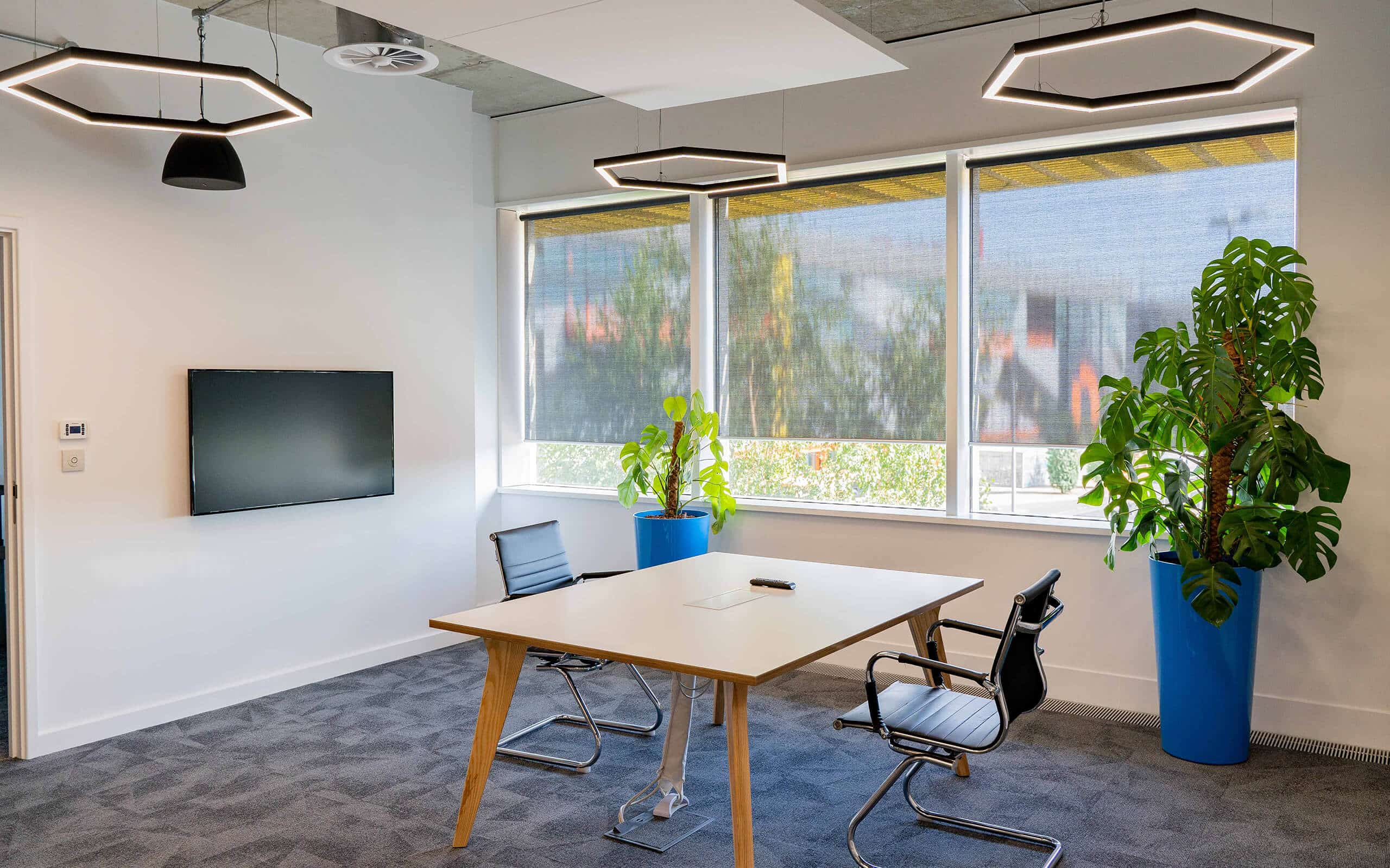

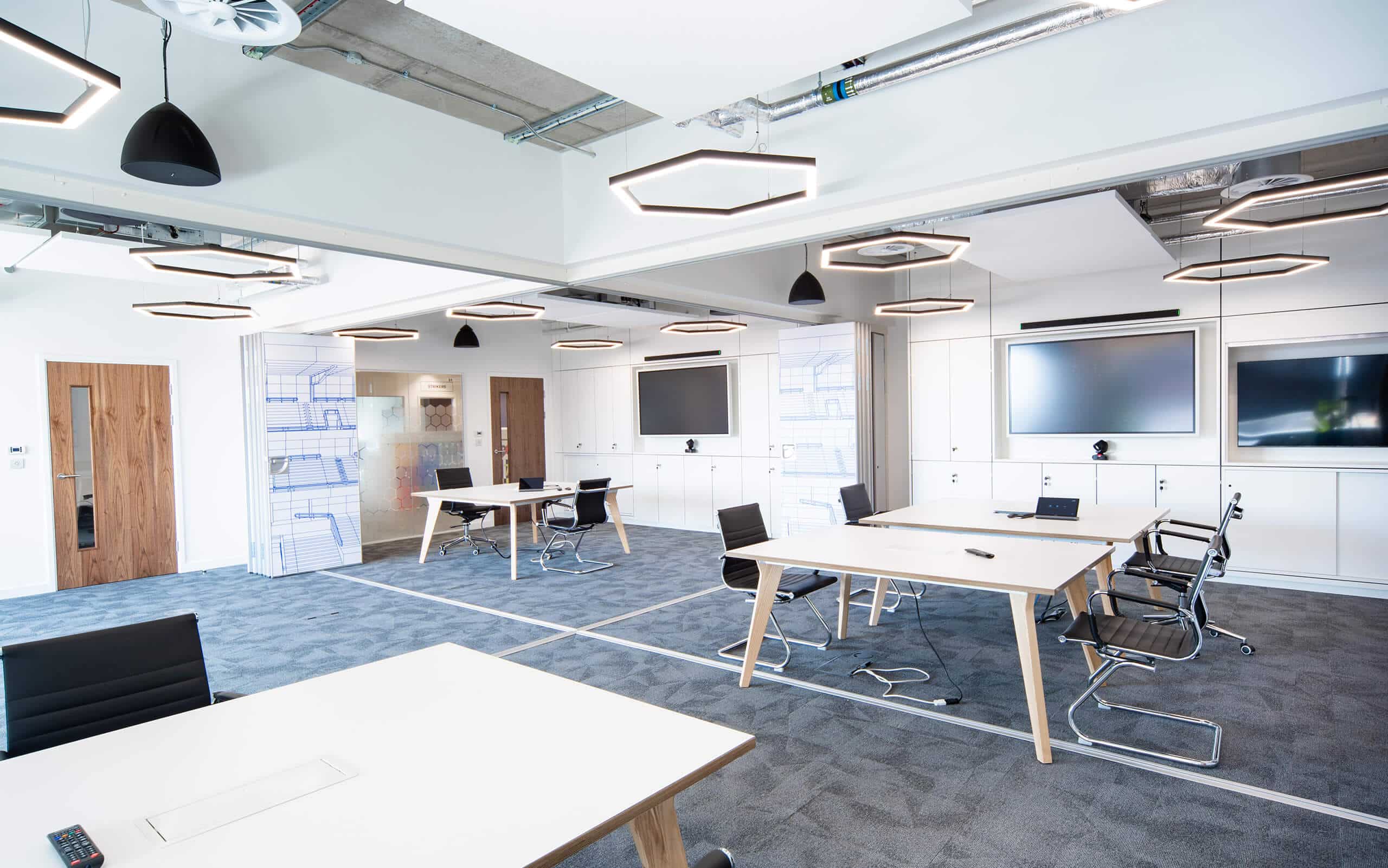

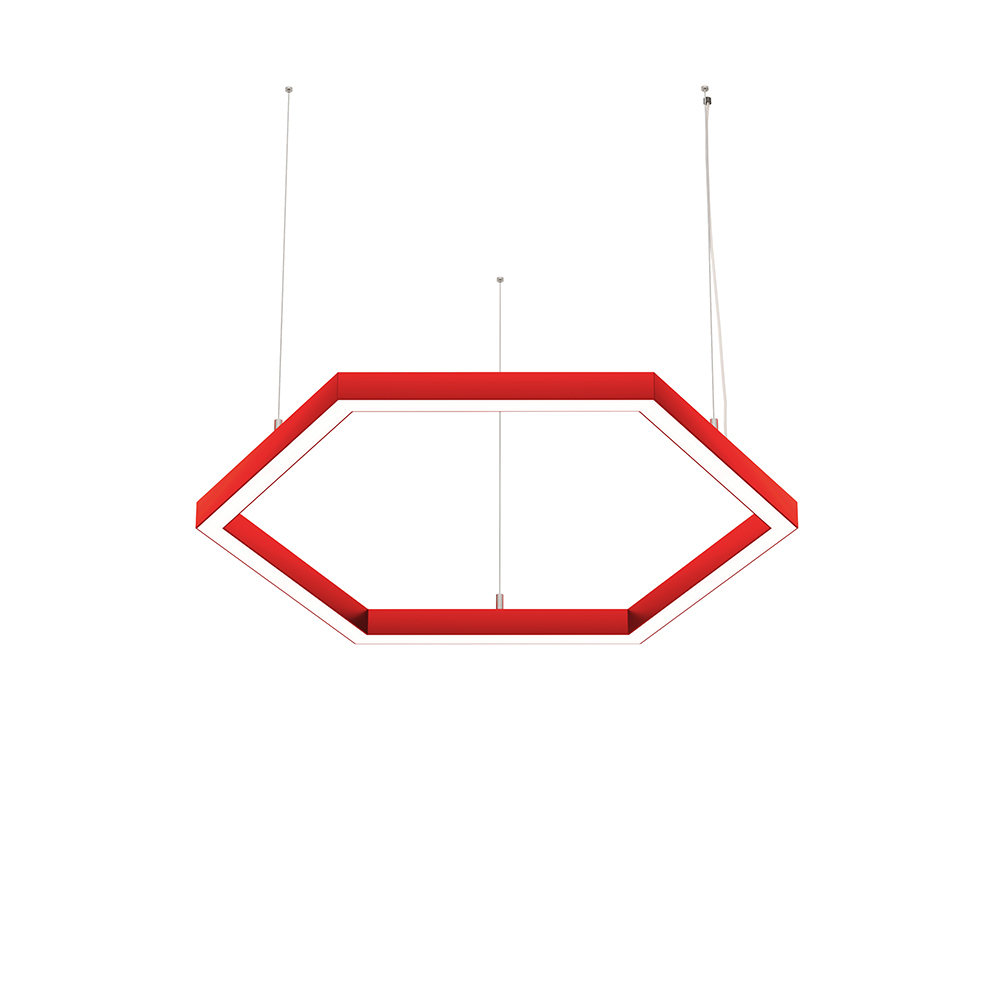

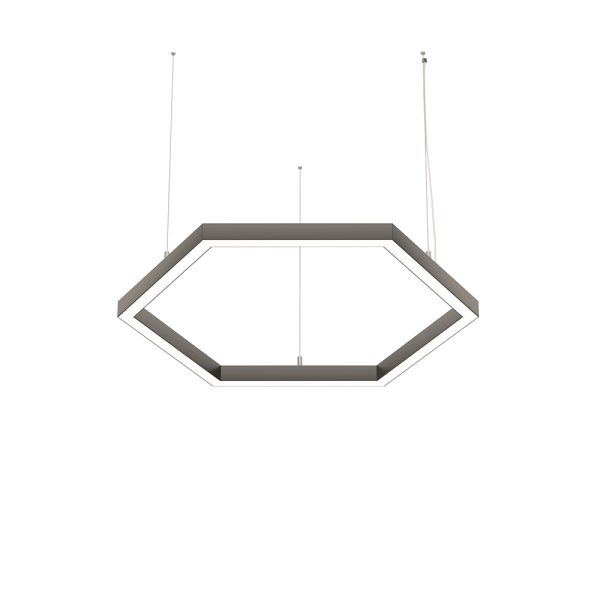

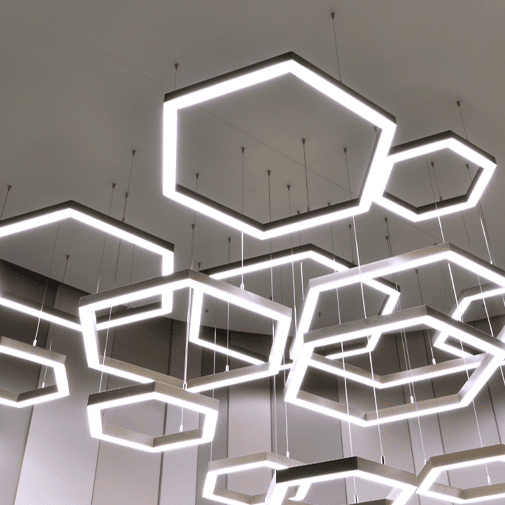

Our Hexagon MLE35/HEX slimline LED hexagon is a contemporary lighting option perfect for modern offices and design-led industrial spaces. This stylish hexagon lighting product is manufactured using a 35mm x 35mm aluminium box section which is powder coated with a choice of 3 standard colours or a RAL colour of your choice. The light source is a 19.2W p/m high-density LED tape. The LED driver is mounted remotely, and a single driver can feed several units. The slimline LED hexagon is great as a single pendant but when grouped in multiples to create a geometric feature, is breath-taking.

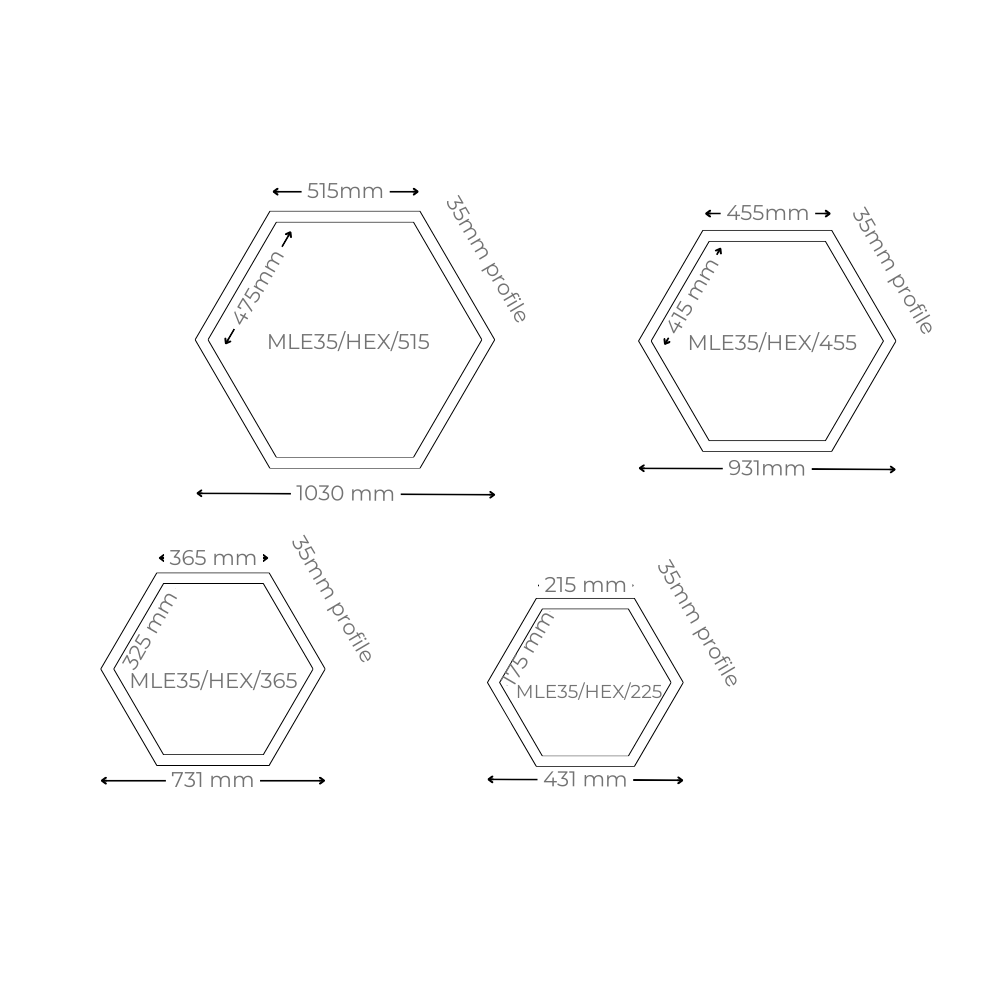

| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temp. | Size |
|---|---|---|---|---|---|
| MLE35/HEX/225 | 18W | 1371 | 76 | 4000K | 225mm |
| MLE35/HEX/365 | 35W | 2742 | 79 | 4000K | 365mm |
| MLE35/HEX/455 | 46W | 3656 | 79 | 4000K | 455mm |
| MLE35/HEX/515 | 52W | 4113 | 79 | 4000K | 515mm |
| Section | Option Code | Description |
|---|---|---|
| 1 – FINISH | /9005 | RAL9005 Black |
| /9016 | RAL9016 White | |
| /9006 | RAL9006 Grey | |
| 2 – CCT | /4K | 4000K LED |
| /3K | 3000K LED | |
| /RGBW | Colour Changing LED |
| Model | Wattage | Non-Dim | DALI | Casambi |
|---|---|---|---|---|
| 225 | 18W | LPV-20-24 | ELED-30-24DP2 | LC35W24VBDW |
| 365 | 35W | EPV-40P-24 | ELED-60-24DP2 | LC35W24VBDW |
| 455 | 46W | EPV-60P-24 | ELED-60-24DP2 | LC60W24VBDW |
| 515 | 52W | EPV-60P-24 | ELED-60-24DP2 | LC60W24VBDW |
