M-Line Linear Lighting System
Recessed Lighting
Surface Lighting
Suspended Lighting

M-Line Continuous Lengths

need assistance on this product? call us now 01582 369 005

Description

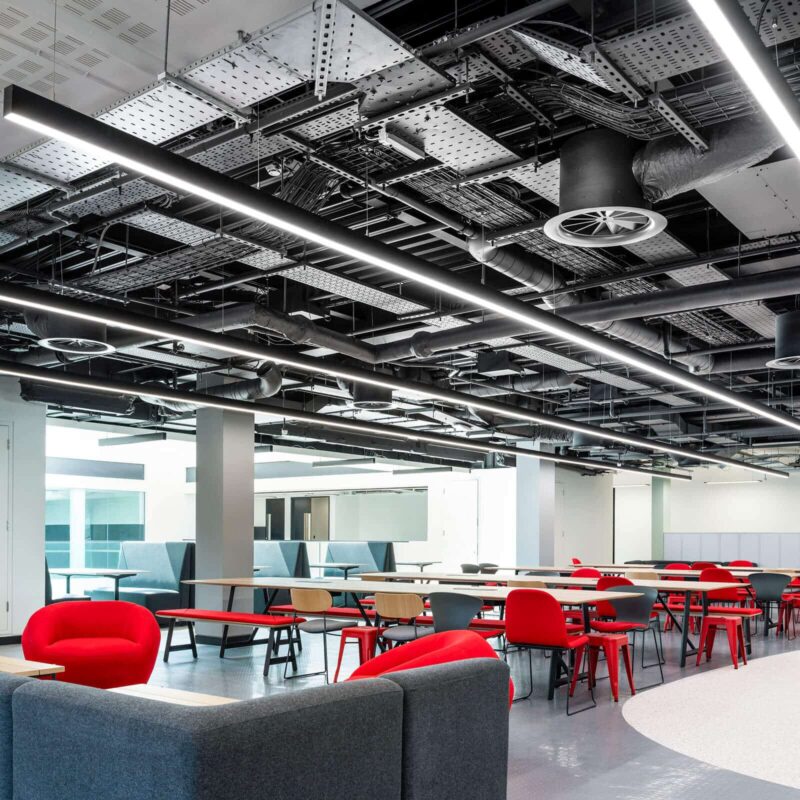

M-Line’s sleek aluminium profile can be adapted to form many bespoke linear lengths. Corner sections are fully lit to enhance the visual impact that continuous lighting creates. Suspended and wall-mounted systems can be supplied to incorporate direct/indirect lighting options with dual switching available.

The system can also be surface mounted or recessed in both ceilings and walls.

Key Features

  • Aluminium extruded sections in 9 standard lengths and can be increased by 140mm increments
  • Bespoke-shaped formations subject to design
  • Aluminium blanking plates available
  • Colour options in 3000/4000/5000K
  • Incorporates European-branded LED drivers
  • Direct/indirect lighting options available for suspended and wall mounted
  • Utilises latest generation long-life LEDs from leading manufacturers
  • Clip-in gear tray for easy installation
  • Opal polycarbonate diffuser
  • Tuneable white and RGB options available
  • Dimmable and emergency options available
  • Compatible with Casambi wireless control system
  • Dual switch option available

M-Line Continuous Lengths

, , ,

M-Line Continuous Lengths

DOWNLOAD DATASHEET
Enquire today
Product Code Suffix Description
Supply Cable
CABTR3C 1.5m Transparent Current Cable 3 x0.75mm²
CABTR5C 1.5m Transparent Current Cable 5 x0.75mm²
CR375W/2M 3 Core 0.75mm White Flex Cable – 2m Lead
CR375B/2M 3 Core 0.75mm Black Flex Cable – 2m Lead
CR475W/2M 4 Core 0.75mm White Flex Cable – 2m Lead
CR475B/2M 4 Core 0.75mm Black Flex Cable – 2m Lead
CR575W/2M 5 Core 0.75mm White Flex Cable – 2m Lead
CR575B/2M 5 Core 0.75mm Black Flex Cable – 2m Lead
MLESUS 2m Suspension Kit for Suspended M-Line
NOTE: Alternative length suspension kits available – POA
Product Code Suffix Description
/M 3-Hour Maintained Emergency
/MZ 3-Hour Maintained DALI Emergency
/D 1-10V Driver
/DALI DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
/3K 3000K LED
/5K 5000K LED
/RGB Colour Changing LED
/TW Tunable White LED
Product Code Suffix Description
/W White (RAL 9016)
/G Grey (RAL 9006)
/B Black (RAL 9005)
/U (POA) Blue (RAL 5002)
/V (POA) Green (RAL 6018)
/T (POA) Yellow (RAL 1021)
/K (POA) Red (RAL 3020)
/N (POA) Jungle
/D (POA) Goldeneye
/0 (POA) Sahara
/L (POA) Autumn
/R (POA) Rusty chain
/C (POA) Pure chocolate
/1 (POA) Mist
/9 (POA) Darkrock
/I (POA) Carbon
