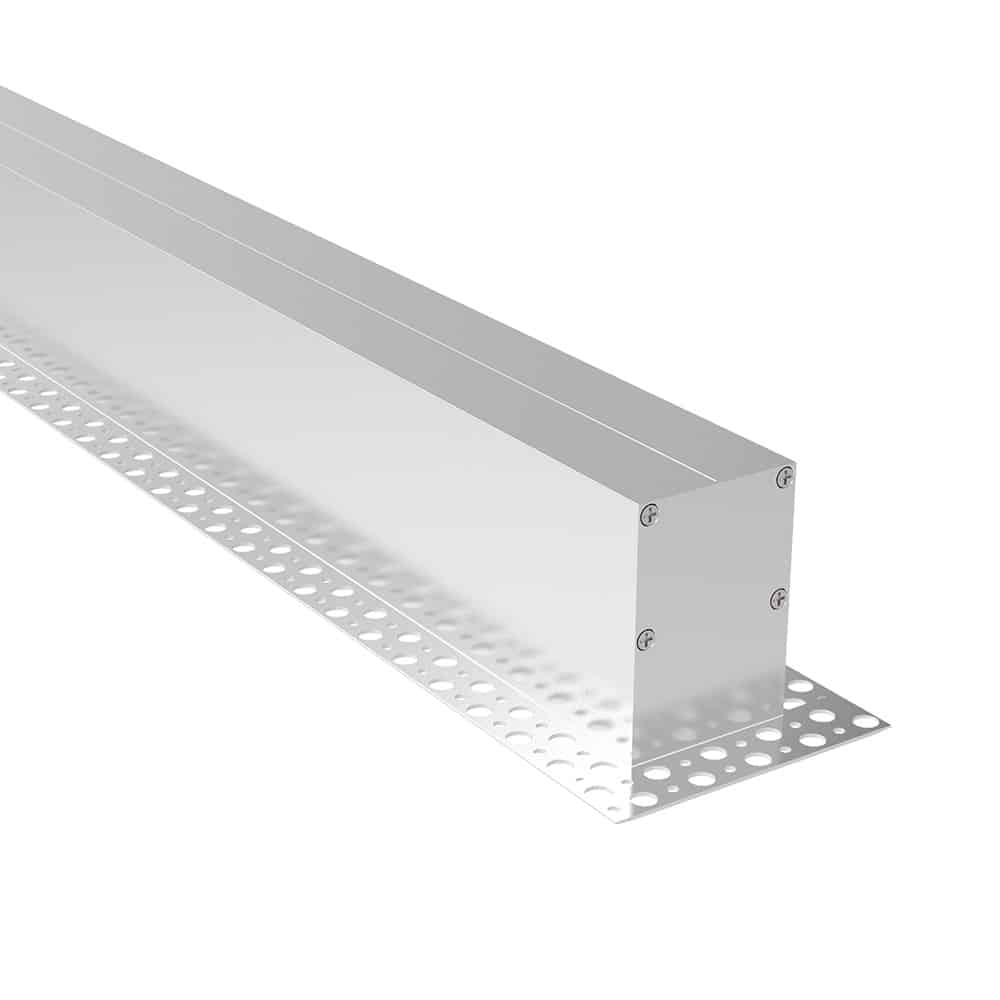

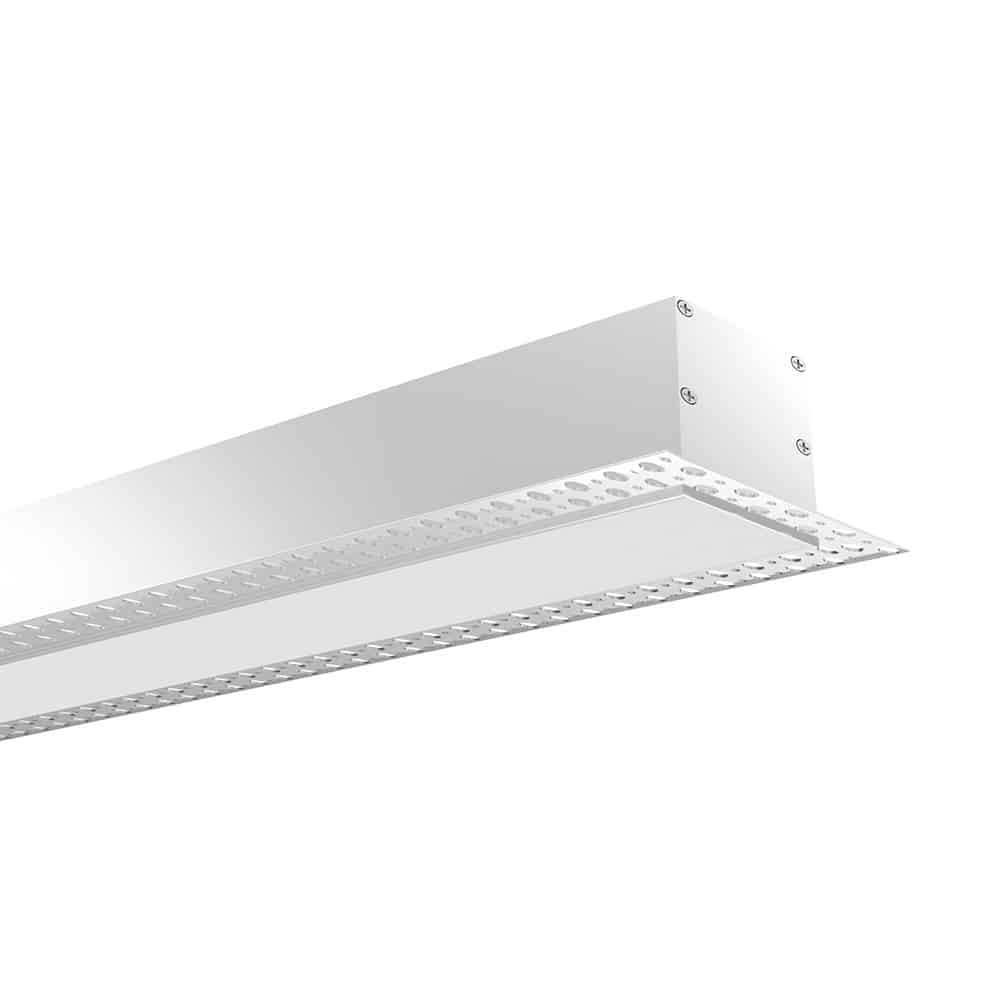

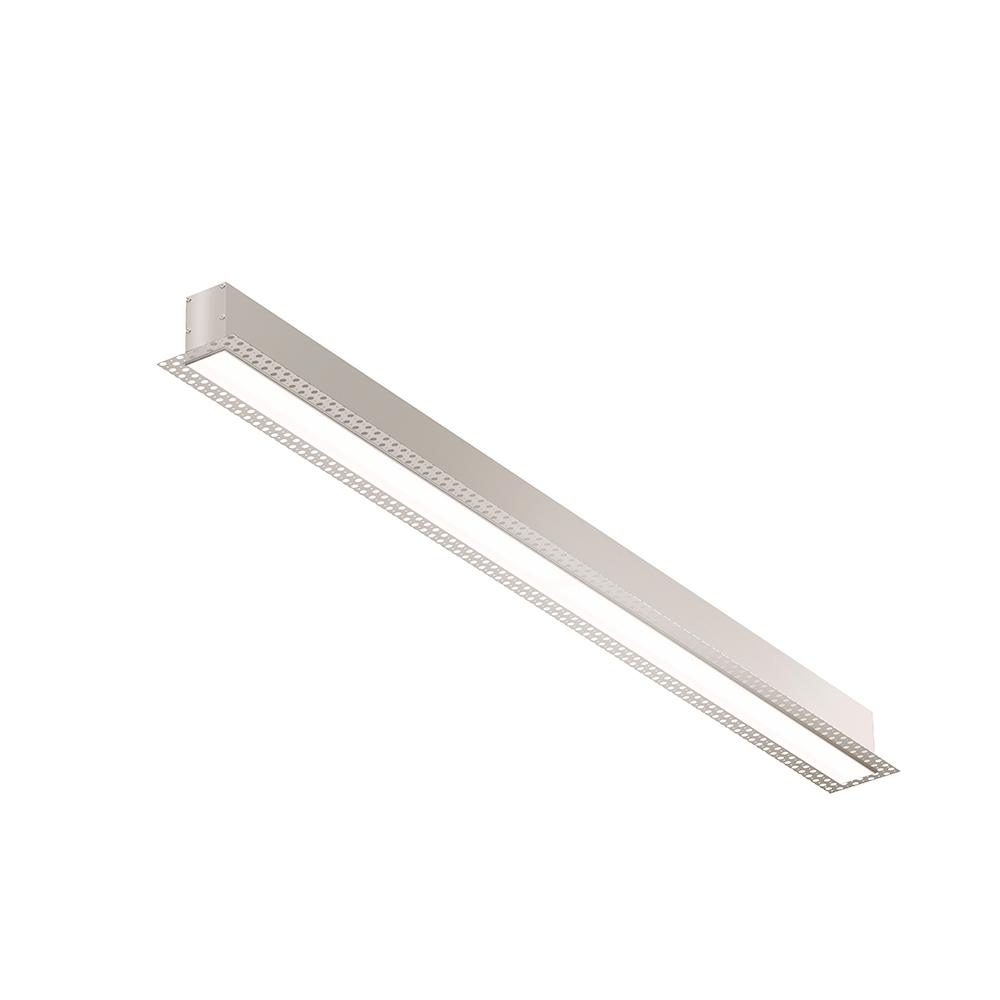

Recessed Trimless Lighting is a great solution for creating a finish that is almost completely smooth to the surface it’s installed within. With standard lengths of 2824mm available and bespoke lighting design formations and lengths available to order, the Recessed Trimless M-Line lighting system can be used for everything from delicate projects to larger fit-outs requiring strong downlighting performance.

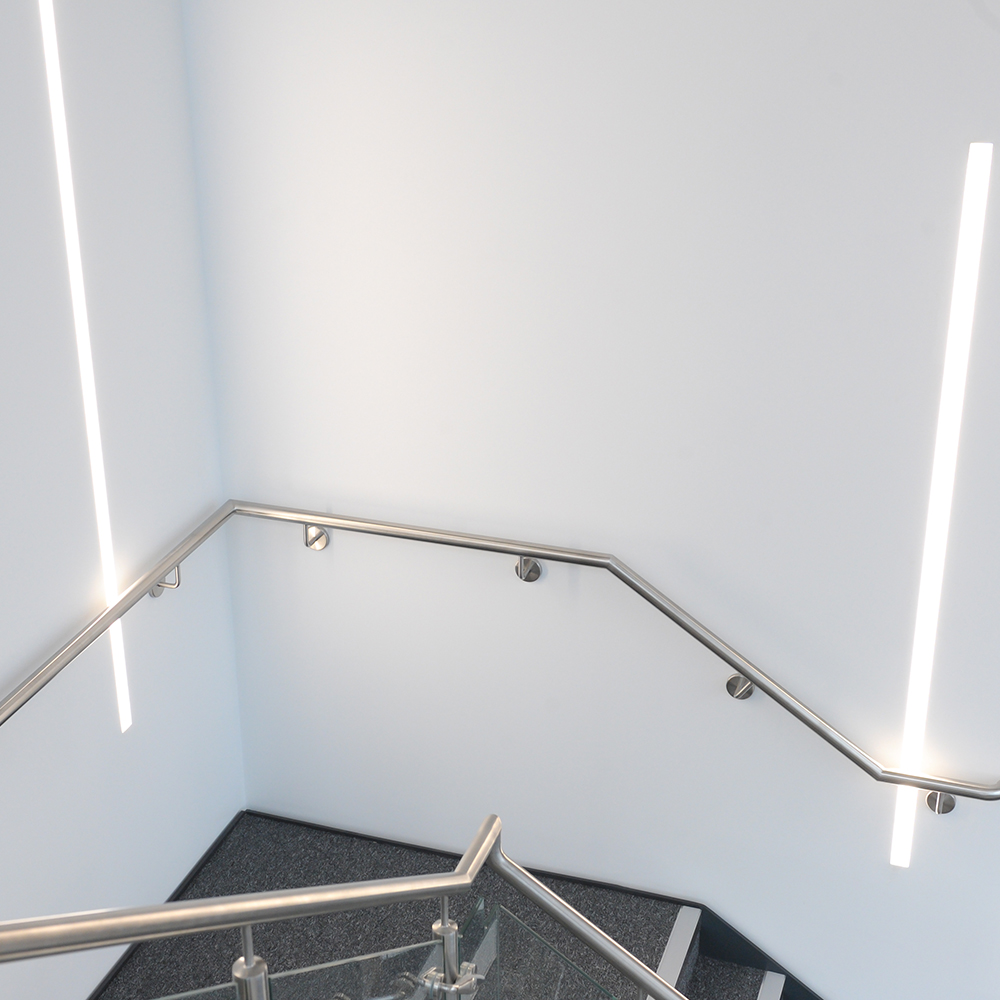

Although the standard system is designed for ceiling mounting, wall-mounted versions can be supplied on request where this better suits your design. With a simple clip-in fitting, installation is fast and efficient, helping you save time on any project with the M-Line system.
| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temp. | Size | Cutout Dimensions |
|---|---|---|---|---|---|---|
| MLERTS84 | 12.5W | 1298 | 104 | 4000K | 584mm | 586 × 52mm |
| MLERTS864 | 19W | 1947 | 104 | 4000K | 864mm | 866 × 52mm |
| MLERTS1144 | 25W | 2596 | 104 | 4000K | 1144mm | 1146 × 52mm |
| MLERTS1424 | 31W | 3245 | 104 | 4000K | 1424mm | 1426 × 52mm |
| MLERTS1704 | 37.5W | 3895 | 104 | 4000K | 1704mm | 1706 × 52mm |
| MLERTS1984 | 44W | 4543 | 104 | 4000K | 1984mm | 1986 × 52mm |
| MLERTS2264 | 50W | 5192 | 104 | 4000K | 2264mm | 2266 × 52mm |
| MLERTS2544 | 56W | 5841 | 104 | 4000K | 2544mm | 2546 × 52mm |
| MLERTS2824 | 62.5W | 6490 | 104 | 4000K | 2824mm | 2826 × 52mm |
NOTE: Longer bespoke lengths available in 140mm increments

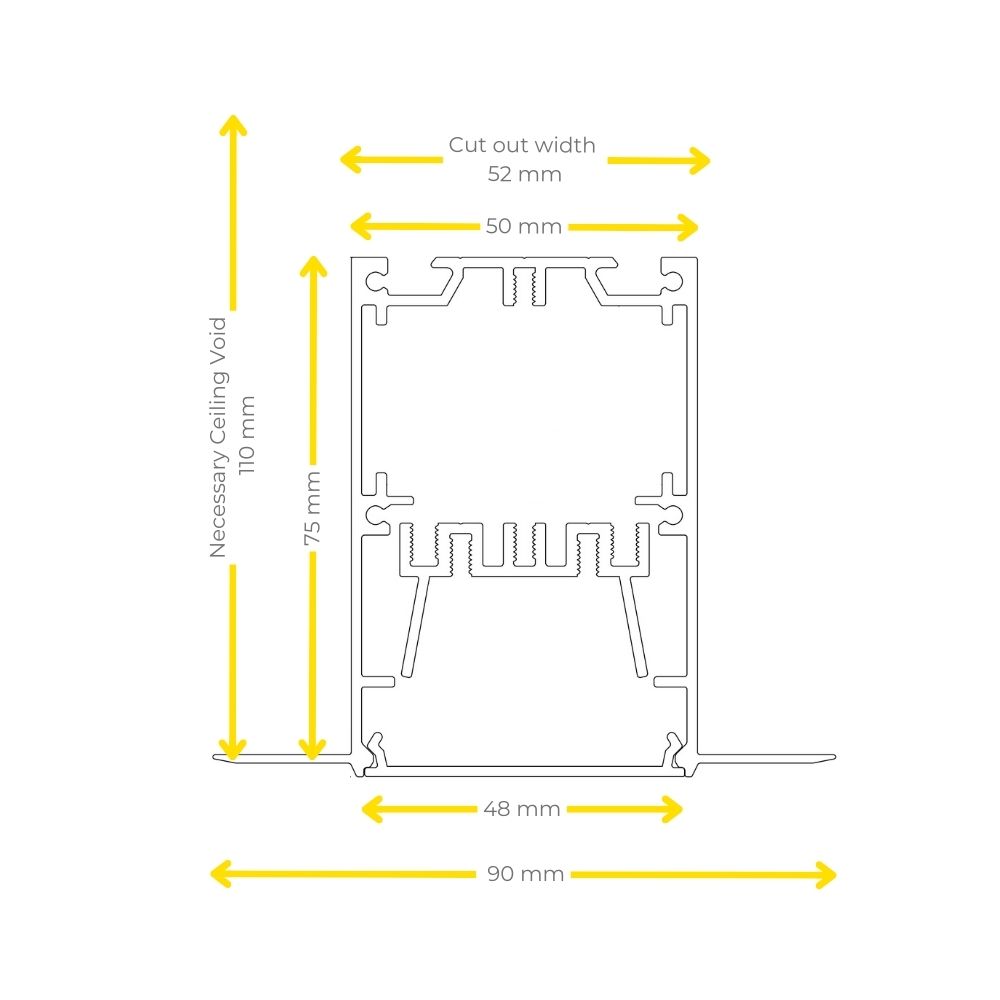

| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | /NE | No Emergency |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – FINISH | /WH | RAL9016 White |
| /BL | RAL9005 Black | |
| /RA | Any RAL Colour | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K (light output -6%) | |
| /5K | 5000K | |
| /TW | Tunable White | |
| /RGB | Colour Changing RGB | |
| 5 – CRI | /80 | CRI>80 (typical 84) |
| /90 | CRI>90 |
