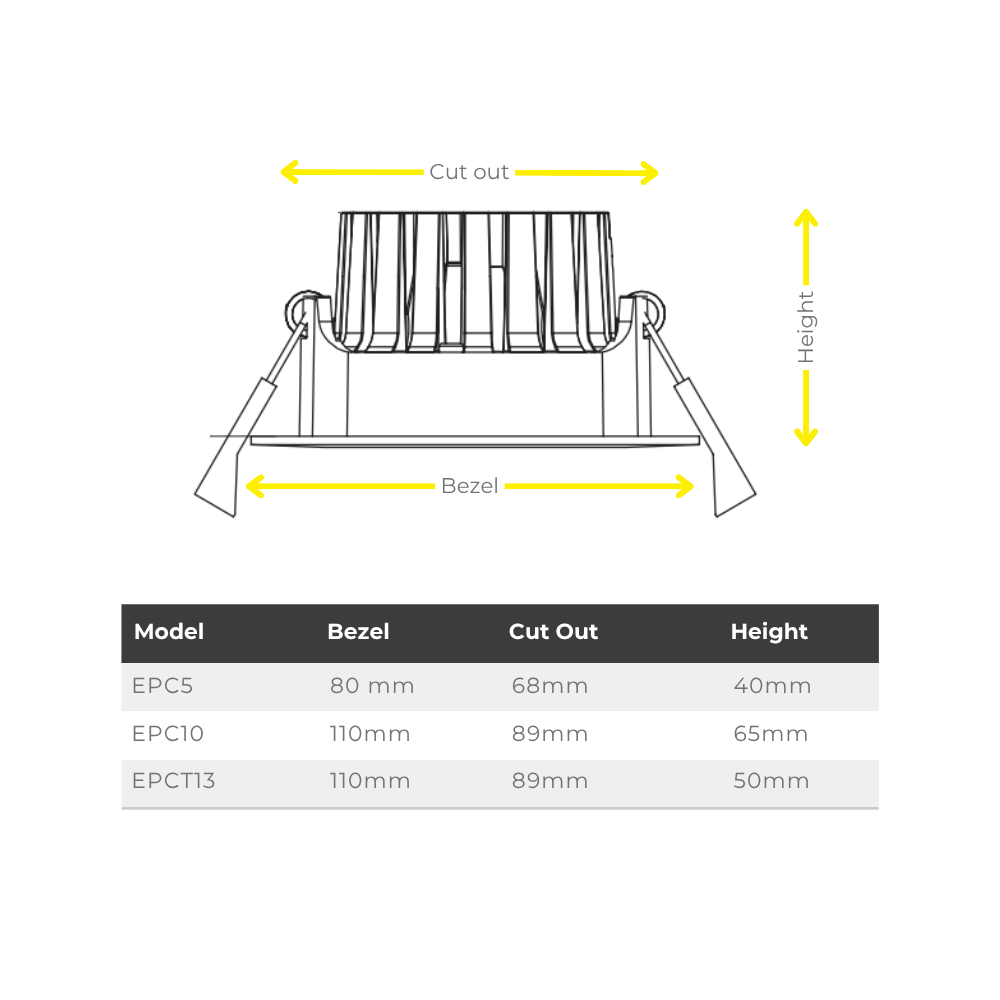

Typically used in toilets, shower rooms, corridors, and leisure facilities (as well as general and task use in offices) these small but mighty IP65 downlights are designed to provide maximum illumination from a compact, sleek device. The bezel diameter is 80mm for the EPC5 and 110mm for the EPC10 and EPCT13.
Our Epic range of IP65 sealed LED downlights has been designed for multiple applications where a high-output, recessed downlighter is required. It is suitable for installation directly into either suspended or plasterboard ceilings.
The luminaire housing is manufactured using die-cast aluminium and finished with a white powder-coated bezel. The faceted reflector is manufactured using highly polished aluminium material and the sealed diffuser is manufactured using PMMA material.
| Product Code | LED Wattage |
Lumen Output |
Lumen/ Watt |
Colour Temperature |
Beam Angle |
| EPC5 | 6W | 583 | 102 | 4000K | 60° |
| EPC10 | 10W | 880 | 90 | 4000K | 60° |
| EPCT13 | 13W | 1428 | 112 | 4000K | 60° |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | /NE | No Emergency |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – FINISH | /9016 | RAL9016 White |
| /9005 | RAL9005 Black | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K (light output -5%) | |
| 5 – BEAM ANGLE | /60 | 60° lens |
| 6 – CRI | /80 | CRI>80 |
| 7 – IP RATING | /65 | IP65 |
