Description

Whether it’s a boardroom luminaire option or an ancillary lighting addition, the Opalite circular bulkhead light is a compact, attractive, and efficient solution for many applications. With four LED Wattage varieties and three trim options available as white, brass, or chrome, this bulkhead not only shines out with its functional properties but also its aesthetic ones.

The Opalite is made from a tough, high-quality steel base and the diffuser is vacuum-formed using polycarbonate material. Standard models are supplied in 4000K for a bright output but can be requested in 3000K if your application requires a softer illumination such as bedrooms.



  • Steel base
  • Available in 3 diameters

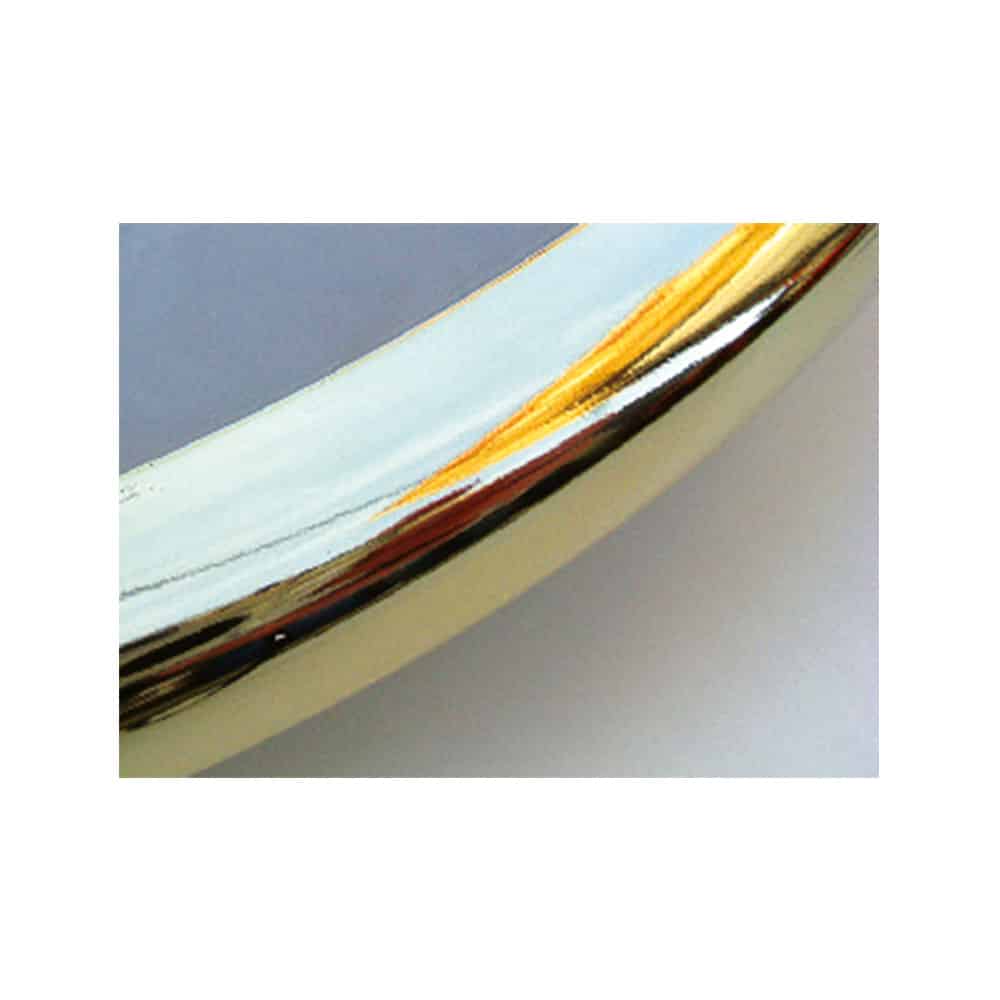

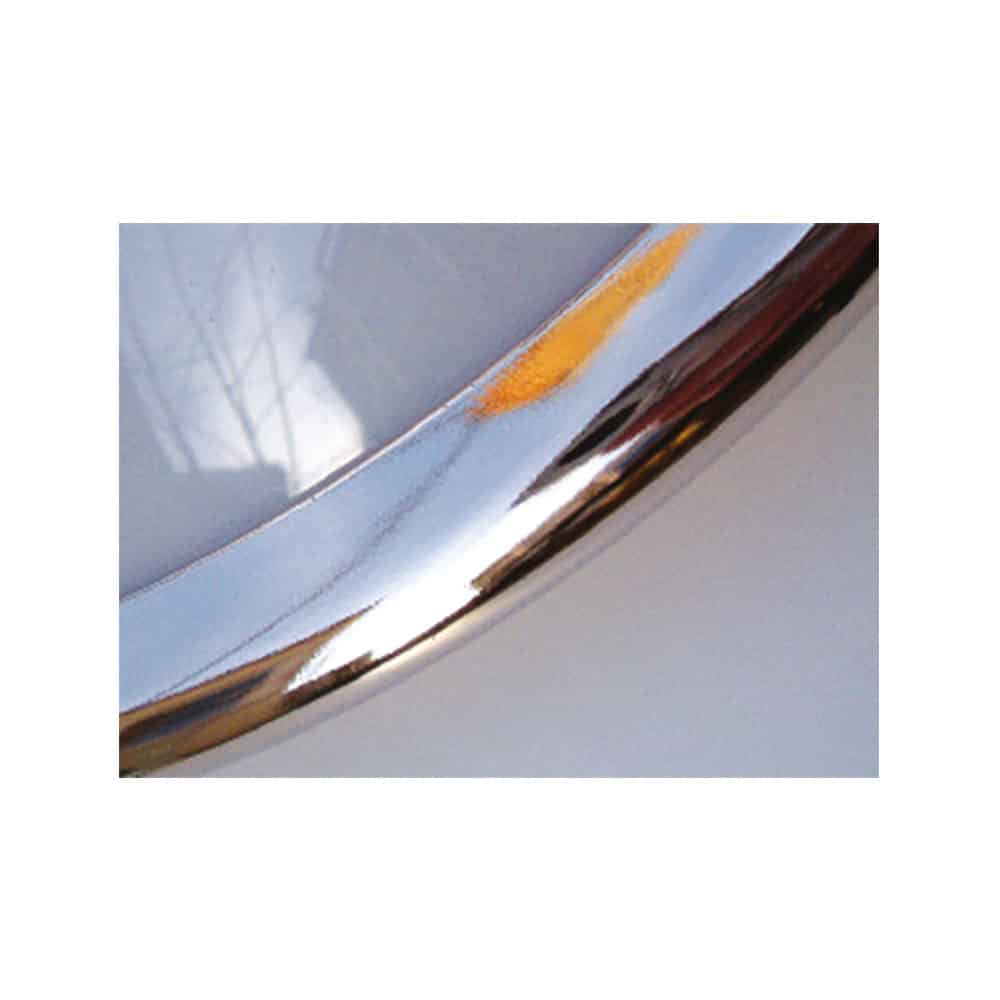

  • White, black, brass and chrome trim options
  • Recessing bracket available
  • Presence detection options
  • IP20
  • 3000K available
  • CRI>80
  • 5-year warranty

Technical & Design Info

Product
Code
LED
Wattage
Lumen
Output
Lumen/
Watt

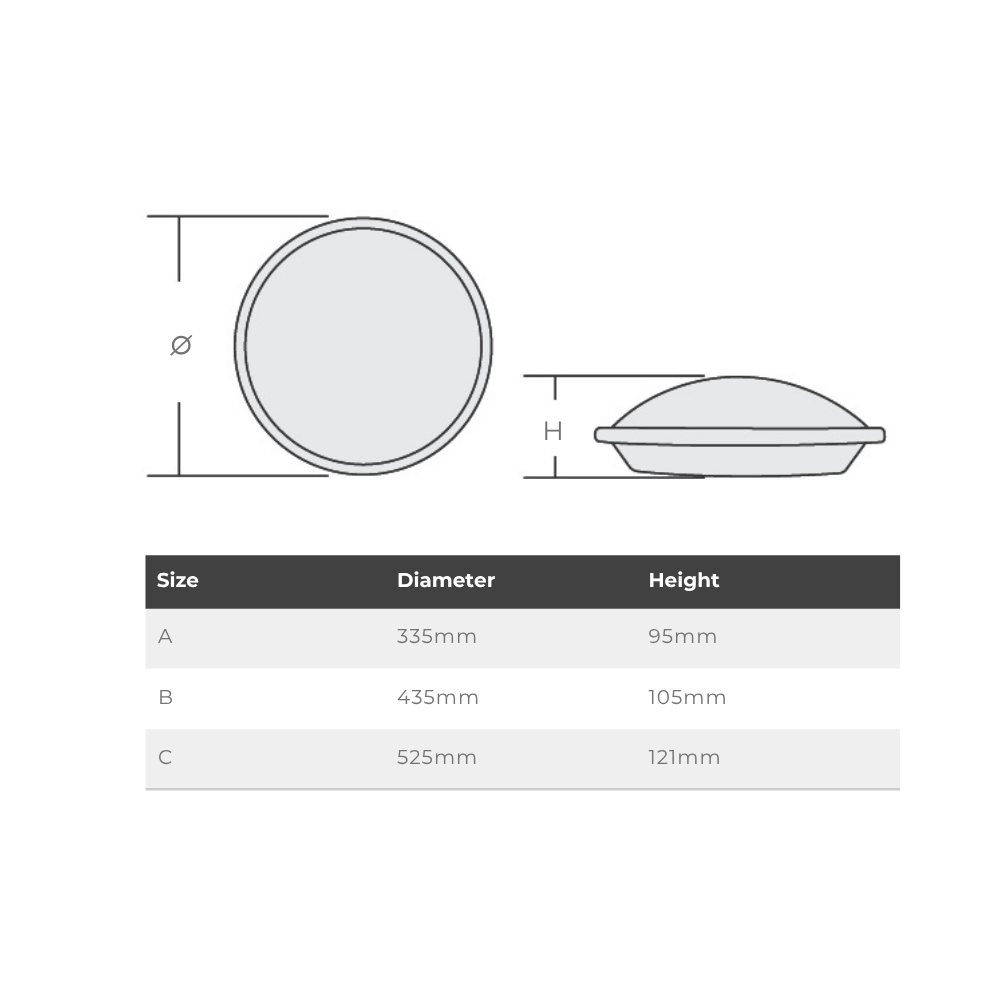

Colour Temp. Size
OPAL335/15 15W 2034 132 4000K A
OPAL435/15 15W 2034 132 4000K B
OPAL435/22 22W 2822 131 4000K B
OPAL525/34 34W 4361 131 4000K C

Section Option Code Description
1 – EMERGENCY Leave blank if no emergency
/M Emergency
/MZ Monitored Emergency
2 – CONTROL /ND Non Dimmable
/DA DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
/P Presence Detector
/PCF Dimmable Presence Detector
3 – BASE FINISH /BLK Black Base
/WHT White Base
4 – CCT /3K 3000K
/4K 4000K
