Oreo Range

Oreo /C

need assistance on this product? call us now 01582 369 005

Description

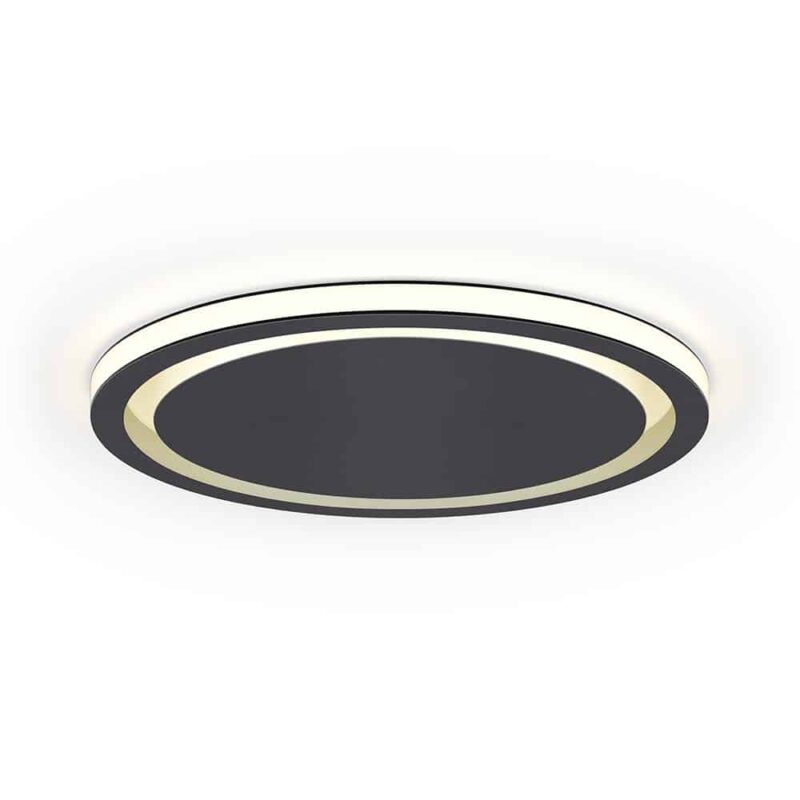

Circular LED luminaire, for surface, mounted application. Extruded aluminium body with 35x35mm, epoxy-polyester powder-coated. Available in Ø630mm and with bLINE diffuser, opal polycarbonate clip-in diffuser. With outward light, or with inward and outward light. Standard version in 4000K LED, CRI>90, 60.000h lifetime (@L80, B10, Ta 25ºC). Possible to choose with on/off the driver, dimmable DALI driver or with OmniaControl. 2700K and Tunable White for inward and outward light or RGB White available as options for outward light. Available in 16 different colours.

Key Features

  • Body: Extruded aluminium.
  • Finish: Powder coated.
  • Diffuser: Polycarbonate.
  • Light source: LED 4000K, CRI>90.
  • LED life time: 60.000h @ L80, B10, Ta 25°C.
  • Control gear: LED driver 220-240VAC-50/60Hz.

Oreo /C

£0.00

Oreo /C

SKU: CRA-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1
DOWNLOAD DATASHEET
Enquire today
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature Size
ORE28/IN 28W 2600 93 4000K Ø 650mm x H 3 5mm
ORE42/IN 42W 3900 93 4000K Ø 970mm x H 3 5mm
ORE54/IN 54W 5070 93 4000K Ø 1255mm x H 3 5mm
ORE67/IN 67W 6240 93 4000K Ø 1540mm x H 3 5mm
ORE85/IN 85W 7930 93 4000K Ø 1955mm x H 3 5mm
ORE25/OUT 25W 2340 93 4000K Ø 630mm x H 3 5mm
ORE39/OUT 39W 3640 93 4000K Ø 950mm x H 3 5mm
ORE53/OUT 53W 4940 93 4000K Ø 1270mm x H 3 5mm
ORE65/OUT 65W 6110 93 4000K Ø 1555mm x H 3 5mm
ORE83/OUT 83W 7800 93 4000K Ø 1970mm x H 3 5mm
ORE28/V/IN 28W 2600 93 4000K Ø 650mm x H 3 5mm
ORE42/V/IN 42W 3900 93 4000K Ø 970mm x H 3 5mm
ORE54/V/IN 54W 5070 93 4000K Ø 1255mm x H 3 5mm
ORE67/V/IN 67W 6240 93 4000K Ø 1540mm x H 3 5mm
ORE85/V/IN 85W 7930 93 4000K Ø 1955mm x H 3 5mm
ORE25/V/OUT 25W 2340 93 4000K Ø 630mm x H 3 5mm
ORE39/V/OUT 39W 3640 93 4000K Ø 950mm x H 3 5mm
ORE53/V/OUT 53W 4940 93 4000K Ø 1270mm x H 3 5mm
ORE65/V/OUT 65W 6110 93 4000K Ø 1555mm x H 3 5mm
ORE83/V/OUT 83W 7800 93 4000K Ø 1970mm x H 3 5mm
Option Code Description
/DALI DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
Option Code Description
/W White (RAL 9016)
/G Grey (RAL 9006)
/B Black (RAL 9005)
/U (POA) Blue (RAL 5002)
/V (POA) Green (RAL 6018)
/T (POA) Yellow (RAL 1021)
/K (POA) Red (RAL 3020)
/N (POA) Jungle
/D (POA) Goldeneye
/0 (POA) Sahara
/L (POA) Autumn
/R (POA) Rusty chain
/C (POA) Pure chocolate
/1 (POA) Mist
/9 (POA) Darkrock
/I (POA) Carbon
