Recessed Lighting
Multi-Track Lighting

Multi-Track RXL – Recessed Trough Track Lighting System

need assistance on this product? call us now 01582 369 005

Description

Our RXL lighting system is a recessed trough profile product, incorporating our standard Multi-Track lighting three-circuit product and recessing it deep into a ceiling. It can be used with a variety of LED lighting from track spotlights and linear lengths, to downlights or pendants by use of track lighting adaptors. It gives the ultimate flexibility for lighting design on large scale projects, by recessing high-output products entirely into the ceiling, providing even light distribution.

The extra large recessed track lighting system has a selection of options and diverse range of accessories available to ensure the needs of your project are met. The RXL Track Lighting system is the ideal lighting solution for a combination of general, accent, and task lighting.

The RXL Multi-Track Trough Lighting system also has a plaster-in trimless aesthetic option available. Using the range of fitting methods, connectors and colour coordinating accessories, we can help you create a bespoke lighting display or make a feature from one continuous length of profile.

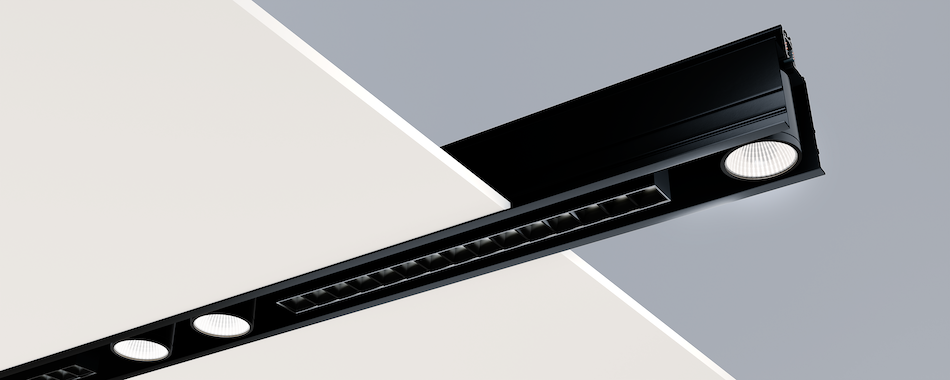

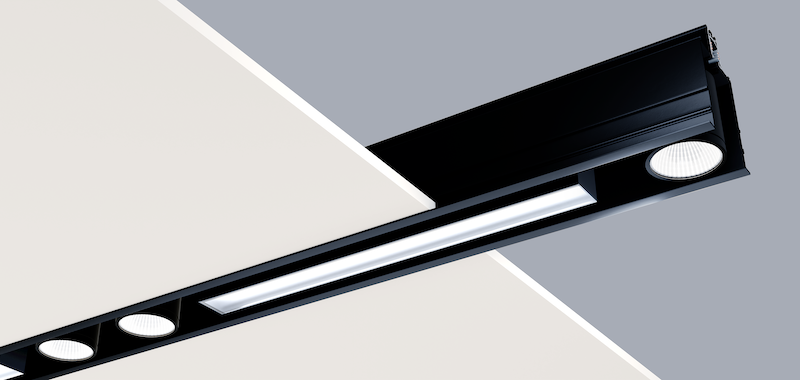

Any standard track lighting mounted fixtures can be used, including our Force cylinder downlights, M-Line and Versa-Line Linear lengths, and Track Spotlights using the track adaptors.

Get in touch today for track lighting design support.



Key Features

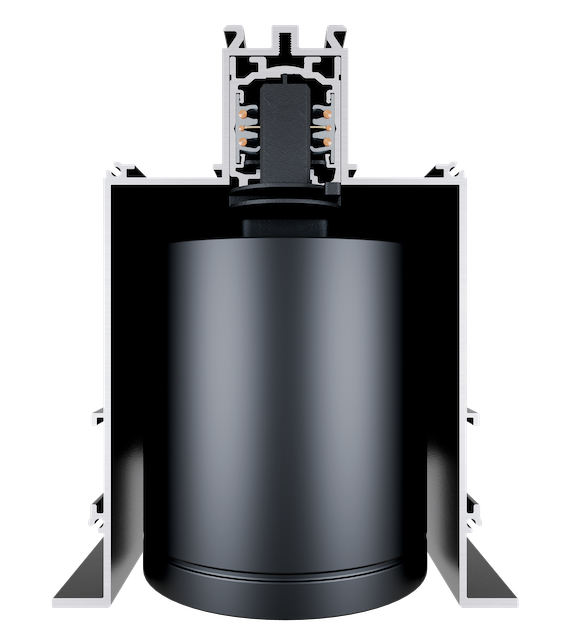

  • Extruded aluminium profile, for recessing Multi-Track deep into a ceiling
  • Black colour as standard, white or RAL colours available
  • Any standard track mounted fixtures can be used, including Force cylinder downlights, M-Line, Versa- Line, and track spotlights using track adaptors
  • Standard and bespoke lengths available, with end caps and joining sections for alignment

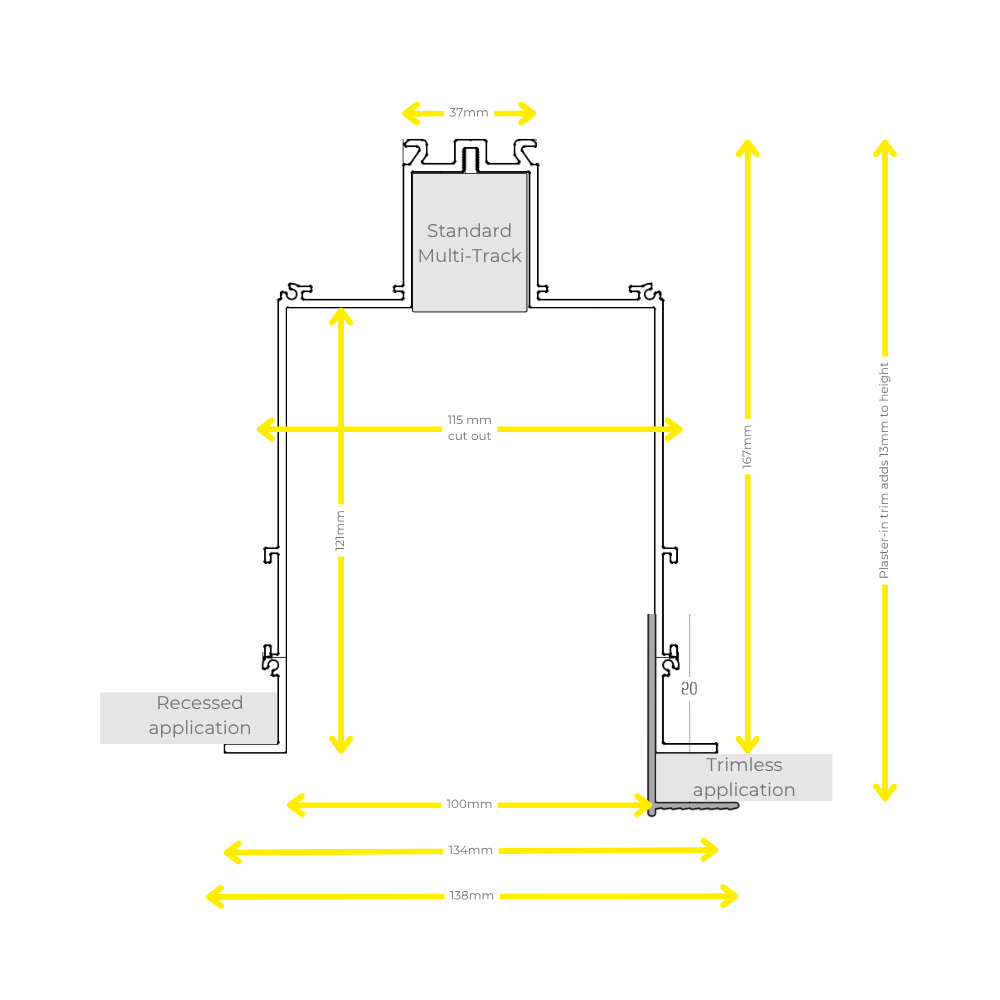

  • Plaster-in trimless aesthetic possible when ordered with separate edge profile

Multi-Track RXL – Recessed Trough Track Lighting System

,

Multi-Track RXL – Recessed Trough Track Lighting System

DOWNLOAD DATASHEET
Enquire today
Trough Product Code Description
RXL3000/9005 Recessed Trough 3.0m – RAL9005 Black
RXL3000/9016 Recessed Trough 3.0m – RAL9016 White
RXLEC/9005 Trough End Cap and Screw Set – RAL 9005 Black
RXLEC/9016 Trough End Cap and Screw Set – RAL 9016 White
RXLSW Suspension Wire with Bracket – 1.8.m
30001/ASCF/CR Automatic Suspension & Block – Chrome



Track Product Code Description
30001/2.0/9005/DALI 3-Circuit Multi-Track – RAL9005 Black – 2.0m
30001/ENDFEEDLEFT/9005 Multi-Track End Feed Left – RAL9005 Black
30001/EC/9005 3-Circuit Multi-Track End Cap – RAL 9005 Black
30001/STR/9005 Multi-Track Electrical Straight Joiners – RAL 9005 Black
30001/90/LEFT/9005/DALI Multi-Track 90° Left DALI Connector – RAL9005 Black
30001/TEELEFT/9005/DALI Multi-Track 90° Tee Left DALI Connector – RAL9005 Black
30001/X/9005/DALI Multi-Track DALI Cross Over – RAL9005 Black
30001/ADJ/9005/DALI Multi-Track DALI Adjustable Connector – RAL9005
For White, replace 9005 with WH



Accessory Code Description
RXLTE2000 Trimless Edge for Plaster-in Applications – 2m
S-9000/T Cutting Tool – Track Lines
WIRELESSSR Casambi Broadcast Controller – Wireless SR
SALVADOR1016 Casambi Individual Controller – Salvador

Track and RXL accessories and order codes
