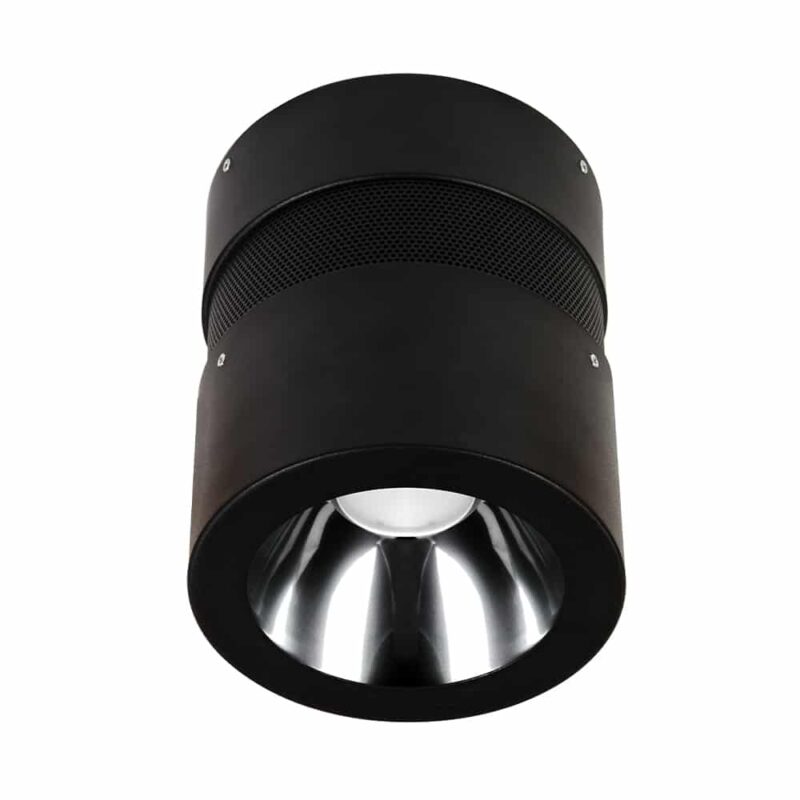

Our Ventor is a large ceiling downlight that has been selected for use in surface or suspended mounted applications. With different wattages, reflectors and colour combinations to choose from this large cylindrical luminaire will compliment any commercial interior.

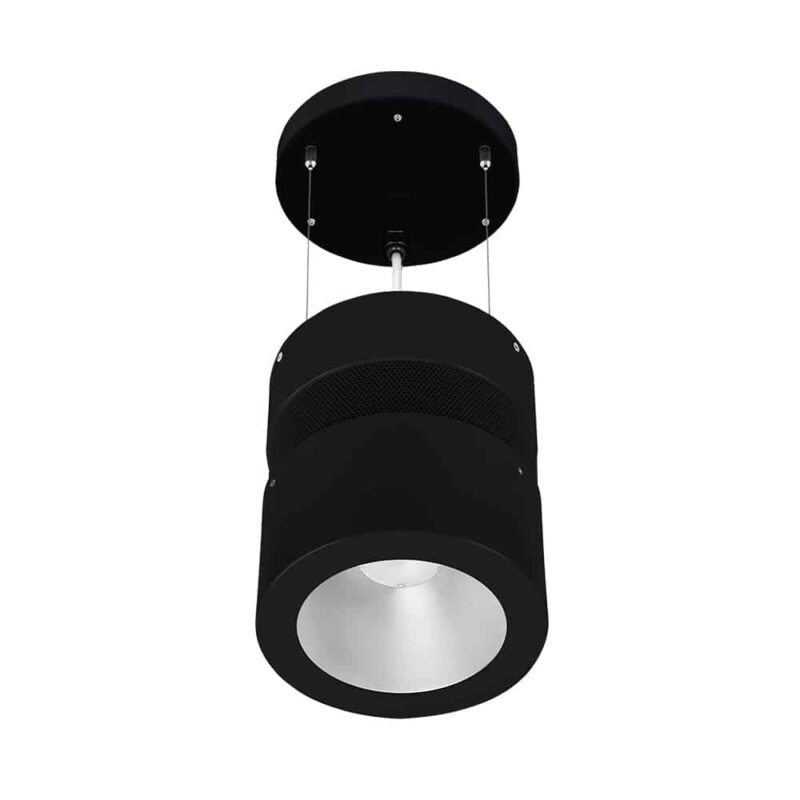

The spun aluminium powder coated body provides corrosion resistance and excellent heat dissipation. The high-quality satin etch reflector is sealed by a clear diffuser and gives an even distribution of illumination. The size of the fitting allows for integral emergency and dimming controls and can be suspended or surface mounted or applied directly onto a ceiling or BESA box.
| Product Code |
LED Wattage |
Lumen Output |
Lumen/ Watt |
Colour Temperature |
| VEN15/3K | 15W | 1068 | 72 | 3000K |
| VEN15 | 15W | 1168 | 78 | 4000K |
| VEN25/3K | 25W | 1778 | 71 | 3000K |
| VEN25 | 25W | 1946 | 77 | 4000K |
| VEN35/3K | 35W | 2537 | 73 | 3000K |
| VEN35 | 35W | 2769 | 80 | 4000K |
| VEN47/3K | 47W | 3475 | 75 | 3000K |
| VEN47 | 47W | 3792 | 82 | 4000K |
| NOTE: We do not offer 47w version in emergency | ||||
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | If no emergency required, leave blank | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| /TD | Mains Dimmable | |
| 3 – CCT | /4K | 4000K |
| /3K | 3000K (light output -4%) | |
| 4 – IP RATING | /20 | IP20 |
| 5 – REFLECTOR TYPE | /MF50 | 50° Multi-Faceted Reflector |
| /SP40 | 40° Specular Reflector | |
| /MF60 | 60° Self-test EM Reflector |
| Option Code | Description | ||
|---|---|---|---|
| /Part X | /9010=White | /9005=Black | /9006=Grey |
| /Part Y | /9010=White | /9005=Black | /9006=Grey |
| /Part Z | /9010=White | /9005=Black | /9006=Grey |
| /SUS (2m Suspension kit) | /9010=White | /9005=Black | /9006=Grey |
