Description

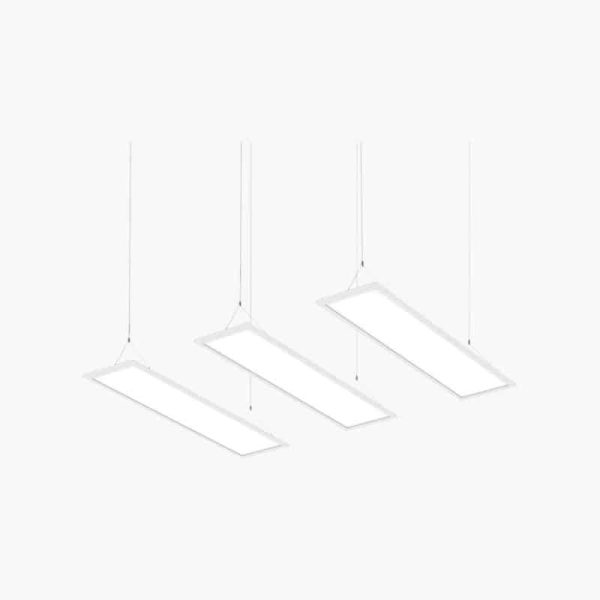

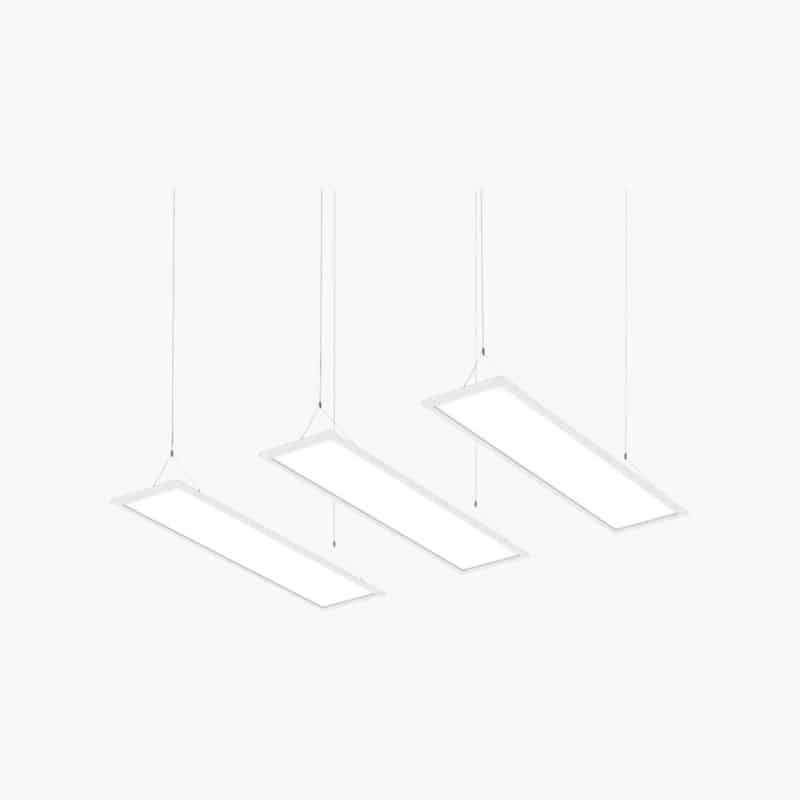

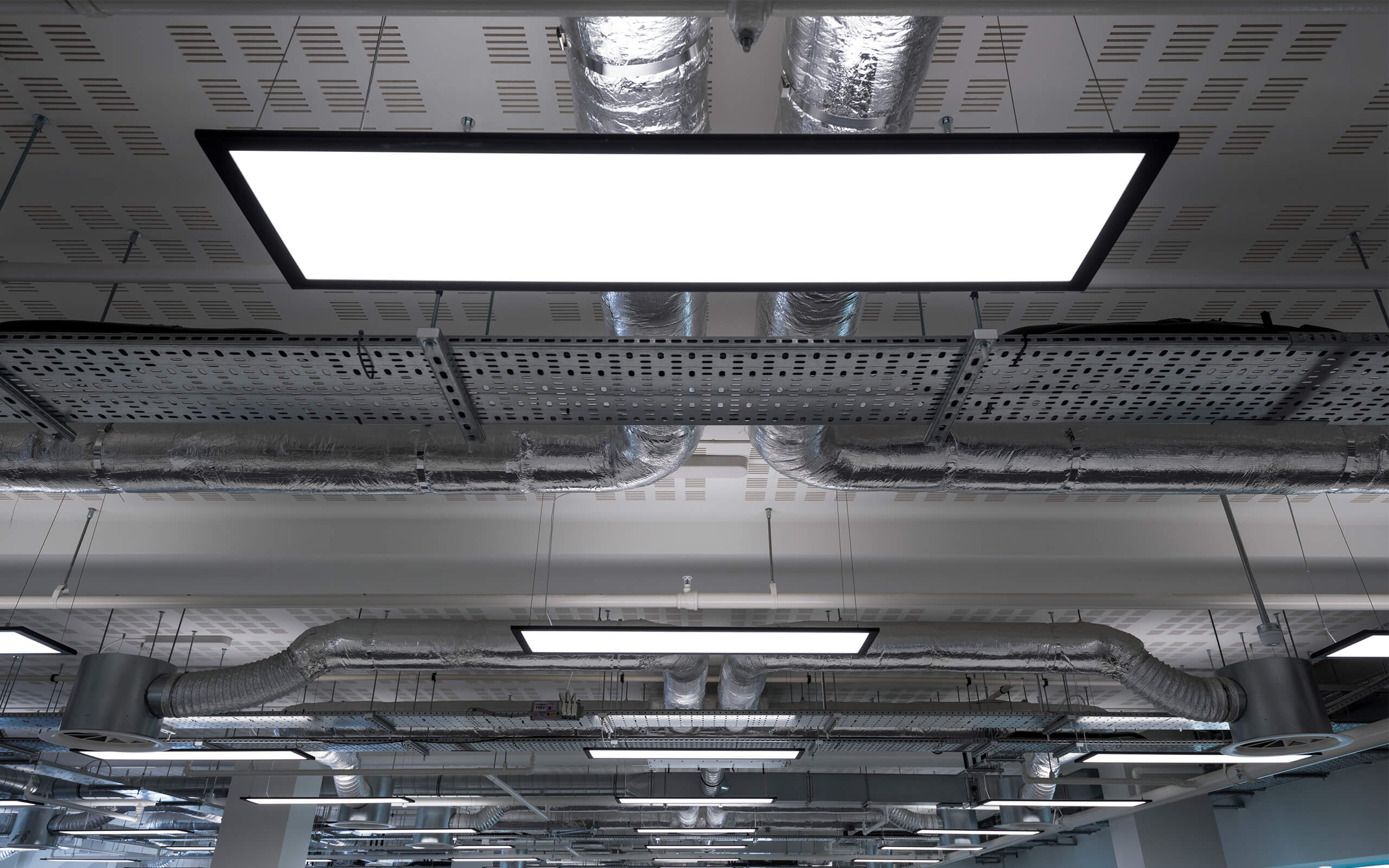

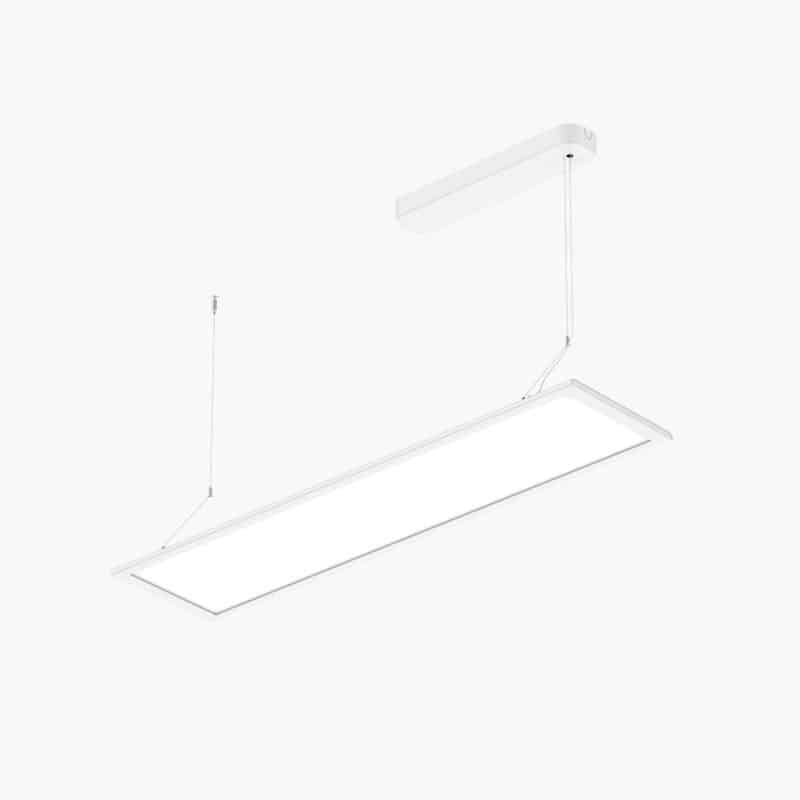

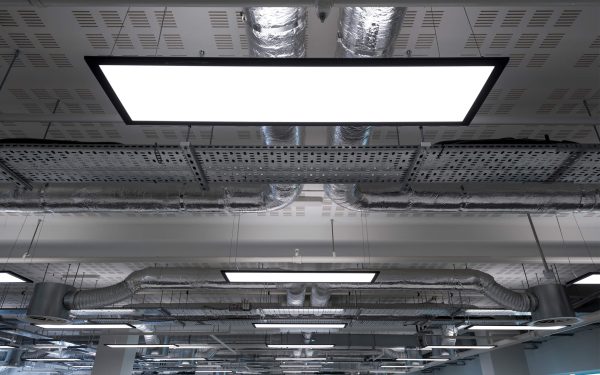

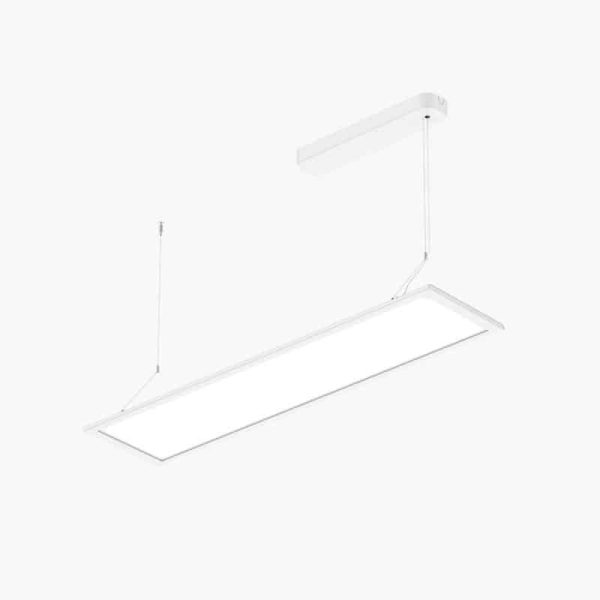

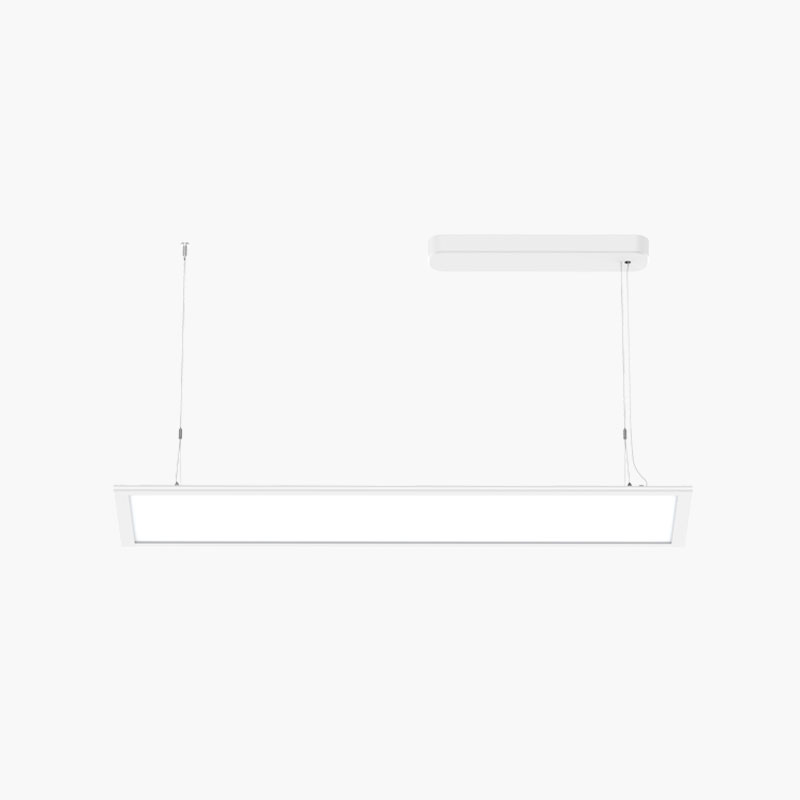

The Blade suspended LED panel has been specifically designed as an attractive option for exposed ceilings. The Blade is a simple, rapid-install, low glare solution for large offices requiring cost effective lighting.

The seamless frame is manufactured from aluminium, and the microprism internal diffuser can help contribute towards a UGR>19 glare rating.

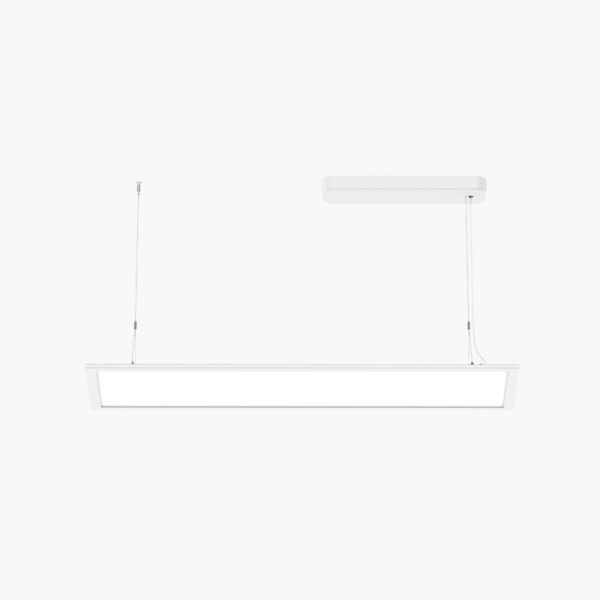

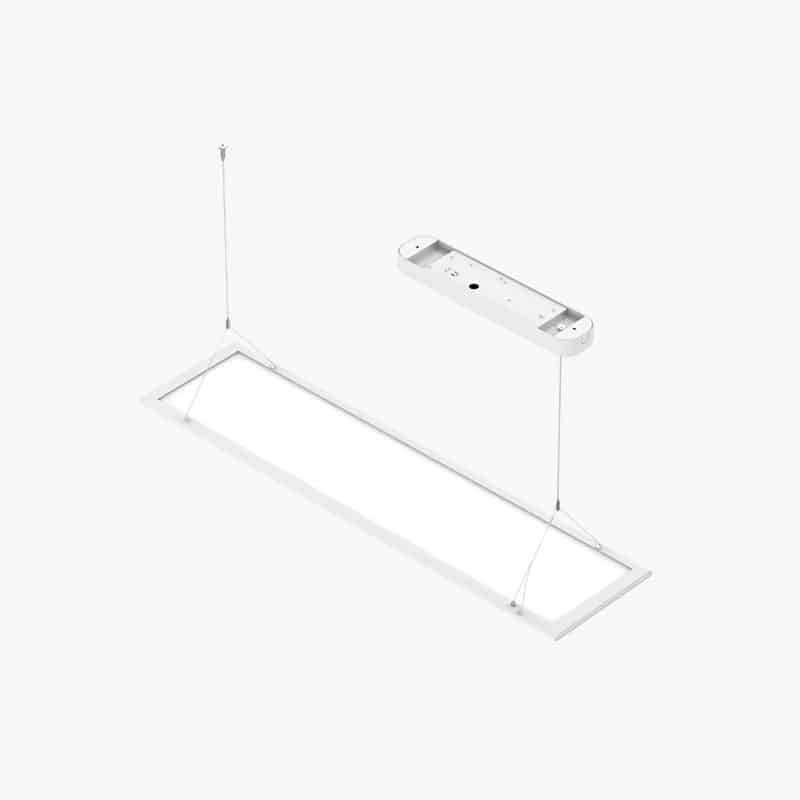

The 2 or 4 point 1.5m suspension kit fits easily to the fixing-free ceiling rose while the control gear is set inside a durable housing. As standard, the luminaire utilises a European-branded electronic control gear.

Key Lighting Features

  • Supports UGR>19 compliance
  • CRI80 as standard
  • 70/30 direct & indirect light distribution
  • Ceiling rose to house control gear
  • 4000K as standard

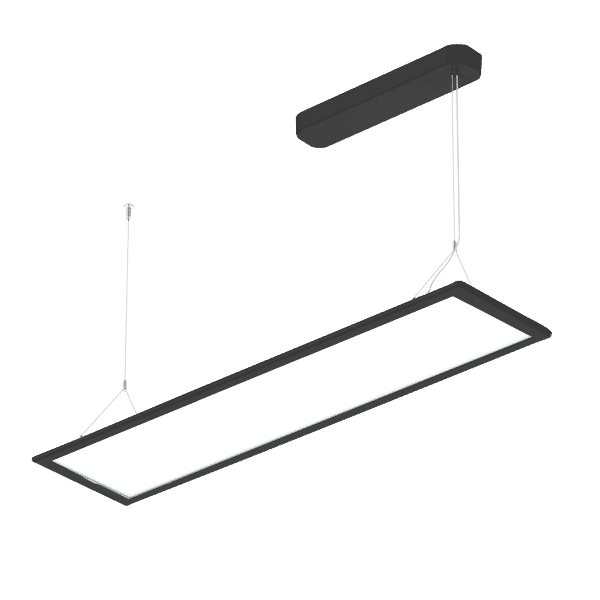

  • Black trim available (other colours available on request)
  • 5-year warranty
  • Longer than 1.5m length suspension kits are available on requrest
Product Code LED Wattage Lumen Output Lumen /watt Colour Temperature
BLD42 39W 4164 106 4000K
Section Option Code Description
1 – EMERGENCY Leave blank for no emergency
/M Emergency
/MZ DALI Emergency
2 – CONTROL /ND Non Dimmable
/DA DALI Dimmable
/BTC Casambi Dimmable
3 – FINISH /9016 RAL9016 White with matching ceiling rose
/9005 RAL9005 Black with matching ceiling rose

FULL CODE EXAMPLE:
BLD42/MZ/BTC/WH = Blade Suspended Panel, Monitored Emergency, Casambi Dim, White Finish
