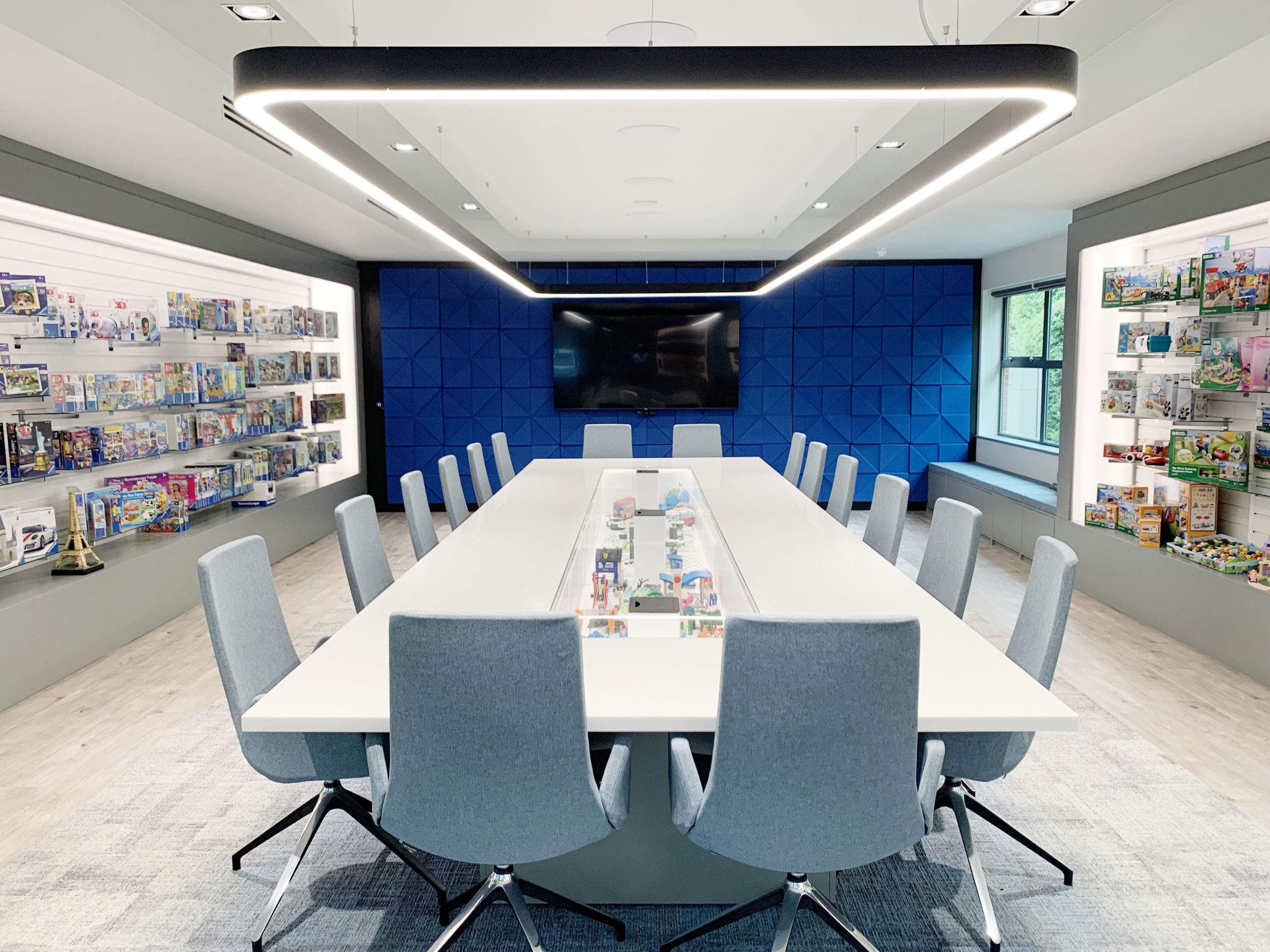

The 90° curve of the Floe-Line has been designed to break the conventions of linear lighting and take lighting design to another dimension. It has flexible connections to be fully integrated with any linear lighting length and size angle. With so many options, including bespoke designs, let your imagination defy limitations and enhance interiors like never before.
| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temp. | Size |
| FLE/ RTG/ 2129/ 1000 | 86W | 8563 | >102 | 4000K | 2129 x 1000mm |
| FLE/ RTG/ 2411/ 1000 | 94W | 9378 | >102 | 4000K | 2411 x 1000mm |
| FLE/ RTG/ 2694/ 1000 | 103W | 10194 | >102 | 4000K | 2694 x 1000mm |
| FLE/ RTG/ 3258/ 1000 | 119W | 11825 | >102 | 4000K | 3258 x 1000mm |
| FLE/ RTG/ 3258/ 1565 | 135W | 13456 | >102 | 4000K | 3258 x 1565mm |
| FLE/ RTG/ 4105/ 1565 | 164W | 16310 | >102 | 4000K | 4105 x 1565mm |
| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temp. | Size |
| FLE/ RTG/ 2129/ 1000/DIR/IND | 86W | 8563 | >102 | 4000K | 2129 x 1000mm |
| FLE/ RTG/ 2411/ 1000/DIR/IND | 94W | 9378 | >102 | 4000K | 2411 x 1000mm |
| FLE/ RTG/ 2694/ 1000/DIR/IND | 103W | 10194 | >102 | 4000K | 2694 x 1000mm |
| FLE/ RTG/ 3258/ 1000/DIR/IND | 119W | 11825 | >102 | 4000K | 3258 x 1000mm |
| FLE/ RTG/ 3258/ 1565/DIR/IND | 135W | 13456 | >102 | 4000K | 3258 x 1565mm |
| FLE/ RTG/ 4105/ 1565/DIR/IND | 164W | 16310 | >102 | 4000K | 4105 x 1565mm |
| Section | Option | Code Description |
| 1 – Emergency | No emergency, leave blank | |
| /M | 3 Hour Maintained Emergency | |
| /MZ | 3 Hour DALI Maintained Emergency | |
| 2 – Control | /ND | Non Dimmable Driver |
| /DALI | DALI Dimmable (downlight only) | |
| /BTC | Casambi Dimmable | |
| 3 – Finish | /WH | White (RAL9003) |
| /BL | Black (RAL9005) | |
| /SI | Silver (RAL9007) | |
| /AN | Anthracite (RAL7016) | |
| /GL | Gold (RAL1036) | |
| /BR | Bronze | |
| /RAL | Insert RAL number | |
| /60 | 60° lens | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K | |
| 5 – CRI | /80 | CRI>80 |
| /90 | CRI>90 | |
| 6 – Lens | /MP | Microprism Diffuser |
| Option Code | Description |
| Supply Cable | |
| CABTR3C | 1.5m Transparent Current Cable 3 x0.75mm2 |
| CABTR5C | 1.5m Transparent Current Cable 5 x0.75mm2 |
| CR375W/2M | 3 Core 0.75mm White Flex Cable – 2m Lead |
| CR375B/2M | 3 Core 0.75mm Black Flex Cable – 2m Lead |
| CR475W/2M | 4 Core 0.75mm White Flex Cable – 2m Lead |
| CR475B/2M | 4 Core 0.75mm Black Flex Cable – 2m Lead |
| CR575W/2M | 5 Core 0.75mm White Flex Cable – 2m Lead |
| CR575B/2M | 5 Core 0.75mm Black Flex Cable – 2m Lead |
| FSUS | 2m Suspension kit for suspended Floe-Line |
| NOTE: Alternative length suspension kits available – POA |
