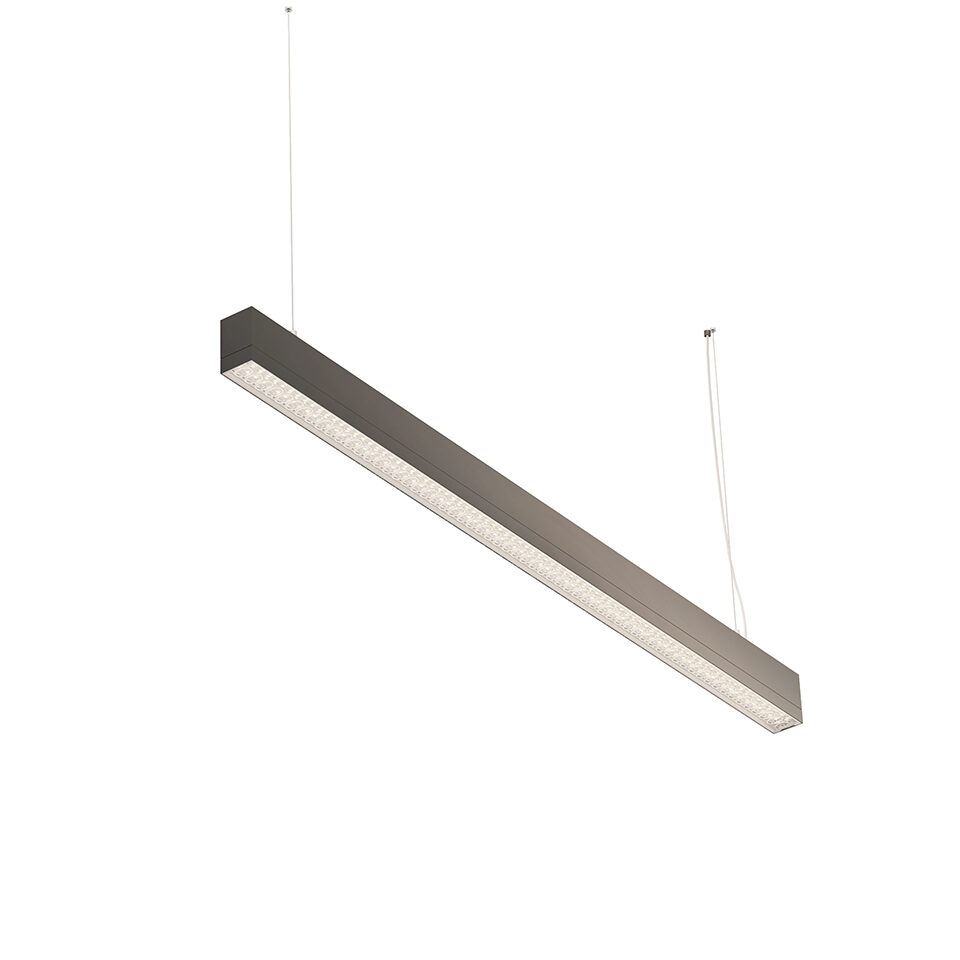

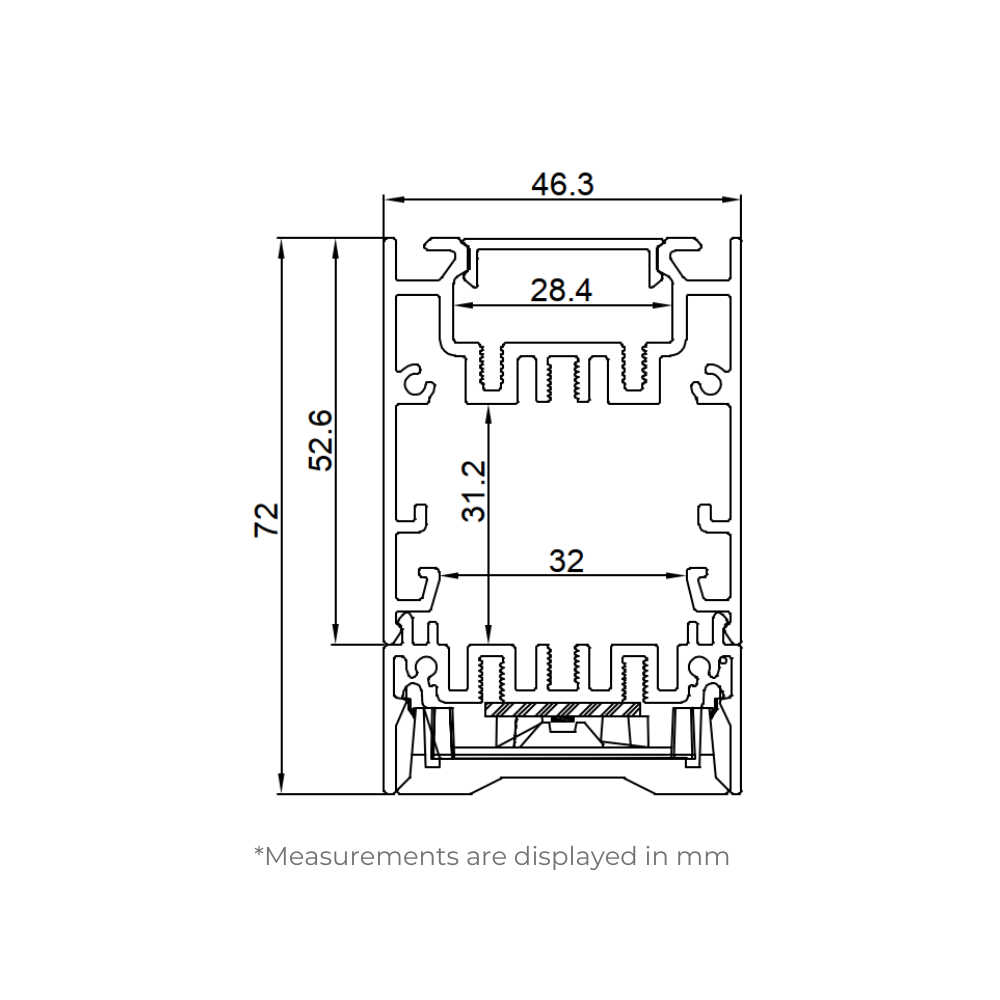

The Lens-Line is a superior, low-glare, UGR19 compliant LED linear fitting that outperforms its rivals in light distribution and efficiency. Manufactured in-house from a 2 part aluminium extrusion, the profile allows for hidden controls and the option of surface mounting or 2m suspension points positioned anywhere along the length of the luminaire. The Lens-Line is also available in 8 different standard lengths and includes options for 75%/25% direct/indirect light distribution.
The Lens-Line is the most sustainable low-glare linear lighting option with a low carbon footprint and high energy efficiency.
| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temperature | Size |
|---|---|---|---|---|---|
| Suspended Direct Lighting System | |||||
| LLE855 | 10W | 1875 | 195 | 4000K | 855mm x 46.3mm |
| LLE1135 | 13W | 2500 | 195 | 4000K | 1135mm x 46.3mm |
| LLE1415 | 16W | 3125 | 195 | 4000K | 1415mm x 46.3mm |
| LLE1695 | 19W | 3750 | 195 | 4000K | 1695mm x 46.3mm |
| LLE1975 | 22W | 4375 | 195 | 4000K | 1975mm x 46.3mm |
| LLE2255 | 26W | 5000 | 195 | 4000K | 2255mm x 46.3mm |
| LLE2535 | 29W | 5625 | 195 | 4000K | 2535mm x 46.3mm |
| LLE2815 | 32W | 6250 | 195 | 4000K | 2815mm x 46.3mm |
| To order surface mounted, please use code LLES then size. Lumen output is the same as suspended | |||||
| Suspended Direct/Indirect Lighting System / 75% Direct / 25% Indirect | |||||
| LLE1135/DIR/IND | 20W | 3291 | 165 | 4000K | 1135mm x 46.3mm |
| LLE1415/DIR/IND | 25W | 4181 | 165 | 4000K | 1415mm x 46.3mm |
| LLE1695/DIR/IND | 31W | 5071 | 165 | 4000K | 1695mm x 46.3mm |
| LLE1975/DIR/IND | 36W | 5935 | 165 | 4000K | 1975mm x 46.3mm |
| LLE2255/DIR/IND | 41W | 6851 | 165 | 4000K | 2255mm x 46.3mm |
| LLE2535/DIR/IND | 47W | 7741 | 165 | 4000K | 2535mm x 46.3mm |
| LLE2815/DIR/IND | 52W | 8631 | 165 | 4000K | 2815mm x 46.3mm |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | Leave blank if no emergency | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /D | 1-10V Dim | |
| /BTC | Casambi Dim | |
| 3 – FINISH | /9016 | RAL9016 White |
| /9005 | RAL9005 Black | |
| /9006 | RAL9006 Grey | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K | |
| 5 – CRI | /80 | CRI>80 |
