Description

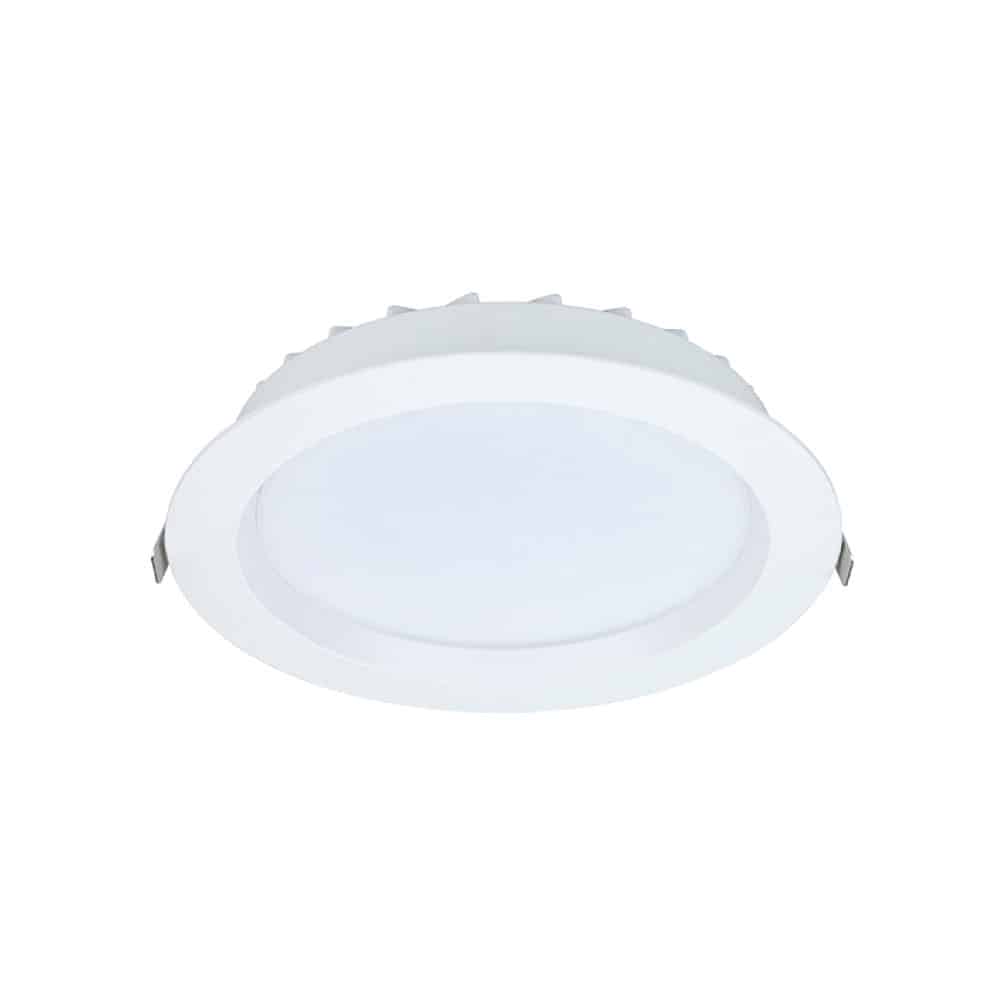

Our Lumaled luminaire has been designed as a direct replacement for 210mm PL downlights. The panel surround is manufactured using white powder coated aluminium material. The high-performance heat sink is manufactured using die-cast aluminium, connection from the luminaire to the driver is a simple process utilising simple plug and play connectors. The 3 x CCT colour changeable switch makes for easy use to create the correct temperature light for the right setting.

Key Lighting Features

  • Ideal replacement for 210mm PL downlights
  • Slimline design only 45mm
  • High-performance aluminium heat sink
  • 90° wide beam angle
  • Switchable 3 x CCT 3000K, 4000K, 5700K
  • Surface/suspension case option available in black and white
  • DALI and emergency options available
  • Dimming available when using Triac dimmer
  • IP54
  • CRI>80, 50,000 hours life
  • 5-year warranty
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature
LLD18 16W 1860 114 4000K
LLD25 23W 2613 111 4000K

Product Options

Section Option Code Description
1 – EMERGENCY /NE No Emergency
/M 3 Hour Maintained Emergency
/MZ 3 Hour DALI Maintained Emergency
2 – CONTROL /ND Non-Dimmable Driver
/TD Triac Dimmable Driver
/D 0-10v Dimmable Driver
/DA DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
3 – FINISH /9016 RAL9016 White
/9005 RAL9005 Black
4 – CCT /4K 4000K
/3K 3000K
/57K 5700K
5 – BEAM ANGLE /90 90° diffuser
6 – CRI /80 CRI >80
7 – IP RATING /54 IP54

Accessories

Accessory Code Description

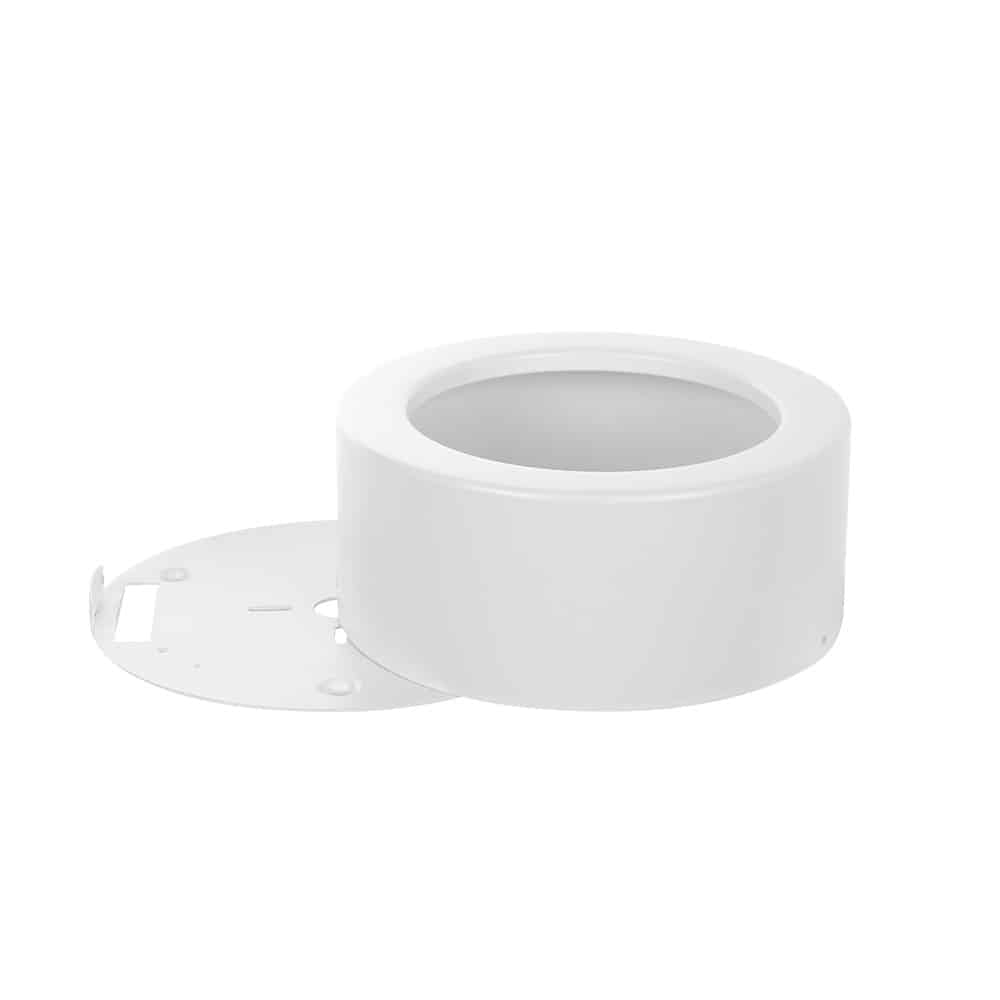

LUM/SUR/WHT White Surface/Suspension Case

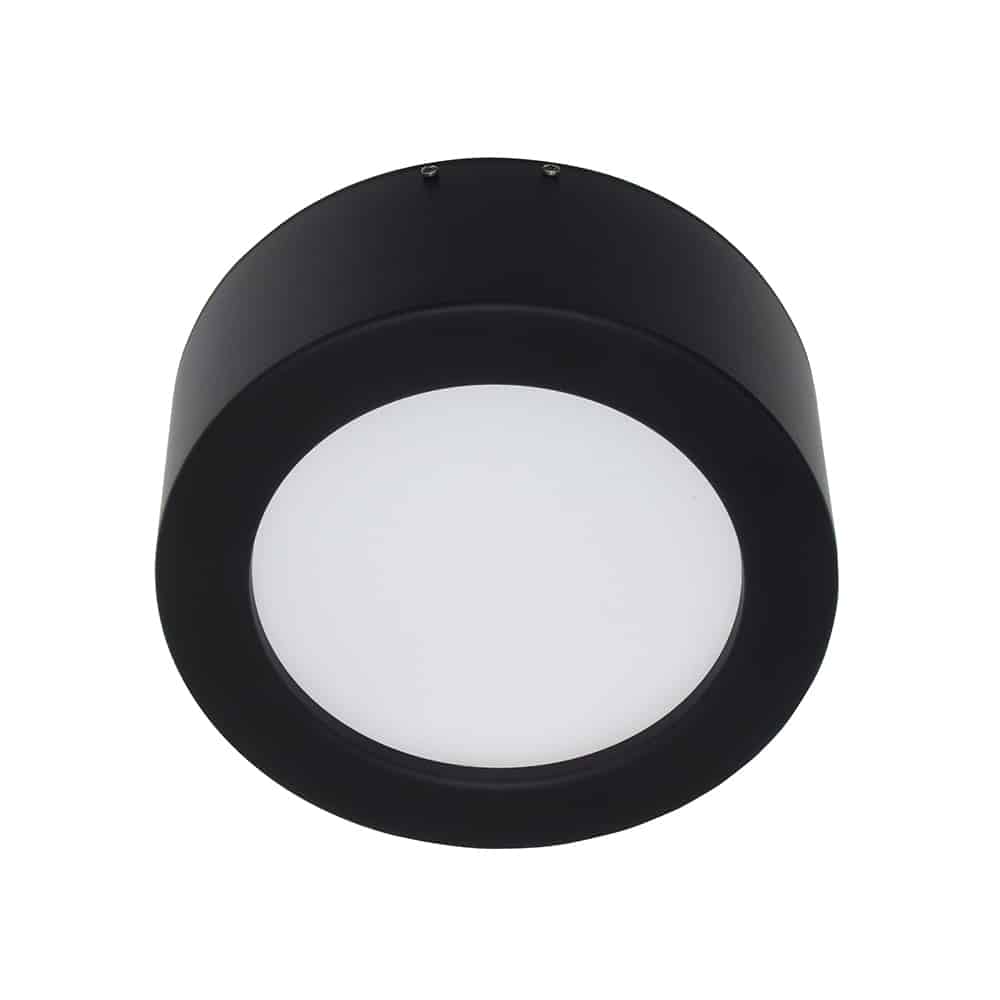

LUM/SUR/BLACK Black Surface/Suspension Case
MLESUS Suspension Kit (3 Required Per Fitting)
CR1 Ceiling Rose With Central Suspension Point (Specify Colour)
