M-Line Linear Lighting System
Surface Lighting
Suspended Lighting

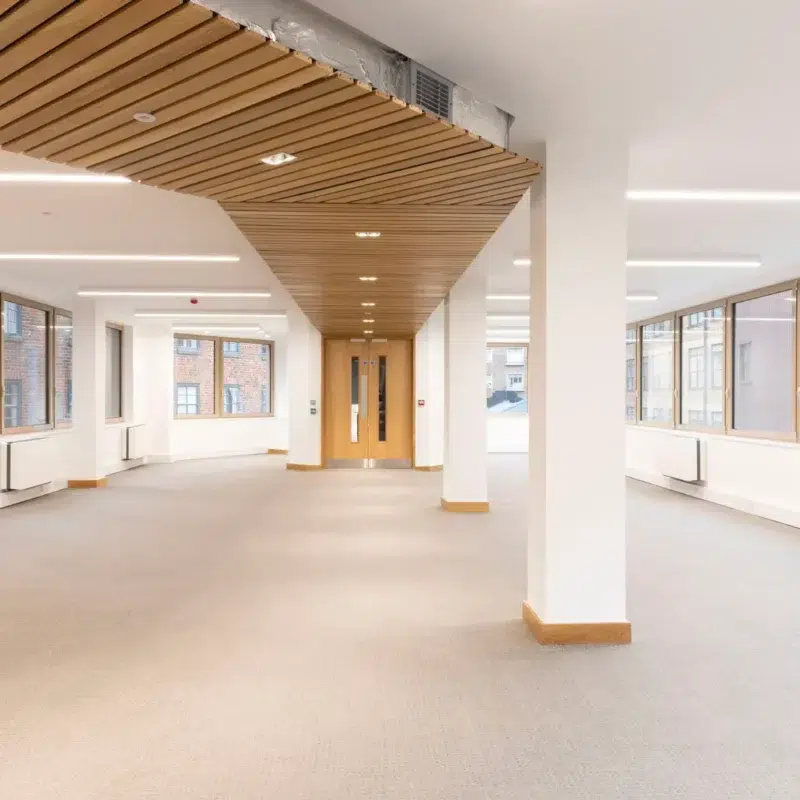

M-LINE 38 Surface and Suspended

need assistance on this product? call us now 01582 369 005

Description

The M-Line 38 is a slimline LED linear lighting profile that can be installed as a surface-mounted or suspended light fitting. Linear lengths go up to 2,824mm as standard, with bespoke shapes and continuous lengths available to order.  Surface mounting is achieved by directly fixing through the rear of the profile.  Suspension is made simple using a single-point ceiling bracket with a 2m adjustable stainless steel wire system. Uplighting is available on lengths from 584mm upwards.

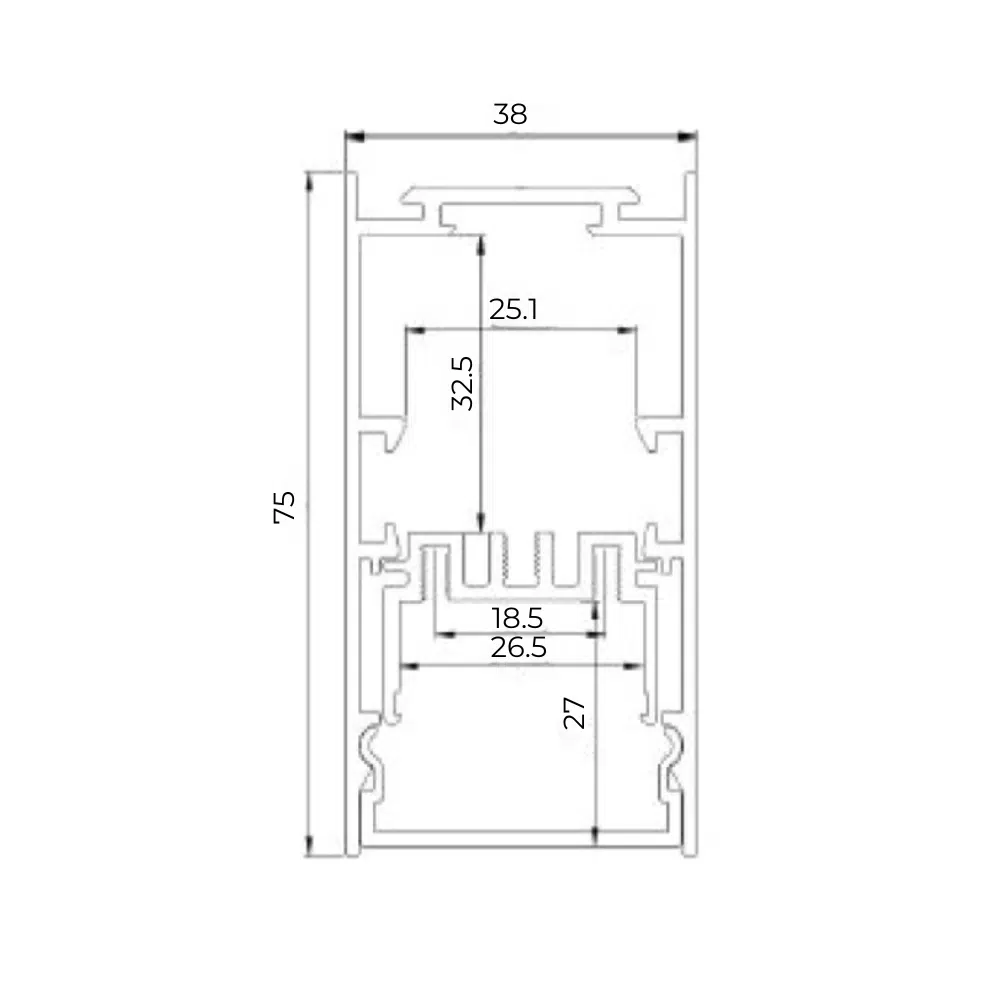

The M-Line 38 range is a slimline version (38mm width) of our highly popular M-Line LED Linear Lighting (50mm width) and contrasts with our 75mm extra-wide linear range, the M-Line XL.

Key Features

  • Aluminium extruded sections in 9 standard lengths
  • Bespoke lengths available in 140mm increments
  • Colour options in 3000K/4000K/5000K
  • Custom shapes available subject to design
  • Incorporates European branded LED drivers
  • Up to 104 lumens per circuit watt
  • Utilises latest generation long-life LEDs from leading manufacturers
  • Clip-in gear tray for easy installation
  • Opal polycarbonate diffuser
  • Tuneable white and RGB options available
  • Dimmable and emergency options available
  • Compatible with Casambi wireless control system
  • Dual Switch option available

M-LINE 38 Surface and Suspended

, ,

M-LINE 38 Surface and Suspended

DOWNLOAD DATASHEET
Enquire today
Suspended Direct Lighting System
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature Size
MLE38/584 17W 1589 104 4000K 584mm x 38mm
MLE38/864 26W 2383 104 4000K 864mm x 38mm
MLE38/1144 35W 3178 104 4000K 1144mm x 38mm
MLE38/1424 43W 3972 104 4000K 1424mm x 38mm
MLE38/1704 52W 4767 104 4000K 1704mm x 38mm
MLE38/1984 60W 5562 104 4000K 1984mm x 38mm
MLE38/2264 70W 6356 104 4000K 2264mm x 38mm
MLE38/2544 78W 7150 104 4000K 2544mm x 38mm
MLE38/2824 87W 7945 104 4000K 2824mm x 38mm
NOTE: Longer bespoke linear lengths available in 140mm increments (Includes 2m suspension kits)
Surface Direct Lighting System
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature Size
MLES38/584 22W 1589 104 4000K 584mm x 38mm
MLES38/864 35W 2383 104 4000K 864mm x 38mm
MLES38/1144 48W 3178 104 4000K 1144mm x 38mm
MLES38/1424 61W 3972 104 4000K 1424mm x 38mm
MLES38/1704 74W 4767 104 4000K 1704mm x 38mm
MLES38/1984 88W 5562 104 4000K 1984mm x 38mm
MLES38/2264 101W 6356 104 4000K 2264mm x 38mm
MLES38/2544 114W 7150 104 4000K 2544mm x 38mm
MLES38/2824 127W 7945 104 4000K 2824mm x 38mm
NOTE: Longer bespoke linear lengths available in 140mm increments
Option Code Description
/M 3 Hour Maintained Emergency
/MZ 3 Hour Maintained DALI Emergency
/D 1-10V Driver
/DALI DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
/3K 3000K LED
/5K 5000K LED
/RGB Colour Changing LED
/TW Tunable White LED
Option Code Description
/W White (RAL 9016)
/G Grey (RAL 9006)
/B Black (RAL 9005)
/U (POA) Blue (RAL 5002)
/V (POA) Green (RAL 6018)
/T (POA) Yellow (RAL 1021)
/K (POA) Red (RAL 3020)
/N (POA) Jungle
/D (POA) Goldeneye
/0 (POA) Sahara
/L (POA) Autumn
/R (POA) Rusty chain
/C (POA) Pure chocolate
/1 (POA) Mist
/9 (POA) Darkrock
/I (POA) Carbon
Option Code Description
Supply Cable
CABTR3C 1.5m Transparent Current Cable 3 x 0.75mm2
CABTR5C 1.5m Transparent Current Cable 5 x 0.75mm2
MLESUS 2m Suspension kit for suspended M-Line
NOTE: Alternative length suspension kits available – POA
