M-Line Linear Lighting System
Surface Lighting
Suspended Lighting

M-Line XL Surface and Suspended

need assistance on this product? call us now 01582 369 005
Phone Icon

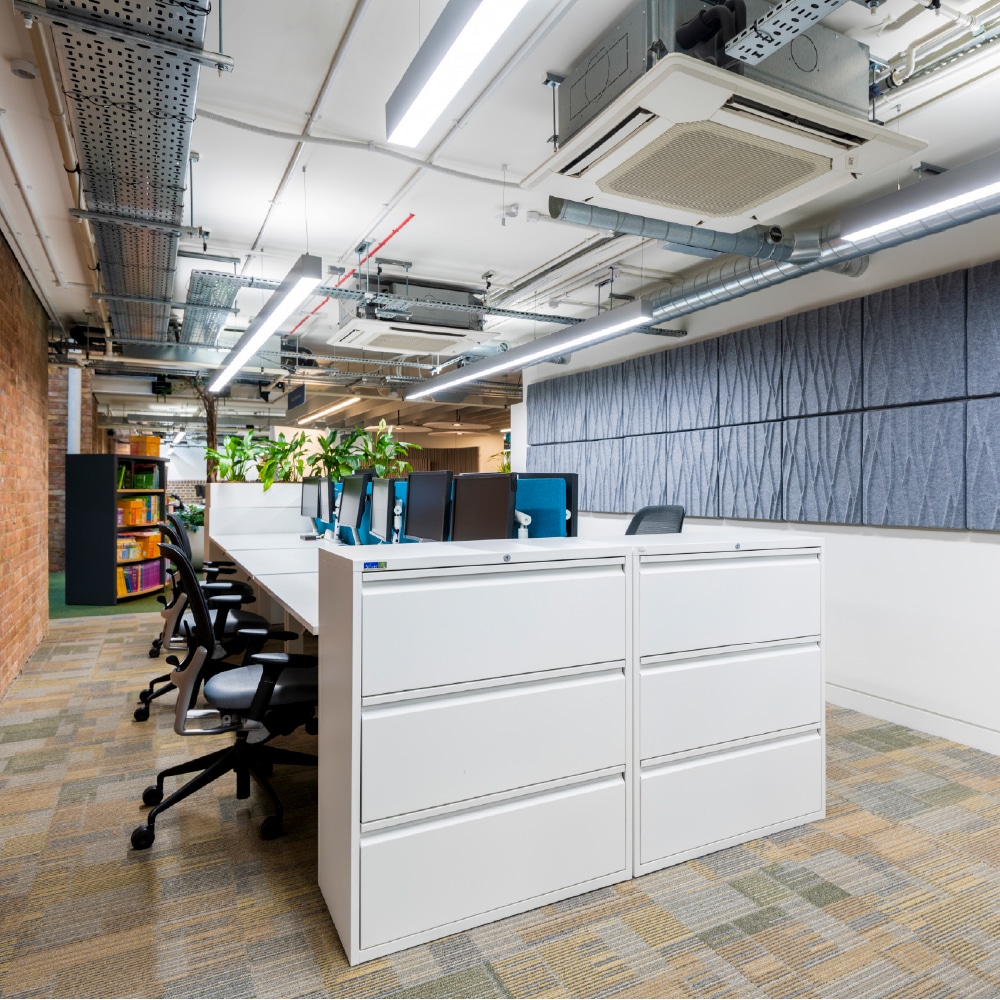

M-Line XL Surface and Suspended 01
M-Line XL Surface and Suspended 03
Wide profile Linear LED
Wide profile LED linear lighting

Description

The M-Line XL linear luminaire is available as either a suspended lighting or surface-mounted linear light system utilising the same, matching profile and is available in standard lengths up to 2,824mm with bespoke lengths available to order.  Surface mounting is achieved by directly fixing through the rear of the profile.  Suspension is made simple using a single-point ceiling bracket with a 2m adjustable stainless steel wire system.  Uplighting is available on lengths from 584mm upwards.  See also the M-Line XL recessed version.

This XL range is a matching design to our M-Line 38 slimline linear LED with a much wider profile than this, and even our Classic M-Line.

Key Features

  • Aluminium extruded sections in 9 standard lengths
  • Bespoke lengths available in 140mm increments
  • Colour options in 3000K/4000K/5000K
  • Custom shapes available subject to design
  • Incorporates European branded LED drivers
  • Up to 104 lumens per circuit watt
  • Direct/Indirect lighting options available for suspended fittings
  • Utilises latest generation long-life LEDs from leading manufacturers
  • Clip-in gear tray for easy installation
  • Opal polycarbonate diffuser
  • Tuneable white and RGB options available
  • Dimmable and emergency options available
  • Compatible with Casambi wireless control system
  • Dual Switch option available

M-Line XL Surface and Suspended

Request sample/quote
, ,

M-Line XL Surface and Suspended

DOWNLOAD DATASHEET
Enquire today

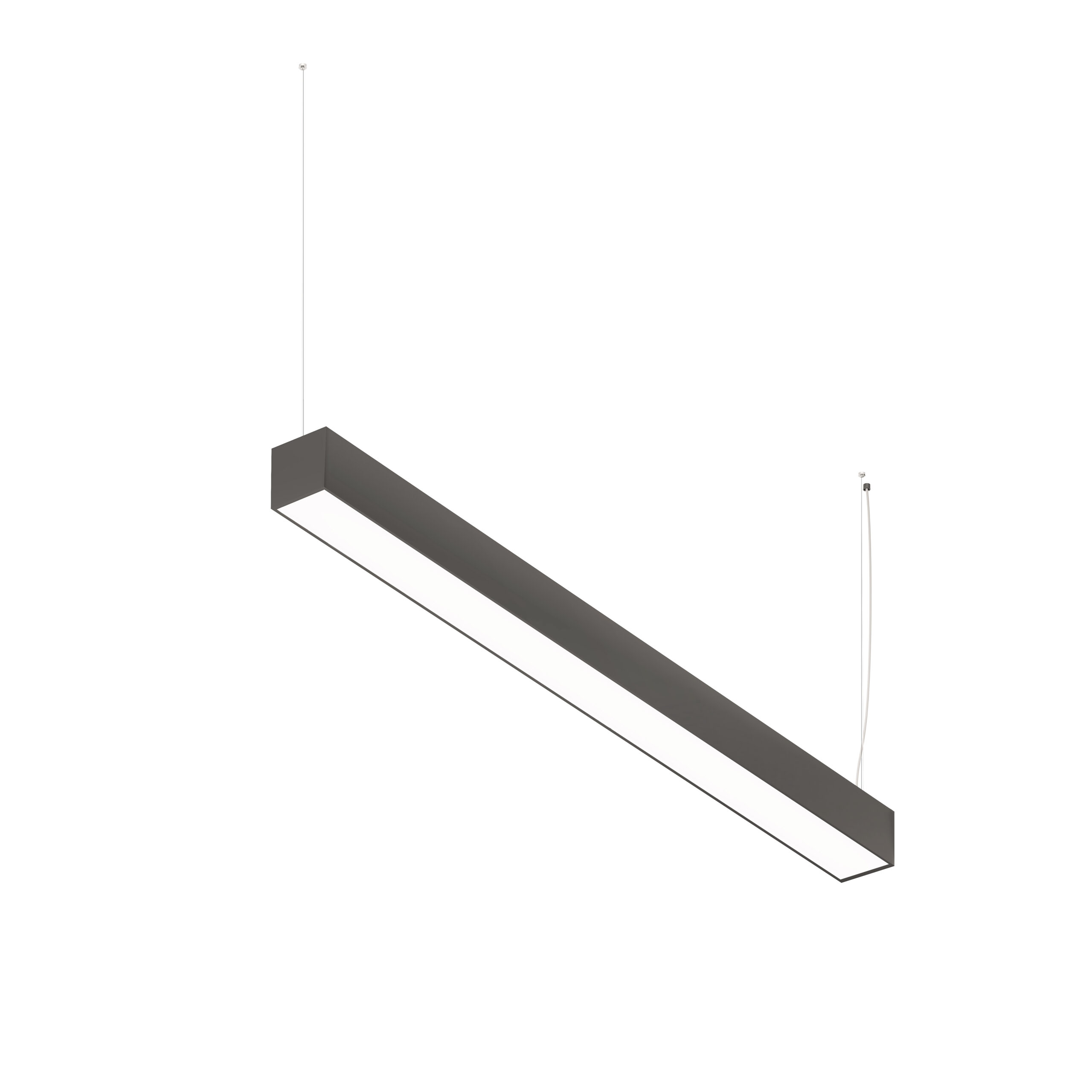

Suspended Direct Lighting System
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature Size
MLE75/584 17W 1589 104 4000K 584mm x 75mm
MLE75/864 26W 2383 104 4000K 864mm x 75mm
MLE75/1144 35W 3178 104 4000K 1144mm x 75mm
MLE75/1424 43W 3972 104 4000K 1424mm x 75mm
MLE75/1704 52W 4767 104 4000K 1704mm x 75mm
MLE75/1984 60W 5562 104 4000K 1984mm x 75mm
MLE75/2264 70W 6356 104 4000K 2264mm x 75mm
MLE75/2544 78W 7150 104 4000K 2544mm x 75mm
MLE75/2824 87W 7945 104 4000K 2824mm x 75mm
NOTE:  Longer bespoke linear lengths available in 140mm increments (Includes 2m suspension kits)

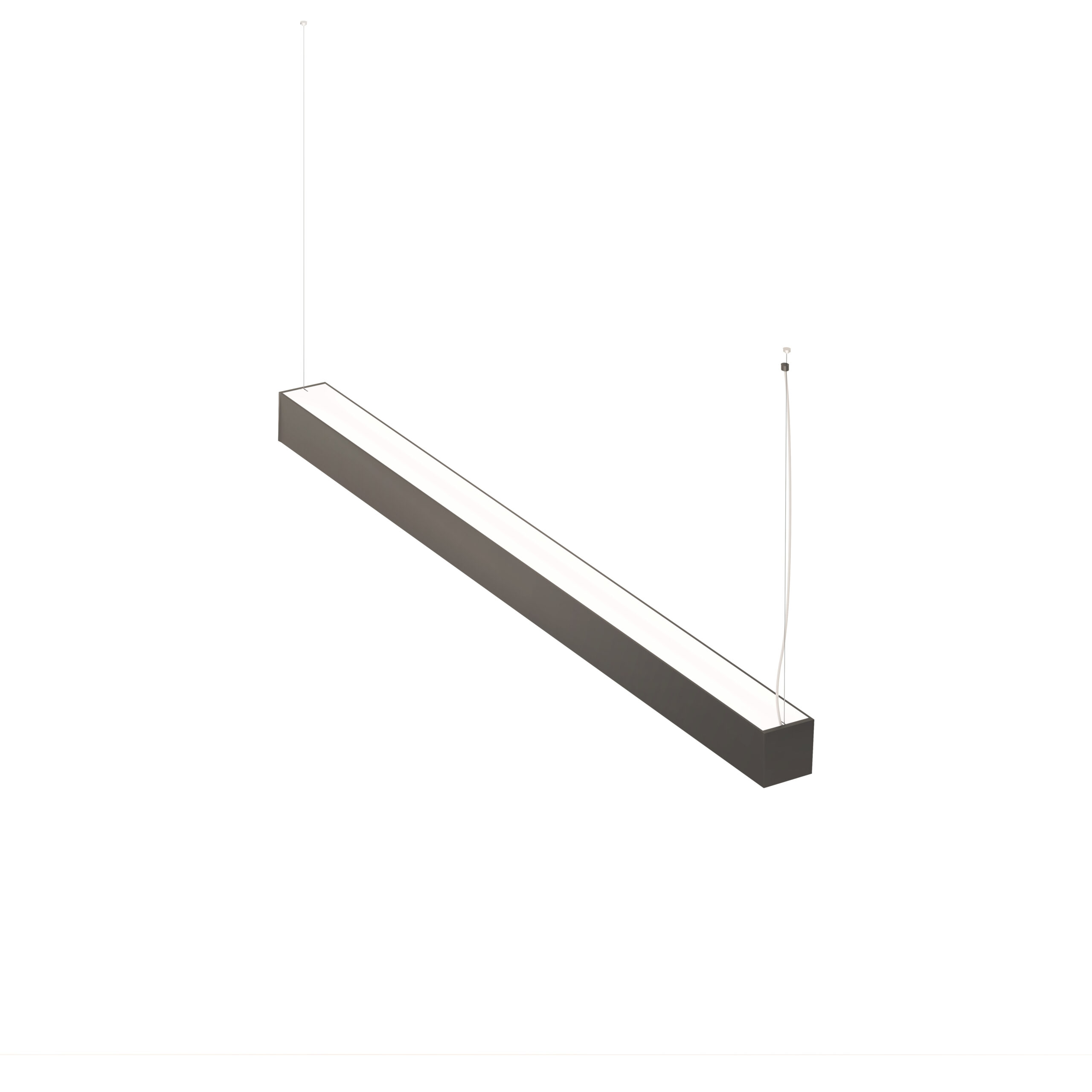

Suspended Direct/Indirect Lighting System/70% Direct/30% Indirect
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature Size
MLE75/584/DIR/IND 27W 2057 104 4000K 584mm x 75mm
MLE75/864/DIR/IND 43W 3317 104 4000K 864mm x 75mm
MLE75/1144/DIR/IND 60W 4579 104 4000K 1144mm x 75mm
MLE75/1424/DIR/IND 78W 5841 104 4000K 1424mm x 75mm
MLE75/1704/DIR/IND 95W 7102 104 4000K 1704mm x 75mm
MLE75/1984/DIR/IND 113W 8364 104 4000K 1984mm x 75mm
MLE75/2264/DIR/IND 130W 9625 104 4000K 2264mm x 75mm
MLE75/2544/DIR/IND 147W 10885 104 4000K 2544mm x 75mm
MLE75/2824/DIR/IND 165W 12148 104 4000K 2824mm x 75mm
NOTE:  Longer bespoke linear lengths available In 140mm increments (Includes 2m suspension kits)
Surface Mounted System
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature Size
MLES75/584 17W 1589 104 4000K 584mm x 75mm
MLES75/864 26W 2383 104 4000K 864mm x 75mm
MLES75/1144 35W 3178 104 4000K 1144mm x 75mm
MLES75/1424 43W 3972 104 4000K 1424mm x 75mm
MLES75/1704 52W 4767 104 4000K 1704mm x 75mm
MLES75/1984 60W 5562 104 4000K 1984mm x 75mm
MLES75/2264 70W 6356 104 4000K 2264mm x 75mm
MLES75/2544 78W 7150 104 4000K 2544mm x 75mm
MLES75/2824 87W 7945 104 4000K 2824mm x 75mm
NOTE:  Longer bespoke linear lengths available in 140mm increments
Option Code Description
/M 3 Hour Maintained Emergency
/MZ 3 Hour Maintained DALI Emergency
/D 1-10V Driver
/DALI DALI/DSI Dimmable Driver
/BTC Casambi Dimmable
/3K 3000K LED
/5K 5000K LED
/RGB Colour Changing LED
/TW Tunable White LED
Option Code Description
/W White (RAL 9016)
/G Grey (RAL 9006)
/B Black (RAL 9005)
/U (POA) Blue (RAL 5002)
/V (POA) Green (RAL 6018)
/T (POA) Yellow (RAL 1021)
/K (POA) Red (RAL 3020)
/N (POA) Jungle
/D (POA) Goldeneye
/0 (POA) Sahara
/L (POA) Autumn
/R (POA) Rusty chain
/C (POA) Pure chocolate
/1 (POA) Mist
/9 (POA) Darkrock
/I (POA) Carbon
Option Code Description
Supply Cable
CABTR3C 1.5m Transparent Current Cable 3 x 0.75mm2
CABTR5C 1.5m Transparent Current Cable 5 x 0.75mm2
MLESUS 2m Suspension kit for suspended M-Line
NOTE: Alternative length suspension kits available – POA
