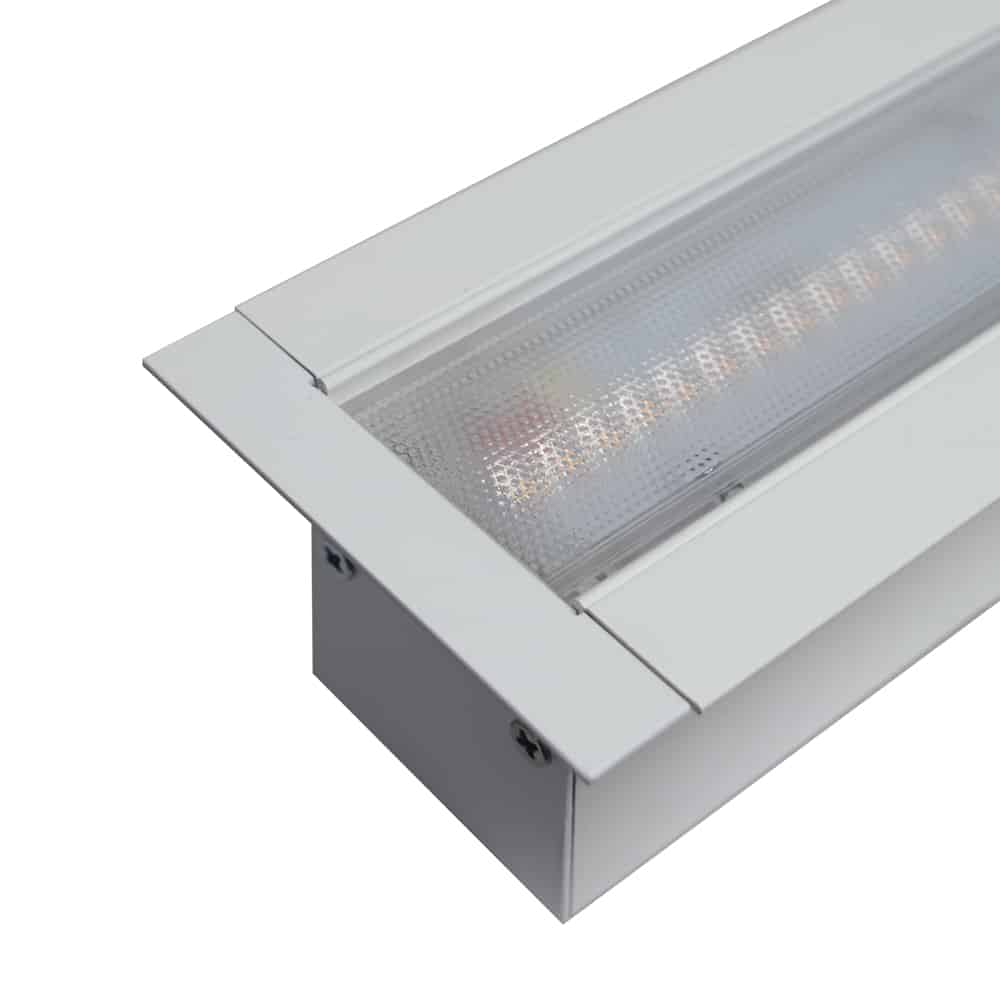

The M-Line 54 recessed linear LED System can help contribute towards UGR>19 compliant workspaces with its specialised low glare microprismatic diffuser manufactured from extruded PMMA.
The recessed LED linear aluminium profile requires an extra 10mm cut out for each standard length with bespoke lengths and shapes available to order upon request. The M-Line 54 low glare LED is perfect for task space lighting due to its direct and even light distribution.
Typical Applications: General Office Areas, Conference Rooms, Educational Facilities, Reception Areas, Retail Units, Healthcare Facilities, Hospitality and Leisure Facilities.
| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temp. | Size |
|---|---|---|---|---|---|
| MLR54/590 | 10W | 1548 | 155 | 4000K | 590mm |
| MLR54/870 | 15W | 2322 | 155 | 4000K | 870mm |
| MLR54/1151 | 20W | 3096 | 155 | 4000K | 1151mm |
| MLR54/1431 | 25W | 3870 | 155 | 4000K | 1431mm |
| MLR54/1712 | 30W | 4644 | 155 | 4000K | 1712mm |
| MLR54/1992 | 35W | 5418 | 155 | 4000K | 1992mm |
| MLR54/2273 | 40W | 6192 | 155 | 4000K | 2273mm |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | Leave blank if no emergency | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – FINISH | /9016 | RAL9016 White |
| /9005 | RAL9005 Black | |
| /9006 | RAL9006 Grey | |
| 4 – CCT | /4K | 4000K LED |
| /3K | 3000K LED | |
| 5 – CRI | /80 | CRI>80 |
