M-Line Linear Lighting System
Suspended Lighting

M-Line 54 Low Glare Direct/Indirect

need assistance on this product? call us now 01582 369 005
Phone Icon

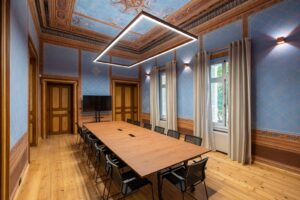

M-Line 54 Direct Indirect bespoke shape Project image highlighting decorated ceiling and boardroom table

Description

The M-Line 54 Direct/Indirect is a low glare suspended linear lighting system that can help contribute towards UGR>19 compliant workspaces with its specialised micro-prismatic polycarbonate diffuser.  The suspended linear light fitting is designed with direct (52%) and indirect (48%) light distribution, perfect for highlighting exposed or feature ceilings while providing comfortable light exposure for task areas.

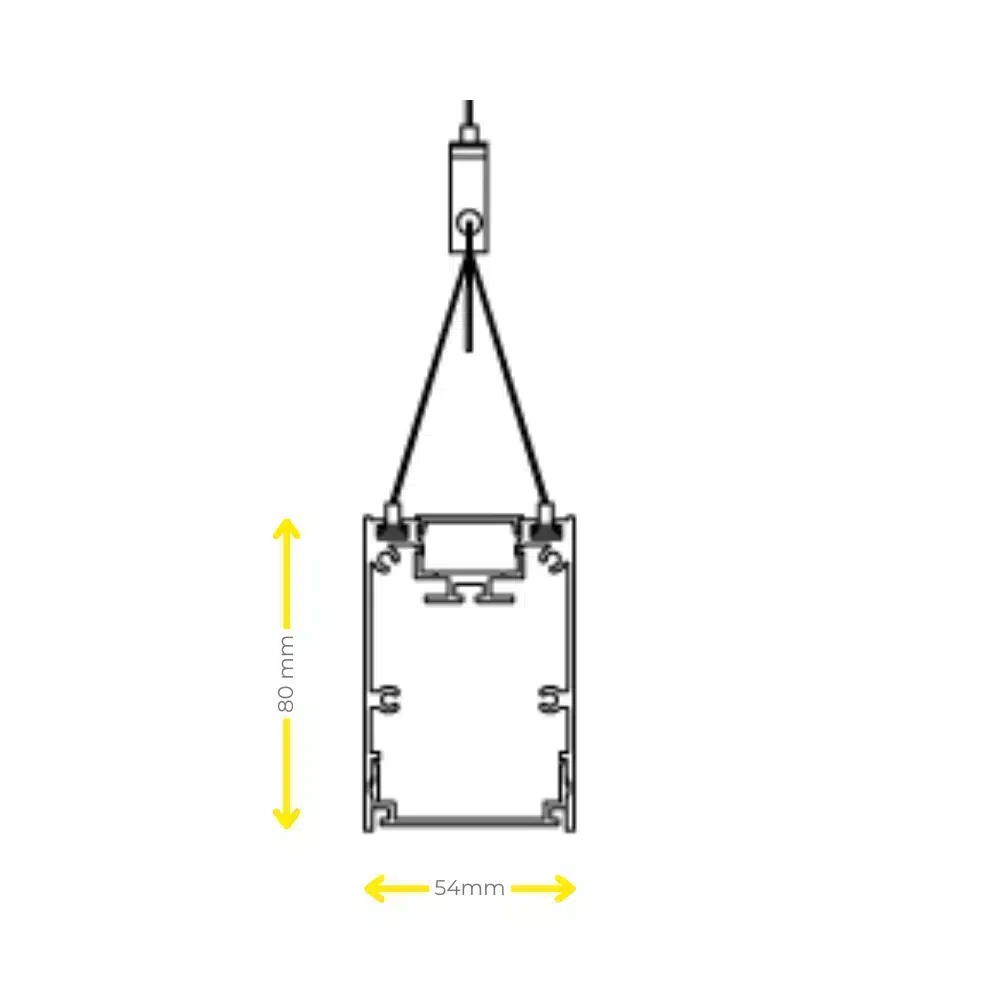

Suspension is made simple using a single-point ceiling bracket with a 5m adjustable stainless steel wire system. The M-Line 54 product range also includes M-Line 54 recessed  and M-Line 54 Surface or Suspended version.

The linear aluminium profile is available in 15 standard lengths up to 4551mm with bespoke lengths and shapes available to order upon request.

Key Features

  • Aluminium extruded sections in 15 standard lengths
  • Bespoke lengths available in multiple increments of 280mm
  • Low UGR
  • Direct / Indirect light distribution (52:48 ratio)
  • Uniform light and controlled beam with specialised diffuser
  • Colour options in 3000K/4000K
  • Dimmable and Emergency options available
  • Compatible with Casambi wireless control technology
  • Incorporates European-branded LED drivers
  • Energy efficient with over 110lm/W
  • Lifetime >80,000h L80 B10
  • CRI>80
  • 5-year warranty

M-Line 54 Low Glare Direct/Indirect



The M-Line recessed 54 UGR19 system is available in standard lengths up to 2840mm with bespoke formations and continuous lengths available to order for either ceiling or wall mounting.

Request sample/quote
,

M-Line 54 Low Glare Direct/Indirect

DOWNLOAD DATASHEET
Enquire today
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature Size
MLD54/596 23W 2492 110 4000K 596mm
MLD54/881 34W 3738 110 4000K 881mm
MLD54/1161 45W 4984 110 4000K 1161mm
MLD54/1446 57W 6230 110 4000K 1446mm
MLD54/1726 68W 7476 110 4000K 1726mm
MLD54/2011 79W 8722 110 4000K 2011mm
MLD54/2291 91W 9968 110 4000K 2291mm
MLD54/2576 102W 11214 110 4000K 2576mm
MLD54/2856 113W 12460 110 4000K 2856mm
MLD54/3141 125W 13706 110 4000K 3141mm
MLD54/3421 136W 14952 110 4000K 3421mm
MLD54/3706 147W 16198 110 4000K 3706mm
MLD54/3986 159W 17444 110 4000K 3986mm
MLD54/4271 170W 18690 110 4000K 4271mm
MLD54/4551 181W 19936 110 4000K 4551mm
NOTE: Bespoke linear lengths available upon request in multiple increments of 280mm

Product Options

Section Option Code Description
1 – Emergency Leave blank if no Emergency
/M Emergency
/MZ DALI Emergency
2 – Control /ND Non-Dimmable
/DA DALI Dimmable
/D 1-10V Dimmable
/BTC Casambi Dimmable
3 – Finish /9016 RAL9016 White
/9005 RAL9005 Black
/9006 RAL9006 Grey
4 – CCT /4K 4000K LED
/3K 3000K LED
5 – CRI /80 CRI >80
