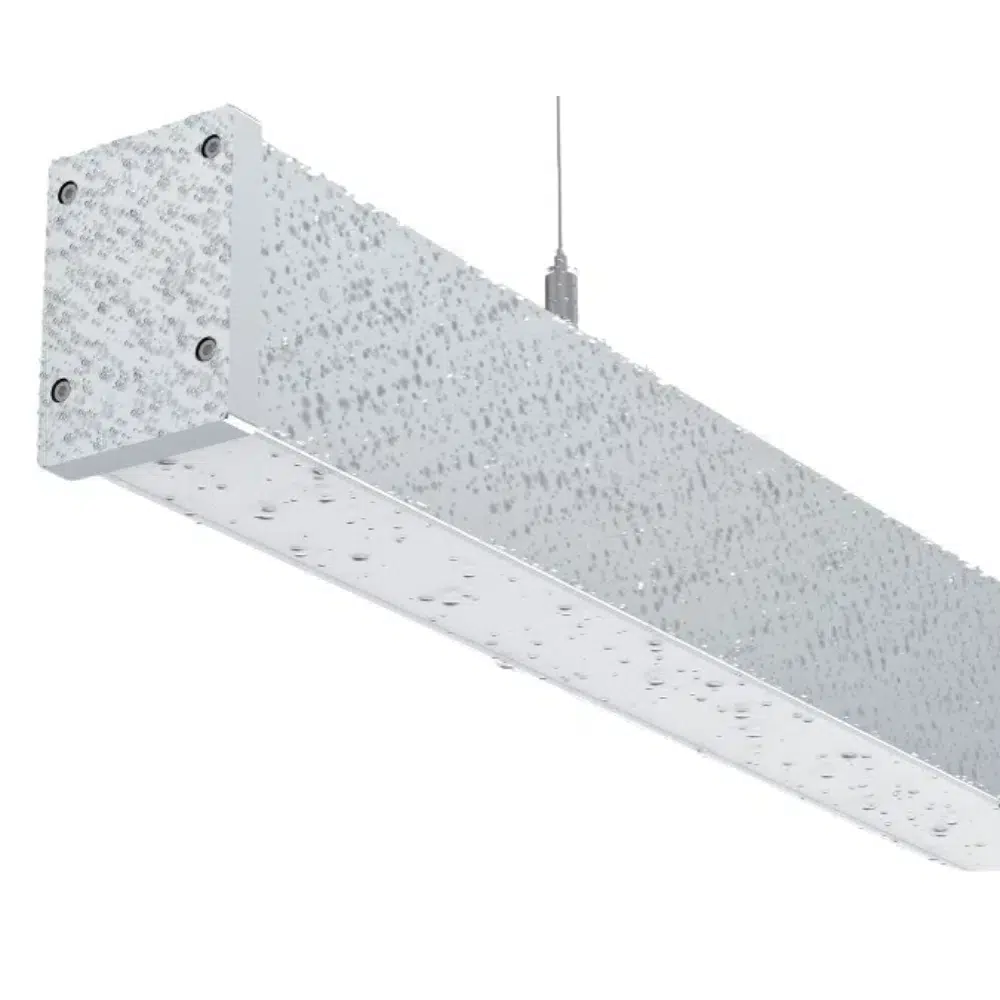

Our M-Line IP65 linear LED lighting solution is a durable and high-performance IP65 linear lighting system, which is built to deliver illumination in areas where it is essential to have enhanced protection for water and dust. As part of the trusted M-Line range, this IP65 rated LED lighting product combines robust functionality with a refined design aesthetic. Constructed with a precision-extruded aluminium housing and an opal polycarbonate diffuser, it produces uniform, glare-controlled lighting suitable for both architectural and commercial applications.
This waterproof linear LED light is ideal for warehouses, retail stores, sports and educational facilities where resilience and a clean visual design needs to be prioritised. Available in seven standard lengths of up to 2268mm, it supports bespoke configurations in 140mm increments, which provides a highly adaptable lighting solution. M-Line IP65 is tailored to the layout of every area in which you plan to use this product.
The integrated suspension system has discreet single-point ceiling brackets and also has adjustable 2m stainless steel wires making the installation process straightforward and easy to use.
Designed with maintenance in mind, the clip-in gear tray allows for quick, tool-free access when required. Operating at 4000K, the IP65 LED linear luminaire delivers a crisp, neutral white light, which is ideal for task-oriented environments. With a strong focus on energy efficiency, it meets the demands of clients seeking to reduce operational costs while enhancing visual comfort in high-traffic or industrial settings.
We offer fast lead times, dependable customer support, and nationwide delivery, which ensures our suspended IP65 linear light arrives ready to perform to the highest standard. Whether you’re designing lighting for a factory, gymnasium, or office, the M-Line IP65 provides a versatile and high-quality IP65 linear lighting option that supports long-term performance and environmental resilience to a wide range of temperature and humidity conditions.
| Product Code (mm) | LED Wattage | Lumen Output | Lumen / watt | Colour Temperature |
|---|---|---|---|---|
| MLP588 | 11 | 1253 | 110 | 4000K |
| MLP868 | 17 | 1880 | 110 | 4000K |
| MLP1148 | 23 | 2507 | 110 | 4000K |
| MLP1428 | 28 | 3133 | 110 | 4000K |
| MLP1708 | 34 | 3760 | 110 | 4000K |
| MLP1988 | 40 | 4387 | 110 | 4000K |
| MLP2268 | 45 | 5013 | 110 | 4000K |
| Technical Parameters | |
|---|---|
| Operating Life – L70/B50 at 50°C | 72,000 hrs |
| LED Binning | SDCM <3 |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | Leave blank if no emergency | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – FINISH | /ANO | Anodised |
| 4 – CCT | /4K | 4000K LED |
| /3K | 3000K LED (light output – 5%) | |
| /RGBW | RGBW | |
| 5 – CRI | /80 | CRI>80 |
| /90 | CRI>90 (light output – 16%) |
