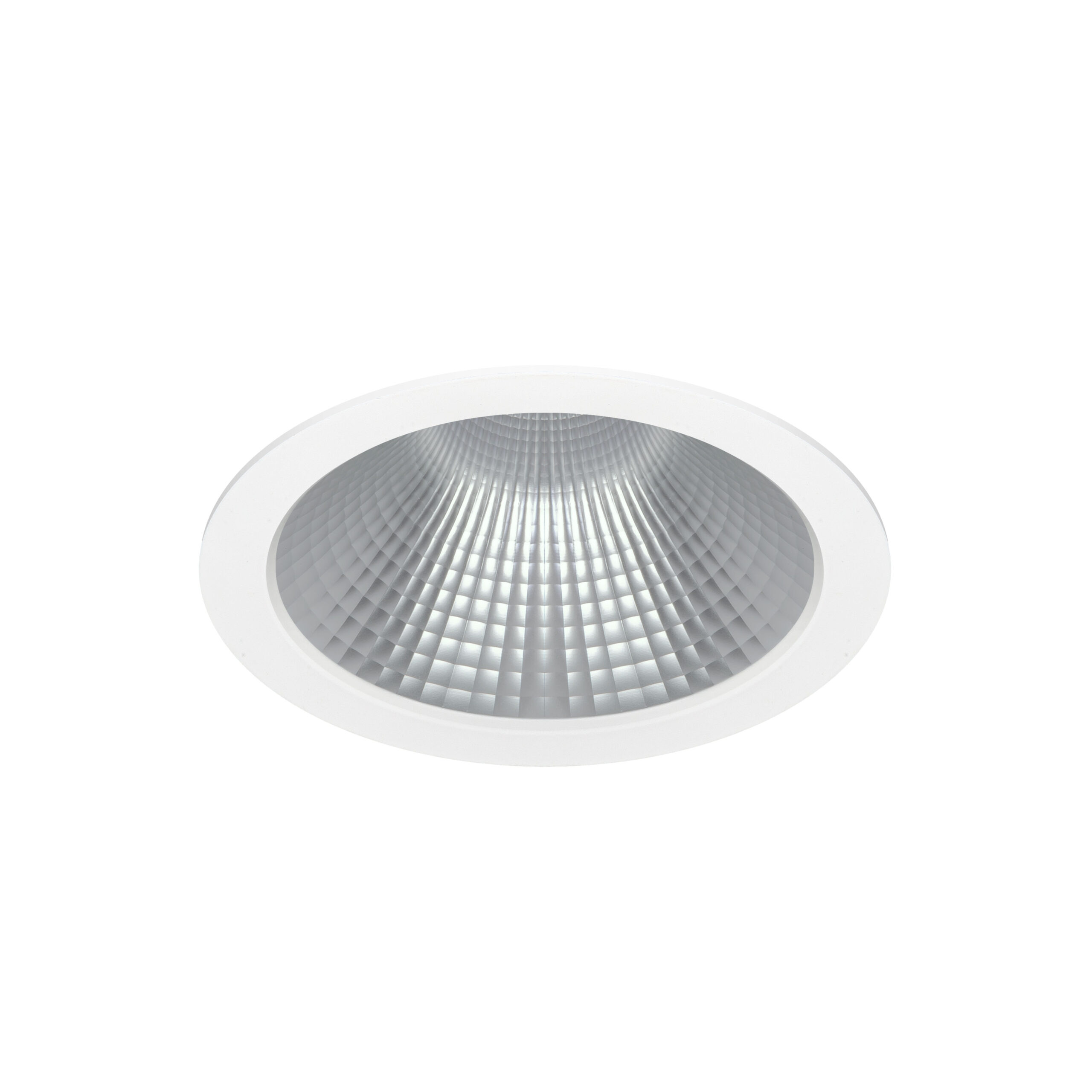

The Galaxy recessed LED downlight features a discreet low profile bezel, designed to offer architects and specifiers an unobtrusive large diameter downlight that can be integrated into any application, without compromising the visual effect of the space.
Most frequently featured in educational facilities due to its low UGR rating, it is also idea for offices and healthcare premises. With the IP65 option, it works well for leisure facilities. It also features excellent efficiencies, low glare lighting, long life LEDs as well as a wide range of options and accessories.

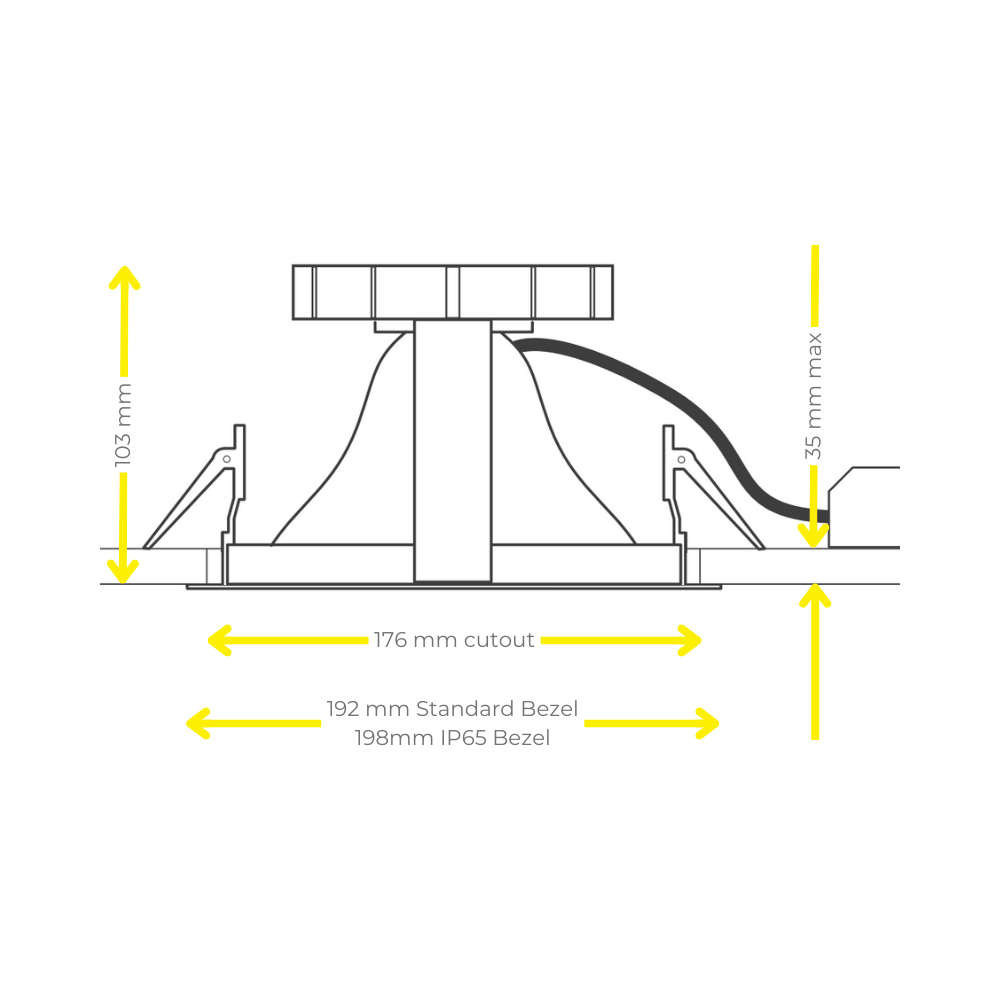

This recessed lighting solution including all options and accessories are made from high-quality materials that have been manufactured in the UK to provide uncompromised luminance. The Galaxy is also available with emergency options and a choice of bezel finishes as well as reflector alternatives. The standard bezel diameter is 192mm, or 198mm for the IP65 version.
| Product Code | LED Wattage | Lumen Output | Lumen/ Watt | Colour Temperature | Beam Angle |
|---|---|---|---|---|---|
| GAL10 | 10W | 1250 | 132 | 4000K | 55° |
| GAL15 | 15W | 2025 | 135 | 4000K | 55° |
| GAL25 | 25W | 3200 | 131 | 4000K | 55° |
| GAL38 | 38W | 4600 | 121 | 4000K | 55° |
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | If no emergency required, leave blank | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – BEZEL | /WH | White RAL9016 Bezel |
| /OW | White RAL9010 Bezel | |
| /BL | Black RAL9005 Bezel | |
| /RA | RAL Bezel – state code | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K (light output -4%) | |
| /TW | Tunable White | |
| 5 – CRI | /80 | CRI>80 |
| /90 | CRI>90 | |
| 6 – IP RATING | /20 | IP20 |
| /54 | IP54 Glass | |
| /65 | IP65 Bezel | |

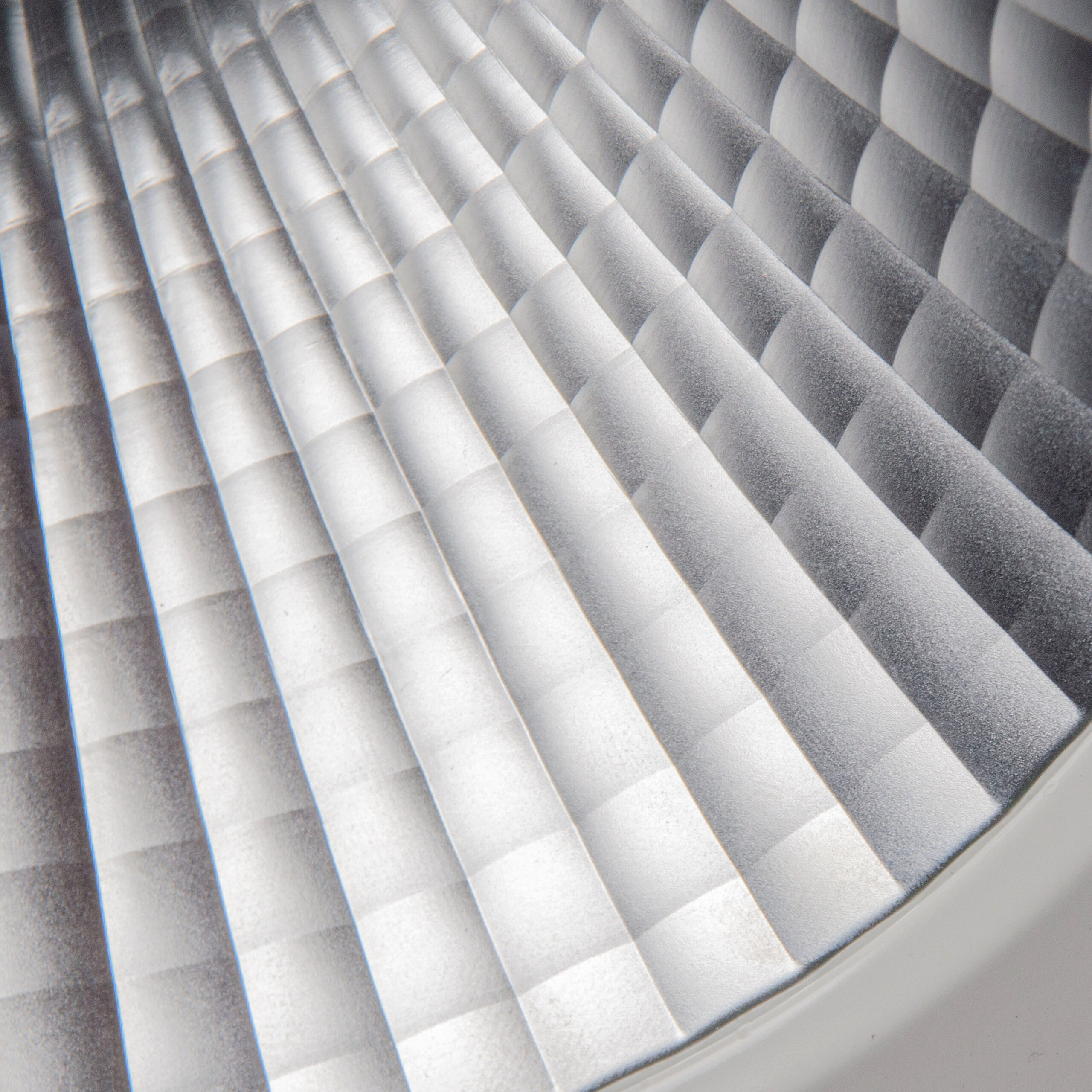

| 7 – REFLECTOR | /SA65 | 65° Satin Reflector |
| /MF55 | 55° Multi-faceted Reflector |
