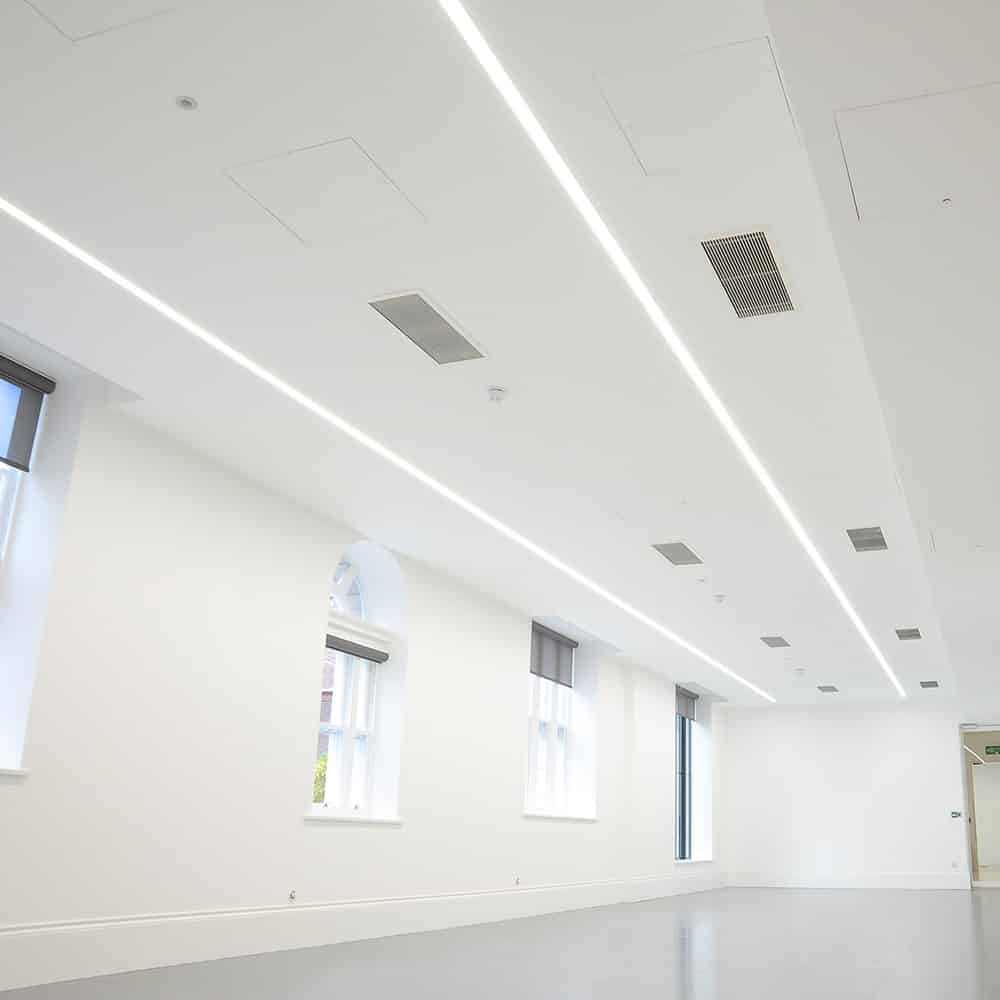

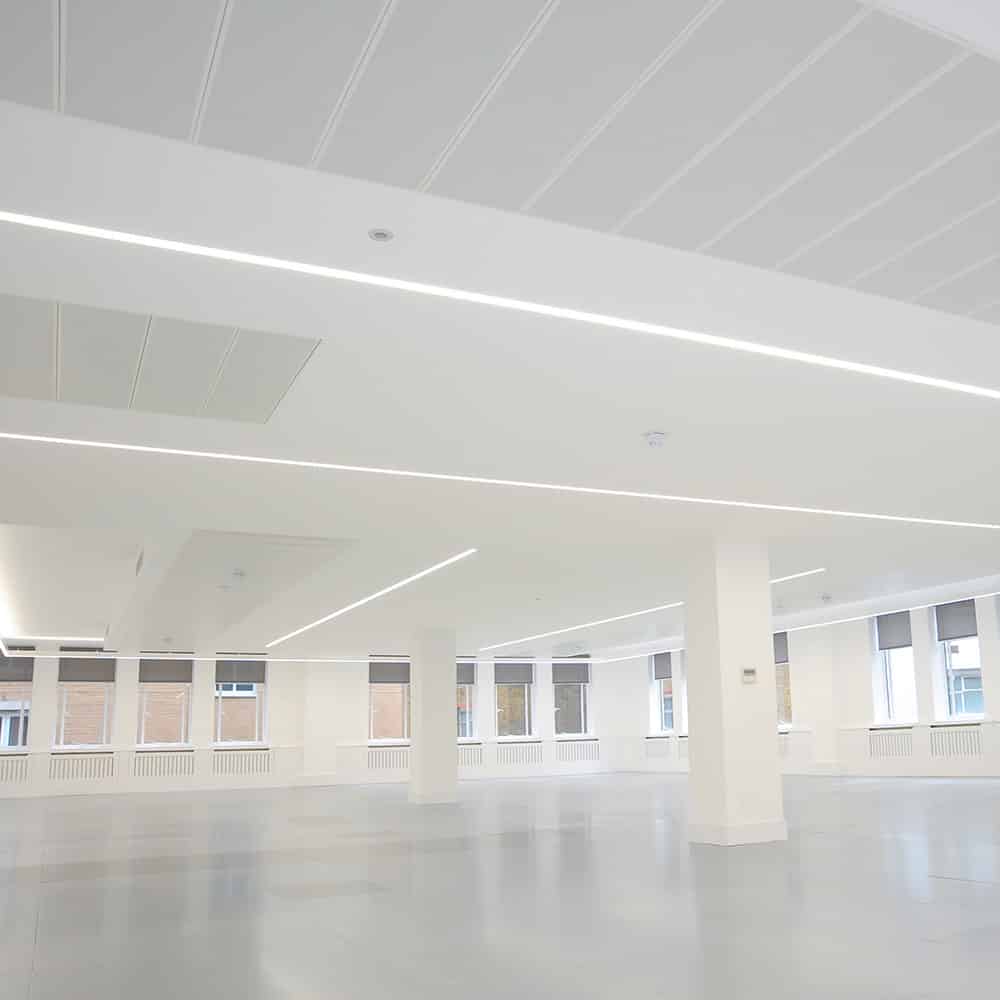

From general office areas to educational facilities, the recessed M-Line system plays a key role in modern lighting design. For lower ceilings where space is limited, recessed linear lighting creates the impression of a wider area while leaving more room for decorative features. The system provides minimal surface-level disruption, ensuring a clean, seamless finish.
The recessed system is available in standard lengths up to 2840mm, with continuous lengths and bespoke formations available to order. While designed primarily for contemporary ceiling installations, wall-mounted systems can also be supplied upon request.

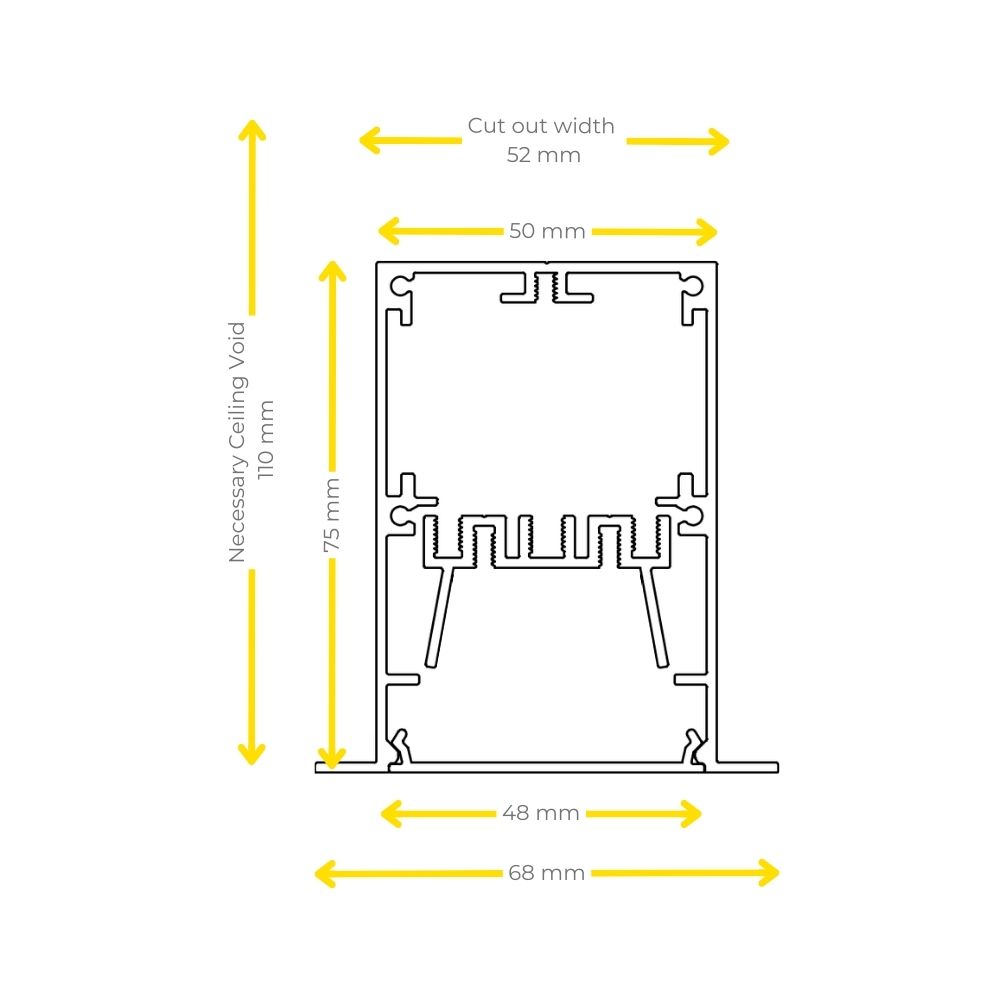

The M-Line Classic LED Linear has a standard width of 50mm, while the wider 75mm M-Line XL offers a bold alternative for interiors that require high-impact recessed linear lighting.
To support efficient fit-outs, installation is simplified with a recessed bracket and clip-in framework, keeping installation times to a minimum.
| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temp. | Length (incl. flange) | Cutout Dimensions |
| MLER600 | 12.5W | 1298 | 104 | 4000K | 600mm | 586 x 52mm |
| MLER880 | 19W | 1974 | 104 | 4000K | 880mm | 866 x 52mm |
| MLER1160 | 25W | 2596 | 104 | 4000K | 1160mm | 1146 x 52mm |
| MLER1440 | 31W | 3245 | 104 | 4000K | 1440mm | 1426 x 52mm |
| MLER1720 | 37.5W | 3895 | 104 | 4000K | 1720mm | 1706 x 52mm |
| MLER2000 | 44W | 4543 | 104 | 4000K | 2000mm | 1986 x 52mm |
| MLER2280 | 50W | 5192 | 104 | 4000K | 2280mm | 2266 x 52mm |
| MLER2560 | 56W | 5841 | 104 | 4000K | 2560mm | 2546 x 52mm |
| MLER2840 | 62.5W | 6490 | 104 | 4000K | 2840mm | 2826 x 52mm |
| NOTE: Longer/bespoke lengths available in 140mm increments | ||||||
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | /NE | No Emergency |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 3 – FINISH | /WH | RAL9016 White |
| /BL | RAL9005 Black | |
| /RA | Any RAL Colour | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K (light output -6%) | |
| /5K | 5000K | |
| /TW | Tunable White | |
| /RGB | Colour Changing RGB | |
| 5 – CRI | /80 | CRI>80 (typical 84) |
| /90 | CRI>90 |
