Description

Available in 4 different sizes and a wide variety of patterns and colours to choose from, it is the ideal option when lighting large open spaces or simply wanting to create a stunning yet noise-reducing lighting feature.

Simply choose your pattern, or design one of your own and use any of the 30 bird-inspired colours as the base colour. Then, choose from one of the 5 top colours to complete your design.

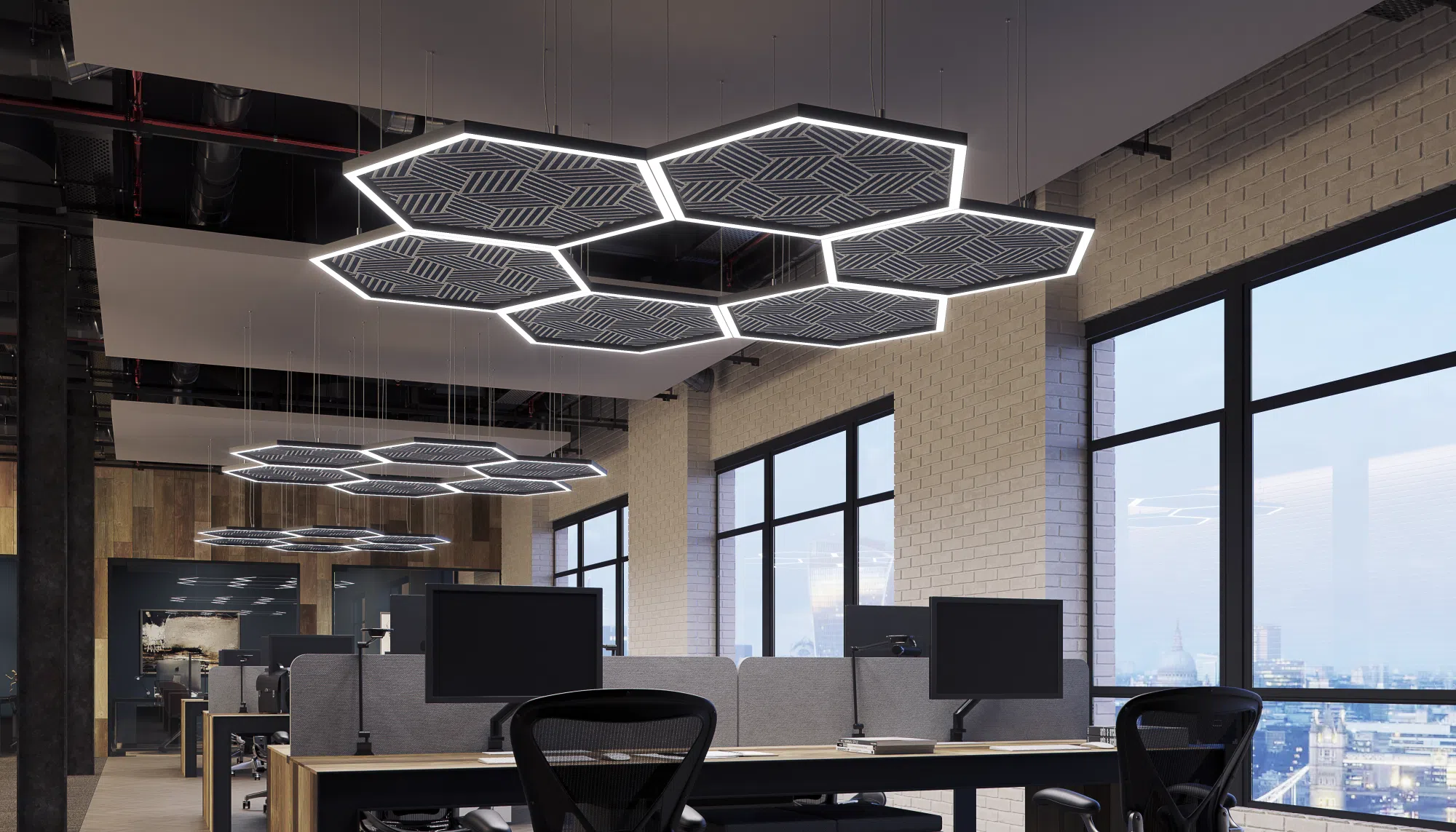

The versatile design makes our Soreno acoustic light pendant particularly ideal for break-out areas, social spaces and informal collaborative spaces where several sizes and shapes can be installed together to manage noise and add visual impact to areas that require lighting and acoustics.

Download the datasheet for full product specifications.

Key Features

  • Decorative acoustic surface/suspended LED luminaire\
  • European-branded remote LED drivers
  • 8.8 W/M or 19.2 W/M high-density LED tape
  • Up to 79 lumens per circuit watt
  • Extruded aluminium body available in 3 colours, other RAL colours available upon request.
  • 35mm x 35mm aluminium profile
  • LED 4000K as standard, 3000K option available
  • RGB and Tunable White available
  • CRI>90
  • IP20
  • Opal polycarbonate diffuser
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temp Size (corner – corner) Height
SOR225 18W 1371 76 4000K 225mm 47mm
SOR365 35W 2742 79 4000K 365mm 47mm
SOR455 46W 3656 79 4000K 455mm 47mm
SOR515 52W 4113 79 4000K 515mm 47mm
NOTE: Above figures based on 19.2 w/m LED tape option

Control Options

Section Option Code Description
1 –
EMERGENCY
/NE No Emergency
2 – CONTROL /ND
/DA
/BTC
Non-Dim
DALI Dimmable Driver
Casambi Dimmable Driver
3 – LIGHT
PROFILE
COLOUR
FINISH
/9005
/9016
/RA
Black
White
Any RAL Code
4 – CCT /4K
/3K
4000K LED
3000K LED
5 – CRI /80
/90
CRI>80
CRI>90
