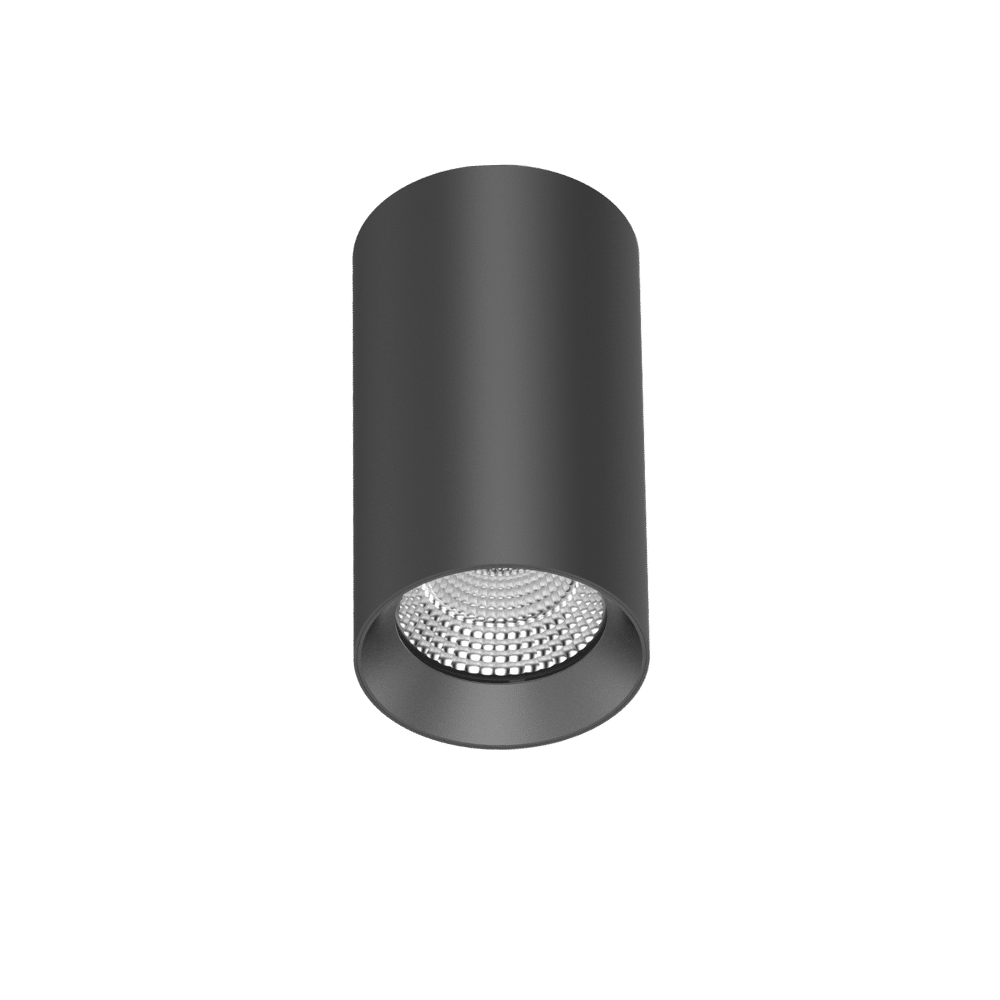

In today’s commercial lighting industry, it’s is as much about standing out from the crowd as it is about creating the perfect customer experience. The Canta surface mounted LED downlight can provide both using the attractive powder-coated aluminium body and cool 4000K colour temperature.
To provide the desired spread and luminance, the Canta comes with a suspension option. For task areas or multi-dimensional design, the flex can be shortened or lengthened to ensure that the coverage meets the requirements of a space so that work surfaces and other architectural features are illuminated to standard. With three different sizes and wattages to choose from, you can ensure you have the right lighting solution for any application.
Our Canta luminaire has been designed as a stylish option for surface, track or suspended applications and is ideal where appearance is important. The body is powder-coated aluminium and gives good
heat dissipation. The faceted reflector has a good reflective rate.
| Product Code | LED Wattage | Lumen Output | Lumen/Watt | Colour Temperature | Beam Angle |
|---|---|---|---|---|---|
| CANS10 | 10W | 1244 | 121 | 4000K | 60° |
| CANS15 | 15W | 1822 | 126 | 4000K | 60° |
| CANS25 | 25W | 3006 | 126 | 4000K | 60° |
| Replace CANS with CAN for suspended option | |||||
| Section | Option Code | Description |
|---|---|---|
| 1 – CONTROL | /TD | Mains Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| 2 – FINISH | /9016 | RAL9016 White |
| /9005 | RAL9005 Black | |
| 3 – CCT | /4K | 4000K |
| /3K | 3000K (light output -3%) | |
| 4 – BEAM ANGLE | /R24 | 24° lens (light output -1%) |
| /R36 | 36° lens | |
| /R60 | 60° lens | |
| 5 – CRI | /80 | CRI>80 |
| /90 | CRI>90 (light output -15%) | |
| 6 – IP RATING | /40 | IP40 (when used with mounting box) |
| 7 – ACCESSORIES | Leave blank for standard | |
| /ADJ | Adjustable base (available on 10 and 15W models) |
