Description

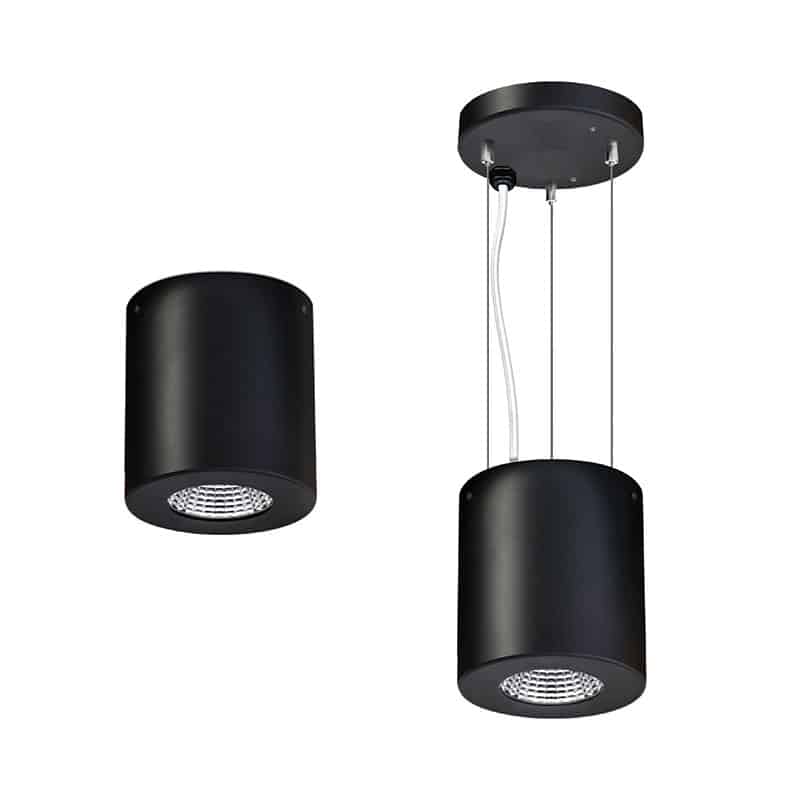

Our low glare, UGR19 compliant Enforce downlight has been selected for use in surface or suspended-mounted applications and can be mounted directly onto a ceiling or BESA box. The powder-coated aluminium body provides corrosion resistance and excellent heat dissipation. The high-quality reflector is sealed by a clear diffuser. The size of the fitting allows for integral emergency controls.

Key Lighting Features

  • Incorporates Tridonic LED and driver system
  • Multi-faceted 60° reflector as standard
  • Finished in RAL 9016 brilliant white as standard

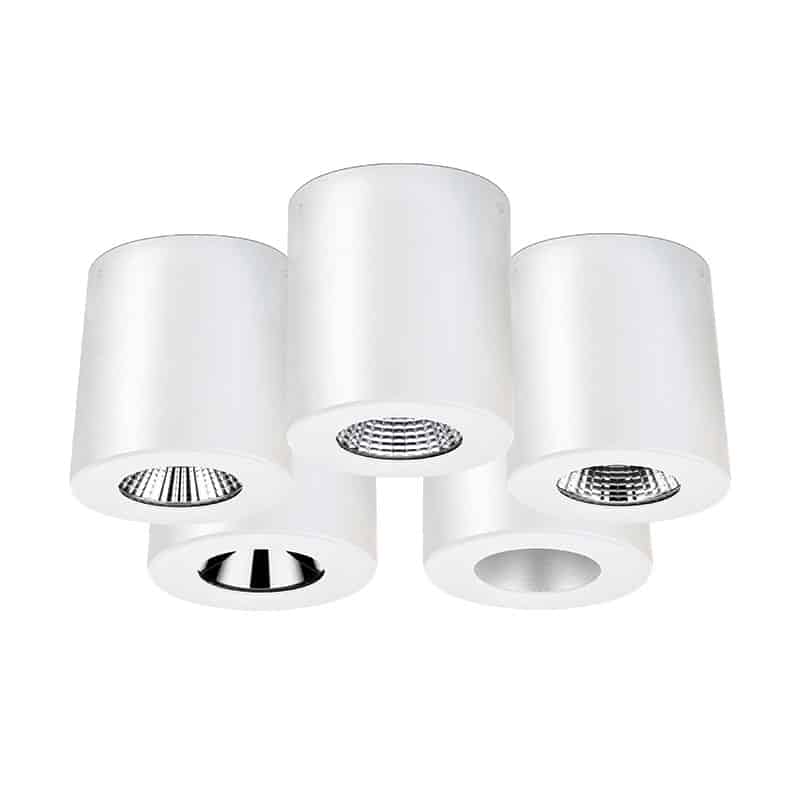

  • Black and grey options available
  • 3000K and 4000K options
  • Integral emergency option
  • Dimming options available
  • Surface as standard (suspension mounting available)
  • IP20
  • CRI>80 as standard (CRI>90 available)
  • 5-year warranty
  • Made in UK
Product Code LED Wattage Lumen Output Lumen/Watt Colour Temperature
ENF8/3K 8W 1010 126 3000K
ENF8 8W 1044 130 4000K
ENF14/3K 14W 1705 124 3000K
ENF14 14W 1766 128 4000K
ENF19/3K 19W 2307 121 3000K
ENF19 19W 2385 125 4000K

Control Options

Option Code Description
/M 3-Hour Maintained Emergency
/MZ 3-Hour Maintained DALI Emergency
/TD Mains Dimmable
/DALI DALI/DSI Driver
/BTC Casambi Dimmable
/TW Tuneable White
/CRI90 CRI>90
/MF25 25° Multi-Faceted Reflector
/MF40 40° Multi-Faceted Reflector
/SP40 40° Specular Reflector
/SA50 50° Satin Reflector
/9005 RAL 9005 (Black)
/9006 RAL 9006 (Grey)
/9010 RAL 9010 (White)
/SUS Suspended Option
Size
Ø 150mm H 165mm
